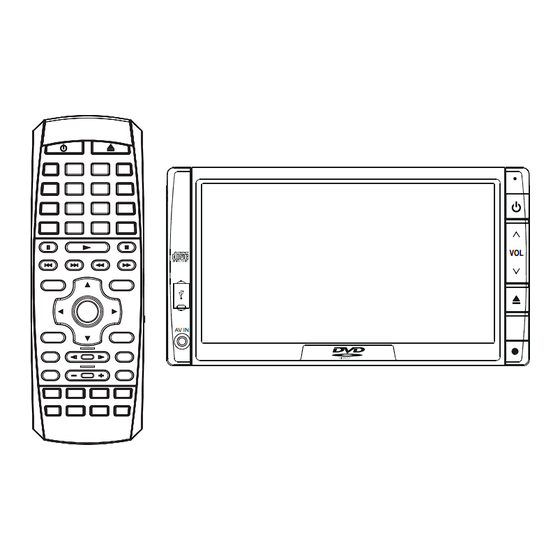

- Page 1 STS65BT OWNER’S MANUAL Mobile Video System AV IN • 6.5 Inch Touch Screen Monitor • DVD Player with Stereo Radio • Multi-subtitle/audio Languages Function • Multi-angle Function • Parental Control • Bluetooth Function • USB Interface • IPOD Ready • Remote Control...
-
Page 2: Features
FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. • A single chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders. -
Page 3: Table Of Contents
CONTENTS FEATURES ...2 SAFETY INFORMATION...4 DISC NOTES ...5 INSTALLATION ...6 THE PLAYER...9 ELECTRICAL CONNECTION...10 REMOTE CONTROL...11 BASIC OPERATION...14 DISC (DVD/VCD/CD/MP3) OPERATION...17 AV OPERATION ...21 RADIO OPERATION ...22 USB PLAY OPERATION ...22 BLUETOOTH OPERATION...23 TROUBLE SHOOTING ...25 SPECIFICATION ...26... -
Page 4: Safety Information
SAFETY INFORMATION CAUTION: MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. -
Page 5: Disc Notes
DISC NOTES Disc formats supported by this player 12 cm disc (Single-sided disc only) Video CD 12 cm disc 12 cm disc 12 cm disc Handling and Cleaning • Dirt, dust, scratches and warping disc will cause misoperation. • Do not place stickers or make scratches on discs. -
Page 6: Installation
INSTALLATION Method A: TAKE OUT SCREW BEFORE INSTALLATION Before install the unit, please remove the two screws. Take out screw before installation Installing the unit Be sure you test all connections first, and then follow these steps to install the unit. 1. - Page 7 INSTALLATION 8. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the outer trim ring and install the unit's front panel. (see the steps of “using the detachable front panel”). Removing the unit 1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal.
- Page 8 INSTALLATION Method B: Install the unit onto the car bracket using the supplied screws (M5X8mm). The holes of the car bracket to use will differ depending on the car model. Car Bracket Screws (M5x8mm) Screws (M5x8mm)
-
Page 9: The Player
THE PLAYER LOCATION OF THE KEYS AV IN 1. Microphone 2. POWER Button 3. VOL^/v 4. Eject Button/MENU 5. Remote Sensor 6. Reset Button 7. AV IN 8. USB Interface... -
Page 10: Electrical Connection
ELECTRICAL CONNECTION SUBWOOFER (GREEN) COAXIAL (ORANGE) L IN (WHITE) R IN (RED) VIDEO IN (YELLOW) R OUT (RED) L OUT (WHITE) VIDEO OUT (YELLOW) (RED)Rch (WHITE)Lch (RED)Rch (WHITE)Lch NOTE : WHEN CONNECT / DISCONNECT THE GPS BOX WITH THE MAIN UNIT, YOU SHOULD TURN THE POWER OFF. FUSE (GREEN) (YELLOW) -
Page 11: Remote Control
REMOTE CONTROL LOCATION AND FUNCTION OF KEYS... - Page 12 REMOTE CONTROL Press POWER to turn the unit ON or OFF. Shortly press to eject the disc, Press and hold it, the unit will return to the Main Menu. 3. EQ Press it to select desired audio equalization. 4. SUBT/BACK Changing of the SUBTITLE language on multi-subtitle language DVD disc.
- Page 13 REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new batteries. Make sure that the positive and negative terminals of the batteries are oriented as indicated. 3. Close the cover • Battery: One button cell lithium battery.
-
Page 14: Basic Operation
OPERATION BASIC OPERATION Turn the Unit on/off When all the connection is finished, Shortly press POWER button on the front panel or on the remote control will turn the unit on. And the screen will be automatically drawn to 30 angle with the unit. Shortly press on the front panel or on the remote control to turn the unit off. - Page 15 OPERATION C. Radio Setup buttons or tap the corresponding icon to select the items. Then use buttons or tap the icon to change the setup. In this menu, the following operations is permitted: Change receive mode between DX and Local. Change track between Mono or Stereo.
- Page 16 OPERATION Reset function There is a reset button on the front panel, It must be activated with either a ballpoint pen or thin metal object. The reset button is to be activated for the following reasons: 1. Initial installation of the unit when all wiring is completed.
-
Page 17: Disc (Dvd/Vcd/Cd/Mp3) Operation
OPERATION DISC (DVD, VCD, CD, MP3) OPERATION Loading/ejecting a disc In any mode, press remote control or in DVD mode press button on the front panel the screen will be slided down, insert the disc with printed side facing up into the disc slot (1). - Page 18 OPERATION - Some discs only contain one soundtrack language. Repeat Play/Paragraph Repeat Play 1. When you want to repeat playing the whole disc or track or a chapter in the disc. Press REPEAT button repeatedly to select different repeat mode. For different kinds of discs, press REPEAT button has different effects.
- Page 19 OPERATION Note: When playing tracks you programmed, press PROG button to enter the program interface, press PROG for second time will exit the menu and the unit will resume to normal play. When you want to return to program play, press PROG to enter program interface and select PLAY then use OK button to confirm, it will begin program play.
- Page 20 OPERATION that the parental setting allows. A section of the disc can have several different sequences that vary in parental control level. In the above example of a disc with parental control, the player will show a different section depending on the parental control level set in the player’s menu.
-
Page 21: Av Operation
OPERATION 7) C: Display the played time of the current chapter. 1/1 ENG 5.1CH Display the current disc’s LANGUAGE, AUDIO TYPE, SUBTITLE LANGUAGE and PLAY ANGLE. FOR VCD: CD TRK 4/16 HDCD CD TRK 4/16 HDCD CD TRK 4/16 HDCD CD TRK 4/16 HDCD The meaning of the menu is the same... -
Page 22: Radio Operation
OPERATION RADIO OPERATION Switching to Radio Mode Press MODE button on remote control or press MOD button on the DVD unit or tap icon on the touch screen to select radio mode. In radio mode, the following information will appear on the display. -
Page 23: Bluetooth Operation
OPERATION BLUETOOTH OPERATION Bluetooth Mode Selection icon on Main Menu will enter Bluetooth mode. And the Bluetooth interface will be displayed: Pairing icon on the screen to enter BT Setup interface: 1) Tap PAIR bar on the screen, you will see “Waiting”... - Page 24 OPERATION Phonebook Operation icon on the Bluetooth menu will enter phonebook operation interface. 1) Add a new phone number to enter the following interface: on the screen the charactor on this bar will be changed among: Name, Address and Number. You can input the corresponding information by tapping the numeric or character icons on the screen, then tapping...
-
Page 25: Trouble Shooting
TROUBLE SHOOTING If it appears that your DVD unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Under no circumstances should you try to repair the player yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player. -
Page 26: Specification
SPECIFICATIONS GENERAL Power Supply Requirements Maximum Output Power Current Drain RADIO Frequency Coverage Sensitivity (S/N = 30 dB) 4 μV Image Rejection Stereo Separation RD PSG Frequency Coverage Sensitivity (S/N = 20 dB) 36 dBu Image Rejection Signal System Discs Played Monitor Screen Size Note: Specifications and design are subject to modification, without notice, due to...
