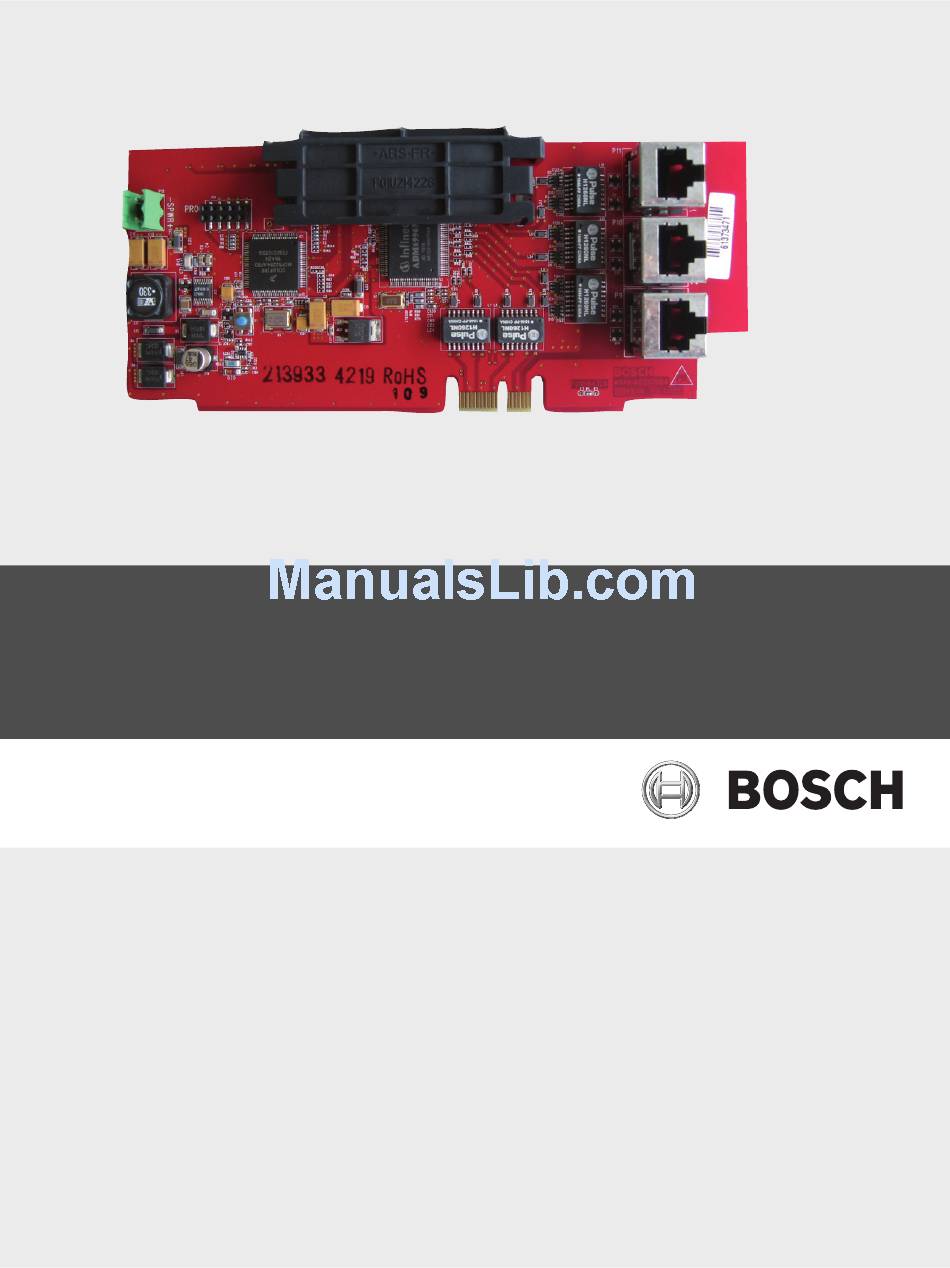

- Page 1 Networking Cards FPE-1000-NE | -NF | -NW Installation Manual...
- Page 3 FPE-1000-NE | -NF | -NW Documentation Availability Note For additional documentation including documents in languages other than English, see this CD (shipped with the FPA-1000 Fire Panel). Para obtener documentación adicional, incluyendo los documentos en idiomas distintos del Inglés, vea este CD (incluido con la central de incendios FPA-1000).
- Page 4 FPE-1000-NE | -NF | -NW F.01U.214.374 | 01 | 2012.08 Bosch Security System, Inc.
-
Page 5: Table Of Contents
General considerations Class A connections Technical Data Common parameters of all three networking cards 6.1.1 Environmental 6.1.2 Mechanical FPE-1000-NE Ethernet Networking Card parameters 6.2.1 Electrical FPE-1000-NF Fiber Optic Networking Card parameters 6.3.1 Electrical FPE-1000-NW Wired Networking Card parameters 6.4.1 Electrical Bosch Security System, Inc. -
Page 6: Safety
Disclaimer NOTICE! Bosch Security Systems, Inc. has tested and approved the FPA-1000 Analog Addressable Fire Panels and associated Netwotrking Cards including the system and card software. The system must only be operated with the software included in the product delivery or with authorized software upgrades (downloadable from the official Bosch homepage). -
Page 7: Disclaimer According To The Gnu Library General Product Licence
DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Bosch Security System, Inc. Installation Manual F.01U.214.374 | 01 | 2012.08... -
Page 8: System Overview
2 wired ports 14 AWG (1.6 mm) to 18 AWG 3280 ft (1000 m) (1.02 mm), plain or twisted pair wire (shielded or unshielded) Table 2.1 Networking Card Types F.01U.214.374 | 01 | 2012.08 Installation Manual Bosch Security System, Inc. -
Page 9: Planning
This supervision is selected by programming. For programming information, follow the panel programming instructions in the FPA-1000 Network Quick Installation Guide, or see Keypad Operation and Programming, Programming or Bosch Security System, Inc. Installation Manual F.01U.214.374 | 01 | 2012.08... - Page 10 | Planning Networking Cards Browser-based Operation and Programming, Networking in the FPA-1000 Installation and Operation Guide. F.01U.214.374 | 01 | 2012.08 Installation Manual Bosch Security System, Inc.
-
Page 11: Installation
Position the networking card along the bottom of the mainboard keypad with the connections aligned with the slot. Press down softly until the snap-fit hook locks into place ensuring that the connections seat into the slot properly. Bosch Security System, Inc. Installation Manual F.01U.214.374 | 01 | 2012.08... - Page 12 Silenced Trouble DRILL RESET SILENCE . : , ↔ ETHERNET - BATT + RELAY1 RELAY2 RELAY3 Figure 4.1 Mounting a Networking Card Networking Card Connectors and slot Snap-fit hook F.01U.214.374 | 01 | 2012.08 Installation Manual Bosch Security System, Inc.
-
Page 13: Connection
Table 5.1 Network Trouble Conditions Class A connections In a Class A loop, the FPE-1000-NW Wired Networking Card must be wired accoring to the following table: Bosch Security System, Inc. Installation Manual F.01U.214.374 | 01 | 2012.08... - Page 14 Ethernet to Fiber Optic connection Fiber Optic to Fiber Optic connection Class A connection (Ethernet to Ethernet in this example) NOTICE! The network does not require an EOL resistor. F.01U.214.374 | 01 | 2012.08 Installation Manual Bosch Security System, Inc.
-
Page 15: Technical Data
Data communication: Yellow LED, one per port Link status: Green LED, one per port Power indication: Green LED, one per board FPE-1000-NE Ethernet Networking Card parameters 6.2.1 Electrical Power supply: +20 VDC to +28 VDC from panel Power consumption: 120 mA maximum FPE-1000-NF Fiber Optic Networking Card parameters 6.3.1... - Page 16 | Technical Data Networking Cards F.01U.214.374 | 01 | 2012.08 Installation Manual Bosch Security System, Inc.
