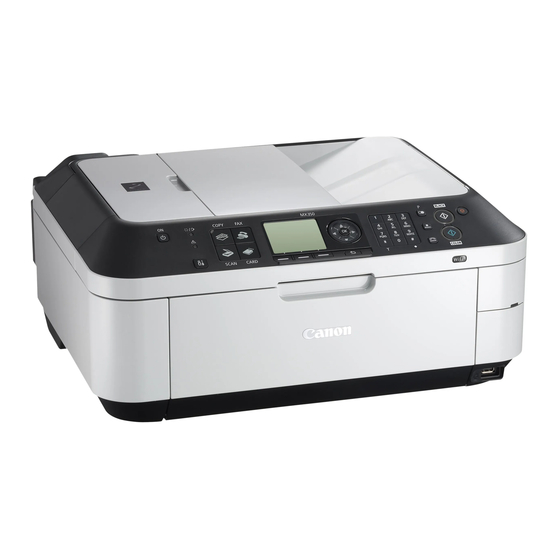

Canon PIXMA MX350 Network Installation Manual
Installing your multifunction to your network for the first time windows os
Hide thumbs
Also See for PIXMA MX350:
- Getting started (102 pages) ,
- Getting started manual (90 pages) ,
- Network setup manual (34 pages)
Related Manuals for Canon PIXMA MX350
Summary of Contents for Canon PIXMA MX350
- Page 1 Next >> Installing Your Multifunction to Your Network for the First Time PIXMA MX350 / PIXMA MX870 Windows OS...
-
Page 2: Table Of Contents
<< Previous Next >> Installing Your Multifunction to Your Network for the First Time PIXMA MX350 / PIXMA MX870 Windows OS Preparing to Connect My Multifunction to My Network Network Requirements Important Information You Need Before Adding Your Multifunction Adding Your Multifunction to the Network Confirm Connection Status Downloading &... -
Page 3: Preparing To Connect My Multifunction To My Network
Preparing to Connect My Multifunction << Previous Next >> To My Network Network Requirements Before connecting the machine to the network, make sure that configuration of the computer and access point or router is complete, and that the computer is connected to the network. Notes on Network Connection •... -
Page 4: Important Information You Need Before Adding Your Multifunction
Preparing to Connect My Multifunction << Previous Next >> To My Network An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Be sure to prepare an access point. Important Information You Need Before Adding Your Multifunction The following information is required to connect to your access point or router. -
Page 5: Adding Your Multifunction To The Network
<< Previous Next >> Adding Your Multifunction to Your Network Adding Your Multifunction to Your Network Step One Step Two Press the Setup button (A) Select Wireless LAN setup, and then press the OK button. - Page 6 << Previous Next >> Adding Your Multifunction to Your Network Step Three Step Four Select Yes, then press the OK button. Select Easy setup, and then press the OK button. When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.
- Page 7 << Previous Next >> Adding Your Multifunction to Your Network Step Five Step Six Select the access point name, then press the OK button. When one of the following screens is displayed, enter the network key using the Numeric buttons (E), then press the OK button. If the following screen is not displayed, go to step 8 NOTE: If you are living in an apartment, nearby access Press the...
- Page 8 << Previous Next >> Adding Your Multifunction to Your Network Step Seven Step Eight Make sure that the network key is correct, and then press When the connected to the access point screen appears, press the the OK button. OK button. The Setup menu screen returns.
-
Page 9: Confirm Connection Status
<< Previous Next >> Adding Your Multifunction to Your Network Confirm Connection Status Step One Step Two On the Setup menu, select Device Settings , and Select LAN settings, and then press the OK button. then press the OK button. IMPORTANT: Confirm connection status after installing the machine in the target location. - Page 10 << Previous Next >> Adding Your Multifunction to Your Network Step Three Step Four Select Confirm LAN settings, then press the OK button. Select WLAN setting list, then press the OK button. Make sure that Connection is set to Active, and then press the Copy button to return to standby.
-
Page 11: Downloading & Installing The Drivers
Select Consumer & Home Office in the Product Type menu dropdown, All-In-One Printer in the Product Family, PIXMA MX Series in the Product Click here to go to the Canon Canada Support Home Page Series and click on the Drivers & Software link for your model. - Page 12 Downloading and Installing the Drivers << Previous Next >> Step Three Step Four In the Drivers / Software Selection section, select your In the Drivers section, click the link* (red printing) for the MX operating system in the Select OS dropdown menu. Driver *Name varies by model Step Five...
- Page 13 If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access the network. If such a warning message appears, set the security software to always allow access.
-
Page 14: Installing The Driver
Downloading and Installing the Drivers << Previous Next >> Installing the Driver NOTE: If a User Account Control screen appears, click Continue or Yes (depending on Windows version) to continue. NOTE: If the same screen reappears in subsequent steps, click Continue or Yes. Step Two Step One Click Next on the Welcome screen. - Page 15 Downloading and Installing the Drivers << Previous Next >> Step Three Installation proceeds. Click Yes for the License Agreement.
- Page 16 Downloading and Installing the Drivers << Previous Next >> Step Four Step Five Select Use the Printer on network on the Connection After searching for printers, the Detected Printers List appears. method screen, and then click Next. Verify your printer is detected and click Next.
- Page 17 Downloading and Installing the Drivers << Previous Next >> Step Six Setup will install the driver components. After completion, click Complete on the Setup Completion screen.
