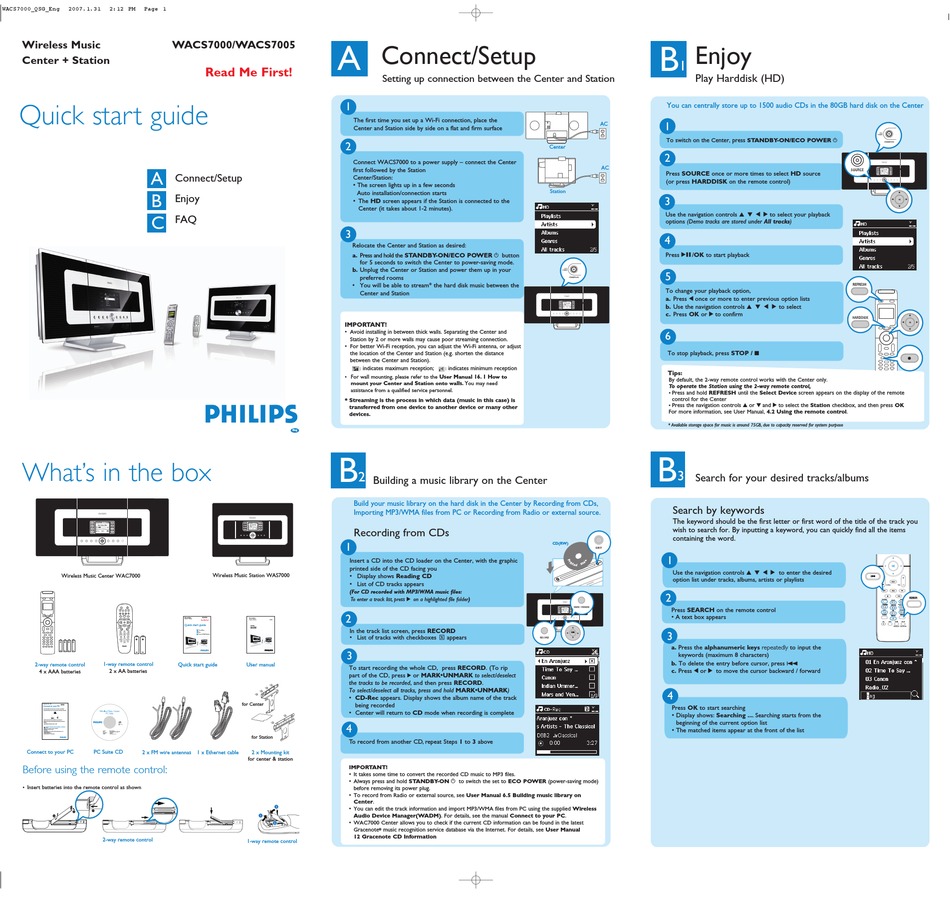

Philips WACS7000 Quick Start Manual

WACS7000/WACS7005
Wireless Music
Center + Station

Quick start guide

A
Connect/Setup
B Enjoy
FAQ
C
What's in the box
Wireless Music Center WAC7000
Wireless Music
Center + Station
Q i u k c s a t
2-way remote control 1-way remote control Quick start guide
4 x AAA batteries 2 x AA batteries
Wireless Music Center + Station WACS7000 WACS7005
Connect to your PC
Connect Philips Wireless Music Center to your PC if you want to do the following:
• Access music files stored on your PC from Philips Music Center/ Station's UPnP source
Manage the music content stored on Philips Music Center from your PC •
• Update Center's Gracenote ® music recognition service database for the latest disc
information
• Upgrade firmware of Philips Music Center + Station
To connect to Philips Music Center, you minimum PC requirements must be:
Windows 2000 SP4 or above / XP (Home or Professional) •
Pentium III 500MHz processor or higher •
256MB RAM •
CD-ROM Drive • Ethernet Adapter (for wired connection)/ Wireless Network Adaptor 802.11 b/g •
(for wireless connection)
• Free hard disk space of 500MB
Windows Media Player • ® 9.0 or later installed
Connect to your PC PC Suite CD
2 x FM wire antennas
Before using the remote control:
• Insert batteries into the remote control as shown
1
2
3
2-way remote control
A
Read Me First!
1
The first time you set up a Wi-Fi connection, place the
Center and Station side by side on a flat and firm surface
2
Connect WACS7000 to a power supply – connect the Center
first followed by the Station
Center/Station:
• The screen lights up in a few seconds
Auto installation/connection starts
• The HD screen appears if the Station is connected to the
Center (it takes about 1-2 minutes).
3
Relocate the Center and Station as desired:
a. Press and hold the STANDBY-ON/ECO POWER y button
for 5 seconds to switch the Center to power-saving mode.
b. Unplug the Center or Station and power them up in your
preferred rooms
• You will be able to stream* the hard disk music between the
Center and Station
IMPORTANT!
• Avoid installing in between thick walls. Separating the Center and
Station by 2 or more walls may cause poor streaming connection.
• For better Wi-Fi reception, you can adjust the Wi-Fi antenna, or adjust
the location of the Center and Station (e.g. shorten the distance
between the Center and Station).
: indicates maximum reception;
• For wall mounting, please refer to the User Manual 16. 1 How to
mount your Center and Station onto walls. You may need
assistance from a qualified service personnel.
* Streaming is the process in which data (music in this case) is
transferred from one device to another device or many other
devices.
Eng
B
2
Build your music library on the hard disk in the Center by Recording from CDs,
Importing MP3/WMA files from PC or Recording from Radio or external source.
Recording from CDs
1
Insert a CD into the CD loader on the Center, with the graphic
printed side of the CD facing you
Wireless Music Station WAS7000
• Display shows Reading CD
• List of CD tracks appears
(For CD recorded with MP3/WMA music files:
To enter a track list, press 2 on a highlighted file folder)
2
WACS7000
Wireless Music
Center + Station WACS7000
Read Me First!
t r g i u e d
User manual
Manuel d'utilisation
Manual del usuario In the track list screen, press RECORD
A C n o e n t c S / t e p u
B E j n y o
C
F e r u q n e y l t k s A d e Q e u t s o i s n
• List of tracks with checkboxes
3
User manual
To start recording the whole CD, press RECORD. (To rip
part of the CD, press
the tracks to be recorded, and then press RECORD.
To select/deselect all tracks, press and hold MARK•UNMARK)
• CD-Rec appears. Display shows the album name of the track
for Center being recorded
• Center will return to CD mode when recording is complete
4
for Station
To record from another CD, repeat Steps 1 to 3 above
1 x Ethernet cable 2 x Mounting kit
for center & station
IMPORTANT!
• It takes some time to convert the recorded CD music to MP3 files.
• Always press and hold STANDBY-ON
before removing its power plug.
• To record from Radio or external source, see User Manual 6.5 Building music library on
Center.
• You can edit the track information and import MP3/WMA files from PC using the supplied Wireless
Audio Device Manager(WADM). For details, see the manual Connect to your PC.
• WAC7000 Center allows you to check if the current CD information can be found in the latest
Gracenote
12 Gracenote CD Information
1-way remote control
Connect/Setup
Setting up connection between the Center and Station
: indicates minimum reception
Building a music library on the Center
appears
2
or MARK•UNMARK to select/deselect
y to switch the set to ECO POWER (power-saving mode)
® music recognition service database via the Internet. For details, see User Manual
Enjoy
B
1
Play Harddisk (HD)
You can centrally store up to 1500 audio CDs in the 80GB hard disk on the Center
AC
1
To switch on the Center, press STANDBY-ON/ECO POWER y
Center
2
AC
Press SOURCE once or more times to select HD source
(or press HARDDISK on the remote control)
Station
3
Use the navigation controls 3 4 1 2 to select your playback
options (Demo tracks are stored under All tracks)
4
PressÉ Å/OK to start playback
5
To change your playback option,
a. Press 1 once or more to enter previous option lists
b. Use the navigation controls 3 4 1 2 to select
c. Press OK or 2 to confirm
6
To stop playback, press STOP / 9
Tips:
By default, the 2-way remote control works with the Center only.
To operate the Station using the 2-way remote control,
• Press and hold REFRESH until the Select Device screen appears on the display of the remote
control for the Center
• Press the navigation controls 3 or 4 and 2 to select the Station checkbox, and then press OK
For more information, see User Manual, 4.2 Using the remote control.
* Available storage space for music is around 75GB, due to capacity reserved for system purpose
B
3
Search for your desired tracks/albums
Search by keywords
The keyword should be the first letter or first word of the title of the track you
wish to search for. By inputting a keyword, you can quickly find all the items
containing the word.
CD(RW)
1
Use the navigation controls 3 4 1 2 to enter the desired
option list under tracks, albums, artists or playlists
2
Press SEARCH on the remote control
• A text box appears
OK 3
a. Press the alphanumeric keys repeatedly to input the
keywords (maximum 8 characters)
b. To delete the entry before cursor, press 4
c. Press 1 or 2 to move the cursor backward / forward
4
Press OK to start searching
• Display shows: Searching .... Searching starts from the
beginning of the current option list
• The matched items appear at the front of the list
SEARCH SEARCH
SAME ARTIST SAME ARTIST
DBB
PORTABLE PORTABLE SEARCH SEARCH
SMART EQ SMART EQ
