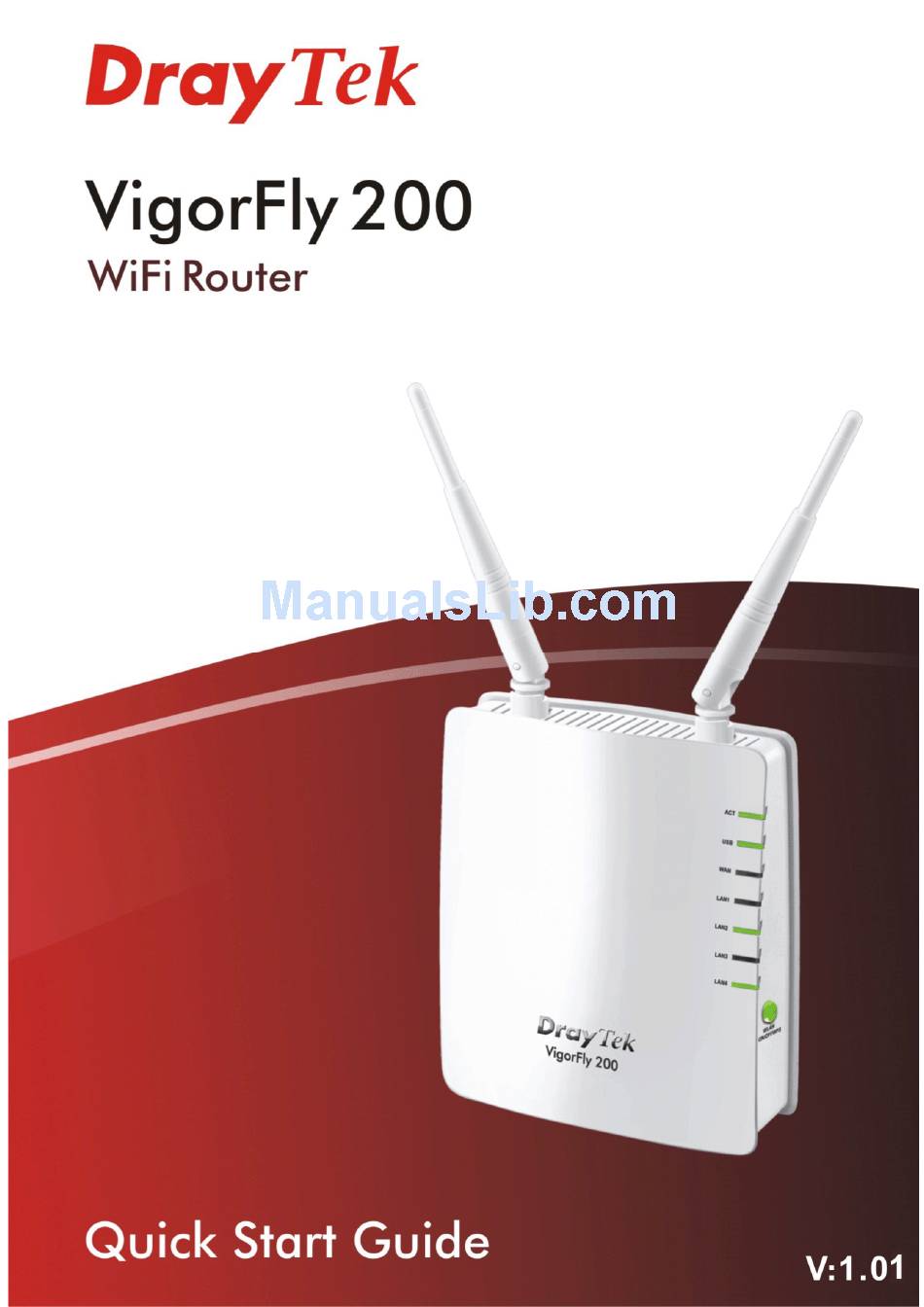

Draytek VigorFly 200 User Manual

Wifi router
Hide thumbs Also See for VigorFly 200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Draytek VigorFly 200

Summary of Contents for Draytek VigorFly 200

  • Page 2: Federal Communication Commission Interference Statement

    Product: VigorFly 200 DrayTek Corp. declares that VigorFly 200 is in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.

  • Page 3: Package Content

    Package Content Quick Start Guide RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable The type of the power adapter depends on the country that the router will be installed: UK-type power adapter EU-type power adapter USA/Taiwan-type power adapter AU/NZ-type Power Adapter...

  • Page 4: Descriptions Of Components

    Descriptions of Components Status Explanation The system is not ready or is failed. Blinking The system is ready and can work normally. A USB device is connected and active. Blinking The data is transmitting. The WAN port is connected. Blinking It will blink while transmitting data.
  • Page 5 Interface Description Connecter for accessing the Internet. LAN 1 - 4 Connecter for local network devices. Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. Restore the default settings. Usage: Turn on the router. Press the button and keep for more than 10 seconds.

  • Page 6: Installing Your Router

    Installing Your Router This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. 1. Connect this device to a modem with an Ethernet cable. 2.

  • Page 7: Configuring Web Pages

    Configuring Web Pages The Quick Start Wizard is designed for you to easily set up your router for Internet access. 1. Make sure your PC connects to the router correctly. 2. Open a web browser on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password.
  • Page 8 4. There are four operation modes for you to choose. Simply click any one of them and click Apply. The system will make a connection automatically. 5. The first screen of Quick Start Wizard is entering login account and password. After typing the password, please click Next. 6.
  • Page 9 7. On the next page as shown below, please select the appropriate connection type according to the information from your ISP. There are five types offered in this page. Each connection type will bring out different web page. 8. Here we take DHCP type as an example. It is not necessary for you to type any IP address manually.
  • Page 10 Finish and then restart the router. Afterward, you will enjoy surfing on the Internet. Contacting Your Dealer If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
