• To attachthe bag,placethe openingof the bag
overthechutedeflector s oit completely c oversthe
chuteopening,Depress the plunger o n the draw-
string,andpull on the drawstring untilthe bagis
tightaround thechuteopeningRelease plunger t o
lockit intopositionSeefigure5.
=
OPERATION
KNOWYOUR CHIPPER-SHREDDER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHIPPER-SHREDDER,
Compare the illustrations with your chipper-shredder to familiarize yourself with the location of various controls
and adjustments. Save this manual for future reference..
Oil Fill
Hopper
Assembly Muffler Dipstick Spark Plug
and
Boot
Chipper
Chute
Chute
Deflector
Start_
Handle
cher
Bag

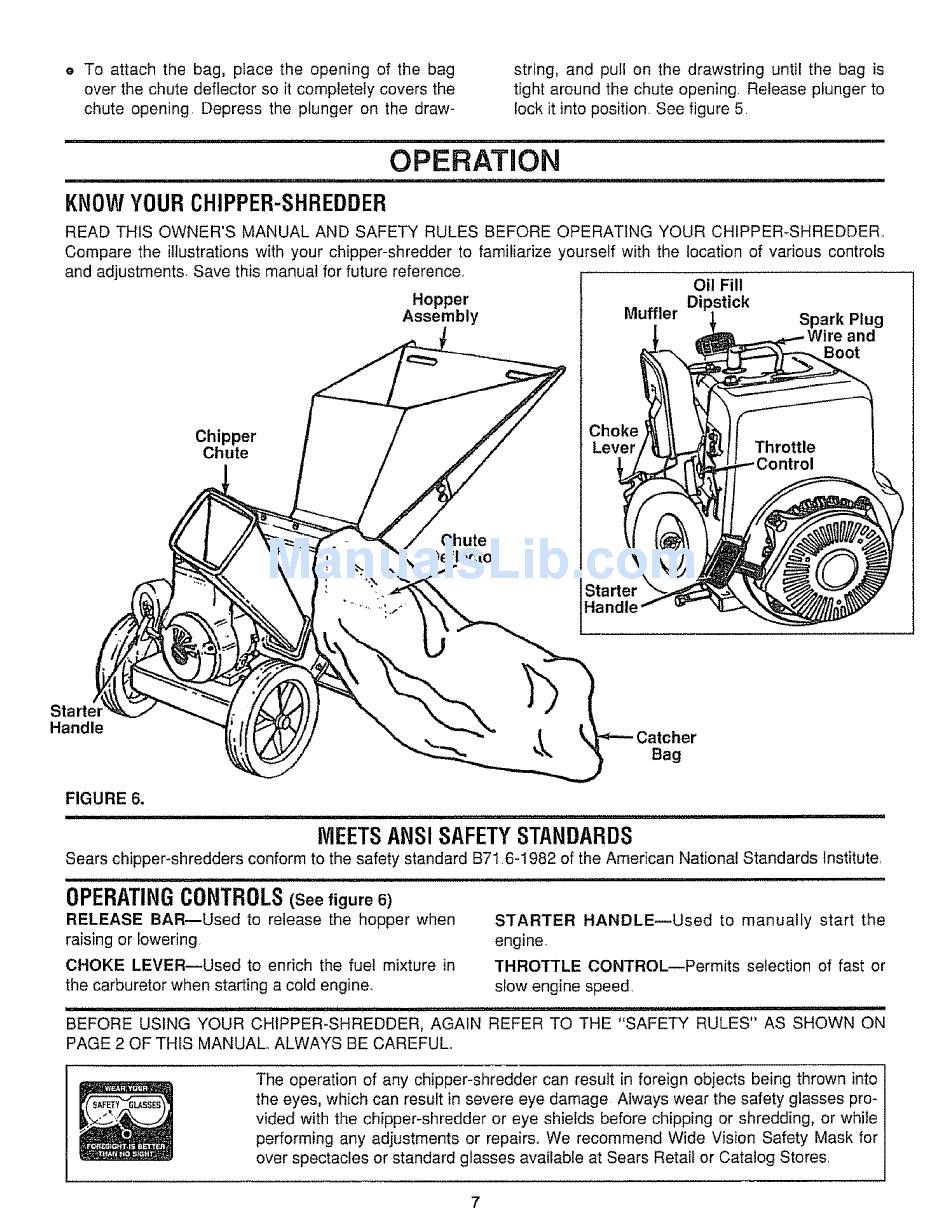

FIGURE 6.
= = , , , = HH= = 'H" 'H''"IH"H'.mH".'H'I=r..'I'IIr",'='V=_" I',=.=
MEETSANSISAFETYSTANDARDS
Sears chipper-shredders conform to the safety standard B71 6-1982 of the American National Standards Institute,
OPERATING CONTROLS
(See figure 6)
RELEASE BAR--Used to release the hopper when
raising or lowering
CHOKE LEVER--Used to enrich the fuel mixture in
the carburetor when starting a cold engine.
STARTER HANDLE--Used to manually start the
engine
THROTTLE CONTROL--Permits selection of fast or
slow engine speed.
BEFORE USING YOUR CHIPPER-SHREDDER, AGAIN REFER TO THE "SAFETY RULES" AS SHOWN ON
PAGE 2 OF THIS MANUAL. ALWAYS BE CAREFUL..
The operation of any chipper-shredder can result in foreign objects being thrown into
the eyes, which can result in severe eye damage Always wear the safety glasses pro-
vided with the chipper-shredder or eye shields before chipping or shredding, or while
performing any adjustments or repairs, We recommend Wide Vision Safety Mask for
over spectacles or standard glasses available at Sears Retail or Catalog Stores
