ASSEMBLY iNSTRUCTIONS
ii i i ,11 iiii ,11,1,1 i i1,11,11,111111 .......................................... N,IIIIII,II,II i i
Flat ---__
Washer | ( ) |
'_"- Hex Lock
Nut 5/16-18
Thread
Hex Bolt
5/16-18 x 8-3/8" Long
IMPORTANT: This unit is shipped WITHOUT GASO-
LINE or OIL in the engine. After assembly, see opera-
tion section of this manual for proper fuet and engine
oil recommendations
NOTE: To determine right and left hand sides of your
chipper-shredder, stand behind and face the hopper
(engine is at the front of the unit).
Your chipper-shredder has been completely assem-
bted at the factory, except for the hopper assembly
(hopper hood and upper leaf ramp section have been
sub-assembled), upper guide assembly, chute deflec-
tor and the catcher bag. The hardware pack safety
glasses and a bottle of oil are also included in the
carton..

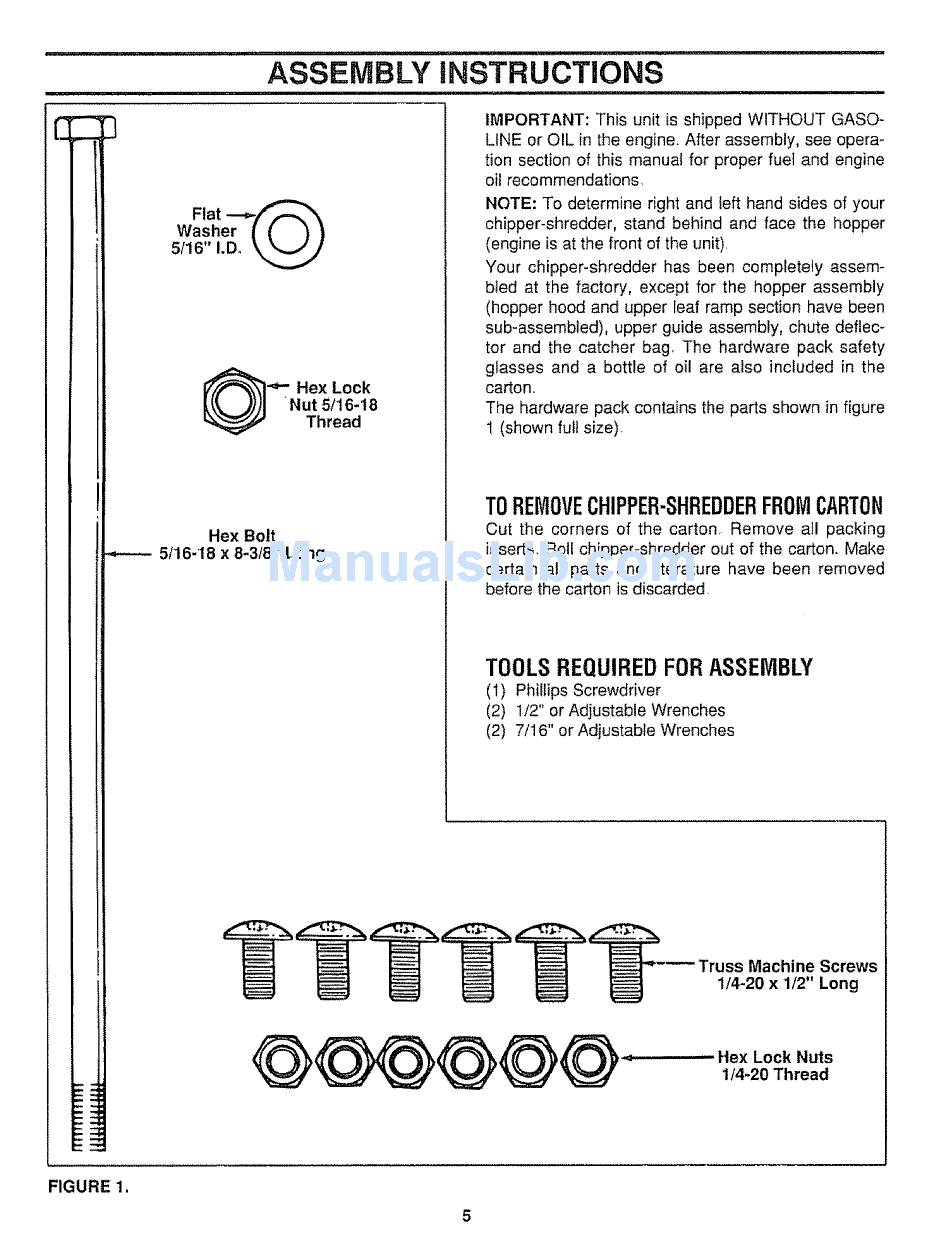

The hardware pack contains the parts shown in figure
1 (shown full size)_
TOREMOVE CHIPPER-SHREDDER FROM CARTON
Cut the corners of the carton. Remove all packing
inserts. Roll chipper-shredder out of the carton. Make
certain atl parts and literature have been removed
before the carton is discarded.
TOOLS REQUIRED FORASSEMBLY
(1) Phillips Screwdriver
(2) 1/2" or Adjustable Wrenches
(2) 7/16" or Adjustable Wrenches
Machine Screws
1/4-20 x 1/2" Long
Hex Lock Nuts
1/4-20 Thread
FIGURE 1.
