OPERATION (Cont.)
CHUCK REMOVAL

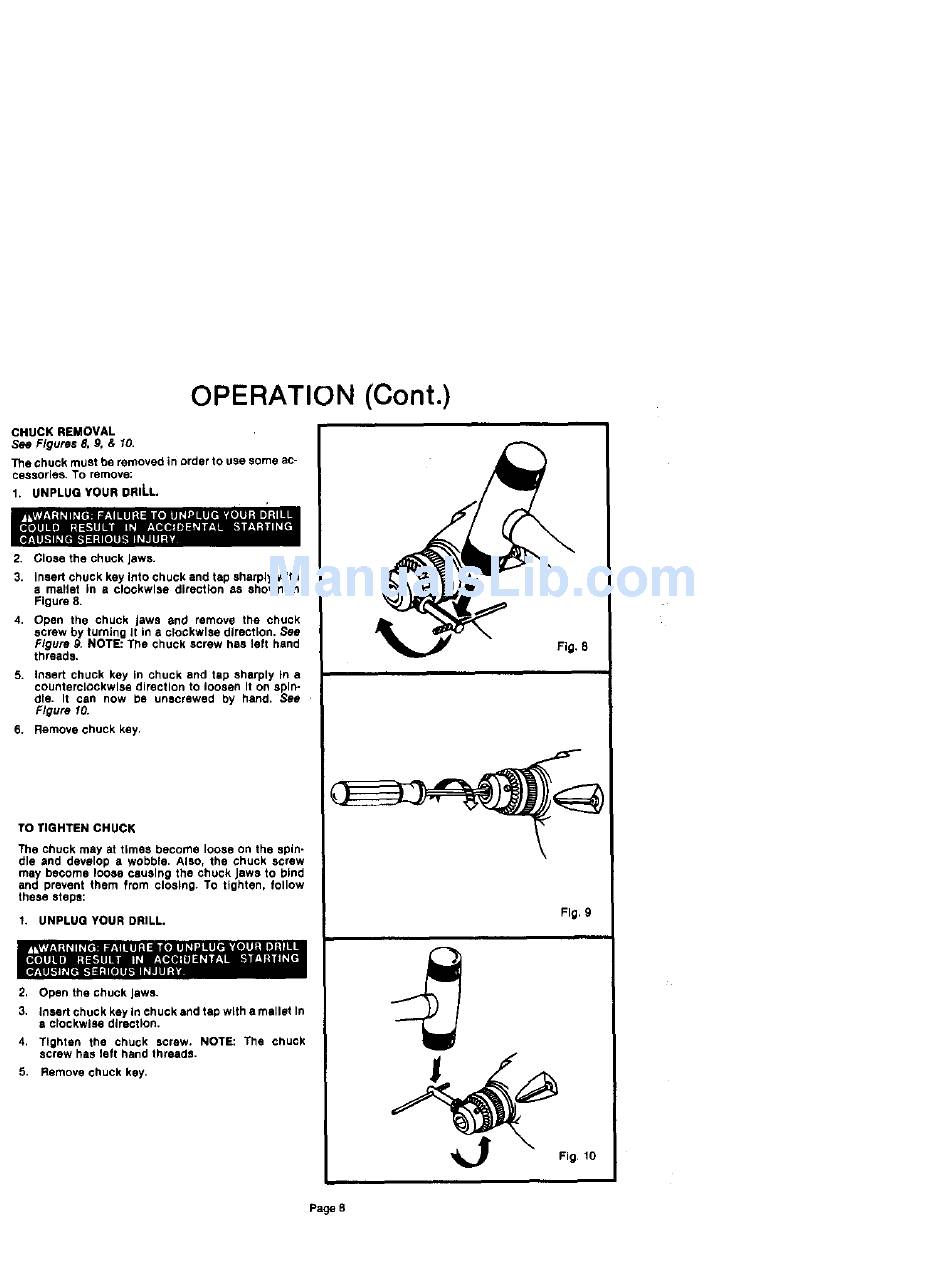

8se Figures 8, 9. & 10.
The chuck must he removed in order to use some ac-
cessories, TO remove:
1. UNPLUG YOUR DRILL.
2. Close the chuck Jaws.
3. Insert chuck key Into chuck end tap sharply with
•matlet in a clockwise direction as shown Ln
Figure 8.
4, Open the chuck jaws and remove the chuck
screw by turning It in a c_ockwlse direction. See
Figure g. NOTE: The chuck screw has left hand
threads,
5. insert chuck key in chuck and tap sharply in a
counterclockwise direction to loosen It on spin-
dle. It can now be unscrewed by hand, See
Figure 10.
6. Remove chuck key.
TO TIGHTEN CHUCK
The chuck may at times become loose on the spin-
dle and develop a wobble. Also, the chuck screw
may become loose causing the chuck Jaws to bind
and prevent them from closing. To tighten, follow
these steps:
1, UNPLUG YOUR DRILL.
2, Open the chuck Jews.
3. insert chuck key in chuck end tap with a mallet In
a clockwise direction.
4, Tighten the chuck screw. NOTE: The chuck
screw has left hand threads.
5, Remove chuck key.
Fig. 8
Fig, 9
Fig, 10
Page 8
