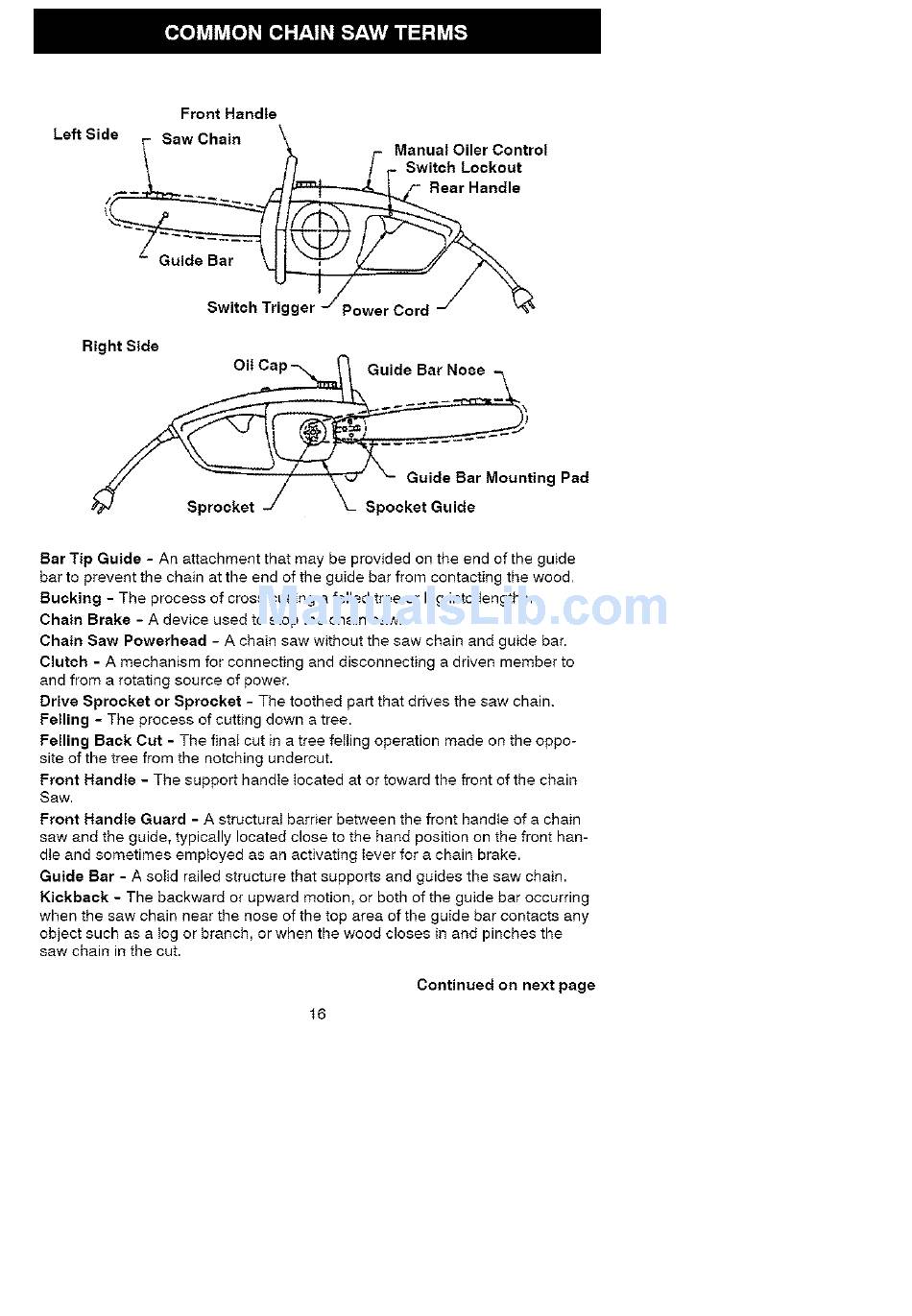

Left Side
Front Handle
Saw Chain
Manual Oiler Control
Switch Lockout
Rear Handle
Guide Bar
Switch Trk
Power Cord
Right Side
Guide Bar No_e
Sprocket
-/
Guide Bar Mounting
Pad
Spocket Guide
Bar Tip Guide - An attachment
that may be provided on the end of the guide
bar to prevent the chain at the end of the guide bar from contacting
the wood.
Bucking
- The process of cross cutting a felled tree or log into lengths.
Chain Brake
- A device used to stop the chain saw.
Chain Saw Powerhead
- A chain saw without the saw chain and guide bar.
Clutch
- A mechanism
for connecting
and disconnecting
a driven member to
and from a rotating source of power.
Drive Sprocket
or Sprocket
- The toothed
part that drives the saw chain.
Felling - The process
of cutting down a tree.
Felling Back Cut - The finat cut in a tree fe$ting operation
made on the oppo-
site of the tree from the notching
undercut.
Front Handle
- The support handle located at or toward the front of the chain
Saw.
Front Handle Guard
- A structural barrier between
the front hand+e of a chain
saw and the guide, typically located close to the hand position on the front han-
dle and sometimes
emp+oyed as an activating
lever for a chain brake.
Guide Bar - A solid railed structure that supports and guides the saw chain.
Kickback
- The backward
or upward motion, or both of the guide bar occurring
when the saw chain near the nose of the top area of the guide bar contacts
any
object such as a +og or branch, or when the wood closes in and pinches the
saw chain in the cut.
Continued
on next page
