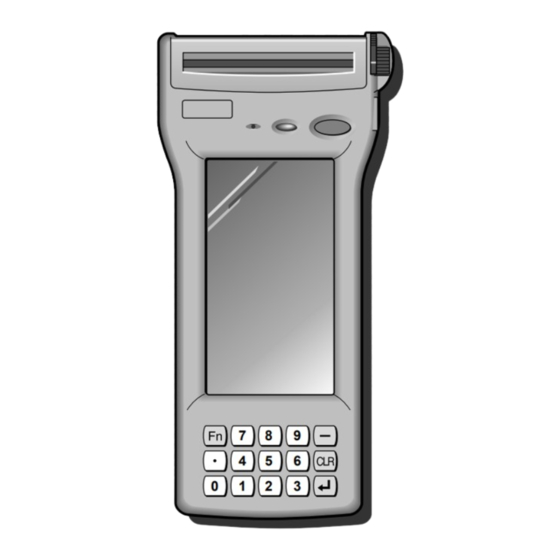

Casio CASSIOPEIA IT-2000D User Manual

Data collector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Data Collector
Colector de Datos
Datenerfassungsgerät
Collecteur de Données
User's Guide
Guía del usuario
Bedienungsanleitung
Mode d'emploi
7
4
0
1
P
8
9
5
6
2
3
• Congratulations upon your selection of
the CASIO IT-2000 Data Collector.
• Be sure to familiarize yourself with the
basic operations described in this
manual before actually trying to
operate the Data Collector.
• Enhorabuena por la selección del
colector de datos IT-2000 CASIO.
• Antes de intentar utilizar este colector
de datos, familiarícese con las
operaciones básicas descritas en este
manual.
• Mit dem Datenerfassungsgerät CASIO
IT-2000 haben Sie eine gute Wahl
getroffen.
• Bitte machen Sie sich mit den in
diesem Handbuch beschriebenen
Grundfunktionen vertraut, bevor Sie
beginnen, mit dem
Datenerfassungsgerät zu arbeiten.
• Nous vous remercions d'avoir choisi le
Collecteur de Données Casio IT-2000.
• Veuillez vous familiariser avec les
démarches de base, décrites dans ce
manuel, avant d'essayer d'utiliser le
Collecteur de Données.

Advertisement

Table of Contents
loading

Related Manuals for Casio CASSIOPEIA IT-2000D

Summary of Contents for Casio CASSIOPEIA IT-2000D

  • Page 1 User’s Guide Guía del usuario Bedienungsanleitung Mode d’emploi • Congratulations upon your selection of the CASIO IT-2000 Data Collector. • Be sure to familiarize yourself with the basic operations described in this manual before actually trying to operate the Data Collector.

  • Page 2: Safety Precautions

    Safety Precautions Congratulations upon your selection of this CASIO Product. Be sure to read the following Safety Precautions before trying to use it for the first time. Keep this manual in a handy place for future reference. The following are the meanings of the markings and symbols...
  • Page 3 Danger! Supplied Lithium-ion Battery Pack Never allow the battery pack to become wet with either fresh water or salt water. Water can create the danger of battery pack heat emission, explosion, and fire. Never use or leave the battery pack next to open flame, near a stove, or any other area exposed to high heat.
  • Page 4 Foreign Objects Should any foreign matter get into the Data Collector, immediately turn off the power and contact your original dealer or an authorized a CASIO service provider. Continued use creates the danger of fire and electric shock. Dropping and Damage...

  • Page 5: Ac Power Supply

    Should the power cord become severely damaged (to the point that wires are exposed or broken), contact your original dealer or a CASIO service provider about repair or replacement. Use of a damaged electrical cord...

  • Page 6: Lcd Screen

    Caution! Foreign Objects Take care to ensure that metal or combustible objects are not inserted into the openings of the Data Collector. Such objects create the danger of fire and electric shock. Location Do not locate the Data Collector on a surface that is unstable or uneven. Doing so creates the danger of the Data Collector falling, which can cause personal injury.

  • Page 7: Backup Copies Of All Important Data

    Backup Copies of All Important Data Note that CASIO Computer Co., Ltd. shall not be held liable to you or any third party for any damages or loss caused by deletion or corruption of data due to use of the Data Collector, malfunction or repair of the Data Collector or its peripherals, or due to batteries going dead.

  • Page 8: Declaration Of Conformity

    Connectors (DT-883RSC, DT-882RSC, DT-887AX, DT-881RSC, DT-888RSC) Declaration of Conformity Model Number: IT-2000D33E, IT-2000D53E, IT-2060IOE and DT-825ADP-U Trade name: CASIO COMPUTER CO., LTD. Responsible party: CASIO MANUFACTURING CORPORATION Address: 181 Metro Drive, Suite 400. San Jose, California 95110 Telephone number: 1-888-93-CASIO This device complies with Part 15 of the FCC Rules.

  • Page 9: Table Of Contents

    • Information in this manual is subject to change without notice. • CASIO shall have neither liability nor responsibility to any person or entity with respect to any loss or damages arising from the information contained in this book. • This manual does not provide information about programming and downloading. See other manuals coming with IT-2000 for information about these subjects.
  • Page 10 CASIO ELECTRONICS CO., LTD. Unit 6, 1000 North Circular Road London NW2 7JD, U.K. IT-2000’s Specifications ........E-37 IT-2060IOE Optional Optical Communication Unit ........E-38 General Guide ..............E-38 Connecting the Optical Communication Unit to a Power Source ............E-40 Daisy Chaining Optical Communication Units .....

  • Page 11: Introduction

    Introduction In order to maintain and use the Data Collector, keep in mind these precautions. Precautions • This product is made of precision parts so do not try to disassemble by yourself. • Do not expose the Data Collector to excessive heat or cold.
  • Page 12 Collector must not come in contact with chemicals and gasoline. • Do not place heavy objects on the Data Collector. Important! CASIO does not accept any responsibility for possible data loss caused during, or connected with, usage of the Data Collector. E-13...

  • Page 13: It-2000 Series System Configuration

    IT-2000 Series System Configuration Accessories • Lithium ion Battery • Backup Lithium Battery • Neck Strap Pack • Paper holder • Paper roll • Stylus Placed to the right side of the Data Collector • Manual E-14...
  • Page 14 Options Optical Charger Bar-code reader Communication Unit DT-9021CHGEU DT-9650BCR IT-2060IOE DT-9656BCR AC adaptor for Optical Communication Unit DT-9020ADP-G DT-825ADP-G DT-9020ADP-U DT-825ADP-U Cable DT-9689AX (between Data Collector and personal computer) PC Cards Lithium ion Battery Pack DT-9031BFMC DT-9023LI (FROM 4MB) DT-9033BFMC (FROM 10MB) DT-9034BFMC DT-881RSC...
  • Page 15 IT-2000 Series System Configuration Available Options for the IT-2000 Series American Market Models Optical Charger Bar-code reader Communication Unit DT-9021CHGEU DT-9650BCR IT-2060IOE AC adaptor for Optical Cable DT-9020ADP-U Communication Unit DT-881RSC DT-825ADP-U (modem-used) DT-882RSC (cross connection, male) DT-883RSC (cross connection, female) DT-887AX (AX-used, cross connection) DT-888RSC...

  • Page 16: General Guide

    General Guide Left Front Right Lithium ion battery For connection of the charger to charge the lithium ion battery pack. pack charger connector Protected by a cover that must be opened for connection. Charge indicator Stays lit while the lithium-ion battery pack is being charged, and goes out after charging is complete.
  • Page 17 General Guide Back Bottom PC card lock button Locks optional PC card in place. (inside PC card slot Make sure that this button is in the LOCK position when using a PC cover) card. PC card eject button Press this button (after opening the PC card slot cover and setting the (inside PC card slot PC card lock button to FREE) to eject a PC card installed in the Data cover)

  • Page 18: Installing And Removing Batteries

    Installing and Removing Batteries Your Data Collector is powered by a rechargeable lithium ion battery pack and a lithium backup battery. Main power supply See page E-26 for details on how to recharge the battery pack. To install the battery pack Slide the battery pack compartment open button in the direction indicated by the arrow in the illustration, and open the cover.
  • Page 19 Installing and Removing Batteries To remove the battery pack Always make sure that Data Collector power is turned off before removing the battery pack. Also, never remove the backup batteries while the battery pack is removed. Doing so will cause all memory contents to be deleted. Slide the battery pack compartment open button in the direction indicated by the arrow in the illustration, and open the cover.

  • Page 20: Backup Batteries

    Backup batteries The backup batteries protect the units memory contents whenever power from the main battery pack is interrupted due to replacement of the battery pack, when the battery pack is dead, etc. Two lithium batteries are used for backup. The #2 backup battery is installed in the Data Collector prior to shipment, but you must install the #1 backup battery that comes with the Data Collector before using it for the first time.
  • Page 21 Installing and Removing Batteries Wipe the surface of the lithium battery you will install with a soft, dry cloth. Load the battery into the Data Collector so that its positive (+) side faces up (so you can see it). Insert the tabs of the backup battery holder into the slots provided, and secure it in place with its screw.

  • Page 22: Position Of The Keys

    Position of the Keys IT-2000 key part consist of 16 keys, including the power key. Position of stroke keys Function key Used for setting various program functions. Combined with one or two of the ten keys (0 to 9). Number keys, decimal Used for input of numbers.

  • Page 23: Touch Key Panel

    Position of the Keys Touch key panel The touch panel appears on the Data Collector’s LCD. Be sure to use only your finger or the stylus that comes with the Data Collector to operate the touch panel. Using the touch panel stylus The touch panel stylus is attached to the right side of the Data Collector.

  • Page 24: System Initialization Routine

    System Initialization Routine The system initialization routine is performed when you turn on the Data Collector for the first time after purchasing it and whenever you press the Initialize button. The following is the operational flow for the system initialization routine. Press the power switch.

  • Page 25: Charging The Battery Pack

    Charging the Battery Pack The lithium ion battery pack is the Data Collector’s main power supply that provides power for normal operations and memory backup. This means it is important to recharge or replace the battery pack as soon as possible after the low battery message appears on the LCD. Battery pack charging can be performed using any of the following options: DT-9021CHGEU Single Charger, DT-9020ADP-G/DT-9020ADP-U Charger.

  • Page 26: To Charge Battery Packs Using The Charger

    To charge battery packs using the Charger Press the Data Collector’s Power switch to turn off power. Plug the charger into an electrical outlet, and then attach the charger to charger connector on the side of the Data Collector. The Data Collector’s charge indicator lights to indicate that the charge operation is being performed.

  • Page 27: Attaching The Neck Strap

    Attaching the Neck Strap Length adjustment Neck strap Hooks To attach the neck strap Pulling back on the spring latches on the neck strap hooks, attach the neck strap to the Data Collector’s neck strap bars. Next, release the latches to secure the neck strap in place. To detach the neck strap Pulling back on the spring latches on the neck strap hooks, remove the neck strap to the Data...

  • Page 28: Data Communication

    Data Communication You can exchange data between two Data Collectors or between a Data Collector and a personal computer. Exchanging Data Between Two Data Collectors You can transfer applications and data to another Data Collector using the infrared interface. The illustration below shows how two Data Collectors must be oriented for data communication.

  • Page 29: Handling The Printer

    Handling the Printer The IT-2000D33E/53E printer uses roll paper and paper tape for printing. Using Roll Paper If you wish to use roll paper, you must first install the paper holder and then load the paper. Installing and Removing the Paper Holder Installing Insert the jagged part of the paper holder into the paper holder fixing.
  • Page 30 Loading Roll Paper To use the printer, you must first load paper. If you print without paper, it may damage the printer. Lift the head-up lever. Slot Next, open the paper holder. Head-up lever Put roll paper in the lid of the paper holder. Roll paper Feed paper until it stops.
  • Page 31 Handling the Printer Close the paper holder. Note! • When you insert or change roll paper, move the head-up lever to Feeding dial position 2 2 2 2 2 . When you print out, return it to position 1 1 1 1 1 . Head-up lever •...
  • Page 32 Removing the Printer Cover When a paper jam occurs, open the printer cover and remove the cause of the paper jam. Be careful because the inside of the printer may be hot. Turn the power off and open the paper holder cover.

  • Page 33: Using Paper Tape

    Handling the Printer Using Paper Tape There are two ways of feeding paper tape into the IT-2000D33E/53E with the paper tape. You can either use the auto-loading function or you can load paper tape manually (set this in the software). Keep the paper holder cover open when using the paper tape with the paper holder.
  • Page 34 Loading Paper by Hand Follow the procedure below when Auto Loading is disabled (set this in the software). Lift the head-up lever to the head-up position. Insert single-ply paper with the printing surface facing down into the paper slot as far as it will go.
  • Page 35 Do not turn the feeding dial just after printing is finished. Doing so might damage the feeding dial. If the printer is used for a long period, paper scraps can accumulate and impair printing quality. If this happens, the thermal head must be cleaned. Contact a CASIO service provider. Warning! Do not touch the thermal head during and just after printing is finished.

  • Page 36: It-2000'S Specifications

    IT-2000’s Specifications CPU: 32 bit CPU RAM: IT-2000D33E: RAM 4 MB + Flash ROM 8 MB IT-2000D53E: RAM 4 MB + Flash ROM 16 MB 16 grayscale (only 4 grayscale visible) Display: VGA interface, monochrome, 384 (V) x 192 (H) dots Display contrast adjusting: auto modifying EL backlight (auto-off function, 20 - 300 sec.

  • Page 37: It-2060Ioe Optional Optical Communication Unit

    IT-2060IOE Optional Optical Communication Unit The IT-2060IOE Optional Optical Communication Unit makes it possible to quickly and easily exchange system data and file data with a personal computer. The Optical Communication Unit can also be used to charge the Data Collector’s lithium ion battery pack.
  • Page 38 RS-232C interface For connection of an RS-232C cable to exchange system data and file connector data with a personal computer. RS-422 interface For connection of a cable to daisy chain with another Optical connector Communication Unit. AC adaptor jack For connection of the AC adaptor, which supplies power. Connection detector Detects whether the Data Collector is correctly mounted onto the Optical Communication Unit.

  • Page 39: Connecting The Optical Communication Unit To A Power Source

    IT-2060IOE Optional Optical Communication Unit Connecting the Optical Communication Unit to a Power Source Use only the specified AC adaptor to connect the Optical Communication Unit to an electrical outlet. Be sure to connect the AC adaptor and turn on Optical Communication Unit power before attempting to perform any data communication operation with the Data Collector.
  • Page 40 CAUTION! For IrDA transmission function, high sensitivity element is used in this unit. Avoid the proximity of a unit or equipment such as a cellular phone emitting electrical current during data communication. To get a smooth transfer using this unit, keep some distance from the equipment (at least 30 centimeters from a cellular phone).

  • Page 41: Daisy Chaining Optical Communication Units

    IT-2060IOE Optional Optical Communication Unit Daisy Chaining Optical Communication Units An optional DT-888RSC 6-6 Pin Modular Cable can be used to daisy chain up to seven Optical Communication Units. In this configuration, a personal computer can exchange data with multiple Data Collectors simultaneously. Daisy Chain Configuration Connect the C-OUT terminal of the Optical Communication Unit that is closer to the host computer to the C-IN terminal of the next Optical Communication Unit.

  • Page 42: Dip Switch Settings

    DIP Switch Settings Flow Control 1 2 3 4 5 6 7 8 9 10 X ON/X OFF RS/CS Use Special Software ON Optical Communication Unit - Host Computer Communication speed 2,400bps 4,800bps 9,600bps 19,200bps 38,400bps 57,600bps 115,200bps * Communication speed can be set by Data Collector overrides this setting.

  • Page 43: It-2060Ioe Optical Communication Unit Specifications

    IT-2060IOE Optional Optical Communication Unit IT-2060IOE Optical Communication Unit Specifications Infrared Communication Interface: Infrared Conformed IrDA Ver. 1.0 Synchronization: Asynchronous Baud Rate: 9,600/38,400/115,200 bps RS-232C Synchronization: Asynchronous Baud Rate: 2,400 to 115,200 bps Transmission Protocol: Full-duplex RS-422 Synchronization: Asynchronous Baud Rate: 9,600/38,400/115,200 bps Output Power Output:...

  • Page 44: Handling Bar-Code Reader

    Handling Bar-Code Reader Connect the bar-code reader to the Data Collector’s bar-code reader connector. There are two models of bar-code reader: pen scanner DT-9650BCR, touch scanner DT- 9656BCR. Connecting the bar-code reader Turn the power on the Data Collector off. Cover Open the cover of the bar-code reader connector.
  • Page 45 Handling Bar-Code Reader 2 Bar code scanning position Start Stop Margin Margin Correct Correct Correct Correct Wrong Wrong Wrong Wrong Wrong E-46...
  • Page 46 <Touch scanner> 1 Bar-code touching angle (at read resolution 0.33mm, PCS 0.45) How to hold the wand non-contact distance (h) h = 0 ~ 10 mm Angle between the bar-code and forward/backward inclined reading window ( ) 1 = 0 ~ 10 (front part is inclined forward) 2 = 0 ~ 30 (back part is inclined backward) h = 0 The angle of inclination to the right/left ( )
  • Page 47 Handling Bar-Code Reader 2 Bar-code touching angle Margin Margin Correct Correct Correct Wrong Wrong Wrong Wrong <Sample bar-codes> CODE39 (Standard version) (Shorten version) NW-7 • These bar-codes are samples. E-48...

  • Page 48: Bar-Code Reader Specifications

    Bar Code Reader Specifications DT-9650BCR Pen Scanner Readable Codes: WPC (JAN, EAN, UPC), NW-7, CODE-39/93/128, ITF Readable PCS Value: 0.45 min. Cable Length: Approximately 100 cm Read Resolution: 0.125 mm min. (PCS value 0.85 min.) Read Angle: 90 to 45 degrees Scan Speed: 76 to 760 mm/second Operating Temperature/Humidity:...

  • Page 49: Using Pc Cards

    Using PC Cards Your Data Collector supports use of a variety of PC cards (FROM), which are available as options. FROM cards are available in different capacities, so you can select the one that best suits your needs. To load a memory card into the Data Collector Turn off the Data Collector, turn it over, and lift up the PC card slot cover while pressing the projection as shown in the illustration.

  • Page 50: To Remove A Card From The Data Collector

    Important! • The PC card is not detected by the Data Collector when the PC card lock button is in the LOCK release position. Sliding the PC card lock button to the LOCK release position while the Data Collector is turned on causes power to turn off automatically.

  • Page 51: Attaching The Screen Protective Cover

    Attaching the Screen Protective Cover Attaching the screen protective cover to the IT-2000D33E/53E prevents the screen from becoming scratched and split, for example, during transportation. Remove the touch panel pen that is contained on the right side of the body. Attach the movable attachment fixture on the side of the screen protective cover at the location where the touch panel pen was...

  • Page 52: Drip-Proof Cover

    Drip-Proof Cover The drip-proof cover protects the IT-2000D33E/53E from rain. Unhook the hooks of the upper cover on both Hook sides of the drip-proof cover with your fingers one at a time to open the upper cover. Hook Attach the lower cover to the IT-2000D33E/ 53E.

  • Page 53: Operating Precautions

    Operating Precautions Data Collector • Never try to remove the lithium ion battery pack while the Data Collector is turned on. Doing so can cause data stored in memory to be deleted. • Sudden temperature changes can cause condensation to form on the exterior of the Data Collector’s case.

  • Page 54: Notice

    The user assumes all responsibility arising from the use of this Operating System. 5 CASIO COMPUTER CO., LTD. will in no event be liable for direct, indirect, special consequential, or incidental damages resulting from any defect, error, or omission in the...
  • Page 56 Imprimé au Japon Printed on recycled paper. Printed in Japan Imprimé sur papier recyclé. AB9906-0003501A Gedruckt auf wiederverwertetem Papier.
