- Page 1 67670KF-N Ceramic glass induction hob Installation and Operating Instructions...
- Page 2 Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Notes that concern your personal safety. Important! Notes that show how to avoid damage to the appliance.
-
Page 3: Table Of Contents
Contents Operating Instructions Safety instructions..........Description of the Appliance . -
Page 4: Operating Instructions
Operating Instructions 1 Safety instructions Please comply with these instructions. If you do not, any damage re- sulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC –... -
Page 5: Safety During Use
Safety during use • Remove stickers and film from the glass ceramic. • There is the risk of burns from the appliance if used carelessly. • Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. •... -
Page 6: Description Of The Appliance

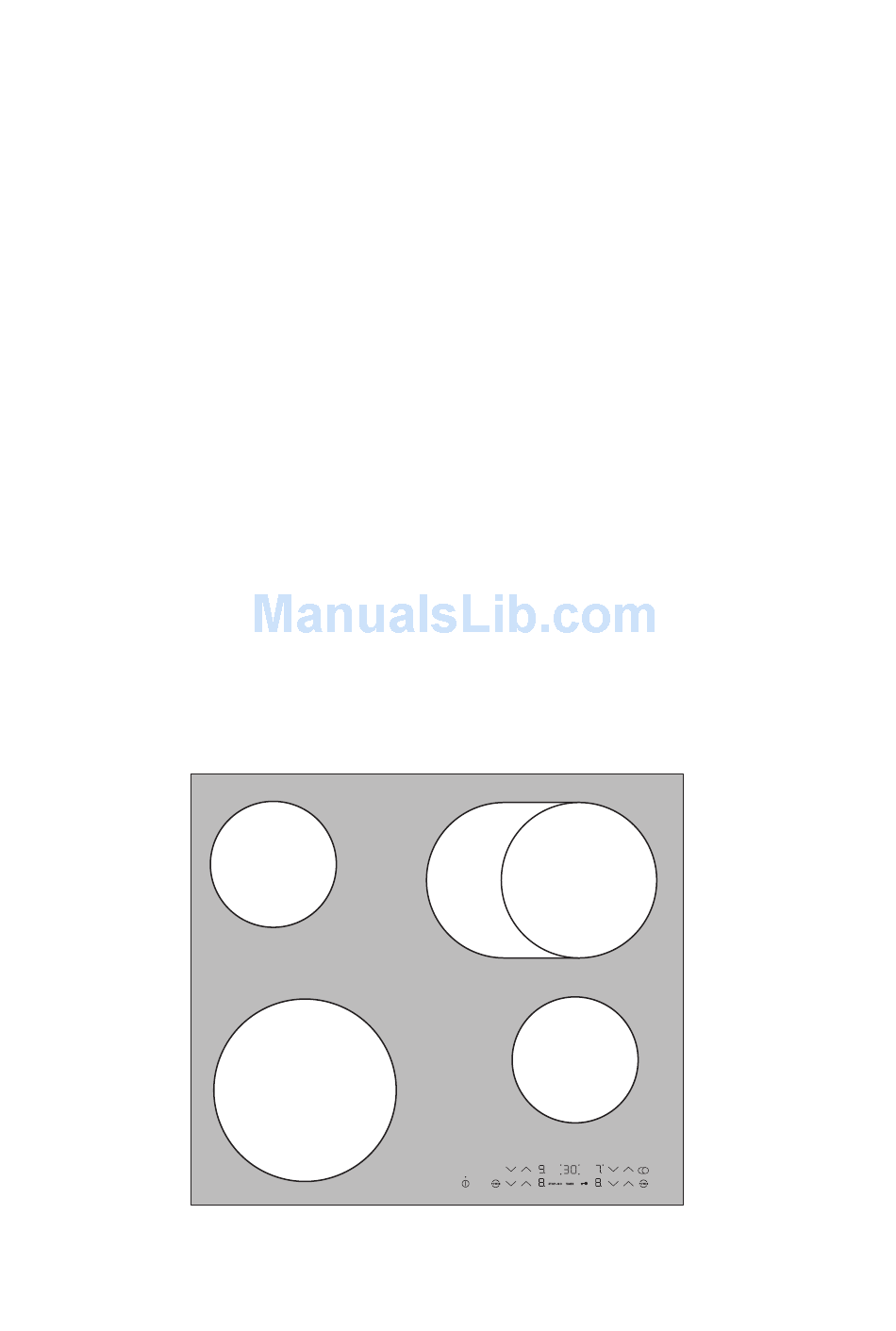

Description of the Appliance Cooking surface layout Single cooking zone Induction cooking zone 2300W with power function 3200W Control panel layout Heat setting selection Power function On/Off with power indicator Multi-purpose zone 1200W Control panel Cooking zone indicators Timer function Timer display STOP+GO Timer... -
Page 7: Touch Control Sensor Fields
Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Sensor field On / Off Increase settings Decrease settings... -
Page 8: Displays
Displays Display ¾ Keep warm setting ¿ Ç Heat settings Heating setting plus decimal point Automatic warm up function Fault Pan detection Residual heat Child safety device Power Safety cut-out Residual heat indicator Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. -
Page 9: Operating The Appliance
Operating the appliance Use the induction cooking zones with suitable cookware. Switching the appliance on and off Control panel Switch on Touch Switch off Touch After switching on, within approx. 10 seconds a heat setting or a func- tion must be set, otherwise the appliance automatically switches itself off. -
Page 10: Switching The Stop+Go Function On And Off
Switching the STOP+GO function on and off The STOP+GO function simultaneously switches all cooking zones that are switched on to the keep warm setting and then back to the heat setting that was previously set. This function can be used to briefly in- terrupt and then continue the cooking process e.g. -
Page 11: Locking/Unlocking The Control Panel
The length of time that the automatic warm up function operates de- pends on the heat setting selected. Heat Length of the automatic setting warm up radiation element [min:sec] Locking/unlocking the control panel The control panel, with the exception of the “On/Off” sensor field, can be locked at any time in order to prevent the settings being changed e.g. -
Page 12: Using The Child Safety Device
Using the child safety device The child safety device prevents unintentional use of the appliance. Setting the child safety device Step Switch on the appliance (Do not set a heat setting) Touch Touch Appliance switches off. The child safety device is set. Releasing the child safety device Step Switch on the appliance... -
Page 13: Switching The Power Function On And Off
Switch on Switch off Power Management The cooking zones have a maximum power available to them. If this power range is exceeded by switching on the power function, Power Management reduces the heat setting of another cooking zone. The display for this cooking zone al-... -
Page 14: Using The Timer
Using the timer All cooking zones can use each use one of the two timer functions at the same time. Function Automatic cut-out Countdown timer If a cooking zone is switched off, the timer function set is also switched off. If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed. -
Page 15: Setting The Time
Setting the time Step Control panel field TIMER Select cook- ing zone Touch the cooking zone se- lected After a few seconds the pilot light flashes more slowly. The time is set. The time counts down. Switching off the timer function Step Control panel field TIMER Select cook-... - Page 16 Changing the time Step Control panel field TIMER Select cook- ing zone Touch the cooking zone se- lected After a few seconds the pilot light flashes more slowly. The time is set. The time counts down. Displaying the time remaining for a cooking zone Step Control panel field TIMER Select cooking...
-
Page 17: Safety Cut-Out
Safety cut-out Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface auto- matically switches itself off. • If one or more sensor fields are covered for longer than approx. 10 seconds, e.g. -
Page 18: Tips On Cooking And Frying
Tips on cooking and frying Information about acrylamides According to the latest scientific research, intensive browning of food, especially in products containing starch, may present a health risk due to acrylamide. Therefore we recommend cooking at low temperatures and not browning foods too much. Cookware •... -
Page 19: Tips On Energy Saving
Pan size Induction cooking zones adapt automatically to the size of the cook- ware bottom up to a certain limit. However the magnetic part of the cookware bottom must have a minimum diameter depending upon the size of the cooking zone. The cookware must be placed centrally on the cooking zone. -
Page 20: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking set- process ting Keeping food warm Melting Solidify- Simmer- Steaming Braising Boiling Gentle frying Heavy frying Boiling Searing Deep fry- The power function is suitable for heating large quantities of liquid. suitable for Cook time Off position... -
Page 21: Cleaning And Care
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops, supermarkets, the parts department of your local Service Force Centre or from www.shop.electrolux.co.uk Remove stubborn residues with a cleaner for glass ceramic or stainless steel. -
Page 22: What To Do If
What to do if … Problem The cooking zones will not switch on or are not func- tioning The residual heat indicator is not displaying anything The automatic warm up function is not switching itself on Repeated acoustic signal (6x), appliance switches off Display is switching be- tween two heat settings Possible cause... - Page 23 Problem flashes is lit and number are dis- played If you are unable to remedy the problem by following the above suggestions, please contact your local Service Force Centre. Warning! Repairs to the appliance are only to be carried out by quali- fied service engineers.
-
Page 24: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities. Old appliance The symbol product may not be treated as household waste. -
Page 25: Installation Instructions
Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accord- ance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances are to be observed. -
Page 26: Electrical Connection Diagram
A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors. - Page 27 Sticking on the seal • Clean the worktop in the area of the cut-out section. • Stick the one-sided self-adhesive sealing tape supplied all the way round the lower edge of the cooking surface along the outer edge of the glass ceramic panel. Do not stretch it. The cut ends should lie in the middle of one side.
-
Page 28: Assembly
Assembly... -
Page 32: Rating Plate
Rating Plate... -
Page 33: Warranty Conditions
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products. • This guarantee relates to you and cannot be transferred to another user. -
Page 35: Service And Spare Parts
0870 5 929 929 For Customer Service in the Republic of Ireland please contact us at the ad- dress below: AEG/ Electrolux Group (Ire) Ltd Long Mile Road/ Dublin 12 Republic of Ireland Tel: +353 (0) 1 4090754 Email: service.eid@electrolux.ie... - Page 36 From the Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
