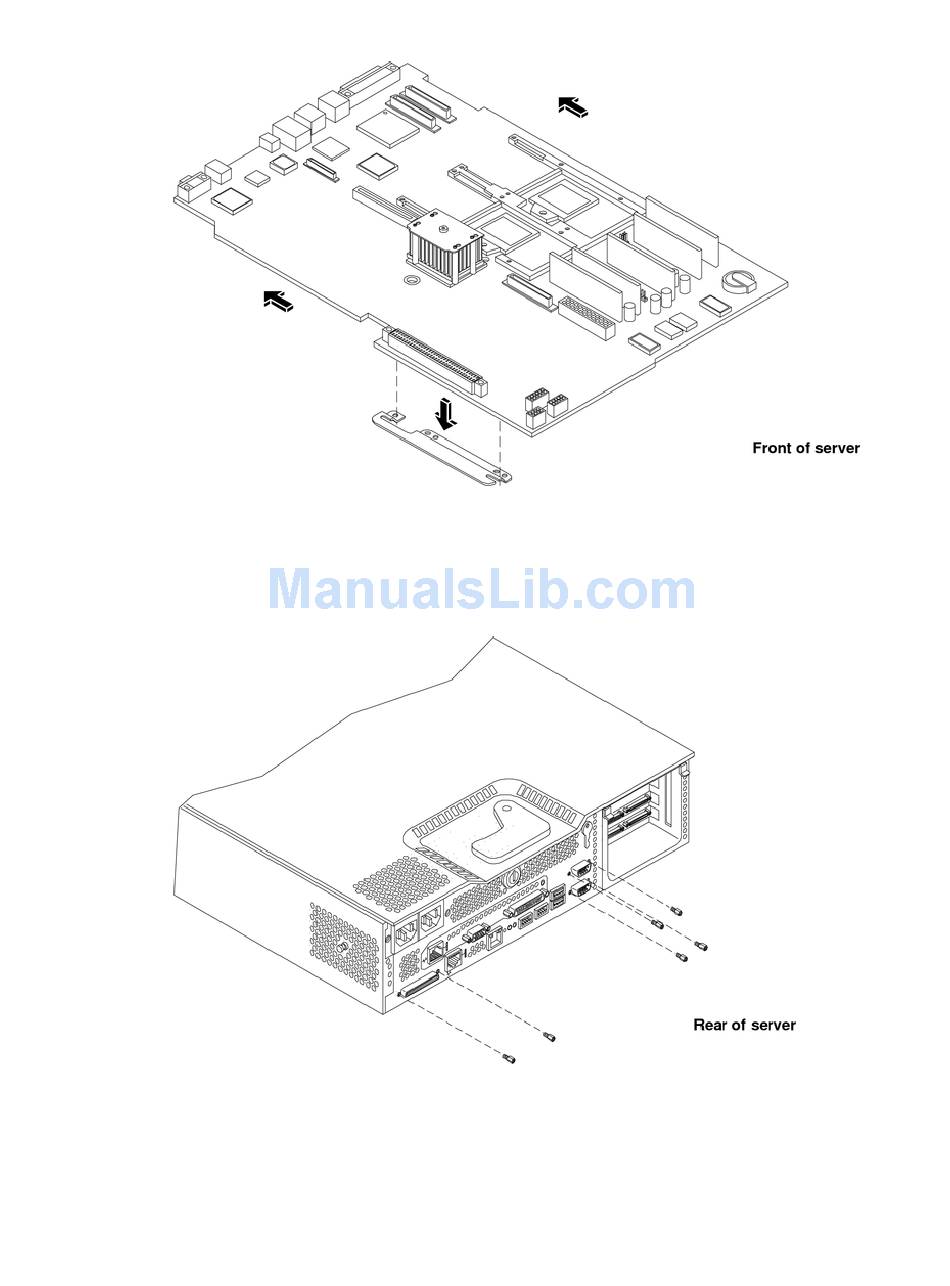

Figure 4-55 Sliding the System Board into the Chassis
4.
Install the system board mounting screw. See
5.
Connect all cables to their appropriate connectors on the system board.
6.
Install the six rear backplane system board mounting screws.
Figure 4-56 Installing the Rear Panel Mounting Screws
7.
If the server has an iLO MP, install it now. See
8.
Replace the power connectors in their slots on the back of the server and install the power
connector mounting screws. See
Figure
4-56.
"Replacing the MP Card" (page
Figure
4-57.
Removing and Replacing Internal Components
79).
85
