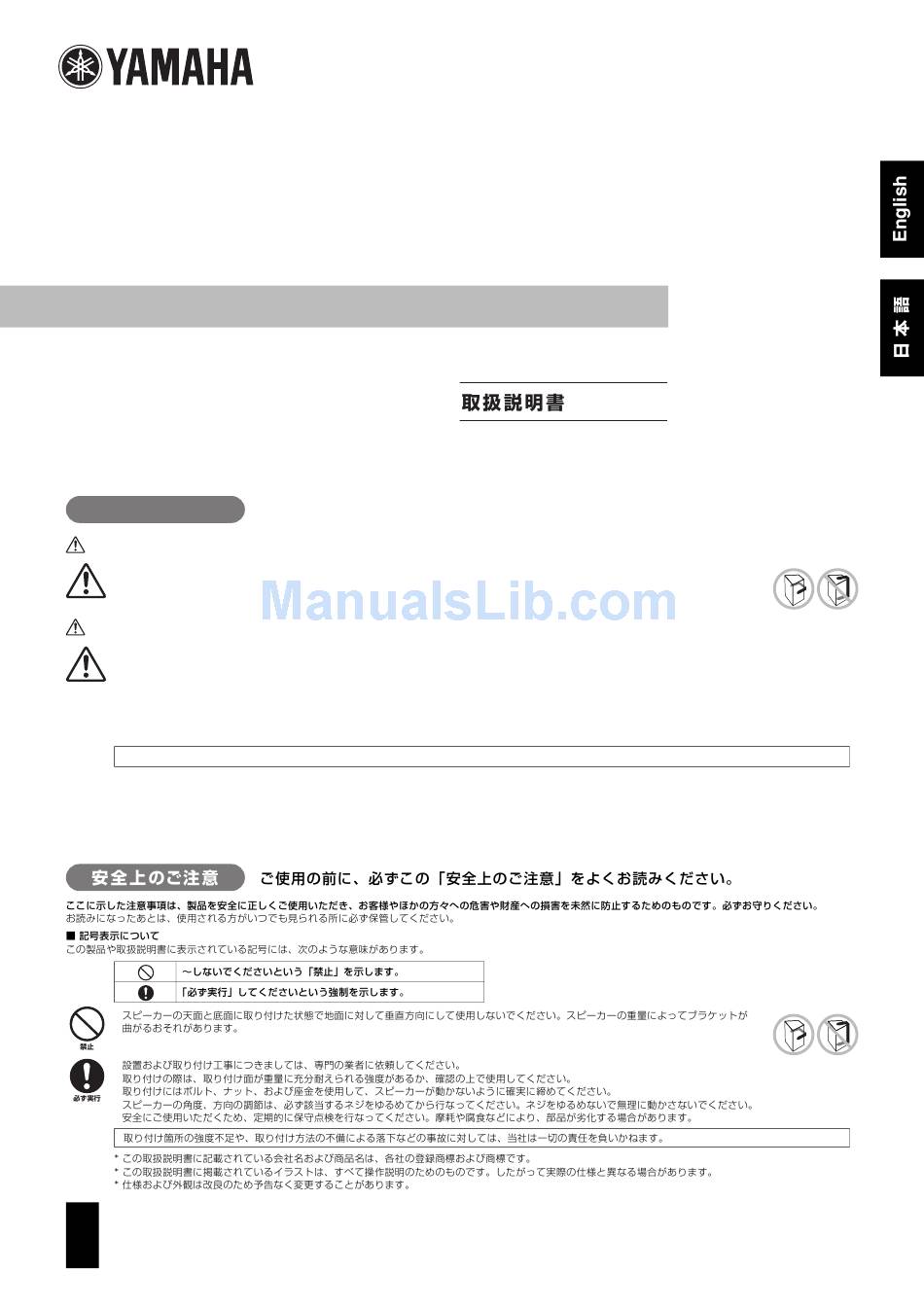

U BRACKET
UB - DXR15 / UB - DXR12 / UB - DXR10 / UB - DXR8
PRECAUTIONS
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting,
WARNING
damages, fire or other hazards. These precautions include, but are not limited to, the following:
• If the bracket arms are attached to the top and bottom surface of the speaker, do not install the speaker vertically.
Otherwise, the speaker weight may cause the bracket to bend.
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to
CAUTION
the device or other property. These precautions include, but are not limited to, the following:
• Before doing any installation or construction work, consult with an installation expert.
• Make sure that the surface this bracket is being mounted on has the strength to handle the weight of both the speaker and this bracket.
• Use bolts and nuts as well as washers for installation and tighten them firmly so that the speaker is secure and does not move.
• Always loosen the corresponding screw before adjusting the angle or direction of the speaker. Never force this adjustment with the screw still
tightened.
• Some fittings may deteriorate over extended periods of time due to wear and/or corrosion. For optimum safety, the installation should be
checked thoroughly at regular intervals.
Yamaha cannot be held responsible for damage or injury caused by insufficient strength of the support structure or improper installation.
* Illustrations herein are for explanatory purposes only, and may not match actual appearance during operation.
* Company names and product names herein are trademarks or registered trademarks of their respective companies.
* Specifications and descriptions in this owner's manual are for information purposes only. Yamaha Corp. reserves the right to change or modify
products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale,
please check with your Yamaha dealer.
•
•
•
•
•
•
EN
JA
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep this manual in a safe place for future reference.
OWNER'S MANUAL
Advertisement
Related Manuals for Yamaha UB-DXR10
Summary of Contents for Yamaha UB-DXR10
-
Page 1: Please Read Carefully Before Proceeding
* Company names and product names herein are trademarks or registered trademarks of their respective companies. * Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer. -
Page 2: Package Contents
Thank you for purchasing a Yamaha product. Before you attach the U bracket to your speaker, please be sure to read this Owner’s Manual. Package Contents Brackets M8 flat washers Rubber spacers, 10mm thick M8 spring washers M5×10 screws with flat washer and spring washer Bottom plate M5×16 screws with flat washer and spring washer... -
Page 3: Horizontal Installation
Hexagon bolt Hexagon bolt Bottom plate for DXR10 UB-DXR10 / UB-DXR8 Use the bolt hole in the center of the handle on the top of the speaker. Assemble two L-shaped brackets into a U-shape using Hexagon bolt the included M5x10 screws as shown in the figure below. - Page 4 315.5 266.4 266.4 Unit: mm Weight: 7.6kg 133.2 133.2 266.5 250.2 250.2 Unit: mm Weight: 5.7kg 125.1 125.1...
- Page 5 222.5 327.5 50.8 213.8 213.8 Unit: mm Weight: 4.2kg 213.8 50.8 184.2 184.2 Unit: mm Weight: 3.7kg 184.2...
- Page 6 C.S.G., Pro Audio Division Yamaha Pro Audio global web site © 2011 Yamaha Corporation http://www.yamahaproaudio.com/ 110MWAP*.*-**A0 Yamaha Manual Library Printed in China http://www.yamaha.co.jp/manual/ WZ17740...
