Unpacking and Setup
Open TeraStation's shipping container and carefully unpack its contents.
The carton should contain the following items:
Main Unit (TeraStation)
Ethernet Cable
Power Cable
TeraNavigator Installation CD
Quick Setup Guide (this manual)
Warranty Card
If any items are missing or damaged, please contact the reseller or
retailer from which the product was purchased.
Quick Setup Guide
www.buffalotech.com

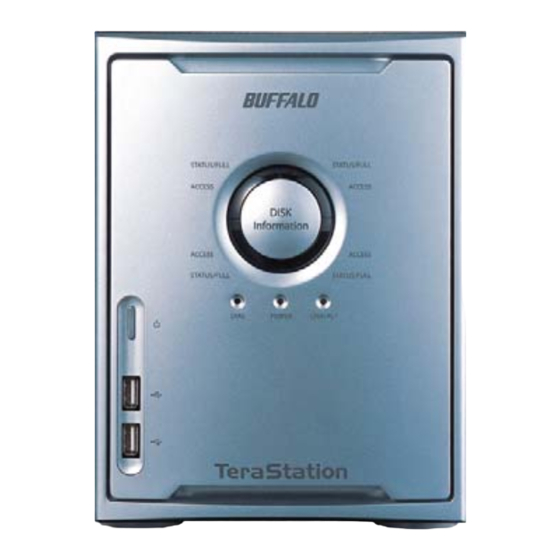

TeraStation
HD-HTGL/R5
1
1
1
1
1
1
v2.5
Advertisement
Table of Contents
Related Manuals for Buffalo HD-H0.6TGL
Summary of Contents for Buffalo HD-H0.6TGL
- Page 1 Quick Setup Guide TeraStation HD-HTGL/R5 Unpacking and Setup Open TeraStation’s shipping container and carefully unpack its contents. The carton should contain the following items: Main Unit (TeraStation) Ethernet Cable Power Cable TeraNavigator Installation CD Quick Setup Guide (this manual) Warranty Card If any items are missing or damaged, please contact the reseller or retailer from which the product was purchased.
-
Page 2: Step 1: Connect Your Cables
Step 1: Connect your Cables Plug TeraStation’s power cord and Ethernet cable into the back of the TeraStation. Then, connect the power plug to a power outlet. Make sure that the power switch on the rear of the TeraStation is in the ON position, with the “I”... -
Page 3: Step 2: Check Your Connection
Step 2: Check your Connection • Both TeraStation and the hub, switch, or PC are powered on, • The Ethernet cable is securely fastened to both devices, and • The Ethernet cable is not damaged. To verify, try using another Ethernet cable. -
Page 4: Step 3: Using The Client Utility
Step 3: Using the Client Utility Insert the TeraNavigator CD into a PC’s CD-ROM drive. If Setup doesn’t launch automatically, you can launch it manually by clicking Start, then Run..When the Run dialog opens, type d:\setup.exe (where “d” is the drive letter of the CD-ROM drive). - Page 5 Step 4: TeraStation Confi guration Utility This login prompt will appear. The user name is admin. The password is password, until you change it. Press when fi nished. You’re now logged in. Bookmark this page in your browser for easy future access. For detailed explanations of each menu and setting, refer to your TeraStation manual, available on your...
- Page 6 Step 6: Map a Driveletter to your Share To access your TeraStation’s data, it’s convenient to have the TeraStation’s share (a folder you can store data in) mapped to a drive letter. Begin by clicking Start and then Run..In the Run dialog box, type \\TeraStation_ Name...
- Page 7 Congratulations! Your TeraStation is set up. Please see the TeraStation User Manual for more help and confi guration options. Note on RAID arrays: TeraStation uses RAID (“Redundant Array of Independent Disks”) technology to control the four hard drives in your TeraStation. RAID may be confi...
-
Page 8: Technical Specifications
Weight: 15.8 LB. (5.4 kg.) Technical Support Buffalo Technology offers free technical support (24/7 Phone Support in North America, Email Support in Europe). Please see the back page of this quick start guide for the contact information. Please also visit the web site at http://www.buffalotech.com FCC Warning This device complies with part 15 of the FCC Rules. - Page 9 USA/Canada Technical Support is available 24 hours a day, 7 days a week Toll-Free: 866-752-6210 email: info@buffalotech.com Europe Technical Support is available between 9am-6pm (Monday-Thursday) (GMT) and 9am-4:30pm on Fridays. email: helpdesk@buffalo-technology.ie ©2005, Buffalo Technology (USA), Inc.
