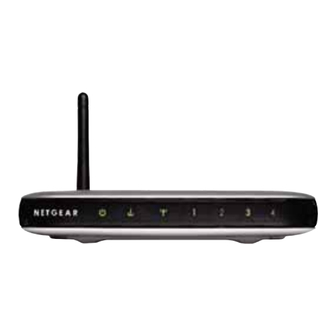

  5. WGT624v1 - 108 Mbps Wireless Firewall Router
  6. Reference manual

NETGEAR WGT624v1 - 108 Mbps Wireless Firewall Router Reference Manual

108 mbps wireless firewall router
Hide thumbs Also See for WGT624v1 - 108 Mbps Wireless Firewall Router:
Table of Contents

Advertisement

Quick Links

Download this manual
Reference Manual for the
108 Mbps Wireless
Firewall Router WGT624
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
M-10153-01
Version 1.0
August 2003
M-10153-01

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR WGT624v1 - 108 Mbps Wireless Firewall Router

Summary of Contents for NETGEAR WGT624v1 - 108 Mbps Wireless Firewall Router

  • Page 1 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA M-10153-01 Version 1.0 August 2003 M-10153-01...
  • Page 2 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 Europe - EU Declaration of Conformity This device is a 2.4 GHz low power RF device intended for home and office use in EU and EFTA member states. In some EU / EFTA member states some restrictions may apply. Please contact local spectrum management authorities for further details before putting this device into operation.
  • Page 4 requirements for use of the 2.4GHz band in France: http://www.art-telecom.fr/eng/index.htm. When operating in France, this device may be operated under the following conditions: Indoors only, using any channel in the 2.4465-2.4835 GHz band. M-10153-01...
  • Page 5 Refer to the Support Information Card that shipped with your 108 Mbps Wireless Firewall Router WGT624. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a web browser such as Internet Explorer or Netscape are required.
  • Page 6 M-10153-01...

  • Page 7: Table Of Contents

    Contents Chapter 1 About This Manual Audience, Scope, Conventions, and Formats ..............1-1 How to Use This Manual ....................1-2 How to Print this Manual ....................1-3 Chapter 2 Introduction Key Features of the Router ....................2-1 802.11g Wireless Networking ...................2-2 A Powerful, True Firewall with Content Filtering ............2-2 Security ........................2-3 Autosensing Ethernet Connections with Auto Uplink ..........2-3 Extensive Protocol Support ..................2-3...
  • Page 8 Telstra Bigpond Cable Smart Wizard-Detected Option ..........3-10 Dynamic IP Smart Wizard-Detected Option ............3-11 Fixed IP Account Smart Wizard-Detected Option ..........3-11 How to Manually Configure Your Internet Connection ..........3-13 Chapter 4 Wireless Configuration Observe Performance, Placement, and Range Guidelines ..........4-1 Implement Appropriate Wireless Security ..............4-2 Understanding Wireless Settings ...................4-3 Understanding WEP Authentication and Encryption ..........4-5...
  • Page 9 Adding a Port Forwarding Custom Service ..............7-2 Editing or Deleting a Port Forwarding Entry .............7-2 Local Web and FTP Server Example ...............7-3 Multiple Computers for Half Life, KALI or Quake III Example ........7-3 Configuring WAN Setup Options ..................7-4 Using a Dynamic DNS Service ..................7-6 Using LAN IP Setup Options ..................7-7 Using the Router as a DHCP server ................7-8 Using Address Reservation ..................7-9...
  • Page 10 Subnet Addressing ....................B-4 Private IP Addresses ....................B-7 Single IP Address Operation Using NAT ............... B-7 MAC Addresses and Address Resolution Protocol ..........B-8 Related Documents ....................B-9 Domain Name Server ....................B-9 IP Configuration by DHCP ................... B-10 Internet Security and Firewalls ..................
  • Page 11 Are Login Protocols Used? ................... C-18 What Is Your Configuration Information? .............. C-18 Obtaining ISP Configuration Information for Windows Computers ....... C-19 Obtaining ISP Configuration Information for Macintosh Computers ..... C-20 Restarting the Network ....................C-21 Appendix D Wireless Networking Basics Wireless Networking Overview ..................
  • Page 12 Contents M-10153-01...

  • Page 13: About This Manual

    108 Mbps Wireless Firewall Router WGT624 Manual Part Number M-10153-01 Manual Publication Date August 2003 Note: Product updates are available on the NETGEAR, Inc. web site at http:// www.netgear.com/support/main.asp. Documentation updates are available on the NETGEAR, Inc. web site at http://www.netgear.com/docs. About This Manual...

  • Page 14: How To Use This Manual

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 How to Use This Manual The HTML version of this manual includes a variety of navigation features as well as links to PDF versions of the full manual and individual chapters. Figure 1 -1: HTML version of this manual 1.

  • Page 15: How To Print This Manual

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 How to Print this Manual To print this manual you man choose one of the following several options, according to your needs. • Printing a “How To” Sequence of Steps in the HTML View. Use the Print button the upper right of the toolbar to print the currently displayed topic.
  • Page 16 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 About This Manual M-10153-01...

  • Page 17: Introduction

    Chapter 2 Introduction Congratulations on your purchase of the NETGEAR ® 108 Mbps Wireless Firewall Router WGT624. The WGT624 wireless router provides connection for multiple personal computers (PCs) to the Internet through an external broadband access device (such as a cable modem or DSL modem) that is normally intended for use by a single PC.

  • Page 18: 802.11G Wireless Networking

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Front panel LEDs for easy monitoring of status and activity. • Flash memory for firmware upgrade. 802.11g Wireless Networking The WGT624 wireless router includes an 802.11g wireless access point, providing continuous, high-speed 54 Mbps access between your wireless and Ethernet devices.

  • Page 19: Security

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • The WGT624 prevents objectionable content from reaching your PCs. The router allows you to control access to Internet content by screening for keywords within web addresses. You can configure the router to log and report attempts to access objectionable Internet sites. Security The WGT624 wireless router is equipped with several features designed to maintain security, as described in this section.

  • Page 20: Easy Installation And Management

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • IP Address Sharing by NAT The WGT624 wireless router allows several networked PCs to share an Internet account using only a single IP address, which may be statically or dynamically assigned by your Internet service provider (ISP).

  • Page 21: Maintenance And Support

    Registration and Warranty Card. • Support Information Card. If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the router for repair. Introduction...

  • Page 22: The Router's Front Panel

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 The Router’s Front Panel The front panel of the WGT624 wireless router contains the status LEDs described below. Figure 2-1: WGT624 Front Panel You can use some of the LEDs to verify connections. Viewed from left to right, Table 2-1 describes the LEDs on the front panel of the router.

  • Page 23: The Router's Rear Panel

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 The Router’s Rear Panel The rear panel of the Model RP614 router contains the port connections listed below. Figure 1-2: WGT624 Rear Panel Viewed from left to right, the rear panel contains the following features: •...
  • Page 24 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Introduction M-10153-01...

  • Page 25: Connecting The Router To The Internet

    Chapter 3 Connecting the Router to the Internet This chapter describes how to set up the router on your local area network (LAN) and connect to the Internet. You will find out how to configure your 108 Mbps Wireless Firewall Router WGT624 for Internet access using the Setup Wizard, or how to manually configure your Internet connection.

  • Page 26: Internet Configuration Requirements

    • You may also refer to the 108 Mbps Wireless Router WGRT624 Resource CD (SW-10027-01) for the NETGEAR Router ISP Guide which provides Internet connection information for many ISPs. Once you locate your Internet configuration parameters, you may want to record them on the page below.

  • Page 27: Record Your Internet Connection Information

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Record Your Internet Connection Information Print this page. Fill in the configuration parameters from your Internet Service Provider (ISP). ISP Login Name: The login name and password are case sensitive and must be entered exactly as given by your ISP.

  • Page 28: Connecting The Wgt624

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Connecting the WGT624 This section provides instructions for connecting the 108 Mbps Wireless Firewall Router WGT624. Also, the 108 Mbps Wireless Router WGRT624 Resource CD (SW-10027-01) included with your router contains an animated Installation Assistant to help you through this procedure. Connecting the Router There are three steps to connecting your router: Connect the router to your network...
  • Page 29 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Note: Place the WGT624 wireless router in a location which conforms to the “Observe Performance, Placement, and Range Guidelines” on page 4-1. The stand provided with the WGT624 provides a convenient, space-saving way of installing the wireless router. Avoid stacking it on other electronic equipment.
  • Page 30 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Now, turn on your computer. If software usually logs you in to your Internet connection, do not run that software or cancel it if it starts automatically. Verify the following: When you turn the router on, the power light goes on.
  • Page 31 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 A login window like the one shown below opens: Figure 3-5: Login window 3. Connect to the Internet Figure 3-6: Setup Smart Wizard You are now connected to the router. If you do not see the menu above, click the Setup Smart Wizard link on the upper left of the main menu.
  • Page 32 If you choose not to use the auto-update feature, you can check for new firmware by following the procedure in “Upgrading the Router Software” on page 6-5. Note: Be sure to check the NETGEAR web site for documentation updates which are available at http://www.netgear.com/docs. Connecting the Router to the Internet M-10153-01...

  • Page 33: Pppoe Smart Wizard-Detected Option

    Note: If you enter DNS addresses, restart your computers so that these settings take effect. • Click Apply to save your settings. • Click Test to verify that your Internet connection works. If the NETGEAR website does not appear within one minute, refer to Chapter 7, “Troubleshooting.”...

  • Page 34: Telstra Bigpond Cable Smart Wizard-Detected Option

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Telstra Bigpond Cable Smart Wizard-Detected Option If the Setup Wizard discovers Telstra Bigpond Cable is your ISP, you will see this menu: Smart Figure 3-8: Setup Wizard menu for Telstra Bigpond Cable accounts •...

  • Page 35: Dynamic Ip Smart Wizard-Detected Option

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Click Apply to save your settings. • Click Test to test your Internet connection. If the NETGEAR website does not appear within one minute, refer to Chapter 7, “Troubleshooting.
  • Page 36 Note: Restart the computers on your network so that these settings take effect. • Click Apply to save the settings. • Click Test to test your Internet connection. If the NETGEAR website does not appear within one minute, refer to Chapter 7, “Troubleshooting.”...

  • Page 37: How To Manually Configure Your Internet Connection

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 How to Manually Configure Your Internet Connection You can manually configure your router using the menu below, or you can allow the Setup Wizard to determine your configuration as described in the previous section. ISP Does Not Require Login ISP Does Require Login Figure 3-11: Browser-based configuration Basic Settings menus...
  • Page 38 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 If your Internet connection does not require a login, click No at the top of the Basic Settings menu and fill in the settings according to the instructions below. If your Internet connection does require a login, click Yes, and skip to step 3.
  • Page 39 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Select you Internet service provisory from the drop-down list. Figure 3-12: Basic Settings ISP list The screen will change according to the ISP settings requirements of the ISP you select. Fill in the parameters for your ISP according to the Wizard-detected procedures starting on page 3-3.
  • Page 40 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 3-16 Connecting the Router to the Internet M-10153-01...

  • Page 41: Wireless Configuration

    Chapter 4 Wireless Configuration This chapter describes how to configure the wireless features of your WGT624 wireless router. In planning your wireless network, you should consider the level of security required. You should also select the physical placement of your firewall in order to maximize the network speed. For further information on wireless networking, refer to in Appendix D, “Wireless Networking Basics.

  • Page 42: Implement Appropriate Wireless Security

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Implement Appropriate Wireless Security Indoors, computers can connect over 802.11b/g wireless networks at Note: ranges of up to 500 feet. Such distances can allow for others outside of your immediate area to access your network. Unlike wired network data, your wireless data transmissions can be received well beyond your walls by anyone with a compatible adapter.

  • Page 43: Understanding Wireless Settings

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Turn Off the Wired LAN. If you disable the wireless LAN, wireless devices cannot communicate with the router at all. You might choose to turn off the wireless the LAN when you are away and the others in the household all use wired connections.
  • Page 44 Any device you want to participate in a particular wireless network will need to use this SSID for that network. The WGT624 default SSID is: NETGEAR. • Region. This field identifies the region where the WGT624 can be used. It may not be legal to operate the wireless features of the wireless router in a region other than one of those identified in this field.

  • Page 45: Understanding Wep Authentication And Encryption

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Understanding WEP Authentication and Encryption Restricting wireless access to your network prevents intruders from connecting to your network. However, the wireless data transmissions are still vulnerable to snooping. Using the WEB data encryption settings described below will prevent a determined intruder from eavesdropping on your wireless data communications.

  • Page 46: Encryption Strength Choices

    FEATURE DEFAULT FACTORY SETTINGS Wireless Access Point Enabled Wireless Access List (MAC Filtering) All wireless stations allowed SSID broadcast Enabled SSID NETGEAR 11b/g RF Channel Mode g and b Authentication Type Open System Disabled Wireless Configuration M-10153-01...

  • Page 47: Before You Change The Ssid And Wep Settings

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Before You Change the SSID and WEP Settings Before customizing your wireless settings, print this form and record the following information. If your working with an existing wireless network, the person who set up or is responsible for the network will be able to provide this information.

  • Page 48: How To Set Up And Test Basic Wireless Connectivity

    Choose a suitable descriptive name for the wireless network name (SSID). In the SSID box, enter a value of up to 32 alphanumeric characters. The default SSID is NETGEAR. Note: The SSID of any wireless access adapters must match the SSID you configure in the 108 Mbps Wireless Firewall Router WGT624.

  • Page 49: How To Restrict Wireless Access By Mac Address

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Note: If you are configuring the firewall from a wireless PC and you change the firewall’s SSID, channel, or security settings, you will lose your wireless connection when you click on Apply. You must then change the wireless settings of your PC to match the firewall’s new settings.
  • Page 50 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 From the Wireless Settings menu, click the Setup Access List button to display the Wireless Access menu shown below. Figure 4-5: Wireless Card Access List Setup Click Add to add a wireless device to the wireless access control list. The Available Wireless Cards list displays.

  • Page 51: How To Configure Wep

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 How to Configure WEP To configure WEP data encryption, follow these steps: Note: If you use a wireless PC configure WEP settings, you will be disconnected when you click on Apply. You must then either configure your wireless adapter to match the wireless router WEP settings or access the wireless router from a wired PC to make any further changes.
  • Page 52 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 4-12 Wireless Configuration M-10153-01...

  • Page 53: Content Filtering

    Chapter 5 Content Filtering This chapter describes how to use the content filtering features of the 108 Mbps Wireless Firewall Router WGT624 to protect your network. These features can be found by clicking on the Content Filtering heading in the Main Menu of the browser interface. The 108 Mbps Wireless Firewall Router WGT624 provides you with web content filtering options, plus browsing activity reporting and instant alerts via e-mail.

  • Page 54: Blocking Access To Internet Services

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 To add a keyword or domain, type it in the Keyword box, click Add Keyword, then click Apply. To delete a keyword or domain, select it from the list, click Delete Keyword, then click Apply. Keyword application examples: •...
  • Page 55 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Services are functions performed by server computers at the request of client computers. For example, web servers serve web pages, time servers serve time and date information, and game hosts serve data about other players’ moves. When a computer on your network sends a request for service to a server computer on the Internet, the requested service is identified by a service or port number.

  • Page 56: Scheduling When Blocking Will Be Enforced

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 the application. This information can usually be determined by contacting the publisher of the application or from user groups of newsgroups. Enter the Starting Port and Ending Port numbers. If the application uses a single port number, enter that number in both boxes.

  • Page 57: Viewing Logs Of Web Access Or Attempted Web Access

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Days to Block. Select days to block by checking the appropriate boxes. Select Everyday to check the boxes for all days. Click Apply. • Time of Day to Block. Select a start and end time in 23:59 format. Select All day for 24 hour blocking.
  • Page 58 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Log entries are described in Table 5-1 Table 5-1. Log entry descriptions Field Description Number The index number of the content filter log entries. 128 entries are available numbered from 0 to 127. The log will keep the record of the latest 128 entries.

  • Page 59: Configuring E-Mail Alert And Web Access Log Notifications

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Configuring E-Mail Alert and Web Access Log Notifications In order to receive logs and alerts by email, you must provide your email information in the E-Mail menu, shown below: Figure 5-6: Email menu •...
  • Page 60 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Send to this e-mail address Enter the e-mail address to which logs and alerts are sent. This e-mail address will also be used as the From address. If you leave this box blank, log and alert messages will not be sent via e-mail.

  • Page 61: Maintenance

    Chapter 6 Maintenance This chapter describes how to use the maintenance features of your 108 Mbps Wireless Firewall Router WGT624. These features can be found by clicking on the Maintenance heading in the Main Menu of the browser interface. Viewing Router Status Information The Router Status menu provides a limited amount of status and usage information.
  • Page 62 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 This screen shows the following parameters: Table 6-1. Menu 3.2 - Router Status Fields Field Description Account Name This field displays the Host Name assigned to the router. Firmware Version This field displays the router firmware version.
  • Page 63 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Click on the “Show WAN Status” button to display the WAN status, as shown below. Figure 6-2: Connection Status screen This screen shows the following statistics:. Table 6-1. Connection Status Fields Field Description Connection Time...
  • Page 64 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Click on the “Show Statistics” button to display router usage statistics, as shown below. Figure 6-3: Router Statistics screen This screen shows the following statistics: Table 6-1. Router Statistics Fields Field Description Port...

  • Page 65: Viewing A List Of Attached Devices

    HTTP uploads. Use Microsoft Internet Explorer or Netscape Navigator 4.0 or above. Do not interrupt the upgrade process once it has started. Note: Be sure to check the NETGEAR web site for documentation updates which are available at http://www.netgear.com/docs.

  • Page 66: Configuration File Management

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 From the Main Menu of the browser interface, under the Maintenance heading, select the Router Upgrade heading to display the menu shown below. Figure 6-5: Router Upgrade menu Note: When uploading software to the WGT624 wireless router, it is important not to interrupt the web browser by closing the window, clicking a link, or loading a new page.

  • Page 67: Restoring And Backing Up The Configuration

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 From the Main Menu of the browser interface, under the Maintenance heading, select the Settings Backup heading to bring up the menu shown below. Figure 6-6: Settings Backup menu Three options are available, and are described in the following sections. Restoring and Backing Up the Configuration The Restore and Backup options in the Settings Backup menu allow you to save and retrieve a file containing your router’s configuration settings.

  • Page 68: Erasing The Configuration

    8-7. Changing the Administrator Password The default password for the router’s web Configuration Manager is password. Netgear recommends that you change this password to a more secure password. From the Main Menu of the browser interface, under the Maintenance heading, select Set Password to bring up the menu shown below.

  • Page 69: Advanced Configuration

    Chapter 6 Advanced Configuration This chapter describes how to configure the advanced features of your 108 Mbps Wireless Firewall Router WGT624. These features can be found under the Advanced heading in the Main Menu of the browser interface. Configuring Port Forwarding to Local Servers Although the router causes your entire local network to appear as a single machine to the Internet, you can make a local server (for example, a web server or game server) visible and available to the Internet.

  • Page 70: Adding A Port Forwarding Custom Service

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Use the Port Forwarding menu to configure the router to forward incoming protocols to computers on your local network. In addition to servers for specific applications, you can also specify a Default DMZ Server to which all other incoming protocols are forwarded.

  • Page 71: Local Web And Ftp Server Example

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Local Web and FTP Server Example If a local PC with a private IP address of 192.168.0.33 acts as a web and FTP server, configure the Ports menu to forward HTTP (port 80) and FTP (port 21) to local address 192.168.0.33 In order for a remote user to access this server from the Internet, the remote user must know the IP address that has been assigned by your ISP.

  • Page 72: Configuring Wan Setup Options

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Some online games and videoconferencing applications are incompatible with NAT. The WGT624 wireless router is programmed to recognize some of these applications and to work properly with them, but there are other applications that may not function well. In some cases, one local PC can run the application properly if that PC’s IP address is entered as the default in the PORTS Menu.
  • Page 73 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 The default DMZ server feature is helpful when using some online games and videoconferencing applications that are incompatible with NAT. The router is programmed to recognize some of these applications and to work properly with them, but there are other applications that may not function well.

  • Page 74: Using A Dynamic Dns Service

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Using a Dynamic DNS Service If your network has a permanently assigned IP address, you can register a domain name and have that name linked with your IP address by public Domain Name Servers (DNS). However, if your Internet account uses a dynamically assigned IP address, you will not know in advance what your IP address will be, and the address can change frequently.

  • Page 75: Using Lan Ip Setup Options

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Using LAN IP Setup Options The LAN IP Setup feature is under the Advanced heading of the main menu. This feature allows configuration of LAN IP services such as DHCP and RIP. From the Main Menu of the browser interface, under Advanced, click on LAN IP Setup to view the LAN IP Setup menu, shown below.

  • Page 76: Using The Router As A Dhcp Server

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • IP Address This is the LAN IP address of the router. • IP Subnet Mask This is the LAN Subnet Mask of the router. Combined with the IP address, the IP Subnet Mask allows a device to know which other addresses are local to it, and which must be reached through a gateway or router.

  • Page 77: Using Address Reservation

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 For most applications, the default DHCP and TCP/IP settings of the router are satisfactory. See “IP Configuration by DHCP” on page B-10 for an explanation of DHCP and information about how to assign IP addresses for your network.

  • Page 78: How To Configure Static Routes

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Note: The reserved address will not be assigned until the next time the PC contacts the router's DHCP server. Reboot the PC or access its IP configuration and force a DHCP release and renew. To edit or delete a reserved address entry: Click the button next to the reserved address you want to edit or delete.
  • Page 79 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Click the Add button to open the Add/Edit Menu, shown below. Figure 6-5. Static Route Entry and Edit Menu Type a route name for this static route in the Route Name box under the table. (This is for identification purpose only.) Select Private if you want to limit access to the LAN only.

  • Page 80: Enabling Remote Management Access

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 When you first configured your router, two implicit static routes were created. A default route was created with your ISP as the gateway, and a second static route was created to your local network for all 192.168.0.x addresses.

  • Page 81: Using Universal Plug And Play (Upnp)

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 To allow access from a range of IP addresses on the Internet, select IP address range. Enter a beginning and ending IP address to define the allowed range. To allow access from a single IP address on the Internet, select Only this PC. Enter the IP address that will be allowed access.
  • Page 82 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Turn UPnP On: UPnP can be enabled or disabled for automatic device configuration. The default setting for UPnP is enabled. If disabled, the router will not allow any device to automatically control the resources, such as port forwarding (mapping), of the router.

  • Page 83: Troubleshooting

    This chapter gives information about troubleshooting your 108 Mbps Wireless Firewall Router WGT624. After each problem description, instructions are provided to help you diagnose and solve the problem. Note: Product updates are available on the NETGEAR, Inc. web site at http:// www.netgear.com/support/main.asp. Documentation updates are available on the NETGEAR, Inc.

  • Page 84: Leds Never Turn Off

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Check that you are using the 12 V DC 800mA power adapter supplied by NETGEAR for this product. If the error persists, you have a hardware problem and should contact technical support.

  • Page 85: Troubleshooting The Web Configuration Interface

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Troubleshooting the Web Configuration Interface If you are unable to access the router’s web Configuration interface from a PC on your local network, check the following: • Check the Ethernet connection between the PC and the router as described in the previous section.

  • Page 86: Troubleshooting The Isp Connection

    Configuration Manager. To check the WAN IP address: Launch your browser and select an external site such as www.netgear.com Access the Main Menu of the router’s configuration at http://192.168.0.1 Under the Maintenance heading, select Router Status Check that an IP address is shown for the WAN Port If 0.0.0.0 is shown, your router has not obtained an IP address from your ISP.

  • Page 87: Troubleshooting A Tcp/Ip Network Using A Ping Utility

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Configure your router to spoof your PC’s MAC address. This can be done in the Basic Settings menu. Refer to “How to Manually Configure Your Internet Connection” on page 3-13. If your router can obtain an IP address, but your PC is unable to load any web pages from the Internet: •...

  • Page 88: Testing The Path From Your Pc To A Remote Device

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 If the path is working, you see this message: Reply from < IP address >: bytes=32 time=NN ms TTL=xxx If the path is not working, you see this message: Request timed out If the path is not functioning correctly, you could have one of the following problems: •...

  • Page 89: Restoring The Default Configuration And Password

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 — If your ISP assigned a host name to your PC, enter that host name as the Account Name in the Basic Settings menu. — Your ISP could be rejecting the Ethernet MAC addresses of all but one of your PCs. Many broadband ISPs restrict access by only allowing traffic from the MAC address of your broadband modem, but some ISPs additionally restrict access to the MAC address of a single PC connected to that modem.
  • Page 90 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Troubleshooting M-10153-01...

  • Page 91: Technical Specifications

    Appendix A Technical Specifications This appendix provides technical specifications for the 108 Mbps Wireless Firewall Router WGT624. Network Protocol and Standards Compatibility Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP PPP over Ethernet (PPPoE) Power Adapter North America: 120V, 60 Hz, input United Kingdom, Australia: 240V, 50 Hz, input Europe:...
  • Page 92 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Electromagnetic Emissions Meets requirements of: FCC Part 15 Class B VCCI Class B EN 55 022 (CISPR 22), Class B Interface Specifications LAN: 10BASE-T or 100BASE-Tx, RJ-45 WAN: 10BASE-T, RJ-45 Wireless Radio Data Rates 1, 2, 5.5, 6, 9, 12, 18, 24, 36, 48, 54, and 108 Mbps...

  • Page 93: Network, Routing, Firewall, And Basics

    Appendix B Network, Routing, Firewall, and Basics This chapter provides an overview of IP networks, routing, and networking. Related Publications As you read this document, you may be directed to various RFC documents for further information. An RFC is a Request For Comment (RFC) published by the Internet Engineering Task Force (IETF), an open organization that defines the architecture and operation of the Internet.

  • Page 94: Routing Information Protocol

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Routing Information Protocol One of the protocols used by a router to build and maintain a picture of the network is the Routing Information Protocol (RIP). Using RIP, routers periodically update one another and check for changes to add to the routing table.
  • Page 95 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Class A Network Node Class B Network Node Class C Network Node 7261 Figure 7-1: Three Main Address Classes The five address classes are: • Class A Class A addresses can have up to 16,777,214 hosts on a single network. They use an eight-bit network number and a 24-bit node number.

  • Page 96: Netmask

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 This addressing structure allows IP addresses to uniquely identify each physical network and each node on each physical network. For each unique value of the network portion of the address, the base address of the range (host address of all zeros) is known as the network address and is not usually assigned to a host.
  • Page 97 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Subnet addressing allows us to split one IP network address into smaller multiple physical networks known as subnetworks. Some of the node numbers are used as a subnet number instead. A Class B address gives us 16 bits of node numbers translating to 64,000 nodes.
  • Page 98 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 The following table lists the additional subnet mask bits in dotted-decimal notation. To use the table, write down the original class netmask and replace the 0 value octets with the dotted-decimal value of the additional subnet bits.

  • Page 99: Private Ip Addresses

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • So that hosts recognize local IP broadcast packets When a device broadcasts to its segment neighbors, it uses a destination address of the local network address with all ones for the host address. In order for this scheme to work, all devices on the segment must agree on which bits comprise the host address.

  • Page 100: Mac Addresses And Address Resolution Protocol

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 The following figure illustrates a single IP address operation. Private IP addresses assigned by user IP addresses assigned by ISP 192.168.0.2 192.168.0.3 192.168.0.1 172.21.15.105 Internet 192.168.0.4 192.168.0.5 Figure 7-3: Single IP Address Operation Using NAT This scheme offers the additional benefit of firewall-like protection because the internal LAN addresses are not available to the Internet through the translated connection.

  • Page 101: Related Documents

    Many of the resources on the Internet can be addressed by simple descriptive names such as www.NETGEAR.com. This addressing is very helpful at the application level, but the descriptive name must be translated to an IP address in order for a user to actually contact the resource. Just as...

  • Page 102: Ip Configuration By Dhcp

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 IP Configuration by DHCP When an IP-based local area network is installed, each PC must be configured with an IP address. If the PCs need to access the Internet, they should also be configured with a gateway address and one or more DNS server addresses.

  • Page 103: Stateful Packet Inspection

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Stateful Packet Inspection Unlike simple Internet sharing routers, a firewall uses a process called stateful packet inspection to ensure secure firewall filtering to protect your network from attacks and intrusions. Since user-level applications such as FTP and web browsers can create complex patterns of network traffic, it is necessary for the firewall to analyze groups of network connection states.

  • Page 104: Category 5 Cable Quality

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Category 5 Cable Quality Category 5 distributed cable that meets ANSI/EIA/TIA-568-A building wiring standards can be a maximum of 328 feet (ft.) or 100 meters (m) in length, divided as follows: 20 ft.
  • Page 105 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Figure B-1: Straight-Through Twisted-Pair Cable Figure B-2 illustrates crossover twisted pair cable. Figure B-2: Crossover Twisted-Pair Cable Figure B-3: Category 5 UTP Cable with Male RJ-45 Plug at Each End Network, Routing, Firewall, and Basics B-13 M-10153-01...

  • Page 106: Uplink Switches, Crossover Cables, And Mdi/Mdix Switching

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Note: Flat “silver satin” telephone cable may have the same RJ-45 plug. However, using telephone cable results in excessive collisions, causing the attached port to be partitioned or disconnected from the network. Uplink Switches, Crossover Cables, and MDI/MDIX Switching In the wiring table above, the concept of transmit and receive are from the perspective of the PC, which is wired as Media Dependant Interface (MDI).

  • Page 107: Appendix C Preparing Your Network

    Appendix C Preparing Your Network This appendix describes how to prepare your network to connect to the Internet through the 108 Mbps Wireless Firewall Router WGT624 and how to verify the readiness of broadband Internet service from an Internet service provider (ISP). Note: If an ISP technician configured your computer during the installation of a broadband modem, or if you configured it using instructions provided by your ISP, you may need to copy the current configuration information for use in the configuration of...

  • Page 108: Configuring Windows 95, 98, And Me For Tcp/Ip Networking

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 In your IP network, each PC and the firewall must be assigned a unique IP addresses. Each PC must also have certain other IP configuration information such as a subnet mask (netmask), a domain name server (DNS) address, and a default gateway address.
  • Page 109 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 You must have an Ethernet adapter, the TCP/IP protocol, and Client for Microsoft Networks. Note: It is not necessary to remove any other network components shown in the Network window in order to install the adapter, TCP/IP, or Client for Microsoft Networks.

  • Page 110: Enabling Dhcp To Automatically Configure Tcp/Ip Settings

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 If you need Client for Microsoft Networks: Click the Add button. Select Client, and then click Add. Select Microsoft. Select Client for Microsoft Networks, and then click OK. Restart your PC for the changes to take effect. Enabling DHCP to Automatically Configure TCP/IP Settings After the TCP/IP protocol components are installed, each PC must be assigned specific information about itself and resources that are available on its network.
  • Page 111 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Verify the following settings as shown: • Client for Microsoft Network exists • Ethernet adapter is present • TCP/IP is present • Primary Network Logon is set to Windows logon Click on the Properties button.

  • Page 112: Selecting Windows' Internet Access Method

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • By default, the IP Address tab is open on this window. • Verify the following: Obtain an IP address automatically is selected. If not selected, click in the radio button to the left of it to select it.

  • Page 113: Configuring Windows Nt4, 2000 Or Xp For Ip Networking

    From the drop-down box, select your Ethernet adapter. The window is updated to show your settings, which should match the values below if you are using the default TCP/IP settings that NETGEAR recommends for connecting through a router or gateway: •...

  • Page 114: Dhcp Configuration Of Tcp/Ip In Windows Xp, 2000, Or Nt4

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 DHCP Configuration of TCP/IP in Windows XP, 2000, or NT4 You will find there are many similarities in the procedures for different Windows systems when using DHCP to configure TCP/IP. The following steps will walk you through the configuration process for each of these versions of Windows.
  • Page 115 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Now you should be at the Local Area Network Connection Status window. This box displays the connection status, duration, speed, and activity statistics. • Administrator logon access rights are needed to use this window.

  • Page 116: Dhcp Configuration Of Tcp/Ip In Windows 2000

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Verify that the Obtain an IP address automatically radio button is selected. • Verify that Obtain DNS server address automatically radio button is selected. • Click the OK button. This completes the DHCP configuration of TCP/ IP in Windows XP.
  • Page 117 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Click on the My Network Places icon on the Windows desktop. This will bring up a window called Network and Dial-up Connections. • Right click on Local Area Connection and select Properties. •...
  • Page 118 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • With Internet Protocol (TCP/IP) selected, click on Properties to open the Internet Protocol (TCP/IP) Properties dialogue box. • Verify that • Obtain an IP address automatically is selected. • Obtain DNS server address automatically is selected.

  • Page 119: Dhcp Configuration Of Tcp/Ip In Windows Nt4

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 DHCP Configuration of TCP/IP in Windows NT4 Once you have installed the network card, you need to configure the TCP/IP environment for Windows NT 4.0. Follow this procedure to configure TCP/IP with DHCP in Windows NT 4.0. •...
  • Page 120 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Highlight the TCP/IP Protocol in the Network Protocols box, and click on the Properties button. C-14 Preparing Your Network M-10153-01...

  • Page 121: Verifying Tcp/Ip Properties For Windows Xp, 2000, And Nt4

    Type ipconfig /all Your IP Configuration information will be listed, and should match the values below if you are using the default TCP/IP settings that NETGEAR recommends for connecting through a router or gateway: • The IP address is between 192.168.0.2 and 192.168.0.254 •...

  • Page 122: Configuring The Macintosh For Tcp/Ip Networking

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • The default gateway is 192.168.0.1 Type exit Configuring the Macintosh for TCP/IP Networking Beginning with Macintosh Operating System 7, TCP/IP is already installed on the Macintosh. On each networked Macintosh, you will need to configure TCP/IP to use DHCP. MacOS 8.6 or 9.x From the Apple menu, select Control Panels, then TCP/IP.

  • Page 123: Verifying Tcp/Ip Properties For Macintosh Computers

    TCP/IP Control Panel. From the Apple menu, select Control Panels, then TCP/IP. The panel is updated to show your settings, which should match the values below if you are using the default TCP/IP settings that NETGEAR recommends: •...

  • Page 124: Verifying The Readiness Of Your Internet Account

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Verifying the Readiness of Your Internet Account For broadband access to the Internet, you need to contract with an Internet service provider (ISP) for a single-user Internet access account using a cable modem or DSL modem. This modem must be a separate physical box (not a card) and must provide an Ethernet port intended for connection to a Network Interface Card (NIC) in a computer.

  • Page 125: Obtaining Isp Configuration Information For Windows Computers

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • An IP address and subnet mask • A gateway IP address, which is the address of the ISP’s router • One or more domain name server (DNS) IP addresses •...

  • Page 126: Obtaining Isp Configuration Information For Macintosh Computers

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 If an IP address appears under Installed Gateways, write down the address. This is the ISP’s gateway address. Select the address and then click Remove to remove the gateway address. Select the DNS Configuration tab.

  • Page 127: Restarting The Network

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Restarting the Network Once you’ve set up your computers to work with the firewall, you must reset the network for the devices to be able to communicate correctly. Restart any computer that is connected to the firewall. After configuring all of your computers for TCP/IP networking and restarting them, and connecting them to the local network of your WGT624 wireless router, you are ready to access and configure the firewall.
  • Page 128 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 C-22 Preparing Your Network M-10153-01...

  • Page 129: Wireless Networking Basics

    Appendix D Wireless Networking Basics This chapter provides an overview of Wireless networking. Wireless Networking Overview The WGT624 wireless router conforms to the Institute of Electrical and Electronics Engineers (IEEE) 802.11 standard for wireless LANs (WLANs) and a product update will bring the WGT624 into conformance to the 802.11g standard when it is ratified.

  • Page 130: Ad Hoc Mode (Peer-To-Peer Workgroup

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 In the infrastructure mode, the wireless access point converts airwave data into wired Ethernet data, acting as a bridge between the wired LAN and wireless clients. Connecting multiple Access Points via a wired Ethernet backbone can further extend the wireless network coverage. As a mobile computing device moves out of the range of one access point, it moves into the range of another.

  • Page 131: Authentication And Wep

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Authentication and WEP The absence of a physical connection between nodes makes the wireless links vulnerable to eavesdropping and information theft. To provide a certain level of security, the IEEE 802.11 standard has defined two types of authentication methods, Open System and Shared Key.

  • Page 132: Open System Authentication

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 • Shared Key Authentication requires that the station and the access point have the same WEP Key to authenticate. These two authentication procedures are described below. Open System Authentication The following steps occur when two devices use Open System Authentication: The station sends an authentication request to the access point.

  • Page 133: Overview Of Wep Parameters

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 The station connects to the network. If the decrypted text does not match the original challenge text (i.e., the access point and station do not share the same WEP Key), then the access point will refuse to authenticate the station and the station will be unable to communicate with either the 802.11 network or Ethernet network.

  • Page 134: Key Size

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 3. Use WEP for Authentication and Encryption: A transmitting 802.11 device encrypts the data portion of every packet it sends using a configured WEP Key. The receiving 802.11 device decrypts the data using the same WEP Key. For authentication purposes, the 802.11 network uses Shared Key Authentication.

  • Page 135: Wep Configuration Options

    Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 WEP Configuration Options The WEP settings must match on all 802.11 devices that are within the same wireless network as identified by the SSID. In general, if your mobile clients will roam between access points, then all of the 802.11 access points and all of the 802.11 client adapters on the network must have the same WEP settings.
  • Page 136 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 The radio frequency channels used are listed in Table 7-1: Table 7-1. 802.11 Radio Frequency Channels Channel Center Frequency Frequency Spread 2412 MHz 2399.5 MHz - 2424.5 MHz 2417 MHz 2404.5 MHz - 2429.5 MHz 2422 MHz 2409.5 MHz - 2434.5 MHz...

  • Page 137: Glossary

    Glossary Use the list below to find definitions for technical terms used in this manual. List of Glossary Terms 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over twisted pair wiring. 100BASE-Tx IEEE 802.3 specification for 100 Mbps Ethernet over twisted pair wiring. 3DES 3DES (Triple DES) achieves a high level of security by encrypting the data three times using DES with three different, unrelated keys.
  • Page 138 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 ADSL Short for asymmetric digital subscriber line, a technology that allows data to be sent over existing copper telephone lines at data rates of from 1.5 to 9 Mbps when receiving data (known as the downstream rate) and from 16 to 640 Kbps when sending data (known as the upstream rate).
  • Page 139 .com, .edu, .uk, etc. For example, in the address mail.NETGEAR.com, mail is a server name and NETGEAR.com is the domain. A hacker attack designed to prevent your computer or network from operating or communicating.
  • Page 140 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Short for digital subscriber line, but is commonly used in reference to the asymmetric version of this technology (ADSL) that allows data to be sent over existing copper telephone lines at data rates of from 1.5 to 9 Mbps when receiving data (known as the downstream rate) and from 16 to 640 Kbps when sending data (known as the upstream rate).
  • Page 141 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Internet Key Exchange. An automated method for exchanging and managing encryption keys between two VPN devices. Internet Protocol is the main internetworking protocol used in the Internet. Used in conjunction with the Transfer Control Protocol (TCP) to form TCP/IP.
  • Page 142 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 A LAN typically connects multiple personal computers and shared network devices such as storage and printers. Although many technologies exist to implement a LAN, Ethernet is the most common for connecting personal computers.
  • Page 143 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 A technique by which several hosts share a single IP address for access to the Internet. NetBIOS The Network Basic Input Output System is an application programming interface (API) for sharing services and information on local-area networks (LANs).
  • Page 144 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 PPP over ATM PPPoA. PPP over ATM is a protocol for connecting remote hosts to the Internet over an always-on connection by simulating a dial-up connection. PPP over Ethernet PPPoE. PPP over Ethernet is a protocol for connecting remote hosts to the Internet over an always-on connection by simulating a dial-up connection.
  • Page 145 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 router A device that forwards data between networks. An IP router forwards data based on IP source and destination addresses. SSID A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network.
  • Page 146 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 The TLS protocol is made up of two layers. The TLS Record Protocol ensures that a connection is private by using symmetric data encryption and ensures that the connection is reliable. The second TLS layer is the TLS Handshake Protocol, which allows authentication between the server and client and the negotiation of an encryption algorithm and cryptographic keys before data is transmitted or received.
  • Page 147 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 wide area network WAN. A long distance link used to extend or connect remotely located local area networks. The Internet is a large WAN. Wi-Fi A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices.
  • Page 148 Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 Glossary M-10153-01...
  • Page 149 Index Numerics 64 or 128 bit WEP 4-6 date and time 8-7 802.11b D-1 Daylight Savings Time 8-7 daylight savings time 5-8 Default DMZ Server 7-4 Denial of Service (DoS) protection 2-2 Account Name 3-11, 3-14, 6-2 denial of service attack B-11 Address Resolution Protocol B-8 DHCP B-10 ad-hoc mode D-2...
  • Page 150 factory settings, restoring 6-8 KALI 7-3 firewall features 2-2 Flash memory, for firmware upgrade 2-2 front panel 2-6, 2-7 LAN IP Setup Menu 7-7 fully qualified domain name (FQDN) 4-4 LEDs description 2-6 troubleshooting 8-2 gateway address C-20 sending 5-7 log entries 5-5 Login 3-10 Half Life 7-3...
  • Page 151 restore factory settings 6-8 Restrict Wireless Access by MAC Address 4-9 package contents 2-5 Passphrase 4-6, 4-7, 4-11 1466 B-7, B-9 passphrase 2-2 1597 B-7, B-9 Password 3-10 1631 B-7, B-9 finding B-7 password restoring 8-7 RIP (Router Information Protocol) 7-8 PC, using to configure C-21 router concepts B-1 ping 7-5...
  • Page 152 Trusted Host 5-2 Universal Plug and Play 7-13 Uplink switch B-14 UPnP 7-13 USB C-18 WAN 7-4 WAN Setup 7-4 WEP D-3 Wi-Fi D-1 Windows, configuring for IP routing C-2, C-7 winipcfg utility C-6 WinPOET C-18 Wired Equivalent Privacy. See WEP Wireless Access 3-3 Wireless Authentication 4-5 wireless authentication scheme 4-5...

This manual is also suitable for:

Wgt624 - 108 mbps wireless firewall routerWgt624v2 - 108 mbps wireless firewall routerWgt624

Table of Contents
