Hardware Description

The PS121v2 USB Multifunction Print Server LEDs indicate the status of the server and the
Ethernet traffic. It has one 10/100 Mbps network port. The port operates in 10/100 Mbps when
connected to a 10/100Mbps Ethernet network. It has one USB port. It has a power adapter
receptacle that accepts a 12V 1A DC power adapter. It has a diagnostic/reset button.

LED Indicators

As illustrated in the figure below, the USB Multifunction Print Server has 2 LEDs.

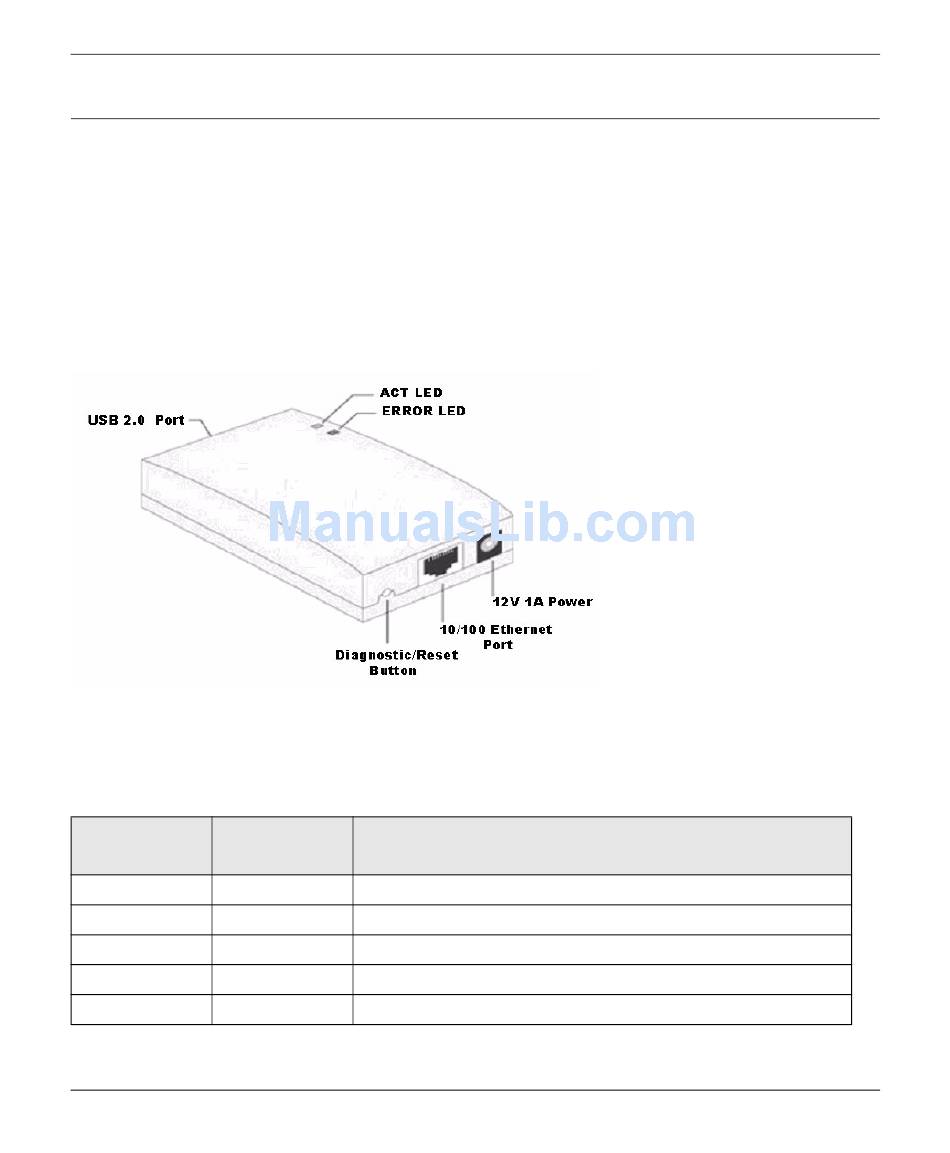

Figure 1-2
See the table below for a description of the LED indicator lights:
Table 1-1. LED Descriptions
ACT Status LED ERROR LED
(Green) (Red)
Off Off
On Off
Flashing Off
On On
Flashing Flashing
Getting Started
NETGEAR USB Multifunction Printer Server PS121v2 User Manual
Description
No power
Power on, idle normal operation
Normal operation transmitting or receiving data from the network.
No USB printer attached.
(LEDs flash in turn) Firmware upgrade in progress
