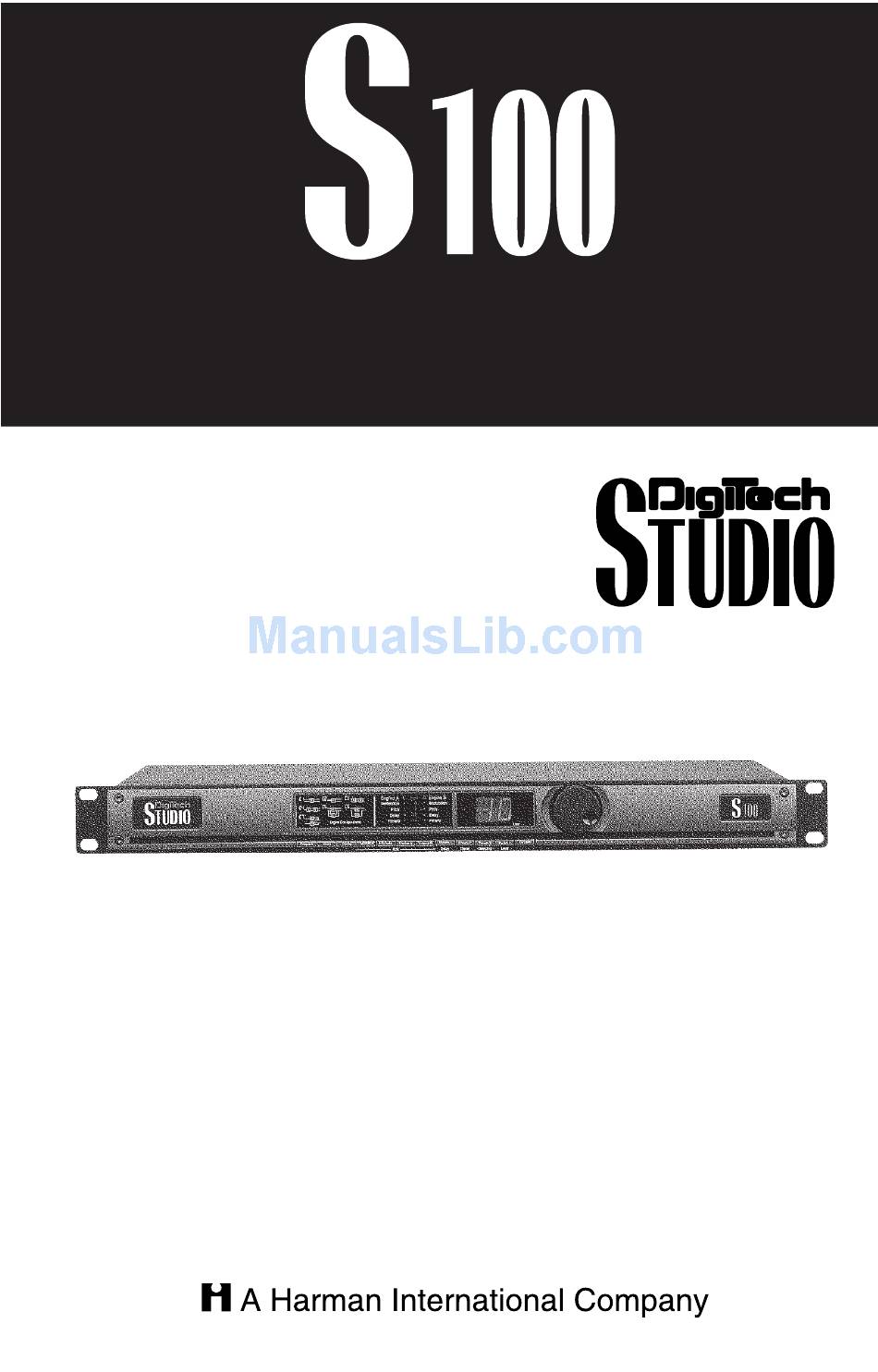

- Page 1 Dual Engine Multi-Effects Processor User’s Guide Please visit Digitech Studio on the World Wide Web at http://www.digitech.com...
-
Page 2: Lithium Battery Warning
WARNING C A U T I O N FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING: R I S K O F E L E C T R I C S H O C K D O N O T O P E N WATER AND MOISTURE: Appliance should not be used near water (e.g. -
Page 3: Declaration Of Conformity
8760 S. Sandy Parkway Sandy, Utah 84070, USA Tel: 801.566.8800 Fax: 801.566.7005 Effective December 1, 1997 European Contact: Your Local Digitech Sales and Service Office or International Sales Office 3 Overlook Drive #4 Amherst, New Hampshire 03031, USA Tel: 603.672.4244... -
Page 4: Table Of Contents
Section -1 Introduction S-100 Table of Contents Safety Information Declaration of Conformity ......................1 Table of Contents ........................2 Section 1 - Introduction Congratulations ........................3 Included Items........................3 Product Features ........................3 Warranty..........................4 A Quick Tour of the S-100 ....................5 The Front Panel ........................5 The Rear Panel........................7 Section 2 - Operation and Editing Program Mode ........................8... -
Page 5: Section-1 Introduction
Section-1 Introduction Congratulations..you are now the proud owner of a Digitech Studio S-100 Multi-Processor. The S-100 offers you Dual-Engine processing with five different effect configurations and a full palette of studio-quality effects. In addition, the S-100 has an easy-to-use interface that makes the S-100 an absolute necessity for use in studio or live applications. -
Page 6: Warranty
Digitech Studio WITH RETURN AUTHORIZATION, where all parts and labor will be covered up to a period of one year. A Return Authorization number may be obtained from Digitech Studio by telephone. The company shall not be liable for any consequential damage as a result of the product's use in any circuit or assembly. -
Page 7: A Quick Tour Of The S-100
Section -1 Introduction S-100 A Quick Tour of the S-100 The Front Panel Mod/Pitch Mod/Pitch Delay Delay Reverb Reverb Other Other Predelay Decay Size Level 9 a~g 1) Configuration Matrix - This matrix shows the five different effect configurations available in the S-100. 2) Input Meter/ Effect Display - In Program mode, this meter displays the input signal entering the unit. - Page 8 Section -1 Introduction S-100 wheel to change the effect used in this module. 9-c) Engine B - This button selects the Engine B effect module. Once this button has been pressed, use the <Program/Data> wheel to change the effect used in the module. 9-d) Parameter 1 / Predelay - This button selects parameter 1 for editing in conjunction with the <Program/Data>...
-
Page 9: The Rear Panel
6) AC Line Input - This is the AC adapter receptacle. Use only the included PS 750 power supply. 7) Footswitch Jack - This jack is used for the insertion of the Digitech FS-300 footswitch that will control program changes and Bypass the digital effects of the S-100. -
Page 10: Section-2 Operation And Editing
When the S-100 is in program mode, you can move from one program to the next by either using the <Program/Data> wheel, the optional Digitech FS-300 footswitch or incoming MIDI program change commands from another device such as a sequencer or keyboard. -
Page 11: Adjusting Dry Path Global Mix
Section -2 Operation and Editing S-100 To select any one of these five different configurations, simply perform the following procedure: • Press the <Config> button and the display will briefly read: CF indicating that you are in the configuration select mode and now the display will appear something like this: •... -
Page 12: Midi Channel Selection And Cc Information
Section -2 Operation and Editing S-100 Selecting the MIDI Channel and MIDI CC Information • To select the MIDI channel in which the S-100 receives program change information, from Program mode, press the <Mix/MIDI> button twice and the display will briefly read: ch (this indicates MIDI channel mode), followed by: •... - Page 13 Section -2 Operation and Editing S-100 • Press the <EQ/Gate> button once and the display will briefly read: • Now to make adjustments to the four different EQ parameters use the <Parameter 1-4> buttons. Parameter and value range for each is listed below. Parameter 1 - Lo EQ - Range for the Low EQ is from -12 to +12 dB.
-
Page 14: Editing Engine A And B Engines
Section -2 Operation and Editing S-100 Editing Engine A and B Modules Because of its processing power, the S-100 gives you two Engine modules that are fully programmable. The following section explains the simple procedure for Engine A and B editing. Selecting and Editing Effects •... -
Page 15: Section 3 - Effects And Parameters
Section -3 Effects and Parameters S-100 Section - 3 Effects and Parameters This section provides you with a detailed description of the Digital effects in the S-100 and their parameters and values. A complete list of these effects is also printed on the top of the S-100. Modulation Effects Parameter 4 Parameter 2... -
Page 16: Pitch Shifters
S-100 Section -3 Effects and Parameters Pitch Shifters Parameter 2 Parameter 3 Parameter 1 Parameter 4 Effect Name Shift - Sh Pitch Shift - PS Tracking - tr Level - L Detuner - dn Detune Amt - dA Level - L The Pitch Shifting effects menu includes a Pitch Shifting effect that allows you to shift the original signal to help produce Harmony effects, while the Detuner effect will help you thicken up any signal to add dimension to your sound. - Page 17 Section -3 Effects and Parameters S-100 Maximum Delay times D-1 (Half=1000 milliseconds and Whole=2000 milliseconds) D-2 (Half=700 milliseconds and Whole=1000 milliseconds) D-3 (Half=1000 milliseconds and Whole=2000 milliseconds) Delay Coarse This parameter controls the length of the Delay Coarse time Range is from .
-
Page 18: Reverb
Section -3 Effects and Parameters S-100 Reverb Parameter 3 Parameter 4 Effect Name Parameter 1 Parameter 2 Decay - dC Level - L Stage - St Predelay - Pd Damping - Da Decay - dC Level - L Predelay - Pd Damping - Da Room - ro Decay - dC... -
Page 19: Other Effects (Vocoder, Ring Modulator And Compressor)
Section - 3 Effects and Parameters S-100 Other Effects Parameter 2 Parameter 3 Parameter 4 Effect Name Parameter 1 Ring Modulator- Rg Frequency - Fr Level - L Threshold - Th Ratio - Rt Attack - At Compressor - Co Gain - gA Vocoder - Cd Sibliance - s i... -
Page 20: Section 4 - Appendix
Section - 4 Appendix S-100 Section - 4 Appendix This section provides you with information to Factory Reset the S-100, a Specification page and a Program list Resetting the S-100 This procedure will allow you to perform a complete factory reset on the S-100. Warning- All previous program information will be deleted when the reset is performed •... -
Page 21: Specifications
Section - 4 Appendix S-100 Specifications Frequency Response: 20-20kHz +/-0.5dB Signal-to-Noise Ratio: 96dB (A-Weighted ref=Max signal 22kHz measurement bandwidth) THD: Less than 0.008% 99 User - 99 Factory Programs Memory Allocations: Sampling Rate: 46.875kHz A/D Converter: 20 bit, 128 oversampled D/A Converter: 20 bit, 128 oversampled External Signal Path Width:... -
Page 22: Program List
Section -4 Appendix S-100 Program List The following is a list of all the factory Programs in the S-100 Showcase 50 Deep Slow Tremolo Stereo Large Hall 51 Fast Shallow Tremolo Deep Phaser and Delay 52 Wide Mid-Speed Panner Deep Chorus and Reverb Parallel 53 Slow Wide PAnner Gold Foil Plate 54 Leslie Slow to Fast... - Page 23 S-100 User Guide...
- Page 24 Digitech Studio™, S-100 are registered trademarks of the Harman Music Group Incorporated Copyright © 1997 the Harman Music Group Incorporated Printed In U.S.A. 4/98 Manufactured in the U.S.A. S-100 18-2208-B Please Visit Digitech Studio on the World Wide Web at: http/digitech.com...
