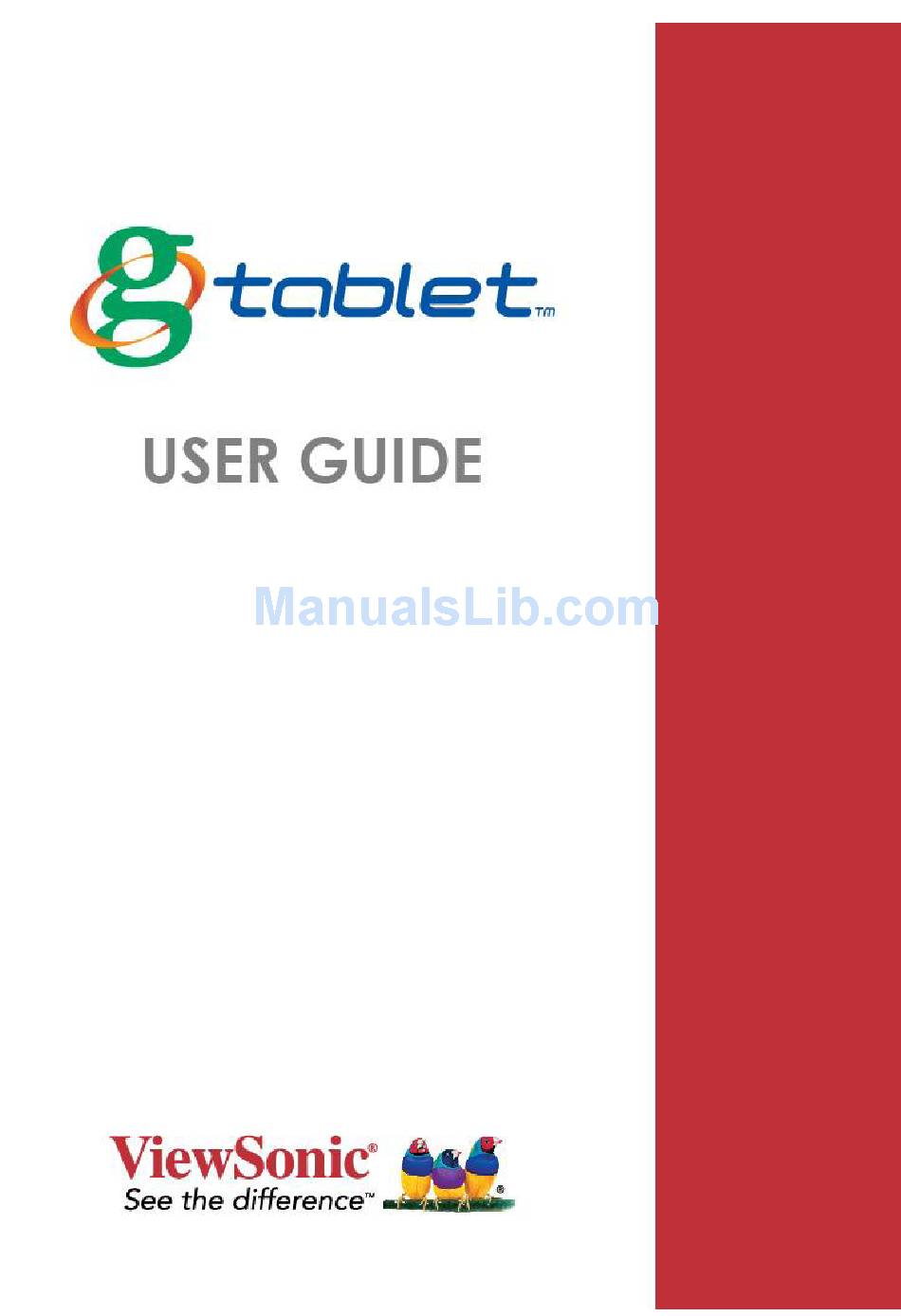

ViewSonic gTablet User Manual

Gtablet user guide
Hide thumbs Also See for gTablet:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for ViewSonic gTablet

Summary of Contents for ViewSonic gTablet

  • Page 2 Thanks for purchasing the G Tablet PC for meeting your mobile computing needs. With the finger-activated screen and touch buttons, this lightweight design combined with an embedded 802.11b/g/n wireless solution redefine PC mobility. The G Tablet allows mobile professionals to easily and naturally take, convert, organize and e-mail notes, whether they are sitting at their desks or on the road.

  • Page 3: Meanings Of Icons

    Meanings of icons: Forbidding: forbid improper operations to avoid damaging the Tablet PC. Caution: cautions for operators to avoid potential damages. Please note and remember. Importance: important information, common notes, definitions, general knowledge and references, etc. Other trademarks and trade name may be used in this manual to refer to either the entities claiming the marks and names or their products.

  • Page 4: Safety Precautions

    Safety Precautions DO NOT press or touch the LCD Screen. DO NOT place the Tablet PC with small items, they may scratch LCD Screen or enter the Tablet PC. DO NOT expose the Tablet PC to dirty or dusty environment. Keep the environment clean and dry.

  • Page 5: Fcc Compliance

    FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with limits for Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 6: Knowing Your Tablet Pc

    1 Knowing Your Tablet PC 1-1 Front View Built-in Camera Search HOME Press it once to show the Home Screen and press it for long to display the current running application. MENU Display the menu. BACK Return from the previous interface. LCD Touch-sensitive Screen Charge Indicator Light sensor Window...

  • Page 7: Left/Right View

    1-2 Left/Right View Power button Micro SD Port USB(USB2.0) Port Mini-USB Port Speakers Headphone Jack Power Jack Speakers The USB card can only be inserted in one orientation. Force to insert the card may in result of damage. 1-3 Top View VOL +/- button 1-4 Bottom View Microphone Port...

  • Page 8: Lcd Screen

    2 Caring the Tablet PC The Tablet PC is a precision device; the error operation may damage the device. 2-1 LCD Screen LCD Screen is the most delicate component of the Tablet PC and comprised of thin glass. It may be broken up by external abrupt force. DO NOT scratch the cover of the Tablet PC, or the scrape on the cover cannot remove.

  • Page 9: Traveling With The Tablet Pc

    2-3 If the water comes into the Tablet PC DO NOT turn on the Tablet PC immediately. Disconnect the outlet cable and detach the Battery Pack in order to turn off the Tablet PC, instead of pressing the POWER button to turn off it. Disconnect all external devices.

  • Page 10: Getting Started

    4 Getting Started 4-1 Connecting the Power Adapter The Tablet PC comes with a universal AC-DC adapter and the allowable input voltage of adapter is from 100V to 240V. Following the below steps to connect the adapter: Take the adapter and the power cord, and then connect the adapter with the power cord.

  • Page 11: Get To Know Your System

    Press POWER button and select “Shut-down” to turn off the Tablet PC. 5 Get to know your system The first time you turn on the tablet PC, to enter the main menu and press Back to return: Home Screen: Icon Functions System time Battery Capacity WiFi Service...

  • Page 12: System Settings

    6 System Settings Settings Some networks may require a password, which you should enter according to the prompted information on screen. If you need to set a new wireless network connection, please click “Add Wi-Fi network” to input as indication. 3.

  • Page 13: Sound/Display Setting

    Sound Silent mode: to make all sounds except media & alarms are silenced. Audible touch tones & Audible selection: make the touch or the screen selection sound. Display Brightness: adjust the brightness of the screen. Auto-rotate screen: tick the option to turn on the function to switch the orientation automatically while rotating the Tablet PC.
  • Page 14 Airplane Mode: which can disable the wireless (Wifi and Bluetooth) features to comply with airline regulations. While you can individually disable the wireless function the Airplane mode gives the airline officials a visual indication that you have shut off these items.
  • Page 15 GTablet Market. Manage applications Opens a list of all the applications and other software installed,.. By default, only downloaded applications are shown, and they are sorted in alphabetical order. When the application is tapped you are able to stop the application or uninstall the application Running services Opens a list of services—applications or parts of applications...
  • Page 16 Keyboard: Opens the Keyboard screen, where you can select the keyboard options to use Accessibility settings: You use the Accessibility settings to configure any accessibility plug-ins you have installed on. Accessibility Check to enable all installed accessibility plug-ins. Battery use: Opens a list of the applications and operating system components you have used since you last connected the tablet to a power...

  • Page 17: Upgrading Your Tablet Pc

    Version , model /build number information Lists details about the model numbers and versions of your Tablets hardware and operating system software. This information is useful if you need to work with our support team 10 Upgrading Your Tablet PC 10-1-1 Inserting SD Card The unit is designed with Micro SD Card slot which allows you to insert the Micro SD card into the unit as shown right:...

  • Page 18: Troubleshooting

    The speaker will turn off automatically after connecting the external headphone to the Notebook PC. Excessively loud volume could damage your hearing. So turn down the volume before connecting earphone, and then raise the volume to comfortable level. 11 Appendix 11-1 Troubleshooting Q1: How to turn off the Tablet PC when the halted system cannot warm boot? Press the POWER button and hold 4 or 6 seconds to turn off the Tablet PC.

  • Page 19: Specifications

    11-2 Specifications Product Definitions Model Name GTablet Description 10.1 inch Tablet Display Features Display Technology TFT-LCD Size (inches) 10.1 inch Aspect ratio 16:9 Panel manufacturer AU Optronics Corporation Panel type B101AW06 Driver system Resolution 1024 x3(H)x600(V) (480i/480p/720p/1080i) Brightness (cd/m Contrast...
  • Page 20 Wireless and cellular WiFi 802.11b/g/n Bluetooth Bluetooth 2.1 + EDR WiFi module WM-BN-BM-01 Bluetooth module WM-BN-BM-01 CPU Model Nvidia Tegra 2 Frequency 1GHz Core Model Dual ARM Cortex-A9 2D/3D Graphics Processor Video Decode Yes, Up to HD (1080P) Video Encode Yes, Audio Decode Image Processor...

  • Page 21: Operating System

    (Encode) PCM/WAV Speaker 1W x 2 Microphone Built in Video H.264 – 1080p Baseline Profile + B Frame H.264 – 1080p High Profile and Main Profile (w/CABAC,Weighted Prediction and Interlaced not Support) WMV9/VC-1 – 1080p Advanced Profile Decode HD Video MPEG-4 –...

  • Page 22: Input And Output

    Sensors Accelerometer Sensor Ambient light Sensor Input and Output DC Input Jack 1.7mm Headphone Jack 3.5mm stereo Mini USB USB Jack USB TYPE-A SD Card Micro SD Dock HDMI/Headphone/USB Camera Primary 1.3M Mpix Video Conferencing 640 x 480 Battery and Power Battery Capacity 3650mAh Type...

  • Page 23: Buttons Controls

    Buttons Controls Volume Volume+\Volume- Power Power Menu Menu Back Back Home Home Search Search Regulatory UL, FCC, CE, RoHS Clock Contacts Email Gallery Music Search Settings Sound Recorder Design and specifications are subject to change without notice. The # symbol means that the item is optional.
