- Page 1 O W N E R S M A N U A L P r e a m p l i f i e r s...
-
Page 2: Equipment Installation
EC Declaration of Conformity to Appropriate Standards Normally your Naim equipment will have been installed by the dealer who sold it to you even if you live outside their immediate vicinity. Your dealer is responsible for making sure that the system sounds exactly as it should and information given here is not intended to reduce this responsibility in any way. -
Page 3: Getting Started
Legal consumer protection varies from country to country. In most territories a dealer must be prepared to take back any Naim equipment he has sold you if he cannot make it work to your satisfaction in your own home. A problem may be due to a fault in any part of the system or its installation so it is essential to make full use of your local dealer’s... - Page 4 If there is a known problem in your locality it is advisable to arrange for a home demonstration before purchase to find out if Naim equipment is likely to be affected. Susceptibility to radio frequency interference is related to the wide internal bandwidth necessary for high sound quality.
- Page 5 4.3 fuse carrier Should the plug fuse carrier be damaged or lost, the correct replacement must be obtained from your dealer or from Naim direct. Do not use the plug until the fuse carrier is replaced. 4.4 plug fuses Replace only with ASTA or BS 1362 approved fuses.
-
Page 6: Power Supplies

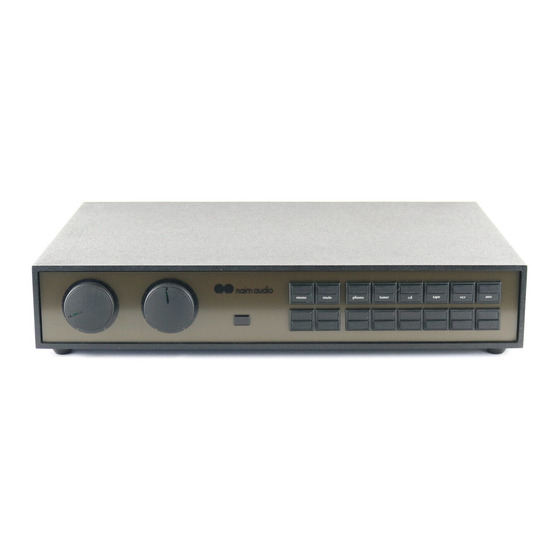

nac 52 operation power supplies The nac 52 does not incorporate an internal power supply and can be used only in conjunction with a supercap power supply. listening and recording The input selector buttons are arranged along the uppermost bank of buttons. They control which source is to be routed to the power amplifier and the loudspeakers, for listening. -
Page 7: Specifications
nac 52 front inputs 2(a/b) 3 source record mute volume balance mono nac 52 rear phono input high level inputs audio power supply ch 1 left ch 2 right digital power supply phono ground inputs 6, 5 & 4 inputs 3 & 2a input 2b ch 2 Specifications... - Page 8 nac 52 connection to supercap power supply to nap 135, & 500 power amplifiers mains input to nap 140, 150, 180 & 250 power amplifiers Interconnect Cables cable 4 to 4 pin DIN direction 5 to 5 pin DIN marker Burndy bnc plug assembly bnc plugs are employed for phono inputs on the nac 52, 82 and 102.
- Page 9 The nac 82 does not incorporate an internal power supply. It must be used in conjunction with either a naim power amplifier incorporating a preamp power supply or with a supercap, hi-cap or flatcap 2 power supply. listening and recording The input selector buttons are arranged along the uppermost bank of buttons.
- Page 10 nac 82 front inputs source record mute volume balance mono nac 82 rear phono input high level inputs outputs napsc ch 1 left ch 2 right phono ground inputs 6, 5 & 4 inputs 3 & 2 ch 2 ch 2 Specifications nac 82 Line input sensitivities...
- Page 11 nac 82 connection to one power amplifier with internal power supply all link plugs fitted to napsc to nap 140, 150, & 180 power amplifiers note The napsc power supply must be connected at all times to the nac 82. nac 82 connection to one hi-cap (or flatcap 2) link plug fitted link plug removed...
- Page 12 nac 82 connection to two hi-caps (or flatcaps) all link plugs removed to napsc to nap 135 & 500 mains input mains input to nap 140, 150, 180 & power amplifiers 250 power amplifiers note If multiple power supplies are used to operate one preamplifier they must be of the same type.
- Page 13 The nac 102 does not incorporate an internal power supply. It must be used in conjunction with either a naim power amplifier incorporating a preamp power supply or with a supercap, hi-cap or flatcap 2 power supply. preamplifier inputs Inputs 1a, 2 and 3 are standard high level inputs.
- Page 14 nac 102 front inputs mute volume balance monitor nac 102 rear outputs high level inputs phono input napsc (optional) ch 1 left ch 2 right phono ground inputs 6, 5 & 4 inputs 3, 2 & 1a ch 2 ch 2 Specifications nac 102 Line input sensitivities...
