Jensen MP5000 Owner's Manual

Dvd/cd/mp3 player
Hide thumbs Also See for MP5000:
Table of Contents

Advertisement

Quick Links

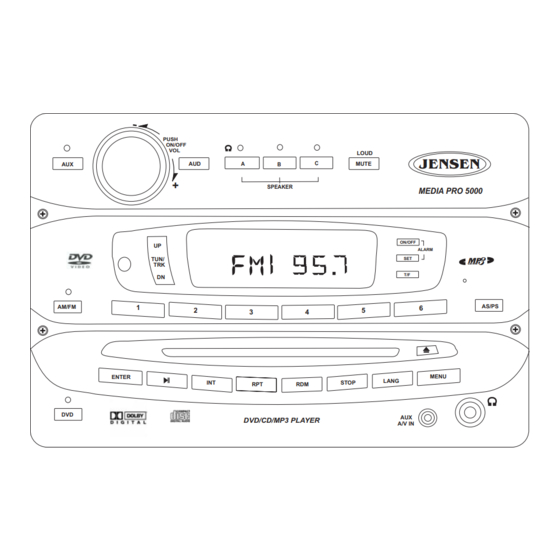

Owner's Manual
AUX
AM/FM
ENTER
DVD
MP5000
PUSH
ON/OFF
VOL
AUD
+
UP
TUN/
TRK
DN
1
2
INT
A
C
B
SPEAKER
3
4
RPT
RDM
DVD/CD/MP3 PLAYER
LOUD
JENSEN
MUTE
MEDIA PRO 5000
ON/OFF
ALARM
SET
T/F
6
5
MENU
LANG
STOP
AUX
A/V IN
MP
CD-RW
AS/PS

Advertisement

Table of Contents
loading

Related Manuals for Jensen MP5000

Summary of Contents for Jensen MP5000

  • Page 1 MP5000 Owner’s Manual PUSH ON/OFF LOUD JENSEN MUTE SPEAKER MEDIA PRO 5000 ON/OFF ALARM TUN/ CD-RW AS/PS AM/FM MENU ENTER LANG STOP DVD/CD/MP3 PLAYER A/V IN...

  • Page 2: Table Of Contents

    Specifications ............16 Features Features of the Jensen MP5000 mobile audio system include: •...

  • Page 3: Installation

    MP5000 Installation Select Mounting Location Select a mounting location, taking care to avoid the following: • Places exposed to heat-radiating appliances such as electric heaters • Adjacent to other equipment that radiates heat • Poorly-ventilated or dusty places • Moist or humid locations...

  • Page 4: Wiring

    Wiring The wiring diagram depicts all the wiring connections required for proper operation of the unit.

  • Page 5: Basic Operation

    MP5000 Basic Operation 1. Power / Volume Control Press the power button (1) to turn the unit on or off. This button also serves as the volume control knob; rotate clockwise or counterclockwise to increase or decrease the volume output.

  • Page 6: Setting The Clock

    3.5mm A/V cable adapter. Connect the device to the A/ V input on the front panel, and press AUX to engage the input circuit. Please note that there are several A/V cable "standards" which differ from each other. The MP5000 is designed to support the Apple Video iPod cable type, as shown in the inset drawing.

  • Page 7: Tuner Operation

    MP5000 Tuner Operation 10. Select a Band Press AM/FM (10) momentarily to directly access tuner mode from any other function mode. When the unit is already in tuner mode, briefly press AM/FM to change between two AM bands (AM1 and AM2) and three FM bands (FM1, FM2 and FM3).
  • Page 8 12. Preset Stations Store Preset Stations Six numbered preset buttons (12) store and recall stations for each AM and FM band. To store a station, select a band (if needed), then select a station. Hold a preset button for three seconds. The current station will be stored, and the corresponding preset number will appear in the display.

  • Page 9: Cd Operation

    MP5000 CD Operation 14. Insert and Eject CD Insert CD Insert a CD label-side up into the CD slot (14a), and the disc will begin to play. Eject CD Press the eject button (14b) to stop CD play and eject the CD.

  • Page 10: Dvd Operation

    17. Intro Scan (INT) Press and hold INT(17) for more than three seconds during disc play to play the first 10 seconds of each track on the current disc. Press INT again to end the scan and play the selected track. 18.

  • Page 11: Remote Control

    MP5000 DVD Operation (continued) The included remote control operations many functions of the unit, including DVD functions. The following buttons on the remote correspond with buttons on the front panel of the radio to control basic, tuner and CD functions in the same manner as described in those sections: Remote Control Basic, Tuner &...
  • Page 12 39. Numeric Buttons To directly access a track, press the corresponding numeric button (1-9) (39). To access a track with a number of 10 or greater, press 10+, then the other numbers. For example, to access track 12, press 10+, then 1, then 2.

  • Page 13: Dvd Setup

    MP5000 DVD Operation (continued) DVD Setup Press SETUP on the remote control to access setup mode, which allows setup of the following four DVD functions: • System Setup • Language Setup • Audio Setup • Video Setup While in the setup menus, use your directional arrows to select and change settings. The “up” and “down”...

  • Page 14: Audio Setup

    Language Setup The language setup menu controls the following features: LANGUAGE SETUP OSD LANGUAGE ENGLISH AUDIO LANG GERMAN SUBTITLE LANG SPANISH MENU LANG FRENCH PORTUGUESE EXIT SETUP ITALIAN On-Screen Display Language: Set the on-screen display language ON. Audio Language: Set the audio language to one of the following: English, German, Spanish, French, Portuguese or Italian.

  • Page 15: Video Setup

    MP5000 DVD Operation (continued) Video Setup The video setup menu controls the following features: VIDEO SETUP BRIGHTNESS CONTRAST SATURATION SHARPNESS EXIT SETUP Brightness: Adjust the brightness of the screen from the following levels: 12, 10, 8, 6, 4, 2 or 0.

  • Page 16: Specifications

    Specifications General Power Supply Requirements ......DC 12 Volts, Negative Ground Operating Voltage ..........11-16VDC Overall Dimensions.
