Page 1: Installation Guide
Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide March 29, 2012 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883 Text Part Number: OL-14126-12...
Page 2 OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks.
Page 3: Table Of Contents
Cisco ASR1000-SIP10 Physical Specifications Cisco ASR1000-SIP40 Overview Cisco ASR1000-SIP40 LEDs 2-10 Cisco ASR1000-SIP40 Physical Specifications 2-11 Cisco ASR 1013 Router and Slot Numbering for SIP 2-11 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 4 8-Port Gigabit Ethernet SPA Connectors 3-23 SFP Module Connections 3-23 10-Port Gigabit Ethernet SPA Overview 3-24 10-Port Gigabit Ethernet SPA LEDs 3-24 10-Port Gigabit Ethernet SPA Connectors 3-25 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 5 2-Port, 4-Port, and 8-Port OC-12c/STM-4 POS SPA Overview 3-48 2-Port, 4-Port, and 8-Port OC-12c/STM-4 Multirate POS SPA LEDs 3-48 2-Port, 4-Port, and 8-Port OC-12c/STM-4 Multirate POS SPA Interface Specifications 3-49 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 6 Cisco WebEx Node SPA LEDs 3-71 Cisco DSP SPA for ASR 1000 Series Overview 3-72 Understanding the Need for SPA-DSP 3-72 SPA-DSP Overview 3-72 Features of SPA-DSP 3-74 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 7 Deactivating a SIP Reactivating a SIP Verifying the Deactivation and Activation of a SIP Preparing for Online Removal of a SPA Deactivating a SPA Reactivating a SPA Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 8 7-11 Troubleshooting the 1-Port 10-Gigabit Ethernet LAN/WAN-PHY SPA for ASR 1000 Series Hardware 7-14 Feature Change to CPU-Usage show Command 7-15 Using debug Commands 7-17 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide viii OL-14126-12...
Page 9 Contents Packing a SPA for Shipment 7-17 Packing a SIP for Shipment 7-20 N D E X Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 10 Contents Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 11: Document Revision History
Document Revision History The Document Revision History records technical changes to this document. The table shows the Cisco IOS XE software release number and document revision number for the change, the date of the change, and a brief summary of the change.
Page 12 Release 3.1S Cisco ASR1000-SIP40 in Cisco IOS • XE Release 3.1S (the new hardware SIP) • default maximum bandwidth of SIP-10 when SIP-40 is downgraded to SIP-10 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 13 Cisco 1000BASE-BX10 SFP module • for single-strand SMF, 1490-nm TX/1310-nm RX wavelength (GLC-BX-D) Cisco 1000BASE-BX10 SFP module • for single-strand SMF, 1310-nm TX/1490-nm RX wavelength (GLC-BX-U) Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 14: Overview: Cisco Asr 1000 Series Aggregation Services Routers Spas
SPA characteristics and a SPA overview. Chapter 4 Preparing to Install a SIP or a SPA Describes the required tools, equipment, and safety guidelines for installing SIPs and SPAs. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 15: Related Documentation
You can also refer to the specific Cisco IOS XE software document for a particular feature. To see if a feature is supported by a Cisco IOS XE release, to locate the software document for –...
Page 16 Preface Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.
Page 17: Sip And Spa Product Overview
• Modular Optics Compatibility, page 1-5 • For software details for the specific SIPs and SPAs that are supported on the Cisco ASR 1000 Series Aggregation Services Routers, refer to the companion publication, Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide.
Page 18: Chapter 1 Sip And Spa Product Overview
SPA 1 SPA 2 Double-height SPA SIP subslot 0 is not available on the Cisco ASR 1002 Router as that is the slot occupied by the integrated Caution Route Processor with native Gigabit Ethernet ports. Each SPA provides a certain number of connectors, or ports, that are the interfaces to one or more •...
Page 19: Sip And Spa Compatibility
For more information about the support for different SIPs and SPAs, refer to the “Release History” Note section in the “Overview of the SIP” chapter of the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide.
Page 20: Sip And Spa Compatibility
Chapter 1 SIP and SPA Product Overview SIP and SPA Compatibility 1. The 10-Port Gigabit Ethernet SPA is a double-height SPA. The 10-Port Gigabit Ethernet SPA is not supported on Cisco ASR 1001 or Cisco ASR 1002-F Routers. Table 1-3...
Page 21: Modular Optics Compatibility
Series Router. The SPA-2CHT3-CE-ATM is not supported on the Cisco ASR 1001 Router (1 RU chassis), but supported on all other ASR 1000 chassis. However, the SPA-2CHT3-CE-ATM supports only the T3 ATM mode in Cisco IOS XE Release 3.4.0S and not the Circuit Emulation (CEM) mode. Maximum Virtual Circuits supported are 1024. Interim Local Management Interface (ILMI) 1.0 is not supported.
Page 22: Modular Optics Compatibility
SPA. For more information about any of the supported transceivers for SPAs in these tables, refer to the Cisco Transceiver Modules site for that module on Cisco.com at: http://www.cisco.com/en/US/products/hw/modules/ps5455/prod_installation_guides_list.html...
Page 23 XFP-10GER-OC192IR • XFP-10GZR-OC192LR • • XFP-10G-MM-SR 2-Port Gigabit Ethernet SPA SFP-GE-S • SFP-GE-L • SFP-GE-Z • GLC-BX-D • GLC-BX-U • GLC-LH-SMD • GLC-SX-MMD • CWDM • Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 24 • GLC-GE-100FX= • DWDM CWDM • 8-Port Gigabit Ethernet SPA SFP-GE-S • SFP-GE-L • SFP-GE-Z • SFP-GE-T • GLC-LH-SMD • GLC-SX-MMD • DWDM • CWDM • Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 25 CWDM Optics Compatibility for Built-in Gigabit Ethernet Ports (4x1GE) and All Gigabit Ethernet SPAs Supported on the Cisco ASR 1000 Series Routers Qualified Optics Modules (Cisco Part Numbers) CWDM-SFP-1470= CWDM-SFP-1490= CWDM-SFP-1510= CWDM-SFP-1530= CWDM-SFP-1550= CWDM-SFP-1570= CWDM-SFP-1590= CWDM-SFP-1610= Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 26 DWDM-SFP-3661= DWDM-SFP-3819= DWDM-SFP-3898= DWDM-SFP-3977= DWDM-SFP-4056= DWDM-SFP-4214= DWDM-SFP-4294= DWDM-SFP-4373= DWDM-SFP-4453= DWDM-SFP-4612= DWDM-SFP-4692= DWDM-SFP-4772= DWDM-SFP-4851= DWDM-SFP-5012= DWDM-SFP-5092= DWDM-SFP-5172= DWDM-SFP-5252= DWDM-SFP-5413= DWDM-SFP-5494= DWDM-SFP-5575= DWDM-SFP-5655= DWDM-SFP-5817= DWDM-SFP-5898= DWDM-SFP-5979= DWDM-SFP-6061= Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 1-10 OL-14126-12...
Page 27 1-Port OC-12c/STM-4 POS SPA SFP-OC12-MM • SFP-OC12-SR • SFP-OC12-IR1 • SFP-OC12-LR1 • SFP-OC12-LR2 • 1-Port OC-192c/STM-64 POS/RPR XFP SPA • XFP-10GLR-OC192SR • XFP-10GER-OC192IR • XFP-10GZR-OC192LR Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 1-11 OL-14126-12...
Page 28 SFP-OC3-LR2 • 2-Port Channelized T3/E3 ATM CEoP SPA CAB-T3E3-RF-BNC-F • • CAB-T3E3-RF-BNC-M • CAB-T3E3-RF-OPEN 24-Port Channelized T1/E1/J1 Circuit Emulation CABLE-24T1E1 • over Packet Port Adapter Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 1-12 OL-14126-12...
Page 29: Spa Interface Processors
SIP40G 3.1S 1. The Cisco ASR1000-SIP40 carrier card supports four half-height SPAs, two full-height SPAs, or a combination of two half-height and one full-height SPAs. Double-wide SPAs are not supported. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide...
Page 30: C H A P T E R 2 Overview: Cisco Asr 1000 Series Aggregation Services Routers Sips
ASR1000-ESP40 1. The Cisco ASR 1013 Router has limitation to support ASR1000-SIP40 at slots 4 and 5 at 40G mode. If a ASR1000-SIP40 is installed at slots 4 or 5, it will work as a SIP10 at 10G mode.
Page 31: Spa Interface Addresses On Sips
Identifying Slots and Subslots for SIPs and SPAs This section describes how to specify the physical locations of a SIP and SPA on the Cisco ASR 1000 Series Routers within the command-line interface (CLI) to configure or monitor the devices.
Page 32 Identifying Slots and Subslots for SIPs and SPAs Figure 2-1 shows an example of a SIP installed on a Cisco ASR 1006 Router. The router has three chassis slots for SIPs, and can accommodate a total of twelve SPAs. Figure 2-1...
Page 33: Specifying The Sip Subslot Location For A Spa
SPA Product Overview” chapter of the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide. The Cisco ASR 1000 series SIP supports four subslots for the installation of SPAs. As shown in Figure 2-2, the subslot locations are oriented as follows: •...
Page 34 • SIP subslot 3—Bottom-right subslot • In the Cisco ASR 1002 Router, SIP subslot 0 is not available for SPA insertion. It is the slot that is used Note for the integrated Route Processor and Gigabit Ethernet ports. Figure 2-2 shows the SPA numbering sequence on a Cisco ASR 1000 Series Routers SIP.
Page 35: Cisco Asr 1000 Series Spa Interface Processor Overview
07051650 12.2(33r)XN2 Cisco ASR 1000 Series SPA Interface Processor Overview This section provides an overview of the SPA Interface Processor (SIP) supported on the Cisco ASR 1000 Series Routers. This section contains the following topics: Cisco ASR1000-SIP10 Overview, page 2-7 •...
Page 36: Cisco Asr1000-Sip10 Leds
Physical dimension (HxWxD) 1.630 inches (41.4 mm) x 16.725 inches (424.8 mm) x 14.187 inches (360.3 mm) Shipping weight 8.5 lb (3.9 kg) Operating temperature Nominal—40.9 to 104°F (5 to 40°C) Short Term—40.9 to 131°F (5 to 55°C) Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 37: Cisco Asr1000-Sip40 Overview
–40F to 158F (–40°C to 70°C) Cisco ASR1000-SIP40 Overview The Cisco ASR1000-SIP40 supports up to 40 Gbps total bandwidth for the four SPA bays and 46 Gbps sustained through carrier card when utilizing two four-link 6.25GHz ESIs. Following are the features of the Cisco ASR1000-SIP40: •...
Page 38: Cisco Asr1000-Sip40 Leds
Green The Cisco ASR1000-SIP40 is online. The Cisco ASR1000-SIP40 is powered off. Green The Cisco ASR1000-SIP40 is powered on. The Cisco ASR1000-SIP40 is powered off. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 2-10 OL-14126-12...
Page 39: Cisco Asr1000-Sip40 Physical Specifications
• Two half-height and one full-height SPA combination that does not exceed 96 ports • The Cisco ASR 1013 Router uses the same SPA subslot numbering as the Cisco ASR 1006 Router and Cisco ASR 1004 Router. Figure 2-5 Cisco ASR 1013 Router SPA Interface Slot Numbering...
Page 40: Shared Port Adapters
Cisco ASR 1013 Routers. The Cisco ASR1000-ESP10 and Cisco ASR1000-ESP20 will not plug into the Cisco ASR 1013 Router Note ESP slots. The Cisco ASR 1013 Router supports six SIP slots only with the combination of Cisco ASR1000-ESP40 and RP2. Figure 2-6...
Page 41 Cisco ASR 1000 Series SPA Interface Processor Overview SPA—Slot 5 RP-Filler—F0 SPA—Slot 4 RP-2—R0 SPA—Slot 3 SPA—Slot 2 RP-2—R1 SPA—Slot 1 ESP-40—F1 10 SPA—Slot 0 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 2-13 OL-14126-12...
Page 42 Chapter 2 Overview: Cisco ASR 1000 Series Aggregation Services Routers SIPs Cisco ASR 1000 Series SPA Interface Processor Overview Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 2-14 OL-14126-12...
Page 43 C H A P T E R Overview: Cisco ASR 1000 Series Aggregation Services Routers SPAs This chapter describes the shared port adapters (SPAs) that are supported on the Cisco ASR 1000 Series Aggregation Services Routers and contains the following sections: •...
Page 44: C H A P T E R 3 Overview: Cisco Asr 1000 Series Aggregation Services Routers Spas
2-Port Channelized T3/E3 ATM CEoP SPA Overview, page 3-77 • 24-Port Channelized T1/E1/J1 ATM CEoP SPA Overview, page 3-79 SPA Summary Summary descriptions of the SPAs that are supported on the Cisco ASR 1000 Series Routers are provided in Table 3-1.
Page 45 2-Port Channelized T3 SPA SPA-2XCT3/DS0 Cisco IOS XE 2.1 4-Port Channelized T3 SPA SPA-4XCT3/DS0 Cisco IOS XE 2.1 2-Port Clear Channel T3/E3 SPA SPA-2XT3/E3 Cisco IOS XE 2.1 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 46: Checking Hardware And Software Compatibility
To check the minimum software requirements of Cisco IOS software with the hardware installed on your router, Cisco maintains the Software Advisor tool on Cisco.com. This tool does not verify whether SIPs or SPAs within a system are compatible, but it does provide the minimum Cisco IOS requirements for individual hardware modules or components.
Page 47 1.544 Mbps (T1) 12.35 Mbps (T1) 2.048 Mbps (E1) 16.38 Mbps (E1) 2-Port Channelized T3 SPA 44.736 Mbps 89.47 Mbps 4-Port Channelized T3 SPA 44.736 Mbps 178.94 Mbps Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 48: Cisco Asr1000-Sip10 Oversubscription Guidelines
Cisco ASR1000-SIP10. Each Cisco ASR1000-SIP10 supports 4 single-height SPAs. The chassis models of the Cisco ASR 1000 Series Aggregation Services Routers support a different maximum number of SIPs as follows: •...
Page 49: 1-Port And 3-Port Clear Channel Oc-3 Atm Spa Overview
The Cisco ASR1000-SIP40 is not supported on Cisco ASR1002 (2 RU), Cisco ASR 1002-Fixed Router (2 RU-F), and Cisco ASR 1004 Router. The Cisco ASR1000-SIP40 at slots 4 and 5 of the Cisco ASR 1000 Series Router works like a Cisco ASR1000-SIP10.
Page 50: 1-Port And 3-Port Clear Channel Oc-3 Atm Spa Interface Specifications
SONET and SDH single-mode and multimode optical fiber connection (see Figure 3-2). Each SPA port accepts an SFP module with a duplex LC-type receptacle that allows connection to single-mode or multimode optical fiber. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 51: 1-Port Clear Channel Oc-12 Atm Spa Overview
SONET and SDH network connectivity with a per-port bandwidth of 622.08 Mbps. For more information about SPA bandwidth, see the “Bandwidth Oversubscription” section in this chapter. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 52: 1-Port Clear Channel Oc-12 Atm Spa Leds
Port is enabled by software, and loopback is on. STATUS SPA power is off. Amber SPA power is on and good, and SPA is being configured. Green SPA is ready and operational. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-10 OL-14126-12...
Page 53: 1-Port Clear Channel Oc-12 Atm Spa Interface Specifications
Multimode—622.08-Mbps, OC-12 optical fiber (SONET STS-12c or SDH STM-4) Use a multimode optical fiber that has a core/cladding diameter of 62.5/125 microns. Single-mode—622.08-Mbps, OC-12 optical fiber (SONET STS-12c or SDH STM-4) • Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-11 OL-14126-12...
Page 54: 4-Port And 8-Port Fast Ethernet Spa Overview
The 4-Port and 8-Port Fast Ethernet SPA has two types of LEDs: an A/L LED for each port on the SPA, and one STATUS LED, as shown in Figure 3-7. Figure 3-7 8-Port Fast Ethernet SPA Faceplate A/L (Active/Link) LED STATUS LED Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-12 OL-14126-12...
Page 55: 4-Port And 8-Port Fast Ethernet Spa Cables, Connectors, And Pinouts
(EMI) and susceptibility to common-mode sources. Wire pairs 4/5 and 7/8 are actively terminated in the RJ-45 port circuitry in the 4-Port and 8-Port Fast Ethernet SPA. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-13 OL-14126-12...
Page 56: 1-Port 10-Gigabit Ethernet Spa Overview
The following sections describe the 1-Port 10-Gigabit Ethernet SPA: 1-Port 10-Gigabit Ethernet SPA LEDs, page 3-15 • 1-Port 10-Gigabit Ethernet SPA XFP Optical Transceiver Modules, Connectors, and Cables, • page 3-16 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-14 OL-14126-12...
Page 57: 1-Port 10-Gigabit Ethernet Spa Leds
Port is enabled by software and the link is down. STATUS SPA power is off. Green SPA is ready and operational. Amber SPA power is on and good, and the SPA is being configured. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-15 OL-14126-12...
Page 58: 1-Port 10-Gigabit Ethernet Spa Xfp Optical Transceiver Modules, Connectors, And Cables
Single-mode very-long-reach (ZR) XFP module—XFP-10GZR-OC192LR • Cisco qualifies the optics that are approved for use with its SPAs. The above-listed small form-factor pluggable modules (XFPs) are the only optical transceiver modules qualified for use. Use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter is approximately 10/125 microns) to connect your router to a network.
Page 59 10GLR SR-1: 0.5 dBm 10GER IR-2: –1.0 dBm 10GZR LR-2: –7.0 dBm Maximum receiver power damage 10GLR SR-1: 5 dBm 10GER IR-2: 5 dBm 10GZR LR-2: 5 dBm Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-17 OL-14126-12...
Page 60: Xfp Port Cabling Specifications
Port is not enabled. Green Port is enabled and the link is up. Amber Port is enabled and the link is down. STATUS SPA power is off. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-18 OL-14126-12...
Page 61: 2-Port Copper And Optical Gigabit Ethernet Spa Cables, Connectors, And Pinouts
RJ-45 receptacles. You can use both interface connectors simultaneously. Each connection supports IEEE 802.3 and Ethernet 10/100BASE-T interfaces compliant with appropriate standards. Cisco does not supply Category 5 unshielded twisted pair (UTP) RJ-45 cables; these cables are available commercially.
Page 62: 5-Port Gigabit Ethernet Spa Overview
The 5-Port Gigabit Ethernet SPA has two types of LEDs: an A/L LED for each port on the SPA, and one STATUS LED, as shown in Figure 3-17. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-20 OL-14126-12...
Page 63 Overview: Cisco ASR 1000 Series Aggregation Services Routers SPAs 5-Port Gigabit Ethernet SPA Overview Figure 3-17 5-Port Gigabit Ethernet SPA Faceplate A/L (Active/Link) LED STATUS LED Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-21 OL-14126-12...
Page 64: 5-Port Gigabit Ethernet Spa Connectors
The following sections describe the 8-port Gigabit Ethernet SPA: 8-Port Gigabit Ethernet SPA LEDs, page 3-23 • • 8-Port Gigabit Ethernet SPA Connectors, page 3-23 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-22 OL-14126-12...
Page 65: 8-Port Gigabit Ethernet Spa Leds
SFP modules exist for technologies other than Gigabit Ethernet and for products other than the 8-Port Gigabit Ethernet SPA. However, the information in this document pertains only to SFP modules that plug into the 8-Port Gigabit Ethernet SPA ports. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-23 OL-14126-12...
Page 66: 10-Port Gigabit Ethernet Spa Overview
Port is not enabled. Green Port is enabled and the link is up. Amber Port is enabled and the link is down. STATUS SPA power is off. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-24 OL-14126-12...
Page 67: 10-Port Gigabit Ethernet Spa Connectors
The SFP module has a receiver port (RX) and a transmitter port (TX) that compose one optical interface. Table 3-15, Table 3-16, Table 3-17, Table 3-18, and Table 3-19 provide SFP module information and specifications. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-25 OL-14126-12...
Page 68 The 1000BASE-LX/LH SFP transceiver transceiver module module is DOM capable, and operates on singlemode fiber-optic (SMF) of up to 10-Km link length with 1310 nm wavelength. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-26 OL-14126-12...
Page 69 (Premium single-mode fiber has a lower attenuation per unit length than ordinary single-mode fiber; dispersion-shifted single-mode fiber has both lower attenuation and less dispersion.) Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-27 OL-14126-12...
Page 70: Sfp Module Cabling And Connection Equipment
1804 ft (550 m) SFP-GE-L 1300 62.5 1804 ft (550 m) 50.0 1804 ft (550 m) 50.0 1804 ft (550 m) 9/10 — 6.2 miles (10 km) Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-28 OL-14126-12...
Page 71: Cwdm And Dwdm Sfp Modules For Gigabit Ethernet Spas
Cisco CWDM 1470-nm SFP module; Gigabit Ethernet and Gray 1- and 2-Gb Fibre Channel CWDM-SFP-1490 Cisco CWDM 1490-nm SFP module; Gigabit Ethernet and Violet 1- and 2-Gb Fibre Channel Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-29 OL-14126-12...
Page 72 Cisco CWDM 1590-nm SFP module; Gigabit Ethernet and 1- and 2-Gb Fibre Channel CWDM-SFP-1610 Cisco CWDM 1610-nm SFP module; Gigabit Ethernet and Brown 1- and 2-Gb Fibre Channel Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-30 OL-14126-12...
Page 73: Dwdm Sfp Module Specifications
1000BASE-DWDM 1535.04 nm SFP module (100-GHz ITU grid) DWDM-SFP-3425= 1000BASE-DWDM 1534.25 nm SFP module (100-GHz ITU grid) DWDM-SFP-3268= 1000BASE-DWDM 1532.68 nm SFP module (100-GHz ITU grid) Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-31 OL-14126-12...
Page 74: 2-Port Gigabit Synchronous Ethernet Spa Overview
Port is enabled by the software, and the link is valid. Amber and This state is unused and its meaning is undefined. green Debug LED Green Indicates a SPA OK status to the host. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-32 OL-14126-12...
Page 75: 2-Port Gigabit Synchronous Ethernet Spa Interface Specifications
Interface Type and Density 2x1 GE Local Timing Interfaces Input; Output Local Timing Frequency 1.544 MHz / 2.048 MHz BITS Interface Support In; Out SSM Support Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-33 OL-14126-12...
Page 76: Power Supply
Figure 3-21 SFP Optics Module Long-range SFP optical transceiver modules (for long-reach configurations) cannot be connected back-to-back without using an attenuator between the two of them. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-34 OL-14126-12...
Page 77: Bits Interface
SPA, and one STATUS LED, as shown in Figure 3-22. Figure 3-22 4-Port OC-3c/STM-1 POS SPA Faceplate C/A (Carrier/Alarm) LED STATUS LED A/L (Active/Loopback) LED Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-35 OL-14126-12...
Page 78: 2-Port And 4-Port Oc-3C/Stm-1 Pos Spa Interface Specifications
SONET and SDH single-mode and multimode optical fiber connection (see Figure 3-23). Cisco qualifies the optics that are approved for use with its SPAs. The 2-Port and 4-Port OC-3c/STM-1 POS SPA supports the following types of optical transceiver modules: Multimode (MM) SFP module—SFP-OC3-MM •...
Page 79 2-Port and 4-Port OC-3c/STM-1 POS SPA-equipped routers back-to-back. Long-range SFP optical transceiver modules (for long-reach configurations) cannot be connected back-to-back without using an attenuator between them. Figure 3-24 LC-Type Cables Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-37 OL-14126-12...
Page 80: Oc-3 Module Connections
The 1-Port OC-48c/STM-16 POS SPA provides Packet over SONET (POS) network connectivity with a bandwidth of 9.95 Gbps. The following sections describe the 1-Port OC-48c/STM-16 POS SPA: Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-38 OL-14126-12...
Page 81: 1-Port Oc-48C/Stm-16 Pos Spa Leds
Green Port is enabled by software. Amber Port is enabled by software, and there is at least one alarm. Port is not enabled by software. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-39 OL-14126-12...
Page 82: 1-Port Oc-48C/Stm-16 Pos Spa Interface Specifications
OC-48c/STM-64 line rates (9.95 Gbps). Packet data is transported with a user-configured encapsulation (such as Point-to-Point Protocol [PPP]), and is mapped into the STS-48/STM-64 frame. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-40 OL-14126-12...
Page 83: 1-Port Oc-48C/Stm-16 Pos Spa Optical Transceiver Modules, Connectors, And Cables
2-Port and 4-Port OC-48c/STM-16 POS SPA Interface Specifications, page 3-43 • 2-Port and 4-Port OC-48c/STM-16 POS SPA Cables, Optical Transceiver Modules, and Connectors, • page 3-43 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-41 OL-14126-12...
Page 84: 2-Port And 4-Port Oc-48C/Stm-16 Pos Spa Leds
Port is not enabled by software. Green Port is enabled by software, and loopback is off. Amber Port is enabled by software, and loopback is on. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-42 OL-14126-12...
Page 85: 2-Port And 4-Port Oc-48C/Stm-16 Pos Spa Interface Specifications
LC-type cable (see Figure 3-28) or two simplex LC-type cables, one for transmit (TX) and one for receive (RX). Figure 3-28 LC-Type Cables Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-43 OL-14126-12...
Page 86: Oc-48 Module Connections
The 1-Port OC-12c/STM-4 POS SPA has three types of LEDs: two LEDs for each port on the SPA, and one STATUS LED, as shown in Figure 3-29. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-44 OL-14126-12...
Page 87: 1-Port Oc-12C/Stm-4 Pos Spa Interface Specifications
RFC 1155, Structure and Identification of Management Information for TCP/IP-based Internets • RFC 1156, Management Information Base for Network Management of TCP/IP-Based Internets • RFC 1157, Simple Network Management Protocol (SNMP) • Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-45 OL-14126-12...
Page 88: 1-Port Oc-12C/Stm-4 Pos Spa Sfp Optical Transceiver Modules And Cables
SONET and SDH single-mode and multimode optical fiber connection (see Figure 3-30). Cisco qualifies the optics that are approved for use with its SPAs. The 1-Port OC-12c/STM-4 POS SPA supports the following types of optical transceiver modules: Multimode (MM) SFP module—SFP-OC12-MM •...
Page 89: Oc-12 Module Connections
OC-12 LR-2: –3 to 2 dBm Receiver sensitivity (maximum) OC-12 MM: –26 dBm OC-12 SR: –23 dBm OC-12 IR-1: –28 dBm OC-12 LR-1: –28 dBm OC-12 LR-2: –28 dBm Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-47 OL-14126-12...
Page 90: 2-Port, 4-Port, And 8-Port Oc-12C/Stm-4 Pos Spa Overview
Three different faceplates exist for the 2-Port, 4-Port, and 8-Port OC-12c/STM-4 Multirate POS SPAs. Note They each contain the same LEDs and the number of ports are 2, 4, and 8 respectively. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-48 OL-14126-12...
Page 91: 2-Port, 4-Port, And 8-Port Oc-12C/Stm-4 Multirate Pos Spa Interface Specifications
The 2-Port, 4-Port, and 8-Port OC-12c/STM-4 Multirate POS SPA interface complies with the following IETF RFCs: RFC 1662, PPP in HDLC-like Framing • RFC 2427, Multiprotocol Interconnect over Frame Relay Encapsulation • RFC 2615, PPP over SONET/SDH • Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-49 OL-14126-12...
Page 92: Connectors, And Cables
OC-3-equipped or OC-12-equipped routers back-to-back. Long-range SFP optical transceiver modules (for long-reach configurations) cannot be connected back-to-back without using an attenuator between the two of them. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-50 OL-14126-12...
Page 93: Oc-12 Module Connections
OC-12 LR-2: –3 to 2 dBm Receiver sensitivity (maximum) OC-12 MM: –26 dB OC-12 SR: –23 dBm OC-12 IR-1: –28 dBm OC-12 LR-1: –28 dBm OC-12 LR-2: –28 dBm Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-51 OL-14126-12...
Page 94: 1-Port Oc-192C/Stm-64 Pos/Rpr Xfp Spa Overview
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA has six LEDs, as shown in Figure 3-35. Figure 3-35 1-Port OC-192c/STM-64 POS/RPR XFP SPA Faceplate SPA-0C192POS-XFP WRAP LED CARRIER LED PASSTHRU LED ACTIVE LED MATESYNC LED STATUS LED Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-52 OL-14126-12...
Page 95: Port Oc-192C/Stm-64 Pos/Rpr Xfp Spa Optical Transceiver Modules, Connectors, And Cables
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA uses a single-mode, 9.95 Gbps, OC-192c optical fiber (SONET STS-192c or SDH STM-64) optical transceiver module for SONET and SDH connection to the network. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-53 OL-14126-12...
Page 96: Oc-192 Module Connections
Single-mode very-long reach (LR) XFP module—XFP-10GZR-OC192LR • Cisco Systems qualifies the optics that are approved for use with its SPAs. Use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter is approximately 10/125 microns) to connect your router to a network.
Page 97: 2-Port And 4-Port Clear Channel T3/E3 Serial Spa Overview
3-37. Figure 3-37 4-Port Clear Channel T3/E3 Serial SPA Faceplate SPA-4XT3/E3 C/A (Carrier/Alarm) LED RX (Receive) connector A/L (Active/Loopback) LED STATUS LED TX (Transmit) connector Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-55 OL-14126-12...
Page 98: 2-Port And 4-Port Clear Channel T3/E3 Spa Interface Specifications
• CAB-T3E3-RF-OPEN (T3 or E3 Cable, 1.0/2.3 RF to BNC-Open end, 10 feet) • The Cisco cable part numbers are 72-4124-01 (with male BNC end) and 72-4131-01 (with female BNC Note end). Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide...
Page 99: 2-Port And 4-Port Channelized T3 Serial Spa Overview
STATUS LED, as shown in Figure 3-38. Figure 3-38 4-Port Channelized T3 SPA Faceplate SPA-4XCT3/DS0 C/A (Carrier/Alarm) LED RX (Receive) connector A/L (Active/Loopback) LED STATUS LED TX (Transmit) connector Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-57 OL-14126-12...
Page 100: 2-Port And 4-Port Channelized T3 Spa Interface Specifications
CAB-T3E3-RF-OPEN (T3 or E3 Cable, 1.0/2.3 RF to BNC-Open end, 10 feet) Note The Cisco cable part numbers are 72-4124-01 (with Male BNC end) and 72-4131-01 (with Female BNC end). Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide...
Page 101: 4-Port Serial Interface Spa Overview
The 4-Port Serial Interface SPA has three types of LEDs: two LEDs for each port on the SPA, and one STATUS LED, as shown in Figure 3-39. Figure 3-39 4-Port Serial Interface SPA Faceplate SPA-4XT-SERIAL ACTIVE LED STATUS LED CD/LB (Carrier Detect/Loopback) LED Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-59 OL-14126-12...
Page 102: 4-Port Serial Interface Spa Interface Specifications
4-Port Serial Interface SPA Interface Specifications The 4-Port Serial Interface SPA supports six interfaces in DCE and DTE mode: V.35 • EIA/TIA-232 • EIA/TIA-449 • Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-60 OL-14126-12...
Page 103: 4-Port Serial Interface Spa Cables, Connectors, And Pinouts
Male CAB-SS-X21FC X.21 DCE 10 feet (3 meters) Female CAB-SS-530MT EIA/TIA-530 DTE 10 feet (3 meters) Male CAB-SS-530AMT EIA/TIA-530A DTE 10 feet (3 meters) Male Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-61 OL-14126-12...
Page 104 Smart Serial Connector Pinouts Signal Signal O_TXD/RXD+ O_TXD/RXD- O_TXCE/RXC+ O_TXCE/RXC- B_TXC/TXC+ B_TXC/TXC- I_RXC/TXCE+ I_RXC/TXCE- I_RXD/TXD+ I_RXD/TXD- B_DCD/DCD+ B_DCD/DCD- O_DTR/DSR+ O_DTR/DSR- O_RTS/CTS+ MODE2 O_RTS/CTS- MODE1 I_CTS/RTS- MODE0 I_CTS/RTS+ MODEDCE Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-62 OL-14126-12...
Page 105: 8-Port Channelized T1/E1 Spa Overview
Port is enabled by software, and there is a valid T1 or E1 signal without any alarms. Amber Port is enabled by software, and there is at least one alarm. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-63 OL-14126-12...
Page 106: 8-Port Channelized T1/E1 Serial Spa Interface Specifications
Table 3-41 RJ-45 Connector Pinouts Signal Description RX– Receive ring – Receive tip + No connection TX– Transmit ring – Transmit tip + No connection Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-64 OL-14126-12...
Page 107: 1-Port Channelized Stm-1/Oc-3 Spa Overview
1-Port Channelized STM-1/OC-3 SPA LEDs, page 3-66 • • 1-Port Channelized STM-1/OC-3 SPA Interface Specifications, page 3-66 • 1-Port Channelized STM-1/OC-3 SPA Cables and Connectors, page 3-67 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-65 OL-14126-12...
Page 108: 1-Port Channelized Stm-1/Oc-3 Spa Leds
OC-3c/STM-1 line rates (155.52 Mbps). Packet data is transported with a user-configured encapsulation (such as Point-to-Point Protocol [PPP]), and is mapped into the STS-3c/STM-1 frame. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-66 OL-14126-12...
Page 109: 1-Port Channelized Stm-1/Oc-3 Spa Cables And Connectors
1-Port Channelized STM-1/OC-3 SPA-equipped routers back-to-back. Long-range SFP optical transceiver modules (for long-reach configurations) cannot be connected back-to-back without using an attenuator between the two of them. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-67 OL-14126-12...
Page 110: 1-Port Channelized Oc-12/Stm-4 Spa Overview
1-Port Channelized OC-12/STM-4 SPA Faceplate SPA-1XCHOC12/DS0 C/A (Carrier/Alarm) LED STATUS LED A/L (Active/Loopback) LED The 1-Port Channelized OC-12/STM-4 SPA LEDs are described in Table 3-43. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-68 OL-14126-12...
Page 111: 1-Port Channelized Oc-12/Stm-4 Spa Interface Specifications
The 1-Port Channelized OC-12/STM-4 SPA uses a small form-factor pluggable (SFP) optical transceiver module installed in each port for SONET and SDH single-mode and multimode optical fiber connection (see Figure 3-47). Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-69 OL-14126-12...
Page 112 Long-range SFP optical transceiver modules (for long-reach configurations) cannot be connected back-to-back without using an attenuator between the two of them. Figure 3-48 LC Type Cables Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-70 OL-14126-12...
Page 113: Cisco Webex Node For Asr 1000 Series Overview
Cisco WebEx Node for ASR 1000 Series Overview The Cisco WebEx Node for Cisco ASR 1000 Series SPA (also referred to as the Cisco WebEx Node SPA) is a double-height SPA that improves the functionality of WebEx meeting services. The traffic between the enterprise network and the WebEx Data Center is decreased, greatly reducing Internet bandwidth requirements.
Page 114: Cisco Dsp Spa For Asr 1000 Series Overview
SPA is undergoing FPD upgrade operation. Note Because the Cisco WebEx Node SPA is a services type of SPA, it does not support routable interfaces. Cisco DSP SPA for ASR 1000 Series Overview To provide voice transcoding and transrating functionalities on Cisco ASR 1000 Series Routers, Cisco SPA-DSP (also referred to as SPA-DSP) has been introduced from Cisco IOS XE Release 3.2S.
Page 115 G.723.1 5300 bps g723r63 G.723.1 6300 bps g726r16 G.726 16000 bps g726r24 G.726 24000 bps g726r32 G.726 32000 bps g726r40 G.726 40000 bps g728 G.728 codec Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-73 OL-14126-12...
Page 116: Features Of Spa-Dsp
SPA-DSPs have only one type of LED, which is the STATUS LED type, as shown in Figure 3-50. Figure 3-50 SPA-DSP Faceplate STATUS LED Table 3-48 describes the SPA-DSP LED. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-74 OL-14126-12...
Page 117: 1-Port Channelized Oc3 Stm-1 Atm Ceop Spa Overview
1-Port Channelized OC-3 ATM CEoP SPA Faceplate CLASS 1 LASER 47-18493-XX REVXX VID: XXXXXXX CSA: XXXXXXX SPA-1CHOC3- SPA-1CHOC3-CE-ATM CE-ATM C/A (Carrier/Alarm) LED STATUS LED A/L (Active/Loopback) LED Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-75 OL-14126-12...
Page 118: 1-Port Channelized Oc-3 Atm Ceop Spa Interface Specifications
1-Port Channelized OC-3 ATM CEoP SPA Optical Transceiver Modules and Cables Cisco Systems, Inc. qualifies the optics that are approved for use with its SPAs. The 1-Port Channelized OC-3 ATM CEoP SPA supports the following types of optical transceiver modules: Multimode (MM) SFP module (500m)—SFP-OC3-MM...
Page 119: 2-Port Channelized T3/E3 Atm Ceop Spa Overview
Port is enabled by software, loopback is on. STATUS SPA power is off. Amber SPA power is on and the SPA is being configured. Green SPA is ready and operational. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-77 OL-14126-12...
Page 120: 2-Port Channelized T3/E3 Atm Ceop Spa Interface Specifications
• Note The Cisco cable part numbers are 72-4124-01 (for the male BNC end) and 72-4131-01 (for the female BNC end). A SPA can receive data over the cable up to a maximum distance of 1350 ft (411.5 meters). Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide...
Page 121: 24-Port Channelized T1/E1/J1 Atm Ceop Spa Overview
The 24-Port Channelized T1/E1/J1 CEoP SPA has two types of LEDs, as shown in the following figure: Figure 3-53 24-Port Channelized T1/E1/J1 CEoP SPA Faceplate TX / RX A/C (Alarm/Carrier) LEDs STATUS LED Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-79 OL-14126-12...
Page 122: 24-Port Channelized T1/E1/J1 Ceop Spa Interface Specifications
This connector has thumbscrews that should be screwed into the SPA when the cable is installed. 24-Port Channelized T1/E1/J1 CEoP SPA Cables and Connectors The 24-Port Channelized T1/E1/J1 CEoP SPA requires a Cisco cable (part number CABLE-24T1E1J1), which is shown in Figure 3-54.
Page 123: Cable Installation
TX Tip Not connected TX Ring RX Tip Not connected RX Ring Line 3 TX Tip Not connected TX Ring RX Tip Not connected RX Ring Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-81 OL-14126-12...
Page 124 TX Tip Not connected TX Ring RX Tip Not connected RX Ring Line 13 TX Tip Not connected TX Ring RX Tip Not connected RX Ring Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-82 OL-14126-12...
Page 125 TX Tip Not connected TX Ring RX Tip Not connected RX Ring Line 23 TX Tip Not connected TX Ring RX Tip Not connected RX Ring Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-83 OL-14126-12...
Page 126: Rj-45 Cable Pinouts
A 24-port channelized T1/E1/J1 CEoP SPA patch panel with the DCC2484/25T1-S part number is available from Optical Cable Corporation (OCC) at: http://www.occfiber.com/main/index.php This is a shielded rack mount 24-port patch panel, 2RU, accessory component for the Cisco PID SPA-24CHT1-CE-ATM. You can view the image of patch panel with the DCC2484/25T1-S part number http://www.occfiber.com/main/index.php?m=1&p=2&s=Y&l=en&it=54&i=193...
Page 127 Chapter 3 Overview: Cisco ASR 1000 Series Aggregation Services Routers SPAs 24-Port Channelized T1/E1/J1 ATM CEoP SPA Overview Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-85 OL-14126-12...
Page 128 Chapter 3 Overview: Cisco ASR 1000 Series Aggregation Services Routers SPAs 24-Port Channelized T1/E1/J1 ATM CEoP SPA Overview Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 3-86 OL-14126-12...
Page 129: Chapter 4 Preparing To Install A Sip Or A Spa
Safety Warnings Safety warnings appear throughout this publication in procedures that, if performed incorrectly, might harm you. A warning symbol precedes each warning statement. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 130: Warning Definition
üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden. BEWAHREN SIE DIESE HINWEISE GUT AUF. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 131 Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning. SPARA DESSA ANVISNINGAR Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 132 Chapter 4 Preparing to Install a SIP or a SPA Safety Guidelines Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 133 Chapter 4 Preparing to Install a SIP or a SPA Safety Guidelines Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 134 Statement 1029 Warning Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. Statement 1034 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 135 Statement 1043 The covers are an integral part of the safety design of the product. Do not operate the unit without the Warning covers installed. Statement 1077 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 136: Electrical Equipment Guidelines
• Handle carriers by available handles or edges only; avoid touching the printed circuit boards or connectors. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 137: Laser/Led Safety
Class 1 LED product. Statement 1027 Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 138 Chapter 4 Preparing to Install a SIP or a SPA Laser/LED Safety Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 4-10 OL-14126-12...
Page 139: Chapter 5 Installing And Removing A Sip
C H A P T E R Installing and Removing a SIP This chapter describes how to install or remove SIPs on the Cisco ASR 1000 Series Aggregation Services Routers. This chapter contains the following sections: Handling SIPs, page 5-1 •...
Page 140: Online Insertion And Removal
Preparing for Online Removal of a SIP The Cisco ASR 1000 Series Routers support OIR of the SIP. To perform an OIR, power down a SIP which automatically deactivates any installed SPAs and remove the SIP with the SPAs still intact.
Page 141: Deactivating A Sip
Although graceful deactivation of a SIP is recommended using the hw-module slot stop command, the Cisco ASR 1000 Series Routers support the removal of the SIP without deactivating it first. If you plan to remove a SIP, deactivate the SIP first, using the hw-module slot stop command in global configuration mode.
Page 142: Verifying The Deactivation And Activation Of A Sip
03:19:46 ASR1006-PWR-AC 03:19:14 ASR1006-FAN 03:19:14 The following example shows the Cisco ASR 1000-SIP10 installed in slot 0 and Cisco ASR1000-SIP40 installed in slots 1,2,3, and 4 of the Cisco ASR 1013 Router: Router# show platform Chassis type: ASR1013 Slot Type...
Page 143: Preparing For Online Removal Of A Spa
Preparing for Online Removal of a SPA The Cisco ASR 1000 Series Routers support the OIR of a SPA independent of removing the SIP. This means that a SIP can remain installed in the Cisco ASR 1000 Series Router with one SPA remaining active, while you remove another SPA from one of the SIP subslots.
Page 144 If you choose to use the hw-module subslot stop command in EXEC mode, you cause the SPA to • gracefully shut down. However, the SPA will come up again when executing the hw-module subslot start command. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 145: Reactivating A Spa
SPA prior to removal when using the hw-module subslot command in global configuration mode. If the Cisco ASR 1000 Series Router is running, then the SPAs automatically start upon insertion into the SIP or with insertion of a SIP into the Cisco ASR 1000 Series Router.
Page 146: Verifying The Deactivation And Activation Of A Spa
EXEC configuration mode. Observe the Operational Status field associated with the SPA that you want to verify. In the following example, the SPA located in subslot 1 of the SIP in slot 2 of the Cisco ASR 1000 Series Router is administratively down from the hw-module subslot shutdown command:...
Page 147: Activation Of A Sip Configuration Example
Deactivate a SPA when you want to perform OIR of that SPA. The following example deactivates the SPA (and its interfaces) that is installed in subslot 0 of the SIP located in slot 1 of the Cisco ASR 1000 Series Router and removes power to the SPA.
Page 148 Slide the SIP out of the router slot. If you are removing a blank filler plate, pull the blank filler plate Step 3 completely out of the router slot. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 5-10 OL-14126-12...
Page 149 Chapter 5 Installing and Removing a SIP SIP Installation and Removal Figure 5-2 illustrates how to install and remove a SIP in Cisco ASR 1000 Series Routers. Figure 5-2 SIP Installation and Removal -SI P10 AS R1 000 PWR STA...
Page 150 Chapter 5 Installing and Removing a SIP SIP Installation and Removal Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 5-12 OL-14126-12...
Page 151: Handling Spas
C H A P T E R Installing and Removing a SPA This chapter describes how to install or remove SPAs on the Cisco ASR 1000 Series Aggregation Services Routers. This chapter contains the following sections: Handling SPAs, page 6-1 •...
Page 152: Chapter 6 Installing And Removing A Spa
Before you remove a SPA from the SIP, read this important information about SPA cable clips that will help to make removing the SPA easier. The SPA accessory kit is shipped with three different versions of cable clips, as shown in Figure 6-3. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 153 To install a cable clip to each side of the SPA, follow these steps: Step 1 Select one set of cable clips from the SPA accessory kit. Figure 6-3 shows the cable clip options. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 154 SPA, as shown in Figure 6-4. Figure 6-4 Installing a Cisco ASR 1000 Series Cable Clip into the SPA Plastic Pull Tab Portion of the cable clip that locks into position SPA plastic pull tab...
Page 155 To remove the SPA from the SIP, unfasten the captive installation screws on either side of the SPA. Step 6 Figure 6-6 illustrates how to remove a SPA in a SIP. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 156: Online Insertion And Removal
This completes the procedure for removing a SPA from the SIP. Online Insertion and Removal Cisco ASR 1000 Series Aggregation Services Routers SIPs and SPAs support online insertion and removal (OIR). SPAs can be inserted or removed independently from the SIP. OIR of a SIP with installed SPAs is also supported.
Page 157: Cleaning Optical Devices
• Note Refer to the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide for configuration instructions. If a SIP or SPA is replaced with a module of the same type (as in an OIR or hardware swap), the •...
Page 158: Using Show Commands To Verify The Sip And Spa Status
For more information about FPD upgrades, refer to the “Upgrading Field-Programmable Devices” chapter of the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide. Use the show version command to obtain a few details on the installed SIPs and interfaces.
Page 159: Using Show Commands To Display Spa Information
SPAs. If you plan to install a new SPA in a subslot that is not in use, you must first remove the SPA blank filler plate. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 160: Spa Cable Management Brackets
To remove the cable management bracket, depress the button on the bracket and pull it out. Step 3 Note Blank filler plugs are provided if no cable management brackets are installed. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 6-10 OL-14126-12...
Page 161: Packing A Spa For Shipment
C H A P T E R Troubleshooting the Installation This chapter describes how to troubleshoot the installation of SIPs and SPAs on the Cisco ASR 1000 Series Aggregation Services Routers. This chapter contains the following sections: Troubleshooting the Hardware, page 7-1 •...
Page 162: Sip Is Deactivated
Refer to the configuration section of the SPA installation and configuration guide. Also, refer to the Cisco IOS software configuration documentation listed in the “Related Documentation” section on page xiii. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 163: C H A P T E R 7 Troubleshooting The Installation
This section describes some of the possible hardware problems that can occur with the Cisco WebEx Node for ASR 1000 Series (also called the Cisco WebEx Node SPA) hardware and DSP SPA for Cisco ASR 1000 Series. It includes the following problems: Cisco WebEx Node SPA and SPA-DSP is in Out-of-Service State, page 7-3 •...
Page 164 Cisco WebEx Node SPA or SPA-DSP in the Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Software Configuration Guide. Table 7-3 Possible Problems and Solutions for Hardware-Based Out-of-Service States on the Cisco WebEx Node SPA and SPA-DSP Possible Problem Observations and Comments...
Page 165 Chapter 7 Troubleshooting the Installation Troubleshooting the Hardware Table 7-3 Possible Problems and Solutions for Hardware-Based Out-of-Service States on the Cisco WebEx Node SPA and SPA-DSP (continued) Possible Problem Observations and Comments Solutions Temperature or The show hw-module subslot all oir command Enter the show logging | include •...
Page 166 Chapter 7 Troubleshooting the Installation Troubleshooting the Hardware Table 7-3 Possible Problems and Solutions for Hardware-Based Out-of-Service States on the Cisco WebEx Node SPA and SPA-DSP (continued) Possible Problem Observations and Comments Solutions Temperature or Execute the show hw-module subslot sensors command...
Page 167: Cisco Webex Node Spa Has Issued Hardware Error Messages
Troubleshooting the Installation Troubleshooting the Hardware Cisco WebEx Node SPA Has Issued Hardware Error Messages There are several different error messages for the Cisco WebEx Node SPA that might appear in the output of the show logging command. Table 7-4 provides an example of error messages of the SPA_CPU_ERR type.
Page 168: Hard Disk Drive Errors On The Cisco Webex Node Spa
Troubleshooting the Hardware Hard Disk Drive Errors on the Cisco WebEx Node SPA The Cisco WebEx Node SPA has a hard disk drive (HDD) used by the Cisco WebEx Node application. It stores logs and provides a cache for meeting data.
Page 169 Exit the SPA console using the exit command, as shown in the following example: service-spa# exit Router# Reload the Cisco WebEx Node SPA using the hw-module subslot reload command. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide OL-14126-12...
Page 170: Collecting The Show Tech-Support Output From The Cisco Webex Node Spa Console
Collecting the show tech-support Output from the Cisco WebEx Node SPA Console When reporting a problem to Cisco technical support, you should first obtain the output of the show tech-support command from the WebEx Node SPA console. The following example show how to run the command and redirect the output to a file on a TFTP server: service-spa# show tech-support >...
Page 171: Reformatting The Hard Disk Drive On The Cisco Webex Node Spa
Prerequisites Before you can format the hard disk on a Cisco WebEx Node SPA, the disk must be unmounted not in use. If you attempt to format the disk while the disk is mounted, you will receive a warning as shown in...
Page 172 Access the Cisco WebEx Node SPA’s VEGAS shell console using the hw-module subslot Step 5 service-engine session command as shown in the following example: Router# hw-module subslot 0/0 service-engine session MontaVista(R) Linux(R) Carrier Grade Edition 5.0 (custom)
Page 173 The SPA-DSP has neither a CPU nor a hard disk as compared to the WebEx Node SPA. Hence, there are no CPU error messages or hard disk error messages for a SPA-DSP. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 7-13...
Page 174: Troubleshooting The 1-Port 10-Gigabit Ethernet Lan/Wan-Phy Spa For Asr 1000 Series Hardware
1/0 *Mar 3 23:27:21.488: %SPA_OIR-3-RECOVERY_RELOAD: subslot 1/0: Attempting recovery by reloading SPA *Mar 3 23:27:21.489: %SPA_OIR-6-OFFLINECARD: SPA (SPA-1X10GE-WL-V2) offline in subslot 1/0 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 7-14 OL-14126-12...
Page 175: Feature Change To Cpu-Usage Show Command
-s -b -n iterations - d interval from Linux shell. Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 7-15...
Page 176 Cpu(s): 19.5%us, 20.8%sy, 0.0%ni, 55.2%id, 1.5%wa, 0.5%hi, 2.5%si, 0.0%st Cpu(s): 19.3%us, 20.6%sy, 0.0%ni, 55.6%id, 1.5%wa, 0.5%hi, 2.5%si, 0.0%st Cpu(s): 19.1%us, 20.4%sy, 0.0%ni, 56.0%id, 1.5%wa, 0.5%hi, 2.5%si, 0.0%st Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 7-16 OL-14126-12...
Page 177: Using Debug Commands
“SPA Installation and Removal” section on page 6-2. Note The Cisco original packaging is to be used for the shipment of all SPAs and cable management brackets. Caution Failure to properly use Cisco packaging can result in damage or loss of a product.
Page 178 Step 6 Close the exterior carton. Step 7 Apply tape over the exterior carton flap to ensure that the carton stays closed during shipping. Step 8 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 7-18 OL-14126-12...
Page 179 Chapter 7 Troubleshooting the Installation Packing a SPA for Shipment Figure 7-1 Packing a SPA for Shipment Clamshell Cushion foam Exterior carton Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 7-19 OL-14126-12...
Page 180: Packing A Sip For Shipment
“SIP Installation and Removal” section on page 5-9. Note The Cisco original packaging is to be used for the shipment of all SIPs. Failure to properly use Cisco Caution packaging can result in damage or loss of a product. Caution During this procedure, wear grounding wrist straps to avoid ESD damage to the card.
Page 181 Packing a SIP for Shipment Figure 7-2 Packing a SIP for Shipment Corrugated spacer Bottom support for inner carton Inner carton Foam packing cushions Exterior carton Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 7-21 OL-14126-12...
Page 182 Chapter 7 Troubleshooting the Installation Packing a SIP for Shipment Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide 7-22 OL-14126-12...
Page 183 2-Port Gigabit Ethernet SPA interface specifications 3-45 cables and connectors 3-19 LEDs 3-44 LEDs 3-18 optical transceiver modules and cables 3-46 4-Port and 8-Port Fast Ethernet SPA Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide IN-1 OL-14126-12...
Page 184 1-10 RJ-45 cable pinouts 3-84 3-41 activation verifying for SIPs verifying for SPAs addresses GBIC-SX 3-54 for SPAs on SIPs ATM SPA Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide IN-2 OL-14126-12...
Page 185 OIR (online insertion and removal) for SIPs 1-1, 5-2 for SPAs 1-3, 5-5, 6-6 optical device cleaning OC-12c/STM-4 POS SPA optical transceivers bandwidth 3-44 for OC-3c/STM-1 POS SPA 3-36 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide IN-3 OL-14126-12...
Page 186 OC-12c/STM-4 POS SPA reactivating 3-44, 3-46 for OC-3c/STM-1 POS SPA removal 3-35, 3-36 5-2, 5-9 SPA compatibility (table) for OC-48c/STM-16 POS/RPR SPA 3-43 1-3, 1-4, 1-5 Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide IN-4 OL-14126-12...
Page 187 3-14 troubleshooting 7-14 XFP port cabling 3-18 SPA-DSP 3-72 3-74 SPA interface processors (SIPs) subslots description numbering specifying location in CLI troubleshooting the installation Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide IN-5 OL-14126-12...
Page 188 Index Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide IN-6 OL-14126-12...

This manual is also suitable for:

Asr1004-10g/k9 - asr 1004 router Asr1006 - asr 1006 modular expansion base Asr 1000 series

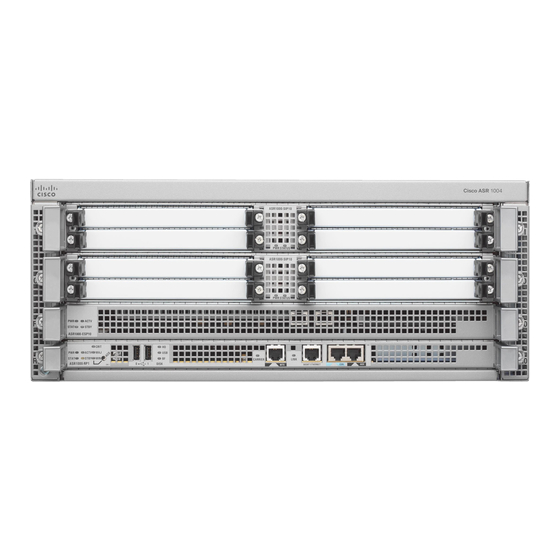

Cisco ASR1004 - ASR 1004 Modular Expansion Base Hardware Installation Manual

Overview: Cisco ASR 1000 Series Aggregation Services Routers Spas

Chapter 1 SIP and SPA Product Overview

CHAPTER 2 Overview: Cisco ASR 1000 Series Aggregation Services Routers Sips

CHAPTER 3 C H a P T E R 3 Overview: Cisco ASR 1000 Series Aggregation Services Routers Spas

Cables

Chapter 4 Preparing to Install a SIP or a SPA

Chapter 5 Installing and Removing a SIP

Chapter 6 Installing and Removing a SPA

CHAPTER 7 Troubleshooting the Installation7-1

Quick Links

Installation Guide

Troubleshooting

Related Manuals for Cisco ASR1004 - ASR 1004 Modular Expansion Base

Summary of Contents for Cisco ASR1004 - ASR 1004 Modular Expansion Base

This manual is also suitable for:

Table of Contents
