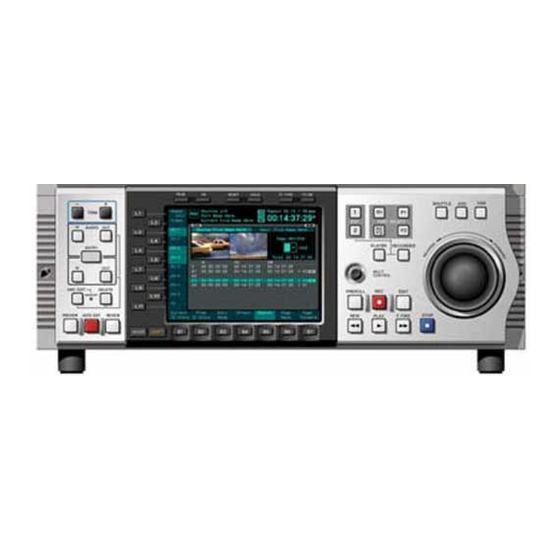

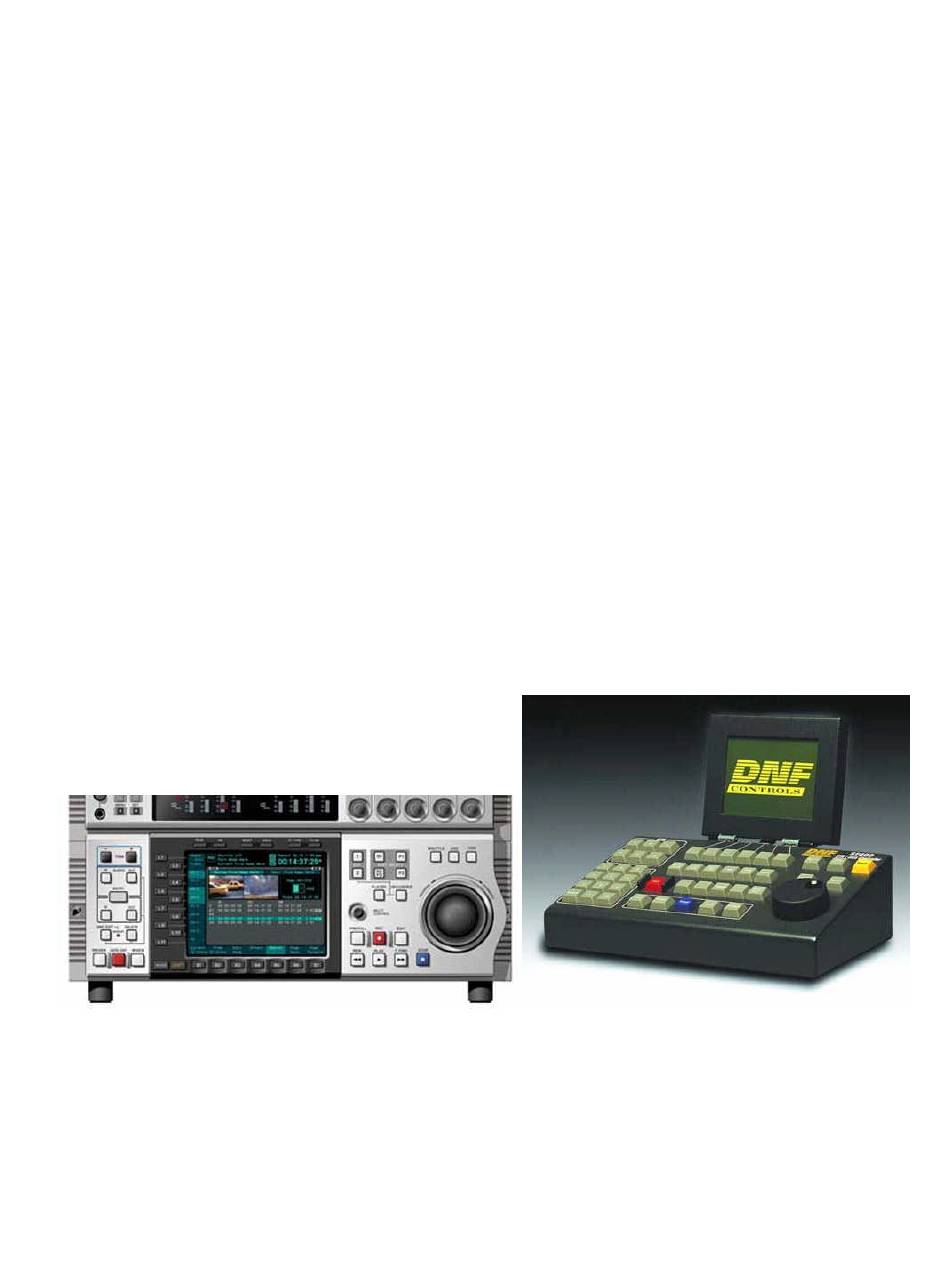

- Page 1 OPERATION MANUAL MAV-555 and DMAT For Super Motion System While recording live feeds, you can do slow replay, manage CLIPs, and create PLAYLISTs. Sony Electronics Inc. 03/13/2001...
-
Page 2: Table Of Contents
Operation Manual of MAV555 & DMAT for Super Motion System Contents Scope General Procedure Preparation Power On MAV555 and DMAT Setup MAV555 and reboot 3.2.1 Setup MAV555 3.2.2 Reboot MAV555 if necessary Select LTC for time code display on MAV555 Clear unnecessary materials from MAV555 Setup DMAT Clear CLIP and PLAYLIST information from DMAT... -
Page 3: Scope
Operation Manual of MAV555 & DMAT for Super Motion System Operation Manual of MAV555 & DMAT for Super Motion System 1. Scope This document describes how to set up and operate Sony MAV555 and DNF DMAT controller for Super Motion System. This document is based on MAV555 super motion configuration with ver2.00SSbeta4 and DMAT ver4.0 020101. - Page 4 Operation Manual of MAV555 & DMAT for Super Motion System 3. Preparation 3.1 Power On MAV555 and DMAT To Power ON MAV555 Turn on Power switch of MAV555 behind a control panel. It takes about one minute to boot. To Power ON DMAT Connect AC cable to turn on/off DMAT, because DMAT does not have a power switch.
-
Page 5: Setup Mav555 And Reboot
BKMA520SS Need OPTION BOARD, SLOT7, 8 BKMA530 none Need OPTION BOARD, SLOT4, 5 Need SS/SD SELECT Sony Super Motion Sony Super Motion No Need LINE SUPER IMPOSE P2 No Need SYNCHRONIZE No Need MAXIMUM SHUTTLE SPEED No Need MAXIMUM JOG SPEED... -
Page 6: Select Ltc For Time Code Display On Mav555
Operation Manual of MAV555 & DMAT for Super Motion System 3.3 Select LTC for time code display on MAV555 This is not necessary once this is done. To select LTC on R1 Press “R1” at PORT SELECT of Meter Panel. Confirm if “REMOTE”... -
Page 7: Setup Dmat
Operation Manual of MAV555 & DMAT for Super Motion System 3.5 Setup DMAT This is not necessary once this is done. FYI: An italic word in parentheses such as [SET&CLEAR] is a soft key at the top row on a DMAT. To display setup items and firmware version Press [MENU] This manual is described based on ver 4.0, 020101. -
Page 8: Decide Loop Recording Length
Operation Manual of MAV555 & DMAT for Super Motion System 3.7 Decide Loop Recording Length 3.7.1 Max. Recording Time Here is Max. recording time. This number is real time basis. You can get this number when there is no material in MAV555. Max. -
Page 9: Start Recording With Dmat
Operation Manual of MAV555 & DMAT for Super Motion System 3.8 Start Recording with DMAT To start recording With MAV555 Meter Panel Confirm if “REMOTE” is selected at R1 and P2 on the Meter Panel of MAV555. With DMAT Press [MENU] Press [RECORD SETUP] Press [NEW R1 CLIP] Enter Material Name for recording with a PC keyboard or numeric keypad of DMAT... -
Page 10: Operation
Operation Manual of MAV555 & DMAT for Super Motion System 4. Operation With a combination of MAV555 and DMAT controller, you can execute followings while recording. Instant Replay Mark Cue points and cue up Create and Play a CLIP Create and Play a PLAYLIST DMAT has four operational modes, EE, PB, CP and PL mode. -
Page 11: Cue Point
Operation Manual of MAV555 & DMAT for Super Motion System 4.3 CUE POINT To Mark CUE POINT based on recording time code Press [MARK] You can see a new Cue Point in the CUE LIST at the top right part of the LCD. Cue point is incremented automatically when you press [MARK] and there are 8 cyclic Cue Points. -
Page 12: Create A Clip
Operation Manual of MAV555 & DMAT for Super Motion System 4.5 CREATE a CLIP (in EE, PB or CP-mode) You can create up to 400 CLIPs with IN and OUT point information. To Create a CLIP in EE-mode Press [IN] (You can press [IN] again to change IN point) Press [OUT] (You can press [OUT] again to change IN point) - Page 13 Operation Manual of MAV555 & DMAT for Super Motion System 4.6 RECALL a CLIP (in any mode) You can play, trim and delete a CLIP in CP-mode To recall a current selected clip Press [RECALL CLIP] The CLIP is cued up. “CP”...
- Page 14 Operation Manual of MAV555 & DMAT for Super Motion System 4.8 TRIM a CLIP (in CP mode) When a CLIP is created, certain duration before IN point and after OUT point is included into the CLIP for trimming. This duration is defined as HANDLE in a setup of DMAT. So, you can modify IN or OUT point between “IN - HANDLE”...
- Page 15 Operation Manual of MAV555 & DMAT for Super Motion System 4.10 SELECT a PLAYLIST (in any mode) DMAT has 12 PLAYLISTs, from LIST00 to LIST11. LIST number is shown at bottom right part of LCD. You need to select a PLAYLIST before manipulate a PLAYLIST. To select a PLAYLIST in any mode Enter a PLAYLIST number with numeric Key Pad Press [GOTO LIST]...
- Page 16 Operation Manual of MAV555 & DMAT for Super Motion System 4.14 EDIT a PLAYLIST (in PL mode) You must be in PL mode to edit a PLAYLIST. To select an ELEMENT in a PLAYLIST Press [NEXT] Press [LAST] To delete an ELEMENT in a PLAYLIST Press [DEL ELEMENT] To add a selected CLIP into the last element of the PLAYLIST Press [ADD ELEMENT]...
-
Page 17: Recall A Clip
Operation Manual of MAV555 & DMAT for Super Motion System 4.15 Operating Mode DMAT has four operating modes, EE, PB, CP and PL mode. Mode is displayed at the top left corner of the LCD of DMAT. You must understand clearly what you can do in each mode and how to move to another mode. - Page 18 Mode Transition NEXT/LAST JOG/SHUTTLE (SLOW) GOTO RECALL_CLIP GOTO CUE_LIST RECALL_CLIP CUE_LIST CUE_LIST CP/SP RECALL_CLIP...
-
Page 19: Function Table
Operation Manual of MAV555 & DMAT for Super Motion System 4.17 Function Table Current Next Operation Function Function Description Mode Mode “T-bar” Slow Slow “T-bar” + [REV] Slow Reverse Slow Reverse [PLAY] Play Latest Playback Latest Incoming Feed “DIAL” Jog Latest Incoming Feed [SHUT], “DIAL”... - Page 20 Operation Manual of MAV555 & DMAT for Super Motion System Current Next Operation Function Function Description Mode Mode [REC] E to E EE Go to EE mode [PLAY] Play Play Incoming Feed “T-bar” Slow Slow Incoming Feed “T-bar” + [REV] Slow Reverse Slow Reverse Incoming Feed “DIAL”...
- Page 21 Operation Manual of MAV555 & DMAT for Super Motion System Current Next Operation Function Function Description Mode Mode [REC] E to E Go to EE mode [PLAY] Play Play CLIP “T-bar” Slow Slow CLIP “T-bar” + [REV] Slow Reverse Slow Reverse CLIP [SHIFT] + [PLAY] Play Playback CLIP...
- Page 22 Operation Manual of MAV555 & DMAT for Super Motion System Current Next Operation Function Function Description Mode Mode [REC] E to E Go to EE mode [PLAY] Play PLAYLIST Play PLAYLIST “T-bar” Slow PLAYLIST Slow PLAYLIST “T-bar” + [REV] Slow PLAYLIST Slow Reverse PLAYLIST “DIAL”...
-
Page 23: Melting And Tear Down
Operation Manual of MAV555 & DMAT for Super Motion System 5. Melting and Tear Down 5.1 Stop Recording with DMAT To stop recording With DMAT Press [MENU] Press [RECORD SETUP] Press [STOP RECORD] Press [STOP R1] Press [ESC] twice to come back to main screen 5.2 Melting materials to Tape There is a useful function to help melting CLIPs to tape. -
Page 24: Hardware Configuration And Firmware Of Mav555
BKMA521SS When you utilize Philips LDK23 camera, you have to add BKMA521SS. This is an additional interface board. When you utilize Sony BVP9500WS camera, you have to remove BKMA521SS. BKMA560 BKMA560 is a 2D video effect board. You can add an effect transition between CLIPs in a PLAYLIST, though DMAT has not supported it yet in super motion configuration. -
Page 25: Hardware Configuration And Firmware Of Dmat
Operation Manual of MAV555 & DMAT for Super Motion System 7. Hardware Configuration and Firmware of DMAT 7.1 Hardware "DMAT-MAV-T" is a product name. "DMAT" stands for "Don't Miss A Thing". "T" shows T-bar (for slow motion) model. DMAT is a standalone controller. Any other option is not necessary. But please prepare a PC keyboard to name CLIPs, though you can name numeric name without a keyboard. -
Page 26: Wire Connection
When you select MENU670 and 671 to SYSTEM TC, the TC fed into SYSTEM-TC is used for both R1 and R2 LTC. 8.6 Wiring Chart Please refer wiring chart. Sony BVP9500WS and Philips LDK23 super motion camera can be interfaced. When you interface LDK23, BKMA521SS is necessary. When you interface BVP9500WS, BKMA521SS must be removed. - 26 -... - Page 27 Analog Analog BKMA570 Audio Audio XLR cable XLR cable Special cable Video In SS-A BNC cable BVP9500 (R1 SDI IN:A) Video In SS-B (P1 SDI OUT:A) Video In SS-C (Option:A) MAV555 BKMA505 BKMA520SS BKMA530 BKMA511 BKMA512 (BKMA560) TC In System BNC cable Ref In Black Burst...
-
Page 28: Trouble Shooting
Operation Manual of MAV555 & DMAT for Super Motion System 9. Trouble Shooting Manual - I can not read a PDF of MAV555 or BKMA505 operation manual Download Adobe Acrobat Reader ver4.0 and Asian Font (Japanese) from www.adobe.com, then install them on your PC. - Page 29 Operation Manual of MAV555 & DMAT for Super Motion System Appendix A1. How to connect a PC with MAV555 via Ethernet Sometimes you need to connect a PC with MAV555 via Ethernet. Here is a procedure how to connect and confirm a TCP/IP connection based on direct connection between MAV555 and PC, and also based on default value of IP (192.168.0.1) and Subnet Mask (255.255.255.0) of MAV555.
- Page 30 Operation Manual of MAV555 & DMAT for Super Motion System A4. Reset of MAV555 MAV555 soft reset: ME54 TD /F4654 T-0(B) 4.4 TD 796311.04 Tf-0Ve reseet: 677ar4. R877 Tf-0r2610 56 highe - 30 -...
- Page 32 C C I O...
