OPERATING INSTRUCTIONS
in-VEHICLE ENTERTAINMENT SYSTEM
P/N: 08A23-2E1 -010

Advertisement

Table of Contents
loading

Related Manuals for Honda 08A23-2E1 -010

Summary of Contents for Honda 08A23-2E1 -010

  • Page 1 OPERATING INSTRUCTIONS in-VEHICLE ENTERTAINMENT SYSTEM P/N: 08A23-2E1 -010...
  • Page 2 WELCOME Your in-VEHICLE ENTERTAINMENT SYSTEM is designed to give you and your family years of enjoyment. You can watch your favorite DVD-Video or Video-CD movies, you can listen to your favorite Audio-CD or MP3 albums, or plug-and-play a variety of standard video games.
  • Page 3 Electrical Cautions and Warnings CAUTION Risk of electrical shock. Do not open DVD Player, WARNING! To prevent fire or shock hazard, do not expose LCD Screen, Remote Control, or FM Modulator. this product to rain or moisture. CAUTION: To reduce the risk of shock, do not remove the DVD Player, LCD Screen, Remote Control, or FM Modulator CAUTION: The DVD Player, LCD Screen &...
  • Page 4 Handling Discs To remove the disc from its storage case, press Note on Discs down on the centre of the Never stick labels on the surface of case and lift the disc out, the disc or mark the surface with a holding it carefully by the pencil or pen.

  • Page 5: Table Of Contents

    Contents 1. Quick Start 1.1. Stereo DVD Player ......1 1.2. 7” Flip Down LCD Screen ..... . . 2 1.3.

  • Page 7: Quick Start

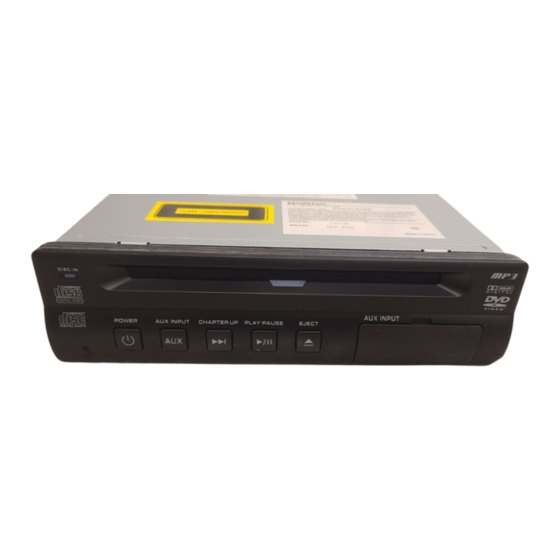

    1. Quick Start 1.1. Stereo DVD Player Turn the vehicle ignition key to ACC or ON to start using the DVD Player. Operating the system for an extended period of time with the engine OFF will run down the vehicle's battery. Press to turn the DVD Player ON/OFF Press to switch to between MAIN/AUX Inputs.

  • Page 8: 7" Flip Down Lcd Screen

    1. Quick Start 1.3. Wireless Headphones 1.2. 7” Flip Down LCD Screen An infrared transmitter transmits the audio signal to the headphones Headphone Receivers 1. Infrared Sensors Receive audio signals from the transmitter. 2. Battery Cover To replace the batteries, slide cover down.

  • Page 9: Remote Control

    1. Quick Start 1.4. Remote Control When using the remote, aim it at the infrared transmitter/receiver 3. Display above the video display screen. (See 7" Flip Down LCD Screen, Press to display Disc Information p. 2) 4. Up Arrow Press to navigate in DVD menus and to control the zoom view area.

  • Page 10: System Overview

    2. System Overview A) DVD Player with auxiliary input jacks B) Wireless Headphone Infrared Transmitter / Remote Control Receiver C) 7" Color Liquid Crystal Display (LCD) Flip-Down Screen D) Infrared Wireless Headphones E) Remote Control F) FM Modulator - not shown GENERAL OPERATION NOTE Your DVD Player supports many different types of media (CD-DA, DVD-Video, Video-CD, etc.).
  • Page 11 2. System Overview FEATURES High performance 7" flip-down LCD screen with adjustable settings for Brightness, Contrast, Color, Tint, Sharpness, & Dimmer control. Auxiliary video and audio jacks (standard RCA style connectors) for connecting video games and video equipment. (See NOTE) Wireless infrared remote control for DVD Player Connects to vehicle audio system Support for both wide screen (16:9) and standard (4:3) viewing...

  • Page 12: In-Vehicle Entertainment System Operation

    3. In -Vehicle Entertainment System Operation AUDIO SYSTEM Turning on the FM Modulator will enable you to listen to audio from the in-VEHICLE ENTERTAINMENT SYSTEM over the vehicle's speakers. To turn on the FM Modulator, press and hold the AUX button on either the Remote Control or DVD Player. NOTE: The wireless headphones remain operational regardless of the status of the FM Modulator.

  • Page 13: Remote Control

    3. In -Vehicle Entertainment System Operation 3.2 Remote Control NOTE: When using the remote, aim it at the infrared transmitter above the video display screen (see Item 5, p. 10) 1. Power (DVD Player ON/OFF) 2. Menu Press to enter DVD Player Setup Menu if disc is not loaded, or is loaded and stopped.
  • Page 14 3. In -Vehicle Entertainment System Operation 7. Zoom 17. Previous Press to zoom in on the screen video image. In zoom mode, Press to return to Previous Chapter or Track (or beginning of the arrow keys (see #8, 9, 10, 11) can be used to change the current one).

  • Page 15: Remote Battery Replacement

    3. In -Vehicle Entertainment System Operation 3.3 Remote Battery Replacement 1. Battery replacement is usually required if the remote functions only when it is very close to the video display screen, or not at all. 2. Use your finger tip(s) to slide the battery cover down. 3.

  • Page 16: Flip-Down Screen

    3. In -Vehicle Entertainment System Operation 3.4 Flip-Down Screen 1. Vehicle Dome Light Switch Slide this switch to select Dome Light Off, Dome Light On, or Dome Light Door Activated 2. Video Screen Release Push to release video screen from its closed position. 3.

  • Page 17: General Operating Tips

    3. In -Vehicle Entertainment System Operation 3.5 General Operating Tips Operating the system for extended period of time with the engine OFF will run down the vehicle's battery. When the ignition key is turned OFF, the in-VEHICLE ENTERTAINMENT SYSTEM is also turned OFF. To prolong system life and to optimize radio performance, turn the DVD player power OFF when you are not using it.

  • Page 18: Inserting/Removing Disc

    3. In -Vehicle Entertainment System Operation 3.6. Inserting/Removing Disc INSERTING DISC REMOVING DISC To insert a disc, the vehicle ignition key must be turned to the Discs may be ejected when the vehicle ignition key is in the ACC or ON position. (See NOTE) OFF position as well as when it is either in the ACC or ON Insert the disc into the disc slot as shown in the picture above.

  • Page 19: Play Operation

    3. In -Vehicle Entertainment System Operation 3.7. Play Operation Turn the ignition key ON (or ACC). Press the POWER button on the DVD Player. Insert a disc into the DVD Player. The disc should begin to play Press the STOP button to discontinue play. Press the EJECT button to remove the disc. Note: This unit has a "Dual Stop Mode"...

  • Page 20: Next Operation

    3. In -Vehicle Entertainment System Operation 3.9. Next Operation While a disc is playing, momentarily press the NEXT button on either the remote control (see p. 8, button 18) or the DVD Player (see p. 6, button 4). The DVD Player will advance to the beginning of the next chapter or track, and then begin playing at that point. 3.10.

  • Page 21: Special Effects Play (Dvd-Video Only)

    3. In -Vehicle Entertainment System Operation 3.12. Special Effects Play (DVD-Video Only) Slow Play (Forward Or Reverse) While a disc is playing, press either the Slow Forward (see p. 8, button 23) or Slow Reverse (see p. 8, button 22). Play speed will decrease to 1/2 of normal speed.

  • Page 22: Mp3 Play

    3. In -Vehicle Entertainment System Operation 3.13. MP3 Play MP3 On Screen Display When you are playing a MP3 CD, you will see the name of the folder on the top line of the screen. The names of the songs will be shown in the columns underneath.

  • Page 23: Wireless Headphone

    4. Wireless Headphones Wireless Headphones To ensure the best performance from your wireless headphones, please read this carefully. 4.1. Special Features Automatic Level Control prevents input signal overloading. Uses high-frequency infrared light to assure a clean signal for clear reception. Adjustable headphone band for proper fit.

  • Page 24: Headphone Battery Replacement

    4. Wireless Headphones 4.3. Headphone Battery Replacement If you notice degraded sound or poor headphone performance, battery replacement is probably required. Use your finger tip(s) to slide the battery cover down. When replacing the battery, use 2xAAA batteries, making sure the battery polarity is correct. Replace the battery cover.

  • Page 25: Auxiliary Input Device Connection

    5. Auxiliary Input Device Connection The in-VEHICLE ENTERTAINMENT SYSTEM accepts video and audio RCA type connectors for all standard video games and video equipment (such as camcorders) in the auxiliary input jacks of the DVD Player. Playing Video Games Connect the video line to the YELLOW jack. Connect the left and right audio cables to the WHITE and RED jacks respectively.

  • Page 26: Care Of The Dvd Player

    6. Care of the DVD Player Environmental Extremes Foreign Substances DVD Players subjected to harsh environmental conditions may be Exercise care to prevent dirt and foreign objects from entering the damaged or operate at less than maximum performance. To pre- DVD Player disc slot.

  • Page 27: Troubleshooting Guide

    7. Troubleshooting Guide Symptom Possible Cause Remedy No Power. Vehicle ignition is ON, Blown fuse. Check audio fuses in vehicle fuse panel. power indicator on DVD Player is OFF. Remote control does not work. Batteries in remote control are exhausted Replace with (2) AAA batteries. Remote control not pointed in the Point front of remote control toward the Infrared Receiver on the right direction.
  • Page 28 7. Troubleshooting Guide Symptom Possible Cause Remedy Audio cannot be heard through the Power switch on headphone is OFF. Turn power switch on headphone ON. headphone. Volume on headphone set too low. Raise volume on headphone. Batteries in headphone are exhausted. Replace with (2) AAA batteries.

  • Page 29: Specifications

    8. Specifications VIDEO PLAYER SPECIFICATIONS AUDIO SPECIFICATIONS (OUTPUT) Media Compatability DVD-VIDEO, CD-DA, MP3, CD-R, Output Level 2.0Vrms +/- 3dB Video CD Frequency Response 17Hz - 20KHz + 0 / -1dB Video System NTSC De-Emphasis -20 +/- 1dB Audio System MPEG I, MPEG II Harmonic Distortion 0.1% MAX (JIS-A, 29KHz LPF) Mechanism Style...
  • Page 30 8. Specifications For further improvement, specifications and design are subject to change without prior notice. NOTE: 1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 31: Dome Light Replacement

    9. Dome Light Replacement 1. Turn the Monitor dome light switch to the OFF position. 2. Insert a #0 straight blade screw driver into the rear slot on the light lens. (see Fig. 1) Gently pivot the screw driver toward the rear of the monitor. The lens should pop out slightly.
  • Page 32 Ref. No.: 08A23-2E3 -010-81 Printed in China © American Honda Motor Co.., Inc. 2002 All Rights Reserved...
