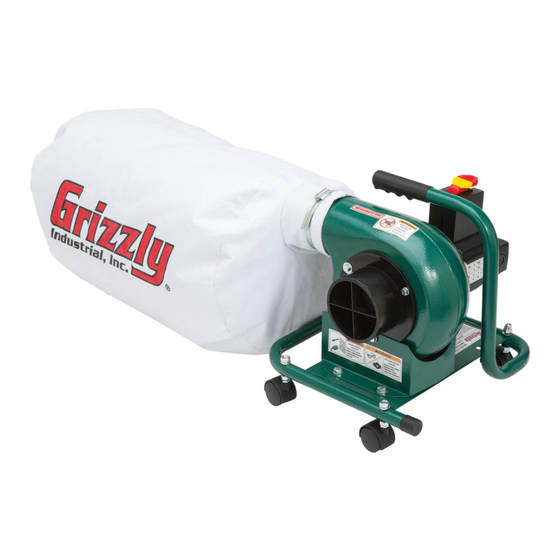

Grizzly T33587 Owner's Manual

Mini portable dust collector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL T33587
MINI PORTABLE DUST
COLLECTOR
OWNER'S MANUAL
(For models manufactured since 09/23)
COPYRIGHT © AUGUST, 2023 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JM22754 PRINTED IN CHINA
V1.08.23
***Keep for Future Reference***

Advertisement

Table of Contents
loading

Related Manuals for Grizzly T33587

Summary of Contents for Grizzly T33587

  • Page 1 (For models manufactured since 09/23) COPYRIGHT © AUGUST, 2023 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #JM22754 PRINTED IN CHINA V1.08.23...
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Contact Info..........................2 Manual Accuracy.........................2 Identification ..........................3 Controls & Components ......................4 Machine Data Sheet........................5 SECTION 1: SAFETY........................7 Safety Instructions for Machinery....................7 Additional Safety for Dust Collectors ..................9 SECTION 2: POWER SUPPLY ...................... 10 SECTION 3: SETUP ........................12 Needed for Setup ........................12 Unpacking ..........................12 Inventory............................13...

  • Page 4: Introduction

    Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equip- ment, or poor work results. Model T33587 (Mfd. Since 09/23)

  • Page 5: Identification

    Key Carry Handle Inlet Locking Caster (1 of 2) Filter Bag Circuit Wall Mounting Breaker Hole (1 of 2) Reset Button To reduce your risk of serious injury, read this entire manual BEFORE using machine. Model T33587 (Mfd. Since 09/23)

  • Page 6: Controls & Components

    E. Casters: Provide support and directional movement. Two casters lock to secure dust Main Controls & Components collector in place. Wall Mount Holes: Allow mounting of dust collector to wall. Figure 1. Main controls and components. Model T33587 (Mfd. Since 09/23)

  • Page 7: Machine Data Sheet

    MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL T33587 MINI PORTABLE DUST COLLECTOR Product Dimensions: Weight................................16 lbs. Width (side-to-side) x Depth (front-to-back) x Height............... 13 x 34-1/2 x 14-1/2 in.
  • Page 8 The information contained herein is deemed accurate as of 8/25/2023 and represents our most recent product specifications. Model T33587 PAGE 2 OF 2 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model T33587 (Mfd. Since 09/23)

  • Page 9: Section 1: Safety

    Never operate under the influence of drugs or injury or blindness from flying particles. Everyday alcohol, when tired, or when distracted. eyeglasses are NOT approved safety glasses. Model T33587 (Mfd. Since 09/23)
  • Page 10 Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model T33587 (Mfd. Since 09/23)

  • Page 11: Additional Safety For Dust Collectors

    Make sure you know be exposed to rain or moisture, which creates a what type of wood dust you will be exposed to in shock hazard and will reduce life of machine. case of an allergic reaction. Model T33587 (Mfd. Since 09/23)

  • Page 12: Section 2: Power Supply

    -10- Model T33587 (Mfd. Since 09/23)
  • Page 13 Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground. -11- Model T33587 (Mfd. Since 09/23)

  • Page 14: Section 3: Setup

    IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack- aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

  • Page 15: Inventory

    If you cannot find an item on this list, care- fully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpack- ing or they are pre-installed at the factory. -13- Model T33587 (Mfd. Since 09/23)

  • Page 16: Hardware Recognition Chart

    Hardware Recognition Chart USE THIS CHART TO MATCH UP HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS. Flat Head Screw -14- Model T33587 (Mfd. Since 09/23)

  • Page 17: Site Considerations

    Floor Operation Wall Mounting 13" Minimum Wall 18" Minimum Motor Cooling 3" Air Gap ⁄ " Keep Area Clear Floor Floor Side View Front View = Electrical Connection Figure 5. Minimum working clearances. -15- Model T33587 (Mfd. Since 09/23)

  • Page 18: Assembly

    Wall Mounting Note: Install locking casters parallel to each other. DO NOT install locking casters in opposite corners. The Model T33587 can be operated as a mounted unit, as shown in Figure 10 on Page 17. If Locking Casters Dust...
  • Page 19 Figure 11. Typical fasteners for mounting dust (see Figure 10). collector base to masonry or concrete wall. Collector Base Support Board Figure 10. Example of support board mounting. -17- Model T33587 (Mfd. Since 09/23)

  • Page 20: Collection System

    Figure 12. Ground jumper wire when using and plastics. However, the cost of specifically plastic blast gates or elbows and metal duct. designed flexible duct can vary greatly. Grizzly offers polyethylene and steel flex hose. We also recommend wrapping the outside of all...
  • Page 21 Widebelt Sander (24"–37" single head) ..2 x 6" machines, based on dust port size. Widebelt Sander (24"_51" double head) . 5 x 4" Figure 15. Typical ducting sizes and port sizes for various machines. -19- Model T33587 (Mfd. Since 09/23)

  • Page 22: Test Run

    This safety feature at full amperage load, which could trip your must work properly before proceeding with circuit breaker or blow fuse. regular operations. Call Tech Support for help. Connect machine to power supply. -20- Model T33587 (Mfd. Since 09/23)

  • Page 23: Section 4: Operations

    45° elbows in place of 90° elbows when- formal training before beginning any proj- ever possible). ects. Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable for accidents caused by lack of training. -21- Model T33587 (Mfd. Since 09/23)

  • Page 24: Section 5: Accessories

    Installing unapproved accessories may cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly. NOTICE Refer to our website or latest catalog for additional recommended accessories.
  • Page 25 Figure 21. T30024 Powered Respirator Kit. Figure 23. W1039 Universal Adapter. T33948—2.5-Micron Filter Bag For use with the T33587. This non-woven 2.5- G1029Z2P—2 HP Dust Collector with Aluminum micron rated filter bag includes a zipper at the Impeller - Polar Bear Series...

  • Page 26: Section 6: Maintenance

    To empty filter bag: need to be replaced. Do not lubricate them. DISCONNECT MACHINE FROM POWER! Unzip bag over suitable container located away from open flames or pilot lights. Zip bag shut. -24- Model T33587 (Mfd. Since 09/23)

  • Page 27: Replacing Filter Bag

    With normal wear and use the filter bag will even- tually need to be replaced. There is no specific The model T33587 is equipped with two long-life determination for replacement intervals, but bags carbon brushes—one on each side of the motor.

  • Page 28: Section 7: Service

    2. Mobile stand fasteners loose or casters not 2. Tighten mobile stand fasteners/adjust casters. adjusted properly. 3. Motor bearings at fault. 3. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement. -26- Model T33587 (Mfd. Since 09/23)
  • Page 29 1. Filter bag not properly clamped and secured. 1. Secure filter bag, making sure filter bag clamp is tight. blows sawdust (Page 16). into the air. 2. Filter bag has hole(s). 2. Replace filter bag (Page 25). -27- Model T33587 (Mfd. Since 09/23)

  • Page 30: Section 8: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -28- Model T33587 (Mfd. Since 09/23)

  • Page 31: Wiring Diagram

    Paddle Switch KEDU HY-18 Neutral 125V Ground LINE LOAD Circuit Breaker Topstone L2 Series WARNING! SHOCK HAZARD! Disconnect power before working on wiring. Figure 27. Switch box wiring. READ ELECTRICAL SAFETY -29- Model T33587 (Mfd. Since 09/23) ON PAGE 28!

  • Page 32: Section 9: Parts

    SECTION 9: PARTS We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. Main 41 40 49 35 34 -30- BUY PARTS ONLINE AT GRIZZLY.COM!
  • Page 33 C I R C U I T B R E A K E R T O P S T O N E T C - 1 -31- BUY PARTS ONLINE AT GRIZZLY.COM! Model T33587 (Mfd. Since 09/23) Scan QR code to visit our Parts Store.

  • Page 34: Labels & Cosmetics

    T O U C H - U P P A I N T , G R I Z Z L Y G R E E N -32- BUY PARTS ONLINE AT GRIZZLY.COM! Model T33587 (Mfd. Since 09/23) Scan QR code to visit our Parts Store.

  • Page 35: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
