Pioneer CT-W801R Service Manual

@) PIONEER'
The Art of Entertainment
Service
ORDER NO.
ARP2547

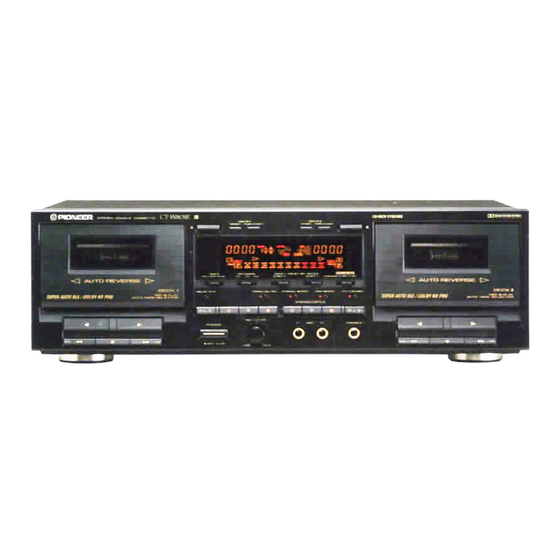

STEREO DOUBLE CASSETTE DECK
CT-WsoirR
CT-Wes5siR
CT-W701IR
CT-W801R, CT-W851R AND CT-W701R HAVE THE FOLLOWING:
ie Rie ee ae
CT-W801R | CT-W851R | CT-W701R
AC110V, 120 — 127V, 220V, 240V (Switchable)
* Change the connection of the power transformer's pimary wiring.
@ This manual is applicable to the following: CT-W801R/KUC, KUC/CA, and SD;
CT-W851R/HEM and HB; CT-W701R/KUC, KUC/CA, HEM and HB.
e@ For the following: CT-W801R/SD; CT-W851R/HEM and HB, refer to page 63.
For the following: CT-W701R/HEM and HB, refer to page 65.
e Ce manuel pour le service comprend les explications de réglage en frangais.
e@ Este manual de servicio trata del método ajuste escrito en espanol.
@ KUC/CA type is identical to KUC type with French instruction manual.
For all information except for the instruction, refer to KUC type.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760, Long Beach, California 90801 U.S.A.
PIONEER ELECTRONICS OF CANADA, INC. 300 Alistate Parkway Markham, Ontario L3R OP2 Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: [03] 580-9911 '
© PIONEER ELECTRONIC CORPORATION 1992 SI MAY 1992 Piged in Japan
