Summary of Contents for AEG FSK83828P

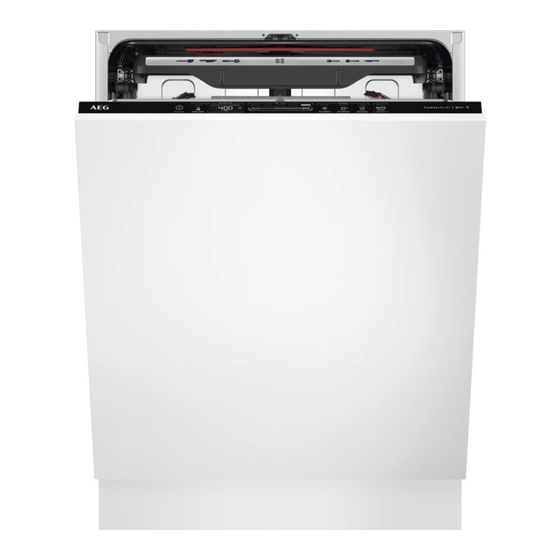

- Page 1 EN User Manual | Dishwasher FSK83828P aeg.com\register...
-
Page 2: Table Of Contents
Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................3 2. SAFETY INSTRUCTIONS................4 3. INSTALLATION....................6 4. PRODUCT DESCRIPTION................8 5. -
Page 3: Safety Information
SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. -
Page 4: Safety Instructions
similar accommodation where such use does not exceed (average) domestic usage levels. • Do not change the specification of this appliance. • The operating water pressure (minimum and maximum) must be between 0.5 (0.05) / 10 (1.0) bar (MPa) • Follow the maximum number of 14 place settings. •... - Page 5 • Warning: this appliance is designed to be installed / connected to a grounding connection in the building. • Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply. • Always use a correctly installed shockproof socket.
-
Page 6: Installation
If the How to install your AEG/Electrolux plastic cover is damaged, contact the 60 cm Sliding Door Dishwasher Authorized Service Centre to replace it with the new one. - Page 7 5 mm ENGLISH...
-
Page 8: Product Description
Scan the QR code with the camera on your • A red light comes on when a programme mobile device to be redirected to My AEG starts. It remains on for the duration of the Kitchen app in the app store. Follow the programme. -
Page 9: Control Panel
5. CONTROL PANEL On/Off button / Reset button Option buttons (EXTRAS) Delay start button / Remote start button AUTO Sense program button Display MY TIME program selection bar 5.1 Display 5.2 ECOMETER The ECOMETER indicates how the programme selection impacts energy and water consumption. -
Page 10: Programme Selection
This is the standard programme for test institutes. 6.4 Extras in the app 6.2 AUTO Sense My AEG Kitchen app provides additional dishwashing options. To access all options, The AUTO Sense programme automatically connect your dishwasher to the app. See adjusts the dishwashing cycle to the type of chapter "Wireless connection". - Page 11 Cleaning 70 °C Refer to "Care and Cleaning". • Intermediate rinse • Final rinse • AirDry Automatic door opening during the drying phase. Refer to "Basic settings". Available only through My AEG Kitchen app. Available only through My AEG Kitchen app. ENGLISH...
-
Page 12: Basic Settings
Consumption values Water (l) Energy (kWh) Duration (min) Programme 1)2) Quick 11.0 0.620 Pre-rinse 0.010 11.8 0.970 1h 30min 11.9 1.110 2h 40min 11.9 1.210 11.0 0.848 AUTO Sense 12.1 1.220 Machine Care 10.6 0.710 The pressure and the temperature of the water, the variations of the mains supply, the options, the quantity of dishes and the degree of soil can change the values. - Page 13 You can change the basic settings in setting The lights related to the Previous, OK and mode. Next are on. When the appliance is in setting mode, the How to change a setting bars of the ECOMETER represent available settings. For each setting, a dedicated bar of Make sure the appliance is in setting mode.
- Page 14 Water hardness German de‐ French de‐ mmol/l mg/l (ppm) Clarke de‐ Water softener grees (°dH) grees (°fH) grees level 47 - 50 84 - 90 8.4 - 9.0 835 - 904 58 - 63 43 - 46 76 - 83 7.6 - 8.3 755 - 834 53 - 57...
- Page 15 Each performed softener rinse (possible more than one in the same cycle) may prolong the programme duration by another 5 minutes when it occurs at any point at the beginning or in the middle of a programme. All the consumption values mentioned in this section are determined in line with the currently applicable standard in laboratory conditions with water hardness...
-
Page 16: Wireless Connection
3. When prompted, enter the home network home wireless network and then link it to your credentials in My AEG Kitchen app. mobile devices in My AEG Kitchen app. This functionality allows you to remotely control and monitor your dishwasher. -
Page 17: Before First Use
8.4 How to reset the network • The indicator is off. credentials • The appliance returns to the programme selection. If you want to connect to a different wireless Connect the dishwasher to the network and network or update the credentials of the to the app to enter new network credentials. -
Page 18: Daily Use
9.2 How to fill the rinse aid CAUTION! dispenser Only use rinse aid designed specifically for dishwashers. 1. Open the lid (C). 2. Fill the dispenser (B) until the rinse aid reaches the marking ''MAX''. 3. Remove the spilled rinse aid with an absorbent cloth to prevent excessive foam formation. - Page 19 How to activate the remote start 10.2 Using the detergent Make sure that the indicator is on and your dishwasher is added in My AEG Kitchen app. If not, refer to "Wireless connection". 1. Press • The light related to the button is on.
- Page 20 How to deactivate the remote start Not all options are compatible with each Press until the display shows 0h. other. • The light related to the button is off. • The appliance returns to the programme selection. Activating options often increases the 10.4 How to select and start a water and energy consumption as well as programme using MY TIME...
-
Page 21: Hints And Tips
If you cancel the delay start, you have to Opening the door while the appliance select the programme again. operates may affect the energy consumption and the programme 10.9 How to cancel a running duration. programme Press and hold for about 3 seconds. If the door is opened for more than 30 The appliance returns to the programme seconds during the drying phase, the... - Page 22 • Make sure that items in the baskets do not much rinse aid results in bluish layers on touch or cover each other. Only then can the items. the water completely reach and wash the • Make sure that the water softener level is dishes.
-
Page 23: Care And Cleaning
11.6 Unloading the baskets • Put hollow items (cups, glasses and pans) with the opening facing downwards. 1. Let the tableware cool down before you • Make sure that glass items do not touch remove it from the appliance. Hot items each other. - Page 24 follow the instructions on the packaging of the product. • For optimal cleaning results, start the programme Machine Care. 12.3 Removal of foreign objects Check the filters and the sump after each use of the dishwasher. Foreign objects (e.g. pieces of glass, plastic, bones or toothpicks, etc) decrease the cleaning performance and can cause damage to the drain pump.
- Page 25 2. Wash the spray arm under running water. 7. Reassemble the filters (B) and (C). Use a thin pointed tool, e.g. a toothpick, 8. Put back the filter (B) in the flat filter (A). to remove particles of soil from the holes. Turn it clockwise until it locks.
- Page 26 2. To detach the spray arm from the basket, holes. Clogged holes can cause press the spray arm upwards and unsatisfactory washing results. simultaneously turn it clockwise. The ceiling spray arm is placed on the ceiling of the appliance. The spray arm (C) is installed in the delivery tube (A) with the mounting element (B).
-
Page 27: Troubleshooting
5. To install the spray arm (C) back, insert the mounting element (B) in the spray arm and fix it in the delivery tube (A) by turning it clockwise. Make sure that the mounting element locks into place. 6. Install the cutlery drawer on the sliding rails and block the stoppers. - Page 28 Problem and alarm code Possible cause and solution The anti-flood device is on. • Close the water tap. The display shows i30. • Make sure that the appliance is correctly installed. • Make sure the baskets are loaded as instructed in the user manual. Malfunction of the water level detec‐...
- Page 29 Problem and alarm code Possible cause and solution Rattling or knocking sounds from • The tableware is not properly arranged in the baskets. Refer to basket the inside of the appliance. loading leaflet. • Make sure that the spray arms can rotate freely. The appliance trips the circuit-beak‐...
- Page 30 13.2 The dishwashing and drying results are not satisfactory Problem Possible cause and solution Poor washing results. • Refer to "Daily use", "Hints and tips" and the basket loading leaf‐ let. • Use more intensive washing programme. • Activate the ExtraPower option to improve the washing results of a selected programme.
- Page 31 Problem Possible cause and solution Limescale deposits on the tableware, • The level of salt is low, check the refill indicator. on the tub and on the inside of the • The cap of the salt container is loose. door. •...
-
Page 32: Technical Information
Problem Possible cause and solution The app cannot connect to the dish‐ • There is a trouble with the wireless network signal. Check your wire‐ washer. less network and router. Restart the router. • Check if your mobile device is connected to the network. •... -
Page 33: Environmental Concerns
product information sheet. Keep the energy For more detailed information about the label for reference together with the user energy label, visit www.theenergylabel.eu. manual and all other documents provided with this appliance. 15. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol . - Page 36 My AEG Kitchen app The software in this product contains components that are based on free and open source software. AEG gratefully acknowledges the contributions of the open software and robotics communities to the development project. To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://aeg.opensoftwarerepository.com (folder NIUS)
