U-Line Echelon BI-2115 Installation Manual page 11

4. Attach Top Pivot Plate to door handle, on side where
hinges will be. Use the two #8-32 x 1/2" Flat Head
Phillips screws (Black) supplied with kit (see Figure 24).
3/4" Wood Overlay

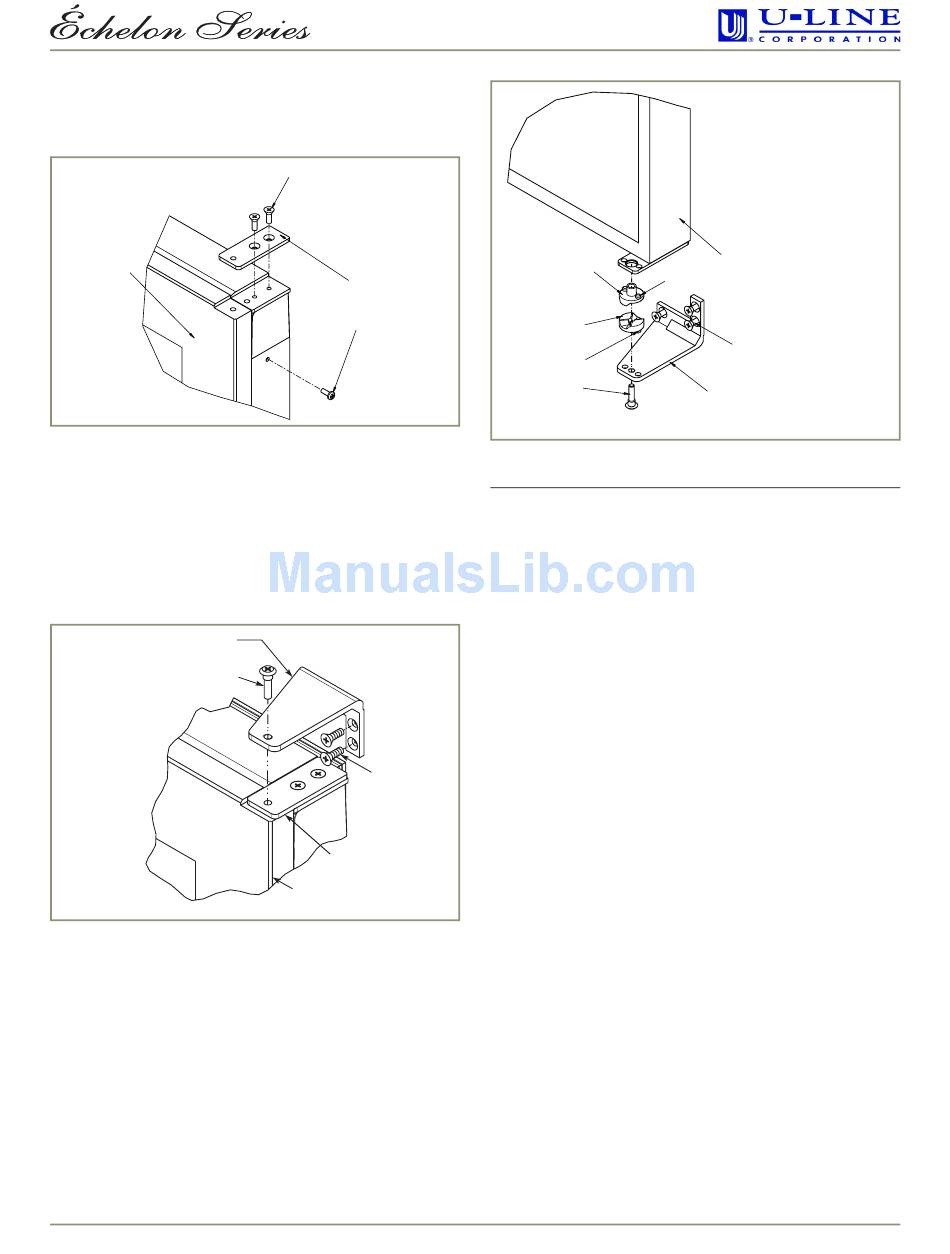

Figure 24
5. Starting at the corners and working toward the center,
push the door gasket back into place.
Installing the Door
1. Remove the existing hinges from the unit, saving the
door closure assembly.
2. Install the new Replacement Top Hinge onto the unit
(see Figure 25).
Wood Panel Top Hinge Plate
(5/8" Longer than Existing Top Hinge Plate)
Pivot Post
Figure 25
3. Install the pivot post into the new Replacement Bottom
Hinge (using the Phillips screwdriver) and install the
hinge onto the unit.
4. Replace the door closure assembly onto the bottom
pivot post (see Figure 26). Be sure that bosses on
closers align with holes in hinge and hinge plate.
08/2006
BI-2115 — Ice Maker
#8-32 x 1/2" Flat Head Screws
Black, Two Places
Top Pivot Plate
Screw to attach Handle
Removed in step 4
#8-32 x 1/2"
Flat Head Screw
Three Places
Top Pivot Plate
Door Panel
ULIN_0405
Door Closure Top
Door Closure
Bottom
Boss
Pivot Post
Figure 26
Pivot posts must be cleaned. Closers must also be clean
and greased to ensure proper operation.
5. Place the modified door onto the pivot post.
6. Position door and install the pivot post into the top
hinge (using the Phillips screwdriver).
7. Adjust door as needed for proper closure.
8. Check to see that light goes off when the door closes.
9. Reinstall the door shelves by lining up the bosses and
first pushing straight in, then down at a 45° angle.
11
Existing Door
Boss
#8-32 x 1/2" Flat Head Screw
Three Places
Wood Panel Bottom Hinge Plate
(5/8" Longer than Existing Bottom Hinge Plate)
IMPORTANT
www.U-LineService.com
