DANGER! ELECTRICAL SHOCK HAZARD.
Only qualified personnel who have read and understand this entire manual should
attempt to install, or service this WL250 Water Treatment System, failure to do so could
result in death or serious injury. DO NOT plug into an electrical supply until specifically
instructed.
WARNING! ALWAYS SANITIZE BEFORE USE.
Sanitize before use to eliminate any potential microbiological contaminates.
CAUTION! DRIP TRAY DRAIN.
If you intend to provide a drip tray drain for your customer, be aware that
you will be called multiple times per month to service and unclog the
tubing leading away from the drip tray to drain. Users will clog the drain
with paper clips, erasers, napkins, tea bags, gum, and various other
intended items. Waterlogic recommends you establish a minimum of
weekly visits to the machine for cleaning of the drip tray drain.
Materials Needed:
Personal Protective Equipment. Rubber or Nitrile Safety Gloves and Protective Eyewear
Phillips Screwdriver
Temperature Gage
Water Pitcher or Container to collect water from the faucet
5‐gallon container or drain basin
Sanitizer ‐ Household Bleach (5.25% Sodium Hypochlorite) or Citric Acid Based Cleaner
¼" Plastic Tubing, at least 4 feet in length, and assorted ¼" quick connect fittings
TDS Meter and Test Strips for measuring chlorine ‐ Optional

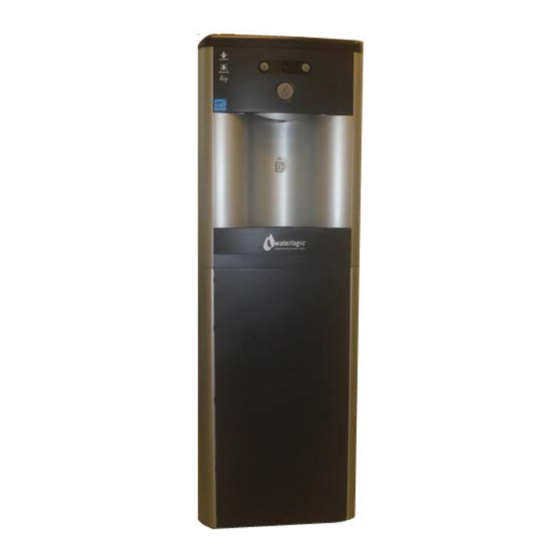

1. Unpack the Waterlogic WL250 Water Treatment System and check exterior for damage.
Flush Filters
CAUTION! FILTER FLUSH REQUIRED.
WL250's Water Treatment Systems are not supplied with filters. Filters should be
configured to optimize your system. Filters need to be configured and specified to do the job
given the local water conditions, usage, maintenance schedule, and placement restrictions.
In order for our filters to perform as represented and to provide the best quality water
possible, it is essential that filters be replaced periodically. The frequency of filter changes
depends upon your water quality and your water usage. For example, if there is a lot of
sediment and/or particles in your water, then you will have to change your filters more
frequently than a location with little to no sediment. Be sure to replace your filters whenever
WL250 Manual
PRE‐INSTALLATION PROCEDURES
Page 41 ‐ Revision: 12‐12‐2018
Advertisement
Related Manuals for WaterLogic WL250
Summary of Contents for WaterLogic WL250
- Page 1 Materials Needed: Personal Protective Equipment. Rubber or Nitrile Safety Gloves and Protective Eyewear Phillips Screwdriver Temperature Gage Water Pitcher or Container to collect water from the faucet 5‐gallon container or drain basin Sanitizer ‐ Household Bleach (5.25% Sodium Hypochlorite) or Citric Acid Based Cleaner ¼” Plastic Tubing, at least 4 feet in length, and assorted ¼” quick connect fittings TDS Meter and Test Strips for measuring chlorine ‐ Optional 1. Unpack the Waterlogic WL250 Water Treatment System and check exterior for damage. Flush Filters CAUTION! FILTER FLUSH REQUIRED. WL250’s Water Treatment Systems are not supplied with filters. Filters should be configured to optimize your system. Filters need to be configured and specified to do the job given the local water conditions, usage, maintenance schedule, and placement restrictions. In order for our filters to perform as represented and to provide the best quality water possible, it is essential that filters be replaced periodically. The frequency of filter changes depends upon your water quality and your water usage. For example, if there is a lot of ...
- Page 2 WARNING! USE PROPER PERSONAL PROTECTIVE EQUIPMENT Always ensure proper ventilation and use proper personal protective equipment such as gloves and eye protection when using chemicals. Refer to Material Safety Data Sheet for specific requirements of each chemical product. Take all necessary precautions to prevent sanitizer from contacting eyes, clothing, and any other surfaces in could damage (carpets). 4. Disconnect the UV Lamp wiring harness and carefully remove the UV Lamp from the quartz sleeve. CAUTION! UV SYSTEM IS FRAGILE. Never handle the UV System with bare hands. UV Lamp and Quartz Sleeve must be free of oils and contaminants to ensure proper operation. 5. Unscrew Cold Tank/Quartz Sleeve retaining cap and remove the Quartz Sleeve. This will require Top Cover to be removed to access properly and UV Port facilitate removal. Retaining Cap 6. Mix ½ gallon of sanitizer per directions or use Bleach Solution (1 teaspoon = 1/6 oz. = 5 ml = ½ cap full) of household bleach (Sodium Hypochlorite 5 ‐ 10% Concentration) with 1/2 gallon of water. Always ensure sanitizer is compatible with stainless steel and acetyl plastic. 7. Pour sanitizer solution through UV Port into Cold Tank with a funnel or spout. You may add concentrated sanitizer (½ cap bleach) directly into empty cold tank instead of premixing. WL250 Manual Page 42 ‐ Revision: 12‐12‐2018 ...
- Page 3 8. Inspect and clean Quartz Sleeve and O‐ring. 9. Reinstall the Quartz Sleeve and Quartz Sleeve Retaining Nut. Tighten firmly to ensure proper seal. Over‐tightening can cause damage. CAUTION! DO NOT INSTALL THE UV LAMP AT THIS TIME The UV will interact with the sanitizer and could potentially cause taste. 10. Connect 40‐60 psi regulated, potable water supply to the water inlet bulkhead fitting located on the back of the WL250 Water Treatment System. Turn on water supply and check for leaks. DANGER! ELECTRICAL SHOCK HAZARD. Do not plug in unit unless qualified. Only qualified personnel who have read and understand this entire manual should attempt to install or service this unit. 11. Connect WL250 Water Treatment System to power. CAUTION! NEVER TURN ON HEATER BEFORE FILLING HOT TANK. Red Heater and Compressor Power Switch must be in the O=OFF position while the hot tank is empty. Damage could occur within one minute and the overload (high limit) will require manual reset if heater is turned on with an empty hot tank. Fill the Cold Circuit with Sanitizer 12. Depress the main dispensing button on the front control panel until cold water/sanitizing solution comes out the faucet. NOTE: Container and drain basin will be required to catch the water from the faucet. WARNING! Use Personal Protective Equipment. Gloves and Eye Protection Required. The first 2 or 3 gallons of water will contain concentrated sanitizer. Use extreme care! ...
- Page 4 WARNING! ULTRAVIOLET RADIATION. Protect your skin and eyes against ultraviolet rays. Never look directly at an operating UV light. Disconnect wiring before removing. 17. Reinstall the UV Lamp and connect the wiring. 18. Dim or shield the overhead lights and peer into the machine, on top of the Cold Tank, at the UV connector and retaining cap. The blue glow indicates that the lamp is lit. Compressor Test 19. Switch Red Compressor / Heater to I=ON position. Always ensure tanks are full of water before turning on the heater or the overload (high limit) will open and require manual reset. If the wire condenser at back of the WL250 Water Treatment System is warm, the refrigeration system is working. 20. Once the machine reaches its target temperature, the compressor will shut off. Draw a glass of cold water and verify it is has been chilled to proper temperature. Heater Test 21. Always ensure tanks are full of water before turning on the heater or the overload (high limit) will open and require manual reset. It will take the heater approximately 10 minutes to heat the water from ambient 24°C (75°F) to the factory set point of 85°C (185°F). Dispense a cup of hot water to ensure the temperature/odor/taste is acceptable. WARNING! HOT WATER. Unit produces Hot Water up to 87°C (188°F). Water above 52°C (125°F) can cause severe burns or scalding. Hot water should be dispensed carefully into insulated container to avoid injury. WL250 Manual ...
- Page 5 Following this precaution prevents exposing personnel and equipment (drains, catch basin, etc.) to scalding hot water. Disable Cold and Hot Tanks 1. Turn off the Red Heater and Compressor Power Switch (O‐OFF) to disable the heater and compressor. 2. Dispense 2 liters (1/2 Gallon) of water through the hot tank to cool the water temperature in the hot tank and avoid burns. WARNING! HOT WATER. The WL250 Water Treatment System produces Hot Water up to 87°C (188°F). Water above 52°C (125°F) can cause severe burns or scalding. Hot water should be dispensed carefully into insulated container to avoid injury. Turn off Water Supply and Bleed Water Pressure 3. Isolate the WL250 Water Treatment System from feed water by turning off the supply. 4. Dispense cold still water to relieve any pressure built up in the system. 5. Remove the water supply line from the inlet line bulkhead fitting at back of the WL250 Water Treatment System. Water Supply Line 6. Depress Cold Water Dispense Button until all Cold Water has drained from the WL250 Water Treatment System. 7. Depress Hot Water Dispense Button until all Hot Water has drained from the WL250 Water Treatment Machine. WL250 Manual ...
- Page 6 WL250 TOWER DRAINING INSTRUCTIONS Draining Notes Drain the WL250 Water Treatment System for transportation. WARNING! STORE UNIT EMPTY. ALWAYS SANITIZE BEFORE REUSE. The unit must be completely drained and sealed before storing to avoid stagnation and reduce microbial growth). Prior to draining the Hot Tank, turn off the Red Heater and Compressor Power Switch (O=OFF), and dispense 2 liters of hot water from the machine. As hot water is dispensed from the faucet of the WL250 Water Treatment System, colder water will be introduced into the hot tank. Since the Red Heater and Compressor Power Switch is turned off, the heater will not energize and heat the incoming tap water. Following this precaution prevents exposing personnel and equipment (drains, catch basin, etc.) to scalding hot water. Disable Cold and Hot Tanks 1. Turn off the Red Heater and Compressor Power Switch (O‐OFF) to disable the heater and compressor. 2. Dispense 2 liters of water through the Hot Tank to cool the water temperature in the hot tank and avoid burns. WARNING! HOT WATER. The WL250 Water Treatment System produces Hot Water up to 87°C (188°F). Water above 52°C (125°F) can cause severe burns or scalding. Hot water should be dispensed carefully into insulated container to avoid injury. Turn off Water Supply and Bleed Water Pressure 3. Isolate the WL250 Water Treatment System from feed water by turning off the supply. WL250 Manual Page 46 ‐ Revision: 12‐12‐2018 ...
- Page 7 4. Dispense cold still water to relieve any pressure built up in the system. 5. Insert approx. 3 inches of blue tubing into the Line Bulkhead fitting at back of the WL250 Water Treatment System to allow water to drain. 6. Depress Cold Water Dispense Button until all Cold Water has drained from the WL250 Water Treatment System. 7. Depress Hot Water Dispense Button until all Hot Water has Bulkhead Fitting drained from the WL250 Water Treatment System. WL250 Manual Page 47 ‐ Revision: 12‐12‐2018 ...
-
Page 8: Installation Procedures
WARNING! IMPROPER SUPPLY OR CONNECTION CAN RESULT IS RISK OF SHOCK. Connect to a 15 amp, 120V 60Hz properly grounded outlet (GFI is recommended). Ensure polarity is correct and always use a 3‐prong outlet. Consult a qualified electrician if you have any questions. WARNING! USE ONLY Waterlogic SUPPLIED POWER CORD. Locate system within 5 feet of power supply. Never use an extension cord or adapter. Do not use a damaged power cord or plug. Keep power cord out of heavy traffic areas and away from heat sources. Do not, under any circumstances, remove ground prong or alter the power cord. Never pull the power plug from the outlet with a wet hand or allow the plug to get wet. Failure to use the supplied power cord will void UL Certification and Warranty. CAUTION! INDOOR USE ONLY. Never expose to direct sunlight, heat sources, or ambient air temperature above 38°C (100°F) or below 2°C (35°F). Install indoors and keep unit away from excessive humidity. Never expose to freezing temperatures. Ensure there is adequate clearance around the unit to allow refrigeration system condenser to dissipate heat. Warmer environments require more clearance around the unit. Minimum clearance around all surfaces of the machine is 2‐inches. Installs where the ambient temperature exceeds 80°F, require a minimum of 4‐inches clearance for proper heat dissipation and efficient operation. CAUTION! USE A WATER PRESSURE REGULATOR. Waterlogic will not be responsible for injury or damage caused by excessive water pressure. Operating pressure must be 40 psi to 60 psi. Be aware any of potential pressure surges caused by building/municipal pumping stations. CAUTION! USE UV STABILIZED SUPPLY LINES. Feed the unit with a potable ambient or cold‐water supply only. Feed water over 100° F (37°C) can damage the treatment components. Water block devices and external leak detectors are strongly recommended. Locate the unit as close to the water supply and the electrical connections as possible. WARNING! STORE AND TRANSPORT UNIT EMPTY. ALWAYS SANITIZE BEFORE USE. The unit must be completely drained and sealed before storing to avoid stagnation and reduce microbiological contamination (potential bacterial growth). Sanitize before use to eliminate any potential microbiological contaminates WL250 Manual Page 48 ‐ Revision: 12‐12‐2018 ... - Page 9 Always install indoors and place the Waterlogic WL250 Water Treatment System on a firm, flat and stable surface. 1. Attach the water supply line to the 1/4” feed water inlet bulkhead fitting on the back of the WL250 Water Treatment System. Waterlogic requires the use of a water pressure regulator. Water feed pressure must be between 40‐60 psi. Turn on the water supply and check for leaks. 2. Check to ensure that the Red Heater and Compressor Power Switch is the O=OFF position. NOTE: Switches have internal LED that illuminates when placed in I=ON position. 3. Connect the power cord to the back of the Waterlogic WL250 Water Treatment System and to a 120 Volt supply. 4. Fill the Cold Tank. Hold a container under the dispensing faucet, press and hold the main dispensing button until a continuous flow of water is obtained. Once a continuous flow is obtained, release the dispensing button. Cold tank is now full. 5. Fill the Hot Tank. Hold a container under the dispensing faucet. Press the Hot Select Button followed by the main dispensing button until a continuous flow of water is obtained. Once a continuous flow is obtained, release the main dispensing button. Hot tank is now full. CAUTION! NEVER TURN ON HEATER BEFORE FILLING HOT TANK. Red Heater and Compressor Power Switch must be in the O=OFF position while the Hot Tank is empty. Damage could occur within one minute and the overload (high limit) will require manual reset if heater is turned on with an empty Hot Tank. ...
- Page 10 9. Level WL250 Water Treatment System using the adjustable feet to level if necessary. Never install on incline. 10. Turn the Red Heater and Compressor Power Switch to I=ON position. 11. When the WL250 Water Treatment System has reached its Hot Temp Set Point, the heater will cycle off. When the WL250 Water Treatment System has reached its Cold Temp Set Point Temperature, the compressor will cycle off. 12. Once the WL250 Water Treatment System is at the target temperature(s), sample the water to ensure water meets expectations and additional rinsing or adjustment is not required. 13. Check the WL250 Water Treatment System for any leaks. External Leak Protection is always recommended. WL250 Manual Page 50 ‐ Revision: 12‐12‐2018 ...
