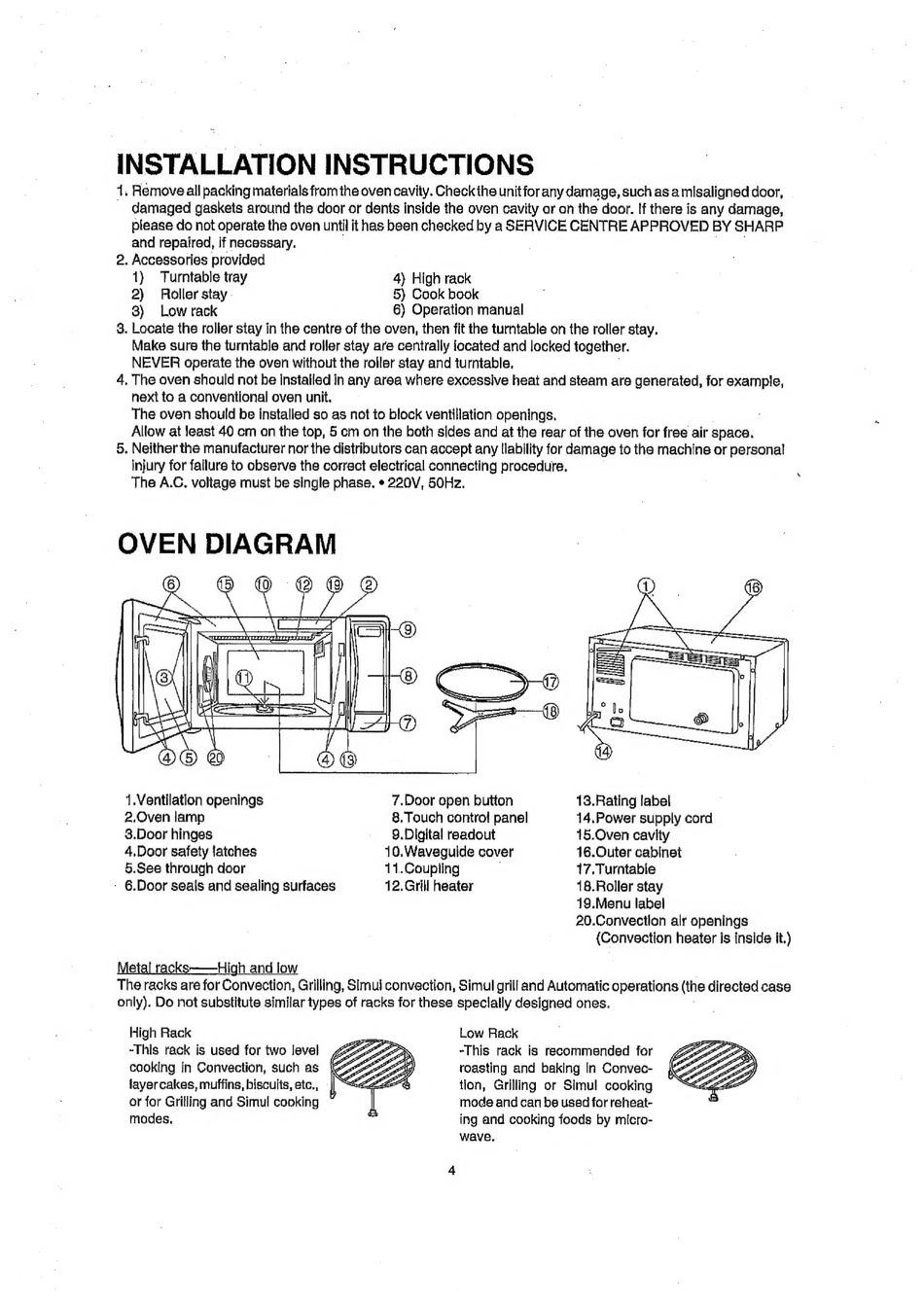

INSTALLATION INSTRUCTIONS
1, Remove ail packing materials from the oven cavity. Check the unit for any damage, such asa misaligned door,
damaged gaskets around the door or dents inside the oven cavity or on the door. If there is any damage,
please do not operate the oven until it has been checked by a SERVICE CENTRE APPROVED BY SHARP
and repaired, if necessary.
>.
2. Accessories provided
1) Turntable tray
4) High rack
2)
Roller stay
5) Cook book
3)
Low rack
6) Operation manual
3. Locate the roller stay in the centre of the oven, then fit the turntable on the roller stay.
Make sure the turntable and roller stay are centrally located and locked together.
NEVER operate the oven without the roller stay and turntable.
4, The oven should not be instatled in any area where excessive heat and steam are generated, for example,
next to a conventional oven unit.
The oven should be installed so as not to block veniillation openings.
Allow at least 40 cm on the top, 5 cm on the both sides and at the rear of the oven for free air space.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or personal
injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage must be single phase. * 220V, 50Hz.
OVEN DIAGRAM
1.Ventilation openings
7.Door open button
13.Rating label
2.Oven lamp
8.Touch contro! panel
14.Power supply cord
3.Door hinges
-
Q.Digital readout
15.Oven cavity
4,Door safety latches
10.Waveguide cover
16.Outer cabinet
5.See through door
11.Coupling
,
17. Turntable
- 6.Door seals and sealing surfaces
12. Grill heater
18.Roller stay
19.Menu label
20.Convection alr openings
{Convection heater is inside it.)
Metal racks——High and low
The racks are for Convection, Grilling, Simul convection, Simul grill and Automatic operations (the directed case
only). Do not substitute similar types of racks for these specially designed ones.
High Rack
Low Rack
-This rack is used for two level
gee
-This rack is recommended for
cooking in Convection, such as
roasting and baking In Convec-
layer cakes, muffins, biscuits, etc.,
tion, Grilling or Simul cooking
or for Grilling and Simul cooking
mode and can be used for reheat-
modes.
ing and cooking foods by micro-
wave,
