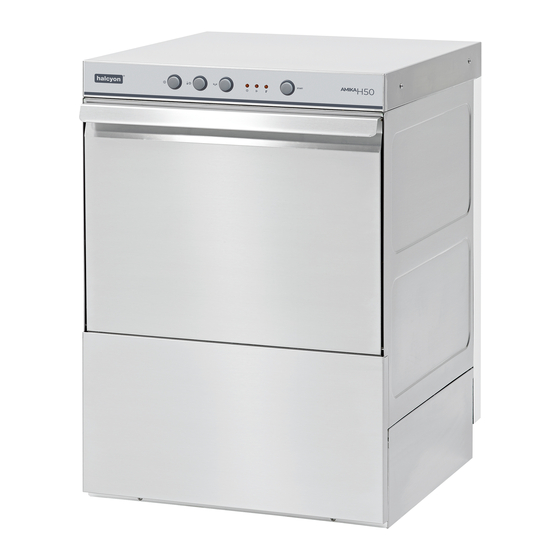

- Page 1 AMH50 GRAVITY WASTE User & Installation Guide JUNE.2021 REF:918743 All spares available from The Engine Shed Top Station Road Brackley NN13 7UG Tel: 0845 1308060 Fax: 01280 845345 Web: www.caterparts.com Copyright Notice: All rights reserved. No parts of this manual may be reproduced in any form without...
-
Page 4: Table Of Contents
INSTRUCTION MANUAL FOR DISHWASHERS TRANSLATION FROM THE ORIGINAL INSTRUCTIONS CONTENTS CHAP 1 RISKS AND IMPORTANT WARNINGS ..............2 ..................3 ORMAL OPERATING CONDITIONS CHAP 2 PREFACE ........................4 CHAP 3 INSTALLATION ......................4 ........................4 NPACKING ........................4 OSITIONING ....................5 LECTRICAL CONNECTION .................... -
Page 5: Chap 1 Risks And Important Warnings
INSTRUCTION MANUAL FOR DISHWASHERS Read the instruction manual carefully before starting the machine. The warnings contained in the manual provide important information on safety and installation, use and maintenance. Failure to observe the instructions in the enclosed documentation may compromise the safety of the appliance and immediately voids the warranty. -
Page 6: Normal Operating Conditions
INSTRUCTION MANUAL FOR DISHWASHERS NEVER place your bare hands in the wash solution. NEVER overturn the machine after it has been installed. If you notice any malfunction or fluid leak, immediately disconnect the power supply and shut off the water supply. ... -
Page 7: Chap 2 Preface
INSTRUCTION MANUAL FOR DISHWASHERS Chap 2 PREFACE Warnings: Keep all documentation in the vicinity of the appliance; make it available to the technicians and operators charged with operating it and keep it in good condition in a safe place, along with extra copies for frequent reference The operator must read, understand and familiarise himself with the contents of this manual before working on or with the appliance. -
Page 8: Electrical Connection
INSTRUCTION MANUAL FOR DISHWASHERS 3.3 Electrical connection The power supply must be fitted with a omnipolar circuit breaker (master power switch) to break all contacts including neutral, with a contact gap of at least 3 mm and thermal cutout or fuses, which must be set or rated to the power indicated on the machine's nameplate. -
Page 9: Water Circuit Hookup
INSTRUCTION MANUAL FOR DISHWASHERS 3.4 Water circuit hookup The appliance must be connected to its water supply with a flexible hose. A shut off valve (cock) must be installed between the water supply line and the appliance's solenoid valve. The cock must be close to the appliance. ... -
Page 10: Chap 4 Using The Machine
INSTRUCTION MANUAL FOR DISHWASHERS Chap 4 USING THE MACHINE 4.1 Key and symbols Referring to Fig.1: ON/OFF BUTTON 5 POWER LED DRAIN BUTTON 6 CYCLE UNDERWAY LED PROGRAMME SELECTION BUTTON 7 HEATING UNDERWAY LED START BUTTON The arrangement of buttons and leds may vary according to the machine type Switching the dishwasher on Referring to Fig.2: ... -
Page 11: Hood Dishwashers
INSTRUCTION MANUAL FOR DISHWASHERS 4.4.2 Hood dishwashers Select the washing cycle suited to the type of dishes using PROGRAMME SELECTION (3); with the button pressed, the shorter cycle is enabled (Fig. 4). Press START (3) for automatic start (Fig. 6). ... -
Page 12: End Of Shift
INSTRUCTION MANUAL FOR DISHWASHERS Proceed as follows (Fig. 11): Switch the dishwasher off Empty and clean it. Remove the integral filter and open the salt container in the tub. Pour in 250-300g of regeneration salt (1 or 2mm grain size kitchen salt with no additives). ... -
Page 13: Cleaning The Arms
INSTRUCTION MANUAL FOR DISHWASHERS 5.4 Cleaning the arms The wash and rinse arms are easily removed in order to clean their nozzles and prevent blockage/encrustations. Proceed as follows ( Fig.10 ): Undo nut R and remove the arms. Wash all parts under a jet of running water and clean the nozzles thoroughly, using a toothpick or pointed tool if necessary. -
Page 14: Chap 7 Dosing Unit Settings
INSTRUCTION MANUAL FOR DISHWASHERS Chap 7 DOSING UNIT SETTINGS If the machine is equipped with dosing units, the settings can be changed as follows: Machine in standby with door open. Simultaneously hold pressed the DRAIN (2) and START (4) buttons. ... - Page 15 INSTRUCTION MANUAL FOR DISHWASHERS Page 12 of 12...
