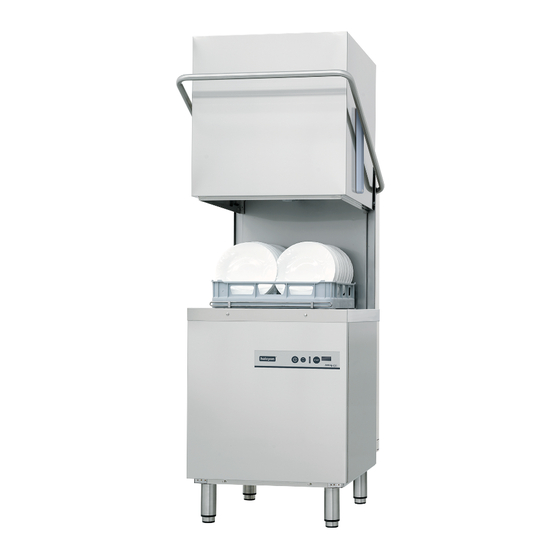

AMH91 GRAVITY WASTE User & Installation Guide JUNE.2021 REF:IT3812HALDDM All spares available from The Engine Shed Top Station Road Brackley NN13 7UG Tel: 0845 1308060 Fax: 01280 845345 Web: www.caterparts.com Copyright Notice: All rights reserved. No parts of this manual may be reproduced in any form without...
INSTRUCTION MANUAL FOR DISHWASHERS TRANSLATION FROM THE ORIGINAL INSTRUCTIONS CONTENTS CHAP 1 RISKS AND IMPORTANT WARNINGS ..............2 ..................3 ORMAL OPERATING CONDITIONS CHAP 2 PREFACE ........................4 CHAP 3 INSTALLATION ......................4 ........................4 NPACKING ........................4 OSITIONING ....................5 LECTRICAL CONNECTION ....................
INSTRUCTION MANUAL FOR DISHWASHERS Read the instruction manual carefully before starting the machine. The warnings contained in the manual provide important information on safety and installation, use and maintenance. Failure to observe the instructions in the enclosed documentation may compromise the safety of the appliance and immediately voids the warranty.
INSTRUCTION MANUAL FOR DISHWASHERS NEVER overturn the machine after it has been installed. If you notice any malfunction or fluid leak, immediately disconnect the power supply and shut off the water supply. Do not install the dishwasher in the vicinity of heat sources over 50°C. ...
INSTRUCTION MANUAL FOR DISHWASHERS Chap 2 PREFACE Warnings: Keep all documentation in the vicinity of the appliance; make it available to the technicians and operators charged with operating it and keep it in good condition in a safe place, along with extra copies for frequent reference The operator must read, understand and familiarise himself with the contents of this manual before working on or with the appliance.
INSTRUCTION MANUAL FOR DISHWASHERS Remove the protective film from its body panels before operating the dishwasher. 3.3 Electrical connection The power supply must be fitted with a omnipolar circuit breaker (master power switch) to break all contacts including neutral, with a contact gap of at least 3 mm and thermal cutout or fuses, which must be set or rated to the power indicated on the machine's nameplate.
INSTRUCTION MANUAL FOR DISHWASHERS 3.4 Water circuit hookup The appliance must be connected to its water supply with a flexible hose. A shut off valve (cock) must be installed between the water supply line and the appliance's solenoid valve. The cock must be close to the appliance. ...
INSTRUCTION MANUAL FOR DISHWASHERS Chap 4 USING THE MACHINE 4.1 Key and symbols Referring to Fig.1: ON/OFF BUTTON DISPLAY INFORMATION PROGRAMME SELECTION BUTTON STATUS BAR (LED) START BUTTON Switching the dishwasher on Referring to Fig.2 Turn on the main power switch and open the external water tap. ...
INSTRUCTION MANUAL FOR DISHWASHERS Continuous washing (*optional) This is an extended cycle; the time varies according to the model. The cycle duration may be varied as required by pressing START (3) during the wash cycle, to interrupt the wash and start the rinse phase. 4.6 Automatic cycle start-up This function is used to make the chosen cycle start automatically when the door is closed.
INSTRUCTION MANUAL FOR DISHWASHERS Rinse the area around the salt cap by hand and run a self-cleaning cycle to avoid any risk of corrosion. The ‘SLT’ warning will disappear after a few minutes. The warning rEG on the display indicates that the machine is running a resin regeneration cycle, needed to ensure the correct operation of the water softener;...
INSTRUCTION MANUAL FOR DISHWASHERS Chap 5 MAINTENANCE 5.1 General rules Before doing any maintenance, completely drain out all water, shut off the power supply and close the water supply cock. Do not use water under pressure - it can damage the electrical equipment. Only wash the body panelling when it is cold, using only product specifically designed for steel.
INSTRUCTION MANUAL FOR DISHWASHERS Chap 6 SELF DIAGNOSTICS The machine is equipped with a self-diagnosis system that registers and warns of a number of malfunctions. Fault Description and possible remedies No rinsing. The rinsing cycle was not completed correctly. Make sure that the rinsing nozzles are clean.
INSTRUCTION MANUAL FOR DISHWASHERS Chap 7 SETTINGS The following settings should only be configured by a qualified technician. The parameters listed below can be set during installation of afterwards, accessing the settings menu as follows: Machine in standby with door open. ...
INSTRUCTION MANUAL FOR DISHWASHERS 7.1 Number of cycles to regenerate resins Set the hardness level of the water supply dH in the settings menu following the instructions given in the following table: Measured Measured hardness hardness °fr n° °fr n° 0 ...
Page 17
INSTRUCTION MANUAL FOR DISHWASHERS Page 14 of 14...
