Epson Small-in-One XP-320, XP-420, XP-424 - All-In-Ones Printer Quick Installation Guide

Unpack

Note: Do not open ink cartridge packages until you are ready to install the ink. Cartridges are vacuum packed to maintain reliability.

Turn on and configure

Do not connect to your computer yet.

Do not lower the control panel without first squeezing the release bar underneath or you may damage the product.

To select English as your language, press OK.
If you want to change the language, press or to select it, then press OK.

Note: You can change the language later using the product's control panel.

Install ink cartridges

Installing the ink cartridges - Step 1

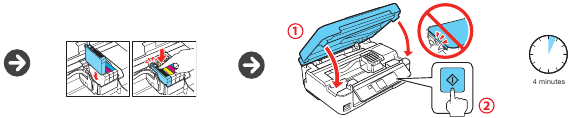

Press to prime the ink delivery system. Priming takes about 4 minutes.

Note:

The printer is designed for use with Epson cartridges only, not third-party cartridges or ink.
The cartridges included with the printer are designed for printer setup and not for resale. After some ink is used for priming, the rest is available for printing.

Don't turn off the printer while it is priming or you'll waste ink.

Load paper

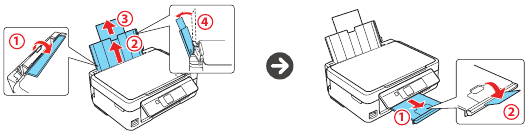

Loading the paper - Step 1

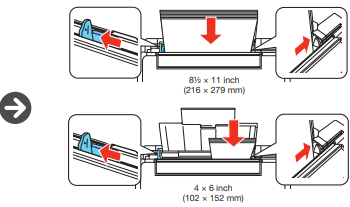

Loading the paper - Step 2

Check the current paper settings on the control panel.
To use these settings, press OK. If you want to change the settings, press or to select Change, then press OK. Select paper size, press OK, select paper type, then press OK to confirm settings.

Install software

Note: If your computer does not have a CD/DVD drive or you are using a Mac, an Internet connection is required to obtain the printer software.

Make sure the printer is NOT CONNECTED to your computer.
Windows : If you see a Found New Hardware screen, click Cancel and disconnect the USB cable.
Insert the product CD or download and run your product's software package:
XP-320: epson.com/support/xp320 (U.S.) or epson.ca/support/xp320 (Canada)
XP-420: epson.com/support/xp420 (U.S.) or epson.ca/support/xp420 (Canada)
XP-424: epson.com/support/xp424 (U.S.) or epson.ca/support/xp424 (Canada)
Follow the instructions on the screen to run the setup program.
OS X: Make sure you install Software Updater to receive firmware and software updates for your product.
When you see the Select Your Connection screen, select one of the following:

Wireless connection
In most cases, the software installer automatically attempts to set up your wireless connection. If setup is unsuccessful, you may need to enter your network name (SSID) and password.
Direct USB connection
Make sure you have a USB cable (not included).

Mobile printing

To print from a mobile device, your product must be set up for wireless printing or Wi-Fi Direct.

iOS/Android

epson.com/iprint

Epson Connect
Connect wirelessly from your tablet, smartphone, or computer. Print documents and photos from across the room or around the world.
epson.com/connect

Any problems?

Network setup was unsuccessful

Make sure you select the right network name (SSID).
If you see a firewall alert message, click Unblock or Allow to let setup continue.
If your network has security enabled, make sure you enter your network password (WEP key or WPA passphrase) correctly. Passwords must be entered in the correct case.

The printer's screen is dark

Press any button to wake your product from sleep mode.

Setup is unable to find my printer after connecting it with a USB cable.
Make sure it is securely connected as shown:
Connecting the unit with a USB cable

Any questions

Technical support

epson.com/support (U.S.) or epson.ca/support (Canada)

(562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 6 am to 8 pm, Pacific Time, Monday through Friday, and 7 am to 4 pm, Pacific Time, Saturday. Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Recycling

Epson offers a recycling program for end of life hardware and ink cartridges. Please go to epson.com/recycle for information on how to return your products for proper disposal.

Need paper and ink

Try Epson specialty papers with DURABrite Ultra Ink for professional results. You can purchase them at epson.com/ink3 (U.S. sales) or epson.ca (Canadian sales). You can also purchase supplies from an Epson authorized reseller. Call 800-GO-EPSON (800-463-7766).

XP-320/XP-420/XP-424 replacement ink cartridges
Color	Standard-capacity	High-capacity
Black	220	220XL
Cyan	220	220XL
Magenta	220	220XL
Yellow	220	220XL
