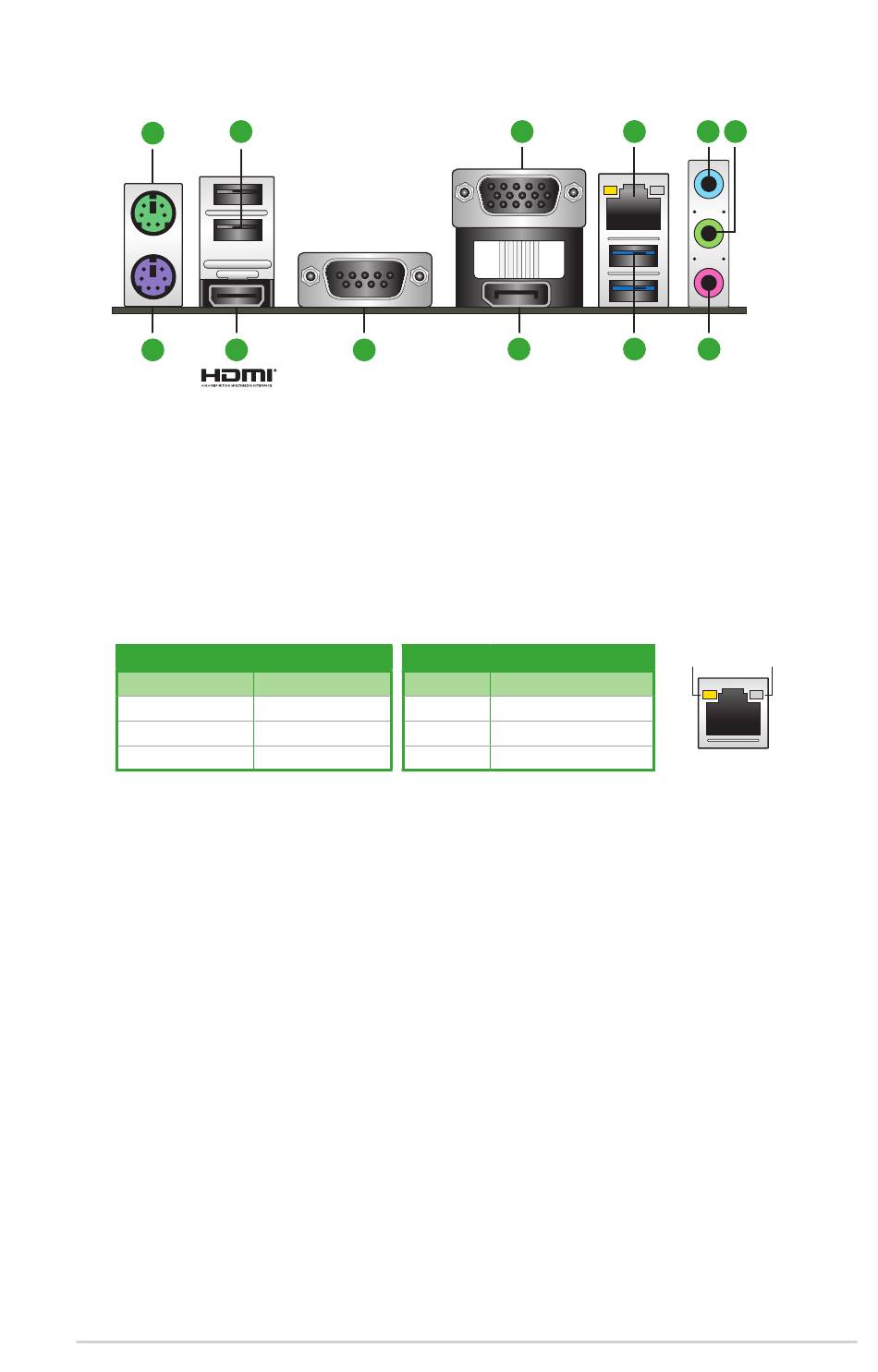

1.2.2 Rear panel connectors
2
1
7 8
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0 devices.
3. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
4. Ethernet port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the Ethernet port LED indications.
Intel 1Gb Ethernet port LED indications
®
Activity Link LED
Status
OFF
ORANGE
BLINKING
5. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
6. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel,
5.1-channel, and 7.1-channel configurations, the function of this port becomes Front
Speaker Out.
7. PS/2 Keyboard port (purple). This port is for a PS/2 keyboard.
8. HDMI port. This port is for a High-Definition Multimedia Interface (HDMI
®
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
9. COM port. This port connects a modem, or other devices that conform with serial
specification.
10. DisplayPort. This port is for a DisplayPort-compatible device.
11. USB 3.2 Gen 1 ports (Type A). These Universal Serial Bus 3.2 (USB 3.2) ports are for
USB 3.2 Gen 1 devices.
