Revolabs Single Channel System — Sony PCS-G70 Setup Guide
This setup guide will guide you through the steps needed to properly connect a
Revolabs Single Channel System to a Sony PCS-G70 video codec.
It is important to carefully follow these instructions in order and completely.
Note:
Otherwise your Single Channel System and/or the video codec may not function
properly. Please read through these instructions completely before proceeding.
Contact Revolabs technical support if you have any questions.
Requirements for connecting systems:
1. Revolabs Single Channel System

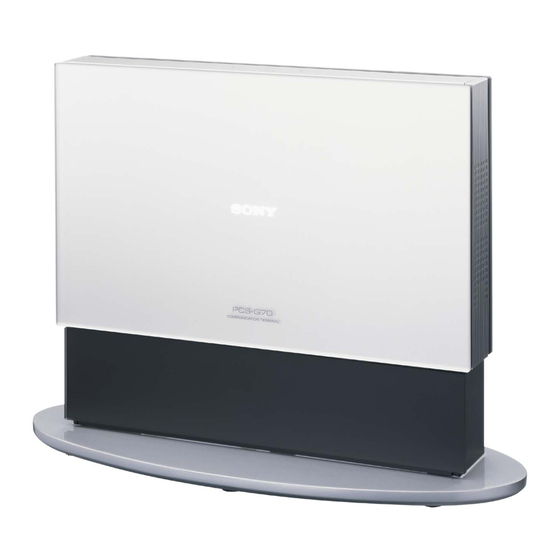

2. Sony PCS-G70 video codec
3. QTY 1 07-STEMIC-PPP Line-to-Mic Adapter Cable*
4. QTY 1 Female XLR—1/8" mono male cable* (i.e. Calrad 10-144)
* Optional Items
