1 Description
The SLC-3LS Loop Expander Module is an optional card that provides the ES-1000X Series Fire Alarm Control Panels with additional SLC commu-
nication loops. An additional 318 devices can be wired to each SLC-3LS card. A maximum of two SLC3-LS cards may be installed on the FACP,
offering a total of 3 SLC loops and 954 points in the system.
2 Installation
WARNING: STATIC SENSITIVE COMPONENTS
!
WEAR A PROPER GROUNDING WRIST STRAP AND WORK ON A STATIC-SAFE WORKSPACE TO PROTECT
ELECTRONIC ASSEMBLIES.
The IPOTS-COM Communicator Module, not supplied with the ES-1000XI, must be mounted on the FACP last, at the top of the stack of accessory
cards. Additional SLC-3LS cards mount below the IPOTS-COM Communicator. Refer to P/N LS10184-000GE-E for instructions on installing the
IPOTS-COM Communicator, if necessary.
Refer to Figure 1 and Figure 2 below.
1. Disconnect the ribbon cable from J1 on the IPOTS-COM.
2. Remove the four screws on the right side of the board that are used to attach the IPOTS-COM board to the chassis (or, on the ES-1000XI, to the
PCB itself) and place it on static-safe workspace.
3. Disconnect and remove the 8" (20 cm) wire cable from J4 on the pre-installed SLC-3LS card and J5 on the main board.
SLC-3LS Loop Expander Module
Product Installation Document
PN LS10195-000FL-E:A 6/7/2023 ECN: 00022081
pre-installed
SLC-3LS card
Remove 8" (20cm) cable

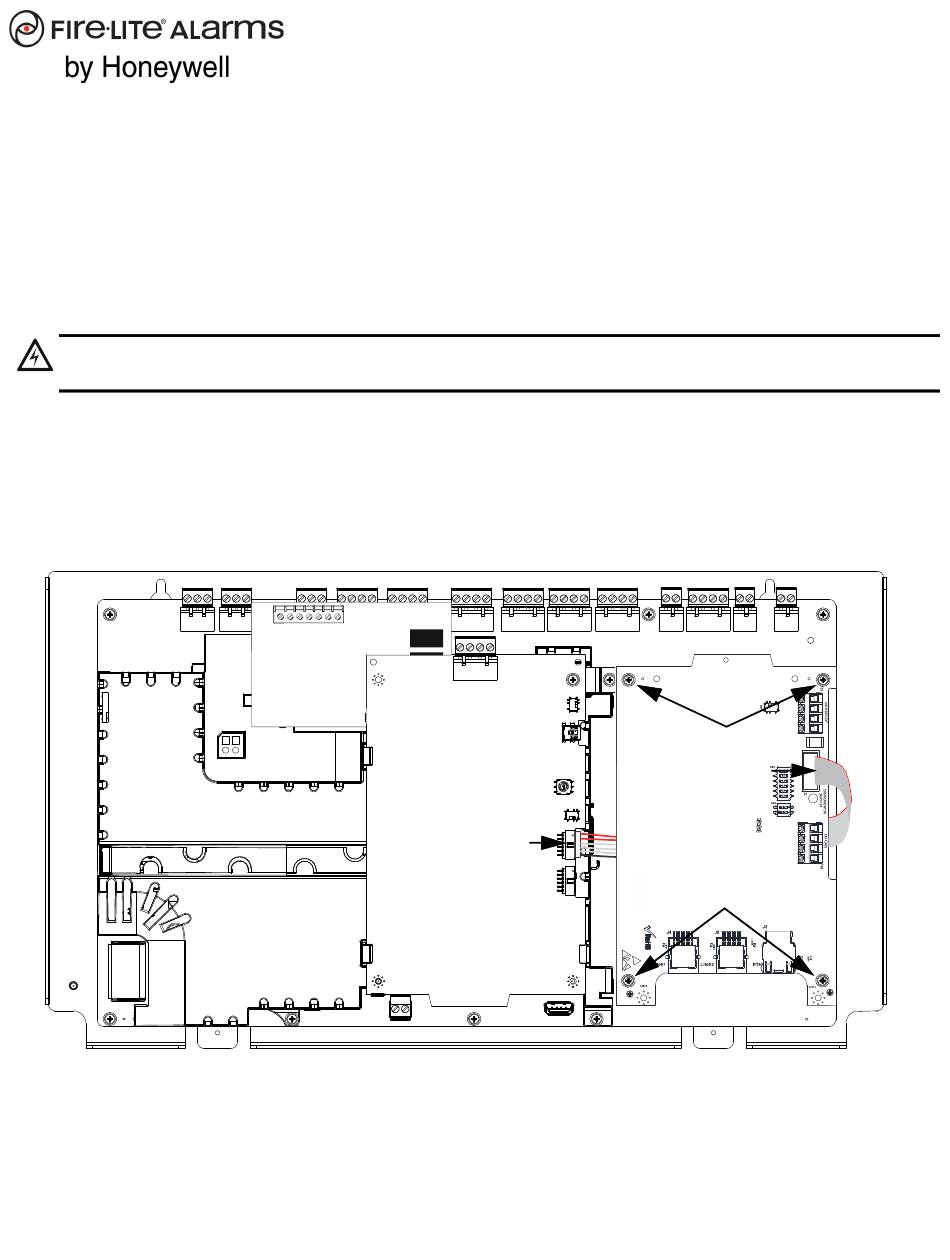

Figure 1 ES-1000X Assembly
IPOTS-COM
Remove screws
Disconnect ribbon cable
Remove screws
