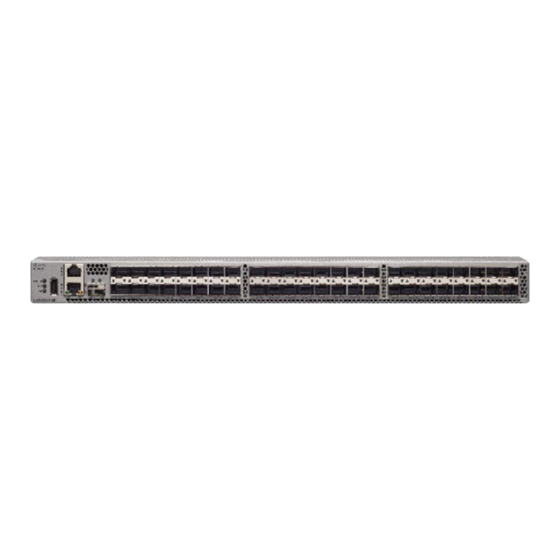

Installing the Cisco MDS 9148T Switch
This chapter describes how to install a Cisco MDS 9148T switch and its components.
Before you install, operate, or service the system, see the
the Cisco MDS 9000 Family
Warning
Warning
•
•
•
•
Preinstallation
Cisco MDS 9000 Series Telco and EIA Shelf Bracket
The optional Telco and EIA Shelf Bracket Kit (part number DS-SHELF=) can temporarily or permanently
support the Cisco MDS 9148T switch during installation. After the front rack-mount brackets are securely
attached to the rack-mounting rails, the shelf bracket can be removed.
The Telco and EIA Shelf Bracket kit supports the following configurations:
• A Cisco MDS 9148T Switch in a two-post Telco rack
• A Cisco MDS 9148T Switch in a four-post EIA rack
document for important safety information.
This unit is intended for installation in restricted access areas. A restricted access area can be accessed
only through the use of a special tool, lock and key, or other means of security. Statement 1017
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Preinstallation, on page 1
Installing the Switch, on page 8
Grounding the Switch, on page 15
Installing and Removing Components, on page 16
Regulatory Compliance and Safety Information for
Installing the Cisco MDS 9148T Switch
1

Advertisement

Table of Contents
loading

Related Manuals for Cisco MDS 9000 Series

Summary of Contents for Cisco MDS 9000 Series

  • Page 1 The optional Telco and EIA Shelf Bracket Kit (part number DS-SHELF=) can temporarily or permanently support the Cisco MDS 9148T switch during installation. After the front rack-mount brackets are securely attached to the rack-mounting rails, the shelf bracket can be removed.

  • Page 2: Shelf-Installation Guidelines

    Telco and EIA Shelf Bracket optional kit is not provided with the switch; to order the kit, contact your switch supplier. This section describes the procedure for installing a Cisco MDS 9148T switch in a rack or cabinet using the optional Telco and EIA Shelf Bracket Kit.
  • Page 3 Installing the Cisco MDS 9148T Switch Installing the Shelf Bracket Kit into a Four-Post EIA Rack Figure 1: Installing the Shelf Bracket Kit into a Telco Rack Rack-mounting post 10-32 screws Shelf bracket Crossbar To install the shelf brackets in a Telco rack, follow these steps:...
  • Page 4 Installing the Cisco MDS 9148T Switch Installing the Shelf Bracket Kit into a Four-Post EIA Rack Figure 2: Installing the Shelf Bracket Kit into an EIA Rack Rack-mounting post Crossbar Shelf bracket 10-32 screws Slider post To install the shelf brackets in an EIA rack, follow these steps:...

  • Page 5: Pre-Installation Guidelines

    Connection Guidelines for AC-Powered Systems To connect to the Cisco MDS 9396T switch AC power supply units to the site power source, follow these guidelines: • For power redundancy, each power supply should be connected to a separate power feed (at a minimum, separate branch circuits).

  • Page 6: Unpacking And Inspecting The Switch

    The switch is thoroughly inspected before shipment. If any damage occurs during transportation, or if any item is missing, contact your customer representative immediately. If you purchased Cisco support through a Cisco reseller, contact the reseller directly. If you purchased support directly from Cisco, contact Cisco Technical Support.

  • Page 7: Nebs Compliance

    Installing the Cisco MDS 9148T Switch NEBS Compliance • Model and serial number of the damaged unit • Description of damage • Effect of damage on the installation 3. Check if all the power supplies and the fan trays have the expected direction of airflow. Port-side intake airflow modules have a red coloring, and port-side exhaust airflow modules have blue coloring.

  • Page 8: Installing The Switch In A 4-Post Rack

    Switch into a 2-Post Rack. Installing the Switch This section describes how to use the rack mount kit to install the Cisco MDS 9148T switch into a cabinet or rack that meets the requirements described in the Cabinet and Rack Requirements section.
  • Page 9 Installing the Cisco MDS 9148T Switch Installing the Switch in a 4-Post Rack • Rack-mount brackets (2) • Rack-mount guides (2) • Slider rails (2) • M4 x 0.7 x 8-mm Phillips countersink screws (12) • The rack is installed and secured to its location.
  • Page 10 Installing the Cisco MDS 9148T Switch Installing the Switch in a 4-Post Rack Figure 5: Installing Rack-Mount Brackets on the Front Side of the Chassis M4 screws Rack-mount c. Secure the rack-mount bracket to the chassis using the three M4 screws and tighten each screw to 12 in-lb (1.36 N·m) of torque.
  • Page 11 Installing the Cisco MDS 9148T Switch Installing the Switch in a 4-Post Rack Slider rails Chassis rack-mount screws a. Holding the switch with both hands, position the two rack-mount guides on the switch between the rack or cabinet posts that do not have slider rails attached to them.

  • Page 12: Installing The Switch Into A 2-Post Rack

    Installing the Cisco MDS 9148T Switch Installing the Switch into a 2-Post Rack Installing the Switch into a 2-Post Rack Before you begin • Determine how you want to set up your switch: • Determine which end of the chassis is to be located in the cold aisle as follows: 1.
  • Page 13 Installing the Cisco MDS 9148T Switch Installing the Switch into a 2-Post Rack Figure 6: Installing Rack-Mount Brackets on the Front Side of the Chassis Step 2 If you are installing the chassis into an ungrounded rack, you must attach a customer-supplied grounding wire to the chassis.
  • Page 14 Installing the Cisco MDS 9148T Switch Installing the Switch into a 2-Post Rack Figure 7: Installing the Switch onto the 2-Post Rack From the Front Side of the Chassis Figure 8: Installing the Switch onto the 2-Post Rack From the Rear Side of the Chassis c.

  • Page 15: Grounding The Switch

    Installing the Cisco MDS 9148T Switch Grounding the Switch Step 4 If you have attached a grounding wire to the chassis grounding pad, connect the other end of the wire to the facility ground. Grounding the Switch The switch chassis is automatically grounded when you install the switch properly in a grounded rack with metal-to-metal connections between the switch and rack.

  • Page 16: Installing And Removing Components

    Installing the Cisco MDS 9148T Switch Installing and Removing Components Figure 9: Grounding the Switch Step 4 Prepare the other end of the grounding wire and connect it to an appropriate grounding point in your site to ensure an adequate earth ground for the switch. If the rack is fully bonded and grounded, connect the grounding wire, as explained in the documentation provided by the vendor from whom you bought the rack.
  • Page 17 Installing the Cisco MDS 9148T Switch Installing the ESD Grounding Strap Note These images are for only representation purposes. The chassis' actual appearance and size may vary. Figure 10: Wearing the ESD Strap Installing the Cisco MDS 9148T Switch...

  • Page 18: Installing And Removing Power Supply Units

    Installing and Removing Power Supply Units Figure 11: Handling the Chassis Installing and Removing Power Supply Units This section provides instructions for installing and removing the power supply units in the Cisco MDS 9148T switch. Installing Power Supply Units You can replace one power supply unit (PSU) while the other one provides power to the switch.

  • Page 19: Removing Power Supply Units

    Installing and Removing Fan Modules This section provides instructions for installing and removing the fan modules for the Cisco MDS 9148T switch. You can replace one of the four fan modules even when the switch is operating so long as you perform the replacement within one minute of removing the old fan module.

  • Page 20: Installing A Fan Module

    Caution The Cisco MDS 9000 Series Switches have internal temperature sensors that can shut down the system if the temperature within the chassis exceed certain safety thresholds. To accurately monitor the system temperature, the temperature sensors require sufficient airflow through the chassis. In the event that a fan module is removed from the chassis and the airflow is reduced, the system will bypass the temperature sensor information and shut down after five minutes to prevent undetected overheating.
  • Page 21 Installing the Cisco MDS 9148T Switch Removing a Fan Module To remove an existing fan module, follow these steps: Step 1 On the fan module that you are removing, press the two sides of the fan module handle next to where it connects to the fan module and pull on the handles enough to unseat it from its connectors.
  • Page 22 Installing the Cisco MDS 9148T Switch Removing a Fan Module Installing the Cisco MDS 9148T Switch...
