This product can be setup
using any current web
browser, i.e., Internet Explorer
6 or Netscape Navigator 7.0
Before You Begin
You will need an Ethernet-enabled device, such as a laptop or desktop
computer and a parallel port printer that will connect to the DP-G301.
Important: TURN OFF the power to the printer before
installing the DP-G301.
Check Your Package Contents
If any of the above items are missing, please contact your reseller.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and

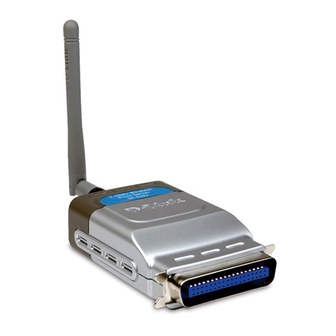

DP-G301 AirPlus
CD-ROM (Software, Manual and Warranty)
5V DC 2.5A Power Adapter
specifi cations subject to change without notice. DP-G301 .03092004
G Wireless parallel port Print Server
TM
1
DP-G301
AirPlus
G 2.4GHz
TM
Wireless Print
Server
Using a power
supply with a
different voltage rating
will damage this
product and void its
warranty.
Advertisement
Related Manuals for D-Link AirPlus G DP-G301
Summary of Contents for D-Link AirPlus G DP-G301
- Page 1 If any of the above items are missing, please contact your reseller. ©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifi cations subject to change without notice. DP-G301 .03092004...
- Page 2 Connecting The DP-G301 To Your Network First, insert one end of a straight-through CAT5 Ethernet RJ-45 cable into the “Network Port” (shown below.) Connect the other end of the cable to the switch. Note: Do not connect the power cord to LAN port of the gateway or the DP-G301 until you are advised to do so.
- Page 3 Setting up your DP-G301 for network printing in Windows XP For additional Windows operating system setup or information on the web-management interface, refer to the manual located on the CD-ROM. The factory default IP address of the DP-G301 is 192.168.0.10. In order to net- work to the printer through the DP-G301, the DP-G301 must have the same IP network settings as your network.
- Page 4 Setting up your DP-G301 for network printing in Windows XP (continued) * Note:Please notice that if you connect your printer server in a LAN where a DHCP server is present. The IP address will differ from the one in the example 192.168.0.10.
- Page 5 What is an SSID? A workgroup name of your Wireless Network. All wireless devices must all have the same SSID to communicate on the Wireless Network. All D-Link Wireless devices have the default SSID of default, all lower case. How does WEP Work? 64 bit WEP encryption uses a 10 hexidecimal character key.
- Page 6 Setting up your DP-G301 for network printing in Windows XP (continued) For Windows XP: Go to Start>Printers and Faxes>Add a Printer or Go to Start>Control Panel> Printers and Faxes Double-click on the “Add Printer” icon Click Next Select “Local Printer.” Please make sure to deselect Automatically...
- Page 7 Setting up your DP-G301 for network printing in Windows XP (continued) Select “Create a new port.” At the pull-down menu, highlight “Standard TCP/IP Port.” Click Next Click Next Type in the IP address of the print server. (i.e. 192.168.0.10) The port name will automatically be filled in.
- Page 8 Setting up your DP-G301 for network printing in Windows XP (continued) Select “Custom” Then click on Settings. Click Settings Select “LPR” Input the port name of the port being used by the PS-121B28-U1 printer Click Click Next...
- Page 9 Setting up your DP-G301 for network printing in Windows XP (continued) Click Finish In this window, scroll down to find your printer. (If it is not listed, insert the driver CD or diskette that came with your printer.) Click on “Have Disk...” Then, scroll down and highlight the printer.
- Page 10 Setting up your DP-G301 for network printing in Windows XP (continued) Select “Yes” to print a test page Click Next Your Setup is Complete! The printer is now ready for printing with Windows XP, on your network. Click Finish...
-
