Specifications
General
Power supply:
12 V DC (11 V – 16 V) test voltage
14.4 V, Negative ground
Current consumption:
Less than 2.2 A (CD mode,
0.5 W x 4 channels)
Maximum power output: 50 W x 4 channels (at 1 kHz), Vol-
ume control maximum
Tone adjustment range
Bass:
± 12 dB (at 100 Hz)
Treble:
± 12 dB (at 10 kHz)
4 – 8 Ω
Speaker impedance:
Pre-amp output voltage:
2.0 V (CD mode, 1 kHz, 0 dB)
Pre-amp output impedance: 200 Ω
Dimensions (W x H x D):
178 mm x 50 mm x 158 mm
{7" x 1 15/16" x 6 1/4" }
Weight:
1.3 kg {2 lbs. 14 oz}
Front AUX input
Input impedance:
10 kΩ
Maximum input level:
2.0 V
Connector:
3.5 mm ø Stereo mini pin
Input sensitivity:
200 mVrms
FM radio
Frequency range:
87.9 MHz – 107.9 MHz
11.0 dBf (75 Ω)
Usable sensitivity:
50 dB quieting sensitivity: 15.2 dBf (75 Ω)
Frequency response:
30 Hz – 15 kHz (±3 dB)
Alternate channel selectivity: 75 dB
Stereo separation:
35 dB (at 1 kHz)
Image rejection ratio:
55 dB
IF rejection ratio:
100 dB
Signal/noise ratio:
62 dB
AM radio
Frequency range:
530 kHz – 1 710 kHz
Usable sensitivity:
27 dB/µV (22 µV, S/N 20 dB)
CD player
Sampling frequency:
8 times oversampling
DA converter:
1 bit DAC System
Pick-up type:
Astigma 3-beam
Light source:
Semiconductor laser
Wavelength:
790 nm
Frequency response:
20 Hz – 20 kHz (±1 dB)
Signal to noise ratio:
96 dB
Total harmonic distortion: 0.01 % (1 kHz)
Wow and flutter:
Below measurable limits
Channel separation:
75 dB
Above specifications comply with EIA standards.
Notes:
¡ Specifications and design are subject to modification
without notice due to improvements.
¡ Some figures and illustrations in this manual may be
di erent from your product.
Power Output:
16 W RMS x 4 Channels at 4 Ω and ≤ 1%
THD+N
Signal to Noise Ratio:
85 dBA (reference: 1 W into 4 Ω)
YFM264C321CA
PTW1213-0
Printed in China
¡ Please read these instructions carefully before using this product and keep this manual for future reference.
Accessories
Mounting Collar
Trim Plate
Q'ty: 1
Q'ty: 1
(FX0214C384ZB)
(YFC054C079YA)
(YAJ024C146CA)
Lock Cancel Plate Mounting Bolt (5 mm ø)
Rubber Bushing
Installation kit
Q'ty: 1 set
(ZZBISCP137U)
Notes:
¡ The number in parentheses underneath each accessory part name is the part number for maintenance and ser
vice.
¡ Accessories and their part numbers are subject to modification without prior notice due to improvements.
¡ Mounting Collar and Trim Plate are mounted on the main unit at shipment.

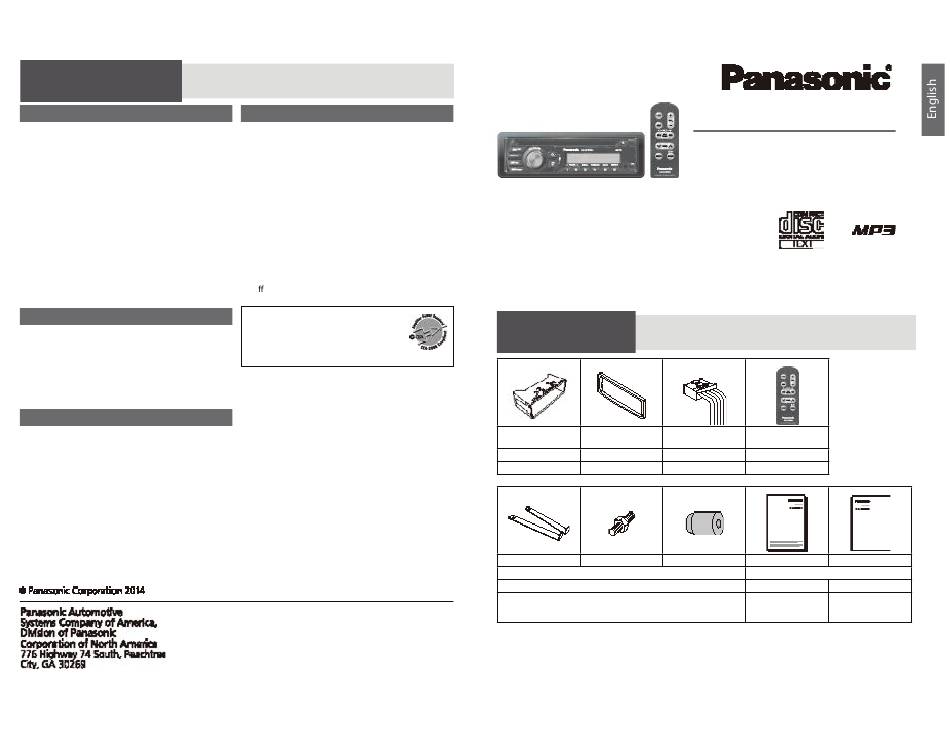

MP3 CD Player/Receiver
1000-RI0160U
Model:
Operating Instructions
Remote Control Unit
Power Connector
(a battery included)
Q'ty: 1
Q'ty: 1
(YFX994C199CA)
Operating Instructions Installation Instructions
Instruction kit
Q'ty: 3
(English: YFM264C321CA)
(Français: YFM264C322CA)
(YFM294C211CA)
(Español: YFM264C323CA)
Q'ty: 1
-
