EC580000

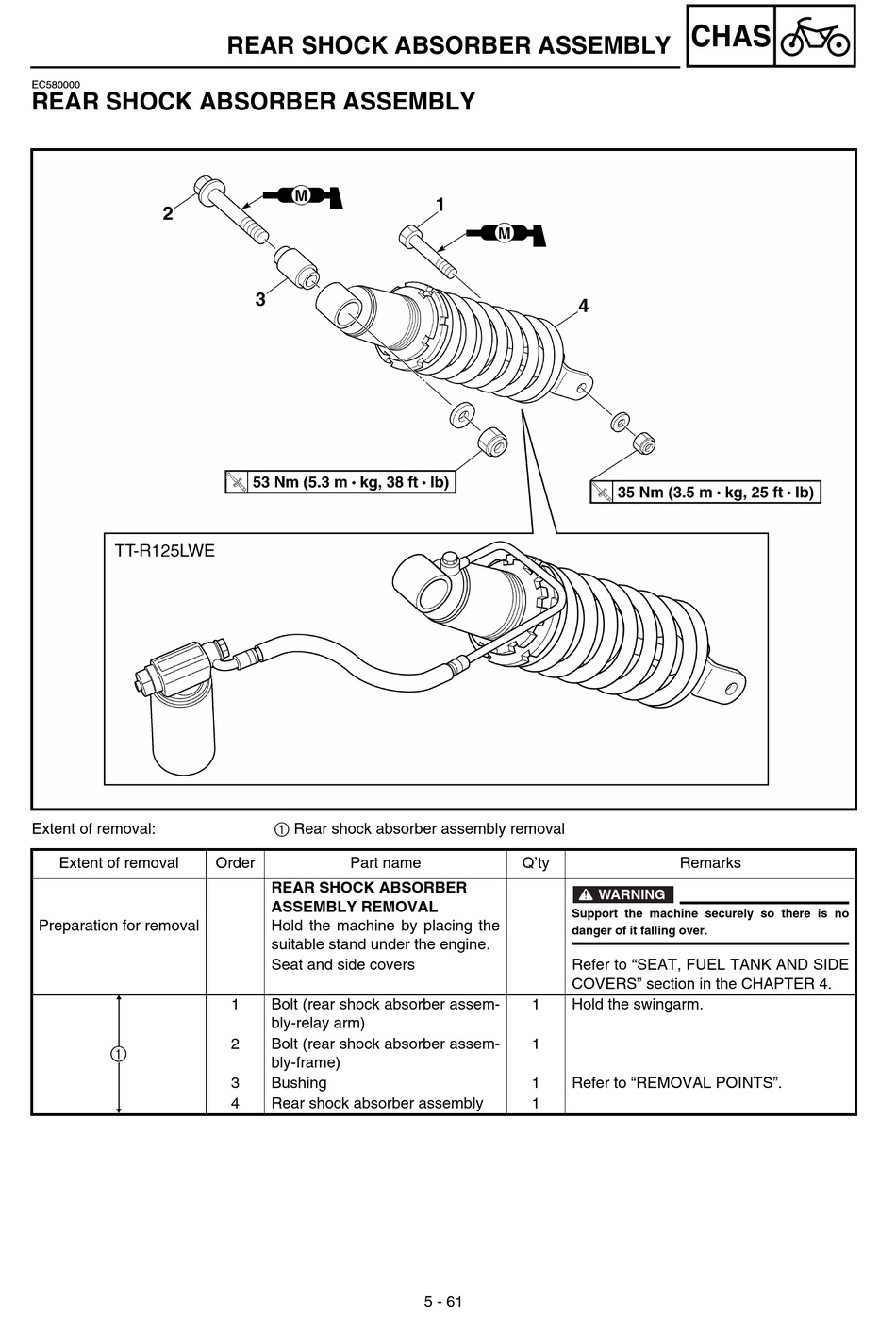

REAR SHOCK ABSORBER ASSEMBLY

Extent of removal:
Extent of removal
Preparation for removal
1
REAR SHOCK ABSORBER ASSEMBLY
1 Rear shock absorber assembly removal
Order Part name
REAR SHOCK ABSORBER
ASSEMBLY REMOVAL
Hold the machine by placing the
suitable stand under the engine.
Seat and side covers
1 Bolt (rear shock absorber assem-
bly-relay arm)
2 Bolt (rear shock absorber assem-
bly-frame)
3 Bushing
4 Rear shock absorber assembly
Q'ty
Support the machine securely so there is no
danger of it falling over.
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section in the CHAPTER 4.
1 Hold the swingarm.
1
1 Refer to "REMOVAL POINTS".
1
5 - 61
CHAS
Remarks
WARNING
