GENERAL INFORMATION
EC110000

DESCRIPTION

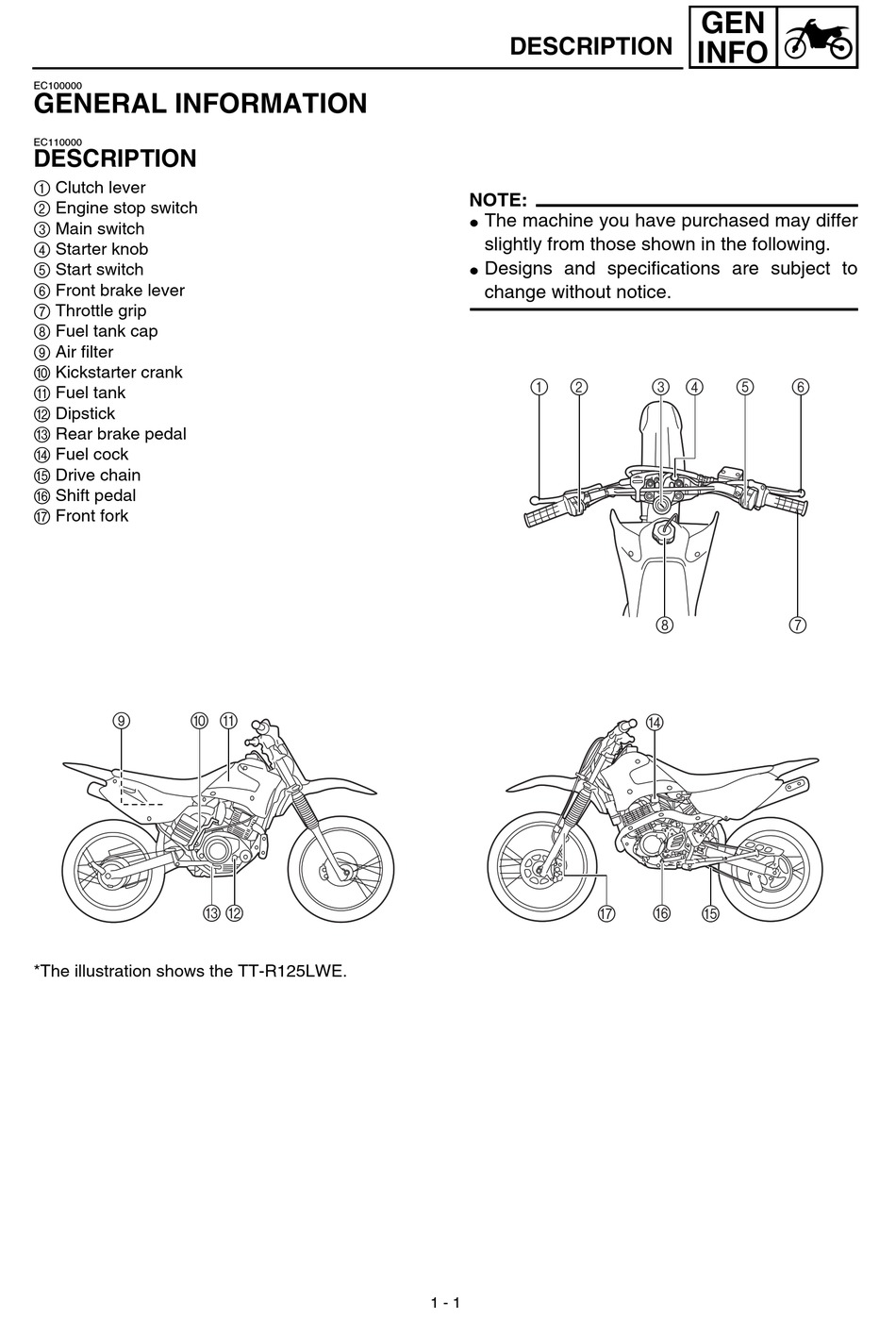

1 Clutch lever
2 Engine stop switch
3 Main switch
4 Starter knob
5 Start switch
6 Front brake lever
7 Throttle grip
8 Fuel tank cap
9 Air filter
0 Kickstarter crank
A Fuel tank
B Dipstick
C Rear brake pedal
D Fuel cock
E Drive chain
F Shift pedal
G Front fork
9 0 A
C B
*The illustration shows the TT-R125LWE.
