GE Zoneline 5200 Series Owner's Manual

Hide thumbs Also See for Zoneline 5200 Series:

Advertisement

Quick Links

Important Safety Information
Operating Instructions
The Controls on Your Zoneline
Care of Product
Installation Instructions
Important Electrical Safety
Adjustments and Auxiliary Controls
Helpful Information
Things That Are Normal
If Something Goes Wrong
Before You Call For Service
GE Service Numbers
Warranty
GE Answer Center
800.626.2000
GE Appliances
49-7367
Get other manuals https://www.bkmanuals.com

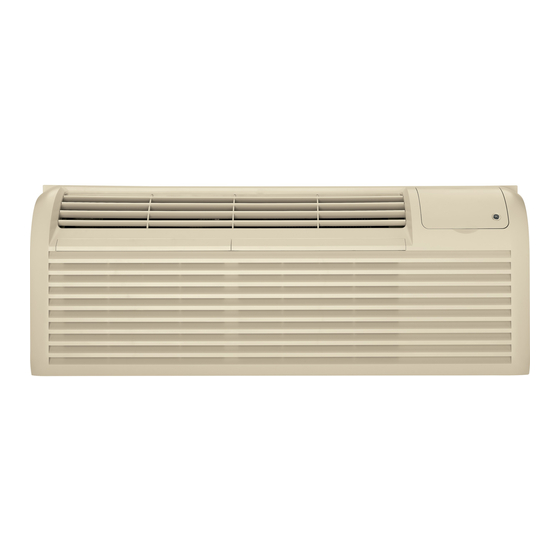

Zoneline Heat Pump Model
Zoneline
Owner's Manual
®
5200 Series
®
3
4
10
20
21

Advertisement

Table of Contents
loading

Summary of Contents for GE Zoneline 5200 Series

  • Page 1 Installation Instructions Important Electrical Safety Adjustments and Auxiliary Controls Helpful Information Things That Are Normal If Something Goes Wrong Before You Call For Service GE Service Numbers Warranty ® GE Answer Center 800.626.2000 GE Appliances 49-7367 Get other manuals https://www.bkmanuals.com...
  • Page 2: Start Here

    Toll-free customer service Help us numbers are included in the back Read this manual. It contains of this manual. Or call the GE help you ® instructions to help you use and Answer Center at 800.626.2000,...
  • Page 3 IMPORTANT SAFETY INFORMATION READ ALL SAFETY INFORMATION BEFORE USING • This Zoneline must be properly • Unplug or disconnect the installed in accordance with the Zoneline at the fuse box or Installation Instructions before it circuit breaker before making is used. any repairs.
  • Page 4: Temp Control

    Operating Instructions HIGH COOL controls on your AUTO HEAT Zoneline STOP TEMP MODE OPERATION Temp Control Fan, Mode & Operation The temp control is used to maintain the FAN —sets the fan operation for HIGH, LOW or room temperature. The compressor will cycle AUTO speed.
  • Page 5: Energy Tips

    Energy Tips Set the FAN at AUTO . It switches between LOW and Keep the vent control at CLOSE . The room air will be filtered and circulated. HIGH to adjust for room temperature changes. Louver screws Louver screws Remove the room cabinet and flip the louvers to change the air direction.
  • Page 6 Operating Instructions Other Zoneline features About Your Heat Pump There is a three minute minimum Heat pumps can save money by removing heat from the outside compressor run time at any setting air—even when the outside to prevent short cycling. temperature is below freezing—...
  • Page 7 Auxiliary Controls The auxiliary controls are located behind the room cabinet on the front of the unit control box. The factory settings will be in the DOWN position. The owner is responsible for checking switches and ensuring they are in the desired position.
  • Page 8: Care And Cleaning

    If they are clogged with dirt or soot they may be professionally steam cleaned, a service available through your GE service outlet. You will need to remove the chassis to inspect the Coils Grille coils because the dirt build-up occurs on the inside.
  • Page 9 Replacement filters are available from your salesperson, GE dealer, GE Service and Parts Center or authorized Customer Care® servicers. Get other manuals https://www.bkmanuals.com...
  • Page 10: Installation Instructions

    Installation Instructions Read carefully If you have any questions, call the GE Answer Center at 800.626.2000. Replacing an Existing Unit? • Any vertical deflectors in the existing rear grille should be removed to decrease condenser air recirculation which can cause the unit to Check the “Essential...
  • Page 11 Important Electrical Safety—Read Carefully Installer: Leave these instructions with the Zoneline. Owner: Keep these instructions for future use. Important Notes • Follow the National Electrical Code (NEC) or CAUTION: local codes and ordinances. • Do not use an extension cord with this unit. •...
  • Page 12 Installation Instructions How to Connect Remove the room cabinet. 3 See the special instructions below for applicable supply voltages. 2 Install the power supply kit per the instructions in the kit. 4 Reinstall the room cabinet. 230/208 Volt Electrical Supply A power supply kit must be used to supply power to the Zoneline unit.
  • Page 13 These models must be installed using the Junction connector box cover appropriate GE power supply kit for the branch circuit amperage and the electrical resistance heater wattage desired. See page 14. One of the following installation methods must be used:...
  • Page 14 Installation Instructions Use the round knockout at the bottom of the 8 Reinstall the junction box by engaging the tab junction box to attach conduit coming from at the lower rear, aligning the screw hole at the the branch circuit. Remove the knockout, top and driving the one screw until secure.
  • Page 15 This chassis is designed to be installed in a with the case. GE plastic or an insulated steel wall case. This minimizes condensation from forming on the 2 Remove the corrugated stiffener and the room side of the case.
  • Page 16 Installation Instructions Install the Unit into the Wall Case Slide the unit into the wall case and secure with four screws through the unit flange holes. If an insulated wall case is needed, see Install the Wall Case and Exterior Grille section on the previous page.
  • Page 17 Low Voltage Connectors & Auxiliary Controls Boost Heat Option The Boost Heat Option increases the Zoneline If the Zoneline is controlled by a wall thermostat air temperature by adding electric heat to and Boost switch #8 is set to the UP (on) supplement the heat pump.
  • Page 18 Installation Instructions Remote Control/Wall Thermostat (Class 2) To operate the Remote Control/Wall Thermostat (Class 2) switch A, you must use 1 2 34 5 6 7 8 9A BCDE an Optional Interface Module kit. See the Installation Instructions with accessory kit DOWN RAK0IM.
  • Page 19 Temperature Limiting Temperature limiting can reduce energy costs COOLING LIMITS by limiting the lowest temperature that can be Limit Switch Temp Range set for cooling and the highest temperature that UP/On can be set for heating. Temperature limiting is controlled by setting the first six auxiliary None 60 to 85 switches.
  • Page 20: Helpful Information

    Helpful Information Things That Are Normal Noise Explanation You may hear a pinging or popping noise caused by water being P I N G ! POP! picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
  • Page 21: If Something Goes Wrong

    If Something Goes Wrong Before You Call For Service Problem Problem Possible Causes Possible Causes What to Do What to Do Zoneline • Make sure the Zoneline plug is • Make sure the Zoneline plug is The unit is unplugged The unit is unplugged Doesn’t Start pushed completely into the outlet.
  • Page 22 If Something Goes Wrong Before You Call For Service Problem Possible Causes What to Do Burning Odor at the • This can cause a “burning” odor at the Dust is on the surface of Start of Heating beginning of the heating operation. This the heating element Operation odor should quickly fade.
  • Page 23 GE Service Numbers We’ll be there! ® GE Answer Center Open 24 hours a day, 7 days a week. 800.626.2000 800-833-4322 On-Site Repair Service We provide expert repair service, Our factory-trained technicians scheduled at a time that’s know your air conditioner inside and 800-GE-CARES convenient for you.
  • Page 24 ZONELINE Staple sales slip or cancelled check here. For service in the U.S., call Proof of original purchase date is needed 800-GE-CARES. WARRANTY to obtain service under warranty. For service in Canada, call All warranty service will be provided 1-800-361-3400.
