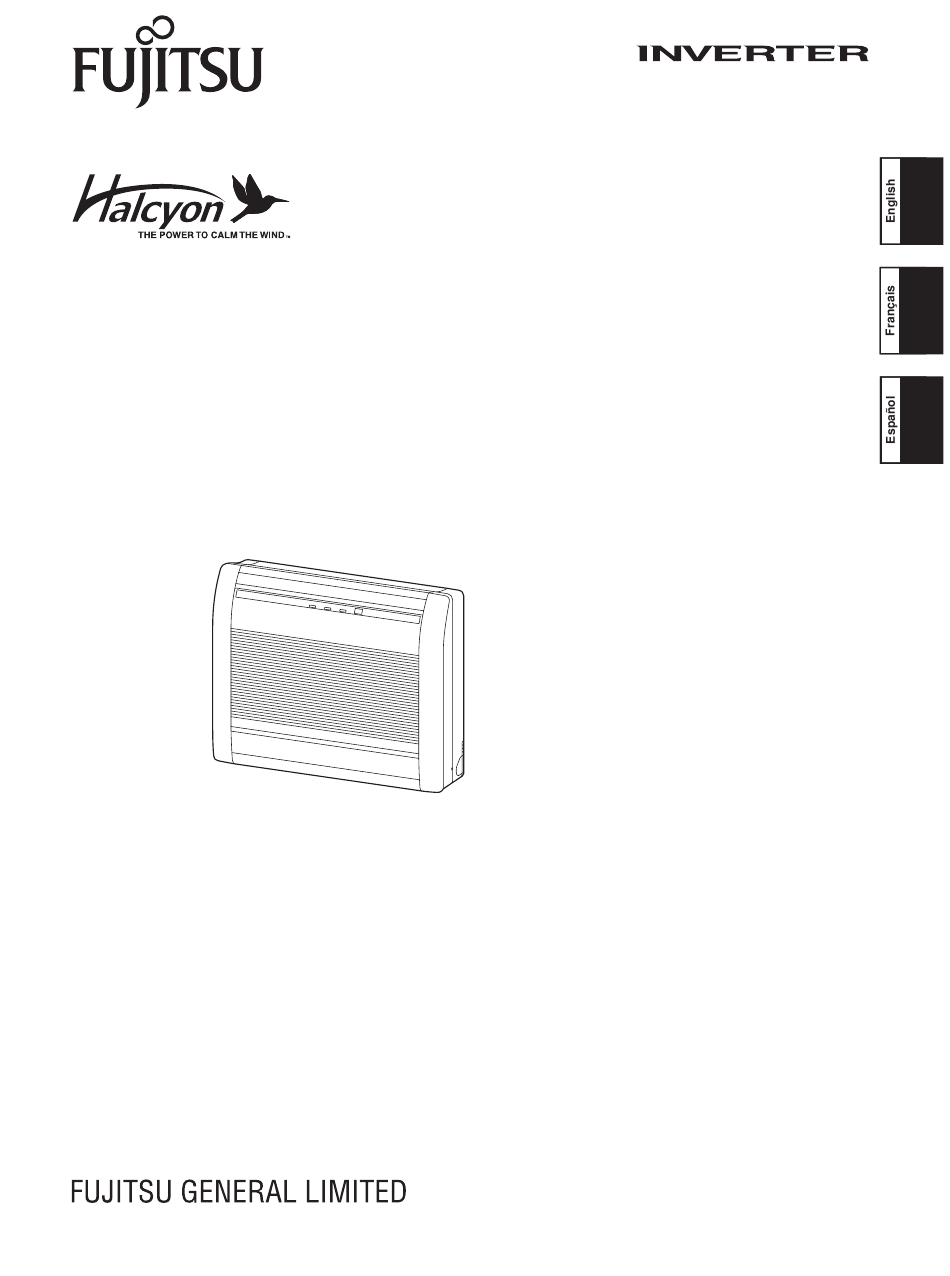

AIR CONDITIONER
Floor Type
OPERATING MANUAL
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
KEEP THIS OPERATING MANUAL FOR FUTURE REFERENCE
CONSERVER CE MANUEL D'UTILISATION POUR POUVOIR LE CONSULTER ULTÉRIEUREMENT
CONSERVE ESTE MANUAL DE FUNCIONAMIENTO PARA FUTURA REFERENCIA
9378532076_OM.indb cover1
PART NO. 9378532076
9/24/2013 4:35:25 PM

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu Halcyon AGU9RLF

Summary of Contents for Fujitsu Halcyon AGU9RLF

  • Page 1 AIR CONDITIONER Floor Type OPERATING MANUAL MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO KEEP THIS OPERATING MANUAL FOR FUTURE REFERENCE CONSERVER CE MANUEL D’UTILISATION POUR POUVOIR LE CONSULTER ULTÉRIEUREMENT CONSERVE ESTE MANUAL DE FUNCIONAMIENTO PARA FUTURA REFERENCIA PART NO. 9378532076 9378532076_OM.indb cover1 9/24/2013 4:35:25 PM...

  • Page 2: Table Of Contents

    CONTENTS PART NO. 9378532076 SAFETY PRECAUTIONS ........En-2 MIN. (MINIMUM) HEAT OPERATION ....En-12 FEATURES AND FUNCTIONS .......En-3 ECONOMY OPERATION ........En-12 NAME OF PARTS ...........En-4 SWING OPERATION ..........En-13 PREPARATION ............En-6 MANUAL AUTO OPERATION .......En-13 OPERATION ............En-7 POWERFUL OPERATION ........En-13 TIMER OPERATION ..........En-8 CLEANING AND CARE .........En-14 ADJUSTING THE DIRECTION OF AIR TROUBLESHOOTING ..........En-16...

  • Page 3: Features And Functions

    FEATURES AND FUNCTIONS INVERTER MILDEW-RESISTANT FILTER At the start of operation, large amount of power is used to The AIR FILTER has been treated to resist mildew growth, bring the room quickly to the desired temperature. Afterwards, thus allowing cleaner use and easier care. the unit automatically switches to a low power setting for eco- nomic and comfortable operation.

  • Page 4: Name Of Parts

    NAME OF PARTS Fig. 1 Fig. 2 TIMER OPERATION ECONOMY Fig. 3 Fig. 4 Fig. 5 En-4 9378532076_OM.indb 4 9/24/2013 4:35:26 PM...
  • Page 5 Fig. 1 Indoor Unit Fig. 5 Remote Controller 1 Operating Control Panel (Fig. 2) 1 START/STOP button 2 Air Outlet Selection switch 2 MODE button 3 MANUAL AUTO button 3 SET TEMP. (temperature) buttons ● 4 Remote controller display When the MANUAL AUTO button is pressed in for more than 10 seconds, the forced 5 POWERFUL button cooling operation will start.

  • Page 6: Preparation

    PREPARATION CAUTION • To prevent malfunction or damage of the remote controller: - Place remote controller at where will not be exposed to direct sunlight or excessive heat. - Remove batteries if the product is not going to be used for an extended period. - Exhausted batteries must be removed immediately, and be disposed according to the local laws and regulations of your region.

  • Page 7: Operation

    OPERATION You can quickly start the operation with following 3 steps: To Select Mode Operation Press the START/STOP button (Fig.5 1). Press the MODE button (Fig.5 2) to select the desired mode. Switches operation mode in following order. AUTO COOL HEAT Notes in HEAT mode: •...

  • Page 8: Timer Operation

    OPERATION To Stop Operation Press the START/STOP button (Fig. 5 1). The OPERATION Indicator Lamp (green) (Fig. 3 6) will go out. About AUTO CHANGEOVER Operation AUTO: ● When AUTO CHANGEOVER operation rst selected, the fan will operate at very low speed for about a few minutes, during which time the indoor unit detects the room conditions and selects the proper operation mode.
  • Page 9 TIMER OPERATION To Use the ON timer or OFF timer Turn on the indoor unit by pressing the START/STOP button. (Fig. 5 1). OPERATION indicator on the indoor unit turns on. If the indoor unit is already operating, skip this step. Press the ON timer button (Fig.

  • Page 10: Adjusting The Direction Of Air Circulation

    ADJUSTING THE DIRECTION OF AIR CIRCULATION Vertical (up-down) direction of air ow is adjusted by pressing the Remote controller’s SET button. Horizontal (right-left) air ow direc- tion is adjusted manually, by moving the Air ow Direction Louvers. Whenever making horizontal air ow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are stopped.

  • Page 11: Air Outlet Selection

    AIR OUTLET SELECTION With this function , air come out simultaneously from the upper and lower air outlets so that the room can be cooled or heated effec- tively. This function is set using the switch behind the front grille of the Indoor unit. (This function is available in cooling and heating operation.) How to set to blow out air from the upper and lower air outlets ■...

  • Page 12: Min. (Minimum) Heat Operation

    MIN. (MINIMUM) HEAT OPERATION • The room temperature can be maintained at 50 °F (10 °C) by pressing the MIN. HEAT button (Fig.5 6) so as to prevent the room temperature from falling too far. To use MIN. HEAT OPERATION While MIN.

  • Page 13: Swing Operation

    SWING OPERATION Begin air conditioner operation before performing this procedure. To select SWING Operation Press the SWING button (Fig. 5 9). The SWING Display (Fig. 5 J) will light. In this mode, the Air ow Direction Louvers will swing automatically to direct the air ow both up and down. To stop SWING Operation Press the SWING button (Fig.

  • Page 14: Cleaning And Care

    CLEANING AND CARE CAUTION ● Before cleaning the air conditioner, be sure to turn it off. ● Be sure the Intake Grille (Fig. 1 9) is installed securely. ● When removing and replacing the air lter, be sure not to touch the heat exchanger, as personal injury may result. Cleaning the Intake Grille Cleaning the Air Filter 1.
  • Page 15 CLEANING AND CARE 2. Replace them by 2 new Air cleaning Air Cleaning Filter Installation lters. 1 Remove the old air cleaning lters in reverse order of 1. Open the Intake Grille and remove the Air their installation. lter. 2 Install in the same way as for installation of the air cleaning lter set.
  • Page 16 TROUBLESHOOTING CAUTION In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical breaker or disconnect the power supply plug, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. Always be sure to turn off the electrical breaker or disconnect the power supply plug to ensure that power is completely off.

  • Page 17: Troubleshooting

    TROUBLESHOOTING Symptom Problem See Page ● The damper is automatically controlled by a microcomputer accord- NORMAL The damper opens and — ing to the air ow temperature and operation time of the air condi- FUNCTION closes automatically tioner. Symptom Items to check See Page ●...

  • Page 18: Operating Tips

    OPERATING TIPS Operation and Performance Heating Performance Microcomputer-controlled Automatic Defrosting ● This air conditioner operates on the heat-pump principle, ● When using the Heating mode under conditions of low out- absorbing heat from outdoor air and transferring that heat door temperature and high humidity, frost may form on the indoors.
  • Page 19 OPERATING TIPS Multi-type Air conditioner This indoor unit can be connected to a multi-type outdoor unit. The multi-type air conditioner allows multiple indoor units to be oper- ated in multiple locations. The indoor units may be operated simultaneously, in accordance with their respective output. Simultaneous Use of Multiple Units ●...
