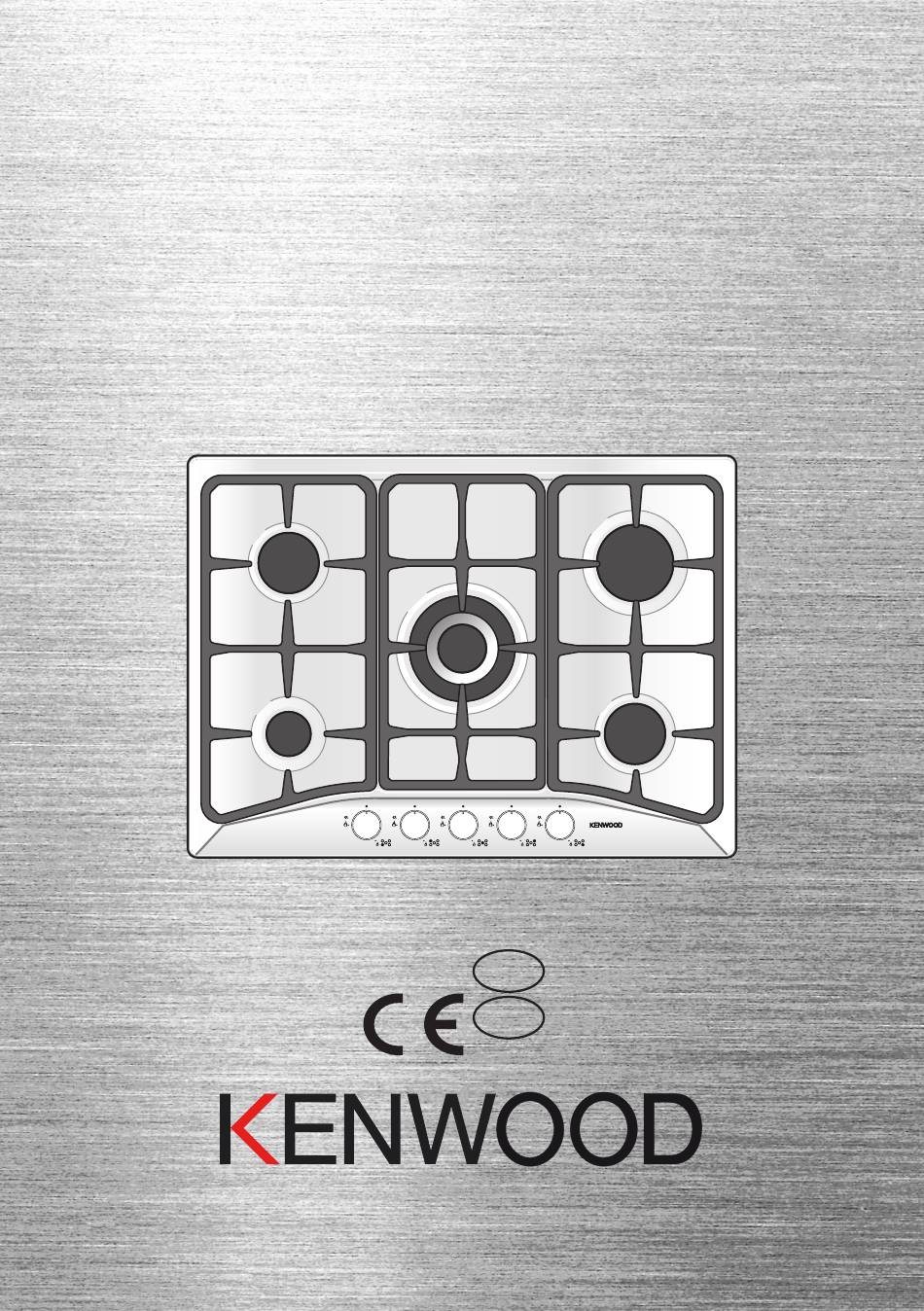

BUILT-IN
COOKING HOB
KHG 701
model
Instructions for use - Installation advice
GB
IE
Before operating this hob,
please read these instructions carefully

Advertisement

Table of Contents
loading

Summary of Contents for Kenwood KHG 701

  • Page 1 BUILT-IN COOKING HOB KHG 701 model Instructions for use - Installation advice Before operating this hob, please read these instructions carefully...
  • Page 2: Table Of Contents

    CONTENTS Page Number Introduction ..........Important Safeguards &...
  • Page 3: Introduction

    Dear Customer, Thank you for purchasing the Kenwood KHG 701 built-in cooking hob. The safety precautions and recommendations listed below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.
  • Page 4: Important Safeguards & Recommendations

    IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e.
  • Page 5 • If you should decide not to use this appliance any longer (or decide to substitute another model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.
  • Page 6: Features

    1 - FEATURES Fig. 1.1 This appliance is Class 3 GAS BURNERS Caution! Auxiliary burner (A) 1,00 kW The cooking hob becomes Semirapid burner (SR) 1,75 kW very hot during operation. Keep children well out of Rapid burner (R) 3,00 kW reach.
  • Page 7: How To Use The Cooktop

    2 - HOW TO USE THE COOKTOP LIGHTING GAS BURNERS FITTED GAS BURNERS WITH SAFETY VALVE DEVICE Gas flow to the burners is adjusted by turning the knobs (illustrated in figs. 2.1) In order to light the burner, you must: which control the valves.
  • Page 8 CHOICE OF BURNER The symbols printed on the panel beside the gas knobs indicate the correspondence between the knob and the burner. The most suitable burner is to be chosen according to the diameter and volume capacity of the container to be warmed. It is important that the diameter of the pots or pans suitably match the heating potential of the burners in order not to jeopardise the efficiency of the burners, bringing about a waste of gas fuel.
  • Page 9 CORRECT USE OF THE TRIPLE-RING BURNER Only flat bottom pans of the correct size are to be placed on the pan support above the Triple-ring burner. When using a WOK, the supplied wok stand must be placed onto the pan stand to avoid any faulty operation of the triple-ring burner (fig. 2.4a). The wok should not be placed directly onto the pan support without the use of the supplied wok stand (fig. 2.4b).
  • Page 10: Cleaning & Maintenance

    3 - CLEANING AND MAINTENANCE GENERAL ADVICE COOKING HOBS WITH Before you begin cleaning, you • GLASS LID (optional) must ensure that the appliance is switched off at the cooker switch. • The periodical lubrication of the gas taps must be done only by specialized personnel.
  • Page 11 free of any cleaning chemicals to avoid damaging any screen print on the facia. • Painted surfaces: Clean very carefully with water and neutral soap; the cloth used must be rinsed well and must be free of any cleaning chemicals. •...
  • Page 12 Fig. 3.1 Fig. 3.2 Fig. 3.3 Fig. 3.4 Fig. 3.5...
  • Page 13: Advice For The Installer

    Advice for the installer IMPORTANT • The appliance is designed and approved for domestic use only and should not be installed in a commercial, semi commercial or communal environment. Your product will not be guaranteed if installed in any of the above environments and could affect any third party or public liability insurances you may have.
  • Page 14: Installation

    4 - INSTALLATION TECHNICAL INFORMATION FOR THE INSTALLER In order to install the cooker top into the kitchen fixture, a hole with the dimensions shown in fig. 4.2 has to be made, bearing in mind the following: • If the cooktop is installed directly above an oven or if its base is accessible through a cupboard or drawer space after installation, a thermal protection barrier must be installed below the base...
  • Page 15 APPLYING THE SEALS • Turn the cooktop upside down. • Spread the longer seal “A” around the left, rear and right sides as shown in figure 4.4a. • With a cutter or a scissors cut the excess seal “C” and retain it for next use (figure 4.4b). • Spread the seal “B” around the left, front and right edges of the cooktop as shown in figure 4.4c.
  • Page 16 FASTENING THE INSTALLATION BRACKETS (figs. 4.5, 4.6, 4.7) • Each cooker top is provided with an installation kit including brackets and screws for fastening the top to fixture panels from 2 to 4 cm thick. Turn the cooker top upside down and fasten the brackets “F and R” to the appropriate • socket holes, without tightening the screws “B” for the moment. •...
  • Page 17 PROVISION FOR VENTILATION • The appliance should be installed into a room or space with an air supply in accordance with the current version of BS 5440-2: 2000. • For rooms with a volume of less than 5m - permanent ventilation of 100 cm free area must be provided.
  • Page 18: Gas Installation

    5 - GAS INSTALLATION IMPORTANT NOTE This appliance is supplied for use on NATURAL GAS or LPG (check the gas regulation label attached on the appliance). • Appliances supplied for use on NATURAL GAS are adjusted for this gas only and cannot be used on any other gas (LPG) without modification. The appliances are manufactured for conversion to LPG.
  • Page 19 GAS CONNECTION GB IE Cat: 2H 3+ Installation to Natural Gas Installation to Natural Gas must conform to the Code of Practice, etc. The supply pressure for Natural Gas is 20 mbar. The installation must conform to the relevant British/European Standards. Installation to LP Gas When operating on Butane gas a supply pressure of 28-30 mbar is required.
  • Page 20 The fitting (fig. 5.1) is made up of: 1/2" BSPP (G) parallel 1/2" BSPP (G) parallel – 1 nut “A” (ISO 228-1) male (ISO 228-1) female – 1 elbow fitting “C” – gasket “F” Connection to the Gas Supply – Be careful when flexible pipes are used that they do not come into contact with moving parts. –...
  • Page 21 REPLACEMENT OF THE INJECTORS Auxiliary, If the injectors are not supplied they can semirapid and be obtained from the After-Sales Service. rapid burners Select the injectors to be replaced according to the “Table for the choice of the injectors”. nozzle diameters, expressed hundredths of a millimetre, are marked on...
  • Page 22 TABLE FOR THE CHOICE OF THE INJECTORS Cat: 2H3+ Natural Gas G30/G31 Nominal Reduced 28-30/37 mbar 20 mbar BURNERS Power Power [kW] [kW] Ø injector Ø injector [1/100 mm] [1/100 mm] Auxiliary (A) 1,00 0,40 Semirapid (SR) 1,75 0,45 Rapid (R) 3,00 0,75 Triple Ring (TR)
  • Page 23: Electrical Installation

    6 - ELECTRICAL INSTALLATION IMPORTANT: The appliance must be installed in accordance with the manufacturer’s instructions. Incorrect installation, for which the manufacturer accepts no responsibility, may cause damage to persons, animals or property. The connection of the appliance to earth is mandatory. The manufacturer declines all responsibility for any inconvenience resulting from the inobservance of this condition.
  • Page 24 SECTION OF THE SUPPLY CABLE TYPE “H05V2V2-F” resistant to temperatures of 90°C 230 V AC 50 Hz 3 x 0,75 mm REPLACING THER POWER SUPPLY CABLE Fig. 6.2 WARNING: If the power supply cable is damaged, 230 V it must be replaced only by an authorised service agent in order to avoid a hazard.
  • Page 25: Guarantee & After Sales Service

    7 - GUARANTEE Your new “KENWOOD” product comes with 12-month guarantee covering all parts and labour. If your appliance proves to be defective as a result of faulty materials or workmanship during the guarantee period, these parts will be repaired or replaced free of charge.
  • Page 28 The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet. The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances. Code: 1103860 - ß2...
