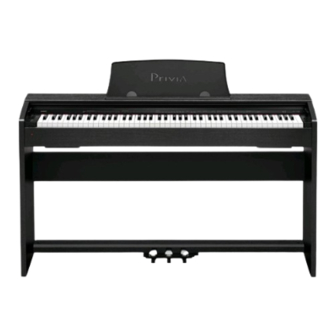

Casio Privia PX-765 User Manual

PX - 765
USER'S GUIDE
Please keep all information for future reference.
About These Instructions
These instructions consist of four pages on two sheets. Each page is identified by a page number in the
upper right corner.
Before performing any operation, be sure to go to page 3/4 first and read the
information under "Piano Buttons", "Using the FUNCTION Button", and
"Keyboard Keys Used for Configuring Settings".
● Refer to "Assembling the Stand" on page 4/4 of these instructions for information about how
to assemble the stand and attach the music stand.
These instructions provide general information about Digital Piano operations. For
more detailed information, refer to the "User's Guide (Full)", which can be
downloaded by visiting the website below.
https://support.casio.com/global/en/emi/manual/PX-765/
The "User's Guide (Full)" includes information on the topics listed below.
• Auto Resume and Operation Lock
• Connecting to an audio system and amplifier
• Connecting to a computer
• Details about settings using the FUNCTION button
• MIDI Implementation Chart, etc.
● Be sure to read the "Safety Precautions" in these instructions and use the Digital Piano
correctly.
Caution!
Make sure that the keyboard cover is fully open whenever you are playing. A partially open cover can
suddenly close unexpectedly and pinch your fingers.
Changing the Octaves of the Keyboards
Splitting the Keyboard for Duet
Play
You can change the ranges of the left and right keyboards in
octave units from their initial default settings.
You can split the keyboard in the center so the left and right
1.
Pressing the FUNCTION button and the GRAND
sides have the same range. The left outer pedal is the left
PIANO button, press the C-key you want as middle
side damper pedal, while the right outer pedal is the right
side damper pedal. C (C4) of the left keyboard. Keep the FUNCTION
button and the GRAND PIANO button depressed as
Keyboard
you advance to step 2.
Split point
Example: Pressing the leftmost C key configures the
keyboards below.
Left keyboard Right keyboard
Left keyboard
C3 C4 C5 C6 C3 C4 C5 C6
(Middle C) (Middle C)
C4 C5 C6 C7 C3
(Pressed key)
Pedals
1 octave higher than initial setting
2.
With the FUNCTION button and the GRAND PIANO
Left keyboard Right keyboard
damper pedal damper pedal button still depressed, press the C-key you want as
Left and right damper pedal middle C (C4) of the right keyboard.
This sounds the note assigned to C4 and change the
octave of the right keyboard.
NOTE
• Only the damper pedal for the right keyboard supports
NOTE
• You can return the keyboards to their initial default
half-pedal operations.
ranges by exiting and then re-entering the Duet Mode.
1.
Select a tone.
2.
To cycle between the Duet Mode settings below,
hold down the FUNCTION button and press the
Duet Mode key.
Off
On
Pan: Outputs left side keyboard tone from the left
speaker and right side keyboard tone from the right
speaker.
EN Power Outlet Turning Power On or Off
■ To turn on power
Your Digital Piano runs on standard household power. Be
sure to turn off power whenever you are not using the Digital
Press the P (Power) button. Power up takes about five
Piano.
seconds.
■ Using an AC Adaptor
■ To turn off power
Use only the AC adaptor (JEITA Standard, with unified
Hold down the P (Power) button until the power lamp goes
polarity plug) that comes with this Digital Piano. Use of a
out.
different type of AC adaptor can cause malfunction.
Front
Specified AC Adaptor: AD-A12150LW
• Use the supplied power cord to connect the AC adaptor.
Bottom
IMPORTANT!
• Pressing the P (Power) button to turn off power
actually puts the Digital Piano into a standby state
(minute current continues to flow). If you do not plan
to use the Digital Piano for a long time or if there is a
lightning storm in your area, unplug the AC adaptor
from the power outlet.
Power Terminal
(DC 12V) ■ Auto Power Off
Power turns off automatically after four hours of non-use.
To disable Auto Power Off, turn on power by holding down
IMPORTANT! the FUNCTION button and pressing P (Power).
• Never connect the AC adaptor that comes with this
Digital Piano to any other device besides this Digital
Piano. Doing so creates the risk of malfunction.
• Make sure the Digital Piano is turned off before
plugging in or unplugging the AC adaptor.
• The AC adaptor will become warm to the touch after
very long use. This is normal and does not indicate
malfunction.
• Never try to use the supplied power cord with any
other device.
• Place the AC adaptor on the floor with its label
surface pointed downwards. The AC adaptor
becomes more prone to electromagnetic wave
generation if the label surface is in a different
position.
Concert Play
Playing Back Built-in Songs
1.
To select a song, hold down the FUNCTION button
This Digital Piano comes with a Music Library of 60 piano
and use the CONCERT PLAY area SELECT keys
songs (numbered 1 to 60), and Concert Play selection of
(–, +).
piano and orchestra performance songs (numbered 1 to 10)
built in. 2.
To start song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
Demo Songs
key.
1.
Hold down the FUNCTION button and press the • To stop song playback, hold down the FUNCTION
METRONOME button.
This starts sequentially looped playback of all Concert
Play (Listen) songs and Music Library songs.
Right keyboard
NOTE
• To advance to the next demo song, hold down the
• Concert Play uses recordings of a live orchestra, so the
FUNCTION button and press the MIDI REC
tones used for recording are different from those that can
button.
be selected with the Digital Piano. Also note that breath
• To return to the previous demo song, hold down the
and performance noises may be audible in Concert Play
C4 C5 C6
FUNCTION button and press the REVERB button.
songs.
• To stop demo playback, press the a button.
Unchanged
NOTE
• Pressing the METRONOME button while holding down
the FUNCTION button during Concert Play jumps to the
first Music Library song. Performing the same operation
during Music Library play jumps to the first Concert Play
song.
• The only operations possible during demo play back are
changing the currently playing tune and stopping
playback.
Music Library
1.
To select a song, hold down the FUNCTION button
and use the Select Music Library Song keys (–, +).
You can also input a value from 0 to 9 to specify a
Music Library song number.
2.
To start playback press the a button.
• To stop playback, press the a button.
Adjusting Volume
Use the VOLUME knob to adjust the volume of speaker and
headphone output.
Changing the Tuning
The factory tuning (A4=440.0Hz) can be change in 0.1 Hz
steps.
1.
Hold down the FUNCTION button and use the A-
tuning keys (+, –).
• Tuning is raised or lowered in 0.1 Hz steps.
• To toggle between the two settings below, hold
down the FUNCTION button and press the A-tuning
keyboard keys (+ and –) at the same time.
440.0 Hz (1 beep)
442.0 Hz (2 beeps)
Power lamp
Practicing with Built-in Tunes
Music Library
Use the steps below to turn off the left-hand part or right-
hand part of a song and play along.
1.
To select a song to practice, hold down the
FUNCTION button and use the Select Music Library
Song keys (–, +, keys 0 to 9).
button and press the CONCERT PLAY area a
2.
key.
To select on or off for each part, hold down the
FUNCTION button and press the a button.
Play the part you turned off.
Right-hand part
Both parts on
off
Left-hand part Right-hand part
(lit) (unlit)
Right-hand part
(lit)
• Each press of the a button cycles the on/off
settings as shown above.
3.
To start playback, press the a button.
• To stop playback, press the a button.
Connecting Headphones Selecting a Tone with a Button
1.
Connect headphones to the PHONES/OUTPUT jack. Press the GRAND PIANO button or E.PIANO 1
Connecting headphones mutes speaker output, so you can button.
practice even late at night. To protect your hearing, do not
• Pressing the GRAND PIANO button selects the
set the volume too high when using headphones.
GRAND PIANO CONCERT tone.
Front
Selecting a Tone with a Keyboard
Key
Tone names are marked above the keys.
1.
Hold down the FUNCTION button and press the
desired tone key. (See the "Tone" area under
"Keyboard Keys Used for Configuring Settings".)
• Some keys may have more than one tone assigned.
In this case, each press of the key cycles to the next
assigned tone. Which tone is selected by the key
press is indicated by beeps.
Example: Cycling through MODERN, ROCK, and
JAZZ settings
MODERN: (1 beep)
ROCK: (2 beeps)
JAZZ: (3 beeps)
■ Bass Tone (BASS)
Pressing the BASS (LOWER) key to select a bass tone
PHONES/OUTPUT jack selects a bass tone for the low end (left side) of the
keyboard only. The high end (right side) of the keyboard
retains the tone assigned to it before the bass tone was
selected.
NOTE
• If the plug of the headphones does not match the
PHONES/OUTPUT jack, use a commercially available
Bass range
adaptor plug.
BASS
Concert Play
Using a Pedal
You can use Concert Play for 3-step practice.
■ Step 1: LISTEN
Listen to playback of the piano and orchestra to familiarize
yourself with the music.
1. Soft pedal
To select a song, hold down the FUNCTION button
and use the CONCERT PLAY area SELECT keys
Sostenuto pedal
(–, +).
2.
Hold down the FUNCTION button and press the
■ Damper Pedal
CONCERT PLAY area LISTEN key.
Pressing the damper pedal while playing causes the notes
3.
To start song playback, hold down the FUNCTION
you play to reverberate. Half-pedal operation (pressing the
button and press the CONCERT PLAY area a pedal part way) is also supported.
key.
Left-hand part off
■ Sostenuto pedal
• To stop song playback, hold down the FUNCTION
Only the notes of the keys that are depressed when this
button and press the CONCERT PLAY area a
pedal is pressed are sustained, even if the keyboard keys
key.
are released, until the pedal is released.
Left-hand part
■ Step 2: LESSON
(unlit)
■ Soft pedal
You can turn off the left-hand part or right-hand part of a
This pedal makes notes softer and gentler. The effect is
built-in song and play along on the Digital Piano. Practice
applied only to notes played while the pedal is depressed.
the piano part of the ensemble.
1.
Hold down the FUNCTION button and press the
NOTE
CONCERT PLAY area LESSON key. • If pressing the pedal does not produce the desired effect,
it could mean that the pedal cord is not connected
2.
To select on or off for each part, hold down the
properly. Fully push the plug in as far as it goes.
FUNCTION button and press the a button.
See the illustration under step 2 of the "Music Library"
part selection procedure.
3.
To start song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
• To stop song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
■ Step 3: PLAY
Play along with the orchestra.
1.
Hold down the FUNCTION button and press the
CONCERT PLAY area PLAY key.
2.
To start song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
• To stop song playback, hold down the FUNCTION
button and press the CONCERT PLAY area a
key.
USER'S GUIDE 1/4
Layering Two Tones
1.
Hold down the FUNCTION button and press the
Select Layer Tone key.
• Each press of the keyboard key toggles between on
and off.
2.
Hold down the FUNCTION button and press key of
the tone to be layered.
GRAND PIANO BRIGHT
STRINGS 2
3.
To return to the original tone, hold down the
FUNCTION button and press the Select Layer Tone
key (which exits the Layer Mode).
Split point
High range
JAZZ ORGAN
(previously selected tone)
Using the Metronome
■ To sound the metronome
1.
Press the METRONOME button.
The first beat of a measure is a chime, and remaining
beats are clicks. The lamp flashes with each beat.
Press the METRONOME button again to turn off the
Damper pedal metronome.
Metronome Settings
■ To set the beat
1.
Hold down the FUNCTION button and press the
METRONOME area BEAT key.
• Keep the FUNCTION button depressed as you
advance to the next step.
2.
Still holding down the FUNCTION button, use the
number keys (0 to 9) to specify the beat.
Setting range: 0 to 9
• Specifying 0 sounds a straight click, without any chime.
■ To set the tempo
1.
Hold down the FUNCTION button and press the
METRONOME area TEMPO key.
• Keep the FUNCTION button depressed as you
advance to the next step.
2.
Still holding down the FUNCTION button, use the
number keys (0 to 9) to specify the tempo.
Setting range: 20 to 255
• Each press of the + or – key raises or lowers the tempo
by 1.
■ To adjust the metronome volume
Hold down the FUNCTION button and use the Metronome
Volume keys (–, +) to set a volume level from 0 to 42.
Setting range: 0 to 42
• To return to the initial default volume, press the
Metronome Volume + key and – key at the same time.
Continued on the back 
