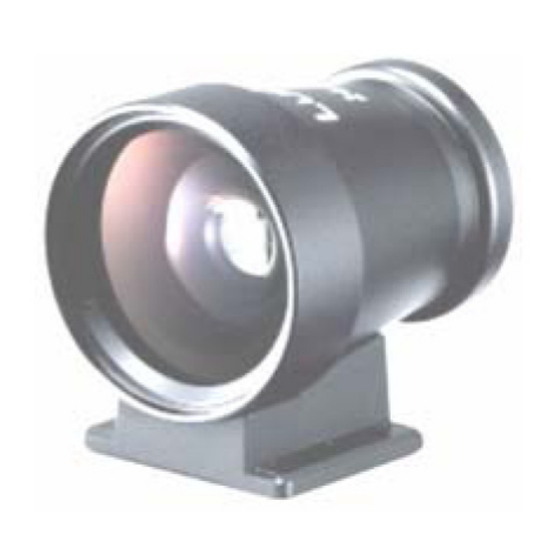

Panasonic DMW-VF1PP Service Manual
Panasonic DMW-VF1PP Service Manual

Panasonic DMW-VF1PP Service Manual

External viewfinder

Advertisement

Quick Links

SPECIFICATIONS:
Focal Length
Lens Format
viewfinder coverage
Dioptor value
viewfinder coverage
Magnification
Eye Point
Lens Construction
Dimensions
Mass (Weight)
Standard
Accessories
CONTENTS
1 OPERATING GUIDE
1.1. Attaching the External Viewfinder
1.2. How to use
1.3. Cautions for Use
: 24 mm (35 mm film camera equivalent)
: Albada-type inverted Galilean
: -0.5D
: 0.45X
: 13 mm (9/16") from final lens surface
12.5 mm (1/2") from eyepiece
: 4 elements in 4 groups
: Approx. 23 mm (W) x 28 mm (H) x 26 mm (D) / [15/16"(W) x 1 1/8" (H) x 1 1/16"(D)]
: Approx. 18g (0.63 oz)
: Storage Bag
Page
2
2
2
2
EXTERNAL VIEWFINDER
DMW-VF1PP
Model No.
DMW-VF1E
DMW-VF1GK
2 EXPLODED VIEWS
2.1. .PACKING PARTS & ACCESSORIES SECTION
3 REPLACEMENT PARTS LIST
3.1. MECHANICAL REPLACEMENT PARTS LIST
© 2008 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
Order No. DSC0808046CE
B26
Page
Unauthorized
copying
and
3
3
4
4

Advertisement

loading

Summary of Contents for Panasonic DMW-VF1PP

  • Page 1 Order No. DSC0808046CE EXTERNAL VIEWFINDER DMW-VF1PP Model No. DMW-VF1E DMW-VF1GK SPECIFICATIONS: Focal Length : 24 mm (35 mm film camera equivalent) Lens Format : Albada-type inverted Galilean viewfinder coverage Dioptor value : -0.5D viewfinder coverage Magnification : 0.45X Eye Point : 13 mm (9/16") from final lens surface...
  • Page 2 1 OPERATING GUIDE 1.1. Attaching the External Viewfinder This External Viewfinder is designed only for the Panasonic digital camera DMC-LX3.(As of August 2008) Preparation: Close the flash and turn off the camera. When attaching or removing the External Viewfinder, please tale your time and do so with care.
  • Page 3 DMW-VF1PP / DMW-VF1E / DMW-VF1GK 2 EXPLODED VIEWS 2.1. .PACKING PARTS & ACCESSORIES SECTION...
  • Page 4 DMW-VF1PP / DMW-VF1E / DMW-VF1GK 3 REPLACEMENT PARTS LIST 3.1. MECHANICAL REPLACEMENT PARTS LIST 3.1.1. PACKING PARTS & ACCESSORIES SECTION PARTS LIST Ref.No. Part No. Part Name & Remarks Description VGQ0B49 OVF SHOE BASE VQT1R83 OPERATING INSTRUCTIONS VFC4321 OVF POUCH...
