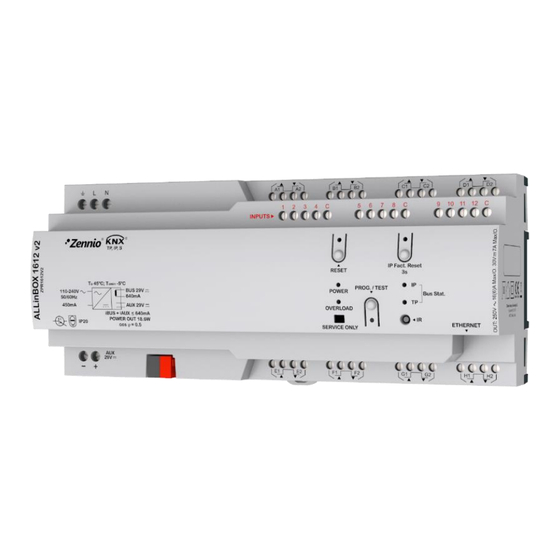

- Page 1 ➢ ALLinBOX 1612 v2/88/46/Hospitality Multifunction device with power supply, KNX-IP Interface, outputs, inputs, and logical module ZPR1612V2 ZPR88 ZPR46 ZPRHP Application program version: [1.5] User manual edition: [1.5]_a www.zennio.com...
-
Page 2: Table Of Contents
Contents ............................2 Document Updates ........................3 Introduction .......................... 4 1.1 ALLinBOX 1612 v2 / ALLinBOX 88 / ALLinBOX 46 / Hospitality ........4 1.2 Installation ........................6 1.3 Start-Up and Power Loss ....................8 1.4 LED Indicators ........................9 1.5 Hard Reset to IP Factory Defaults .................. -
Page 3: Document Updates
Changes Page(s) New devices: ALLinBOX Hospitality Changes in the application program: [1.5] _a Date/time synchronisation via NTP Optimisation shutters, standard thermostat, hospitality thermostat and logic functions modules. [1.4] _b New devices: ALLinBOX 88 y ALLinBOX 46. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 4: Introduction
/ 88 / 46 / Hospitality 1 INTRODUCTION 1.1 ALLinBOX 1612 v2 / ALLinBOX 88 / ALLinBOX 46 / Hospitality ALLinBOX 1612 v2 / ALLinBOX 88 / ALLinBOX 46 / ALLinBOX Hospitality are a versatile KNX actuators featuring a wide variety of functions. Functions... - Page 5 29V power supply and 640/320/250/250 mA respectively. It is divided between an auxiliary output of 29V and a bus output with KNX coil include. The nominal input of the power supply must be universal 110/230V ~ 50/60Hz. https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 6: Installation
Note: the above figure is entirely analogous for ALLinBOX 88, ALLinBOX 46 and ALLinBOX Hospitality. Figure 1 shows a scheme of ALLinBOX 1612 v2 with all the LED indicator and required connections. ALLinBOX has its own power supply, so it does not need an additional one and it serves to supply the rest of the devices through the KNX bus. - Page 7 To get detailed information about the technical features of this device, as well as on the installation and security procedures, please refer to the corresponding Datasheet, bundled with the original package of the device and also available at www.zennio.com. https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 8: Start-Up And Power Loss
For safety reasons, if a power loss takes place, all shutter channels will be stopped (i.e., the relays will open), while the individual outputs and fan coil contacts will switch to the specific state configured in ETS (if any). https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 9: Led Indicators
Power Supply Status LED (POWER): shows the status of the power supply. ➢ OFF: the device is not powered. ➢ ON (green): device with voltage. ➢ BLINKING (green): short circuit on the KNX bus / “Reset” button press. https://www.zennio.com Technical Support: https://support.zennio.com... - Page 10 ➢ ON (yellow): IP restored by APIPA. Note: Please refer to section 1.5 for further details. Reset LED: ➢ OFF: normal operation. ➢ BLINKING (red): “Reset” button is pressed / short circuit on the KNX bus. https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 11: Hard Reset To Ip Factory Defaults
(If a valid IP is not obtained → Use a static IP address IP by APIPA) long Obtain an IP automatically IP obtained by APIPA Yellow Random static IP configuration in the range 169.254.1.0 - 169.254.254.255 https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 12: Hard Reset Power Supply
The device will not restart (and will not give power) until the button is released. The power supply status LED (POWER) will blink in green, and the Reset status LED will blink in red while the button is being pressed. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 13: Configuration
ALLinBOX will automatically take an IP address whenever there is a DCHP server in the local network to which it is connected. The default values of each parameter will be highlighted in blue in this document, as follows: [default/rest of options]. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 14: Programmer
Note: to detect the ALLinBOX as a programmer in ETS, it needs to be connected to the same IP network as the PC. To use a device as a programmer simply select it in the ETS "Bus" tab under Connections → Interfaces. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 15: Parallel Downloads
This option is only available for connections via a KNX-IP router or a KNX-IP interface. Certain conditions must be met: Each download must be performed on a different line. For each line, it is necessary to select one ALLinBOX to perform the download. https://www.zennio.com Technical Support: https://support.zennio.com... - Page 16 In "Settings" panel, in “Properties” of the line, the connection can be selected. Figure 6 ETS5 parallel downloads configuration. Note: once the connection has been selected, it will not be available for the other lines. https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 17: Additional Individual Addresses (Tunneling Addresses)
These addresses can be changed at any time. Figure 7 Set tunnelling addresses. Note: ALLinBOX tunnelling addresses must not match any of the addresses set to other devices on the system. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 18: General
Thermostats [disabled/enabled]: enables or disables the “Thermostats” tab on the left menu. See section 2.7 for more details. Master Light [disabled/enabled]: enables or disables the “Master Light” tab on the left menu. See section 2.8 for more details. https://www.zennio.com Technical Support: https://support.zennio.com... - Page 19 (still alive). Figure 10. Heartbeat. Note: The first sending after download or bus failure takes place with a delay of up to 255 seconds, to prevent bus overload. The following sendings match the period set. https://www.zennio.com Technical Support: https://support.zennio.com...
- Page 20 Note: The connection to the DNS server is necessary to ensure the correct functioning of the NTP servers (see section 2.11). As long as there is no connection to a DNS server, the date and time information will not be synchronized. https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 21: Inputs
/ 88 / 46 / Hospitality 2.5 INPUTS ALLinBOX 1612 v2 / 88 / 46 / Hospitality incorporates 12 / 8 / 6 / 6 analogue/digital inputs, each configurable as a: Binary Input, for the connection of a pushbutton or a switch/sensor. -
Page 22: Outputs
2.6.2). 2.6.1 ALLINBOX 1612 v2 / 88 / 46 ALLinBOX 1612 v2 / 88 / 46 incorporates 16 / 8 / 4 relay outputs, each configurable as Individual binary output, which provides an independent control of a load (up to 16 / 8 / 4 different loads can be controlled). - Page 23 Heating Valve Opening Valve for both modes Three- point Closing Valve for both modes Table 1. Actions performed by the binary outputs associated to the valve control depending on the ALLinBOX. https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 24: Allinbox Hospitality
/ 88 / 46 / Hospitality For detailed information about the functionality and the configuration of the related parameters, please refer to the following specific manuals, all of them available under the ALLinBOX product section at the Zennio homepage (www.zennio.com): Individual outputs. Shutter channels. -
Page 25: Thermostats
/ 88 / 46 / Hospitality 2.7 THERMOSTATS ALLinBOX 1612 v2 / 88 / 46 implements four standard thermostats and four Hospitality thermostats which can be enabled and configured independently. ALLinBOX Hospitality implements two Hospitality thermostats which can be enabled and configured independently. -
Page 26: Master Light
This function brings the option to monitor the state of 2 master light modules up to 12 light sources (or even more, if the Master Light controls from multiple Zennio devices are linked together) or of any other elements whose state is transmitted through a binary object and, depending on those states, perform a master order every time a certain trigger signal (again, a binary value) is received through a specific object. - Page 27 ➢ Delay [0…255] [x 1 s]: defines a certain delay (once the trigger has been received) before the execution of the general switch-off. ➢ Binary Value [disabled/enabled]: if checked, object “[ML] General Switch- off: Binary Object” will be enabled, which will send one “0” whenever the general switch-off takes off. https://www.zennio.com Technical Support: https://support.zennio.com...
- Page 28 Note: object “[ML] Courtesy Switch-On: Binary Object” sends the value “1” (when the courtesy switch-on takes place), in contrast to object “[ML] General Switch-Off: Binary Object”, which sends the value “0” (during the general switch-off, as explained above). https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 29: Logic Functions
Please refer to the “Logic Functions” user manual available under the ALLinBOX product section at the Zennio homepage (www.zennio.com) for detailed information about the functionality and the configuration of the related parameters. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 30: Scene Timing
Enabling a certain Scene Number n [disabled/enabled] brings a new tab with such name to the menu on the left, from which it is possible to configure the temporisation of that scene for each of the outputs where it has been configured. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 31: Ntp
This information will be obtained from an NTP server. Please refer to the specific manual “NTP Clock” (available under the ALLinBOX product section at Zennio homepage, www.zennio.com) for detailed information about the functionality and the configuration of the involved parameters. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 32: Manual Control Through Ir Remote Control
On mode. After that, an additional press will turn the LED yellow and then off, once the button is released. This way, the device leaves the Test On mode. Note that it will also leave this mode if a power failure takes place. Test On Mode https://www.zennio.com Technical Support: https://support.zennio.com... - Page 33 ➢ Valve: a short or long press will switch the current status of the relay and therefore of the valve. In the case of ALLinBOX Hospitality, it is not possible to configure the outputs as a shutter channel, so what it is explained in this section does not apply. https://www.zennio.com Technical Support: https://support.zennio.com...
- Page 34 Note that, as stated before, using Test On mode does require long pressing the Prog/Test button. Manual Lock Control [disabled/enabled]: unless the above parameter has been “Disabled”, the Lock Manual Control parameter provides an optional procedure for locking the manual control in runtime. When this checkbox is https://www.zennio.com Technical Support: https://support.zennio.com...
- Page 35 ➢ Initialization [Unlocked / Locked / Last Value]: sets how the manual control should remain after the device start-up (after an ETS download or a power failure). If “Last Value” is selected, on the very first start-up, this will be “Unlocked”). https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 36: Annex I. Communication Objects
ALLinBOX 1612 v2 / 88 / 46 / Hospitality ANNEX I. COMMUNICATION OBJECTS “Functional range” shows the values that, with independence of any other values permitted by the bus according to the object size, may be of any use or have a particular meaning because of the specifications or restrictions from both the KNX standard or the application program itself. - Page 37 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 15, 26, 37, 48 2 Bytes I/O C R W T - DPT_TimePeriodHrs 0 - 65535 [Ox] Operating Time (h) Time in Hours 0 - 63 (Execute 1 - 64); 128 - 191...
- Page 38 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 206, 235 1 Bit C - W - - DPT_Scene_AB [Cx] Move (Reversed) 0=Lower; 1=Raise 207, 236 1 Bit C - W - - DPT_Ack [Cx] Direct Positioning 1 0 = No Action; 1 = Go to Position...
- Page 39 ALLinBOX 1612 v2 / 88 / 46 / Hospitality [FCx] Fan: Speed Enumeration 1 Byte C R - T - DPT_Fan_Stage 0 - 255 S0 = 0; S1 = 1 (Status) [FCx] Manual Fan: Percentage S0 = 0%; S1 = 0,4-33,3%; S2 =...
- Page 40 ALLinBOX 1612 v2 / 88 / 46 / Hospitality [FCx] Heating Valve: Anti-Seize 1 Bit C R - T - DPT_Switch 0 = Not Active; 1 = Active Protection (Status) 1 Byte C R - T - DPT_Scaling 0% - 100%...
- Page 41 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 0xF (Inc. by 1%) 0x0 (Stop) 0x1 (Dec. by 100%) 0x7 (Dec. by 1%) 4 Bit C - - T - DPT_Control_Dimming [Ix] [Short Press] Brighter/Darker Switch Bright/Dark 0x8 (Stop) 0xD (Inc. by 100%) 0xF (Inc.
- Page 42 ALLinBOX 1612 v2 / 88 / 46 / Hospitality [Ix] [Long Press] Stop/Step Switching of 0/1 (Stop/Step 1 Bit C - - T - DPT_Step Shutter (Switched) Up/Down) 0x0 (Stop) 0x1 (Dec. by 100%) 0x7 (Dec. by 1%) Long Pr. -> Brighter; Release ->...
- Page 43 ALLinBOX 1612 v2 / 88 / 46 / Hospitality Shutter [Ix] [Long Press] Dimming Status 1 Byte C - W - - DPT_Scaling 0% - 100% 0% - 100% (Input) 518, 524, 530, 536, 542, 548 [Ix] [Long Press] Shutter Status...
- Page 44 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 661, 666, 671, 690, 695, 700, 719, 724, 729, 748, 753, 758 604, 609, 614, 633, 638, 643, 662, 667, 672, 691, 696, 701, 1 Bit C - W - -...
- Page 45 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 1111, 1112, 1113, 1114, 1115, 1116, 1117, 1118, -2147483648 - 4 Bytes C - W - - DPT_Value_4_Count [LF] (4-Byte) Data Entry x 4-Byte Data Entry 1119, 1120, 1121, 1122, 2147483647...
- Page 46 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 1193, 1261, 1329, 1397 1 Byte C - W - - DPT_SceneControl 0-63; 128-191 [HTx] [A] Scene Input Scene Value 1194, 1262, 1330, 1398 2 Bytes C - W T U DPT_Value_Temp -273.00º...
- Page 47 ALLinBOX 1612 v2 / 88 / 46 / Hospitality [HTx] [C] Transition Time: 2 Bytes I/O C R W T U DPT_TimePeriodSec 0 - 65535 Seconds (0 = Disabled) Comfort to Default Mode [HTx] [C] Transition Time: 1217, 1285, 1353, 1421...
- Page 48 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 2=Standby 3=Economy 4=Building Protection 1229, 1297, 1365, 1433 1 Bit C R - T - DPT_Switch [HTx] [D] Comfort Mode Status 0 = Off; 1 = On [HTx] [D] Window Status 1...
- Page 49 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 1247, 1315, 1383, 1451 1 Bit C R W T U DPT_Enable [HTx] [F] Dehumidification Control 0 = Disabled; 1 = Enabled 0 = No Dehumidifying; 1 = 1248, 1316, 1384, 1452...
- Page 50 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 2=Standby 3=Economy 4=Building Protection 2 Bytes C - W - - DPT_Value_Temp -273.00º - 670433.28º [Tx] Setpoint Thermostat Setpoint Input 1475, 1513, 1551, 1589 2 Bytes C - W - - DPT_Value_Temp -273.00º...
- Page 51 ALLinBOX 1612 v2 / 88 / 46 / Hospitality 0 = PI Signal 0%; 1 = PI Signal 1 Bit C R - T - DPT_Switch [Tx] [Sx] PI State Greater than 0% 1616 3 Bytes C R - T -...
- Page 52 Join and send us your inquiries about Zennio devices: https://support.zennio.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo, Spain. Tel. +34 925 232 002. www.zennio.com info@zennio.com...
