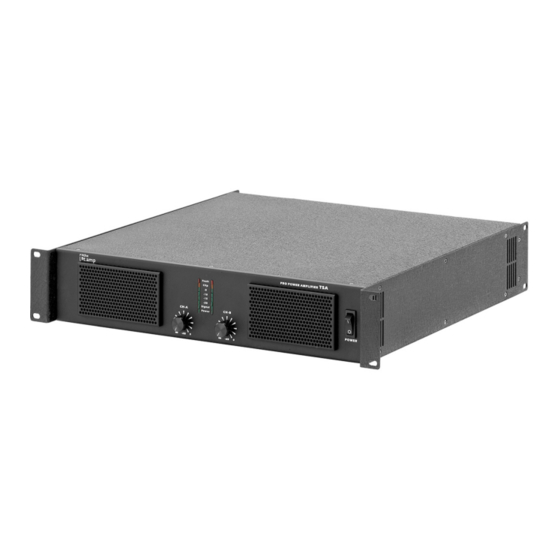

TSA 1400, TSA 2200,
TSA 4000
Power amplifier

Advertisement

Table of Contents
loading

Related Manuals for t.amp TSA 1400

Summary of Contents for t.amp TSA 1400

  • Page 1 TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 06.10.2022, ID: 218912, 218913, 287602 (V2)

  • Page 3: Table Of Contents

    1.3 Symbols and signal words....................... 7 Safety instructions............................. 9 Features............................... 12 Installation and starting up........................ 13 Connections and controls........................14 Technical specifications........................22 Plug and connection assignment....................32 Cleaning............................... 35 Protecting the environment......................36 TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 4 TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 6: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 7: Symbols And Signal Words

    Ä ‘Cross-references’ on page 7. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 8 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 9: Safety Instructions

    Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 10 When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction. TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 11 The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐ sary, i.e. felt pads or similar. TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 12: Features

    Thermal protection – short circuit protection 19" rack-mountable (2 RU) Find device-specific features here, Ä Chapter 5 ‘Connections and controls’ on page 14 and Ä Chapter 6 ‘Technical specifications’ on page 22. TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 13: Installation And Starting Up

    Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 14: Connections And Controls

    Connections and controls Connections and controls Front panel TSA 1400, 2200 ö TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 15 A and B down to minimum. If the LEDs will still light, the device must be checked by an authorized service workshop. TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 16 Connections and controls Rear panel TSA 14002200 & TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 17 Use the Ground / Lift switch to separate the connection between the earth pin of the device and the unit's signal ground to prevent ground loops: ‘Lift’ position (not pressed): no connection ‘Ground’ position (pressed): earth pin and signal ground are electrically connected TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 18 Connections and controls Front panel TSA 4000 ö TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 19 A and B down to minimum. If the LEDs will still light, the device must be checked by an authorized service workshop. TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 20 Connections and controls Rear panel TSA 4000 & TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 21 7 [Stereo | Parallel | Bridge] | switch for operating modes ‘Stereo’ (channels operate independently of each other), ‘Paral‐ lel’ (two channels are interconnected) and ‘Bridge’ (two channels are interconnected to form one channel with double output) TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 22: Technical Specifications

    2 Ω, stereo – Max. voltage increase (RMS) (THD ≤1%, 1 kHz) Slew rate (1 kHz) 35 V/ms IMD-SMPTE (60 Hz, 7 kHz) <0.1 % DIM 30 (3.15 kHz, 15 kHz) <0.1 % TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 23 4 Ω, bridged 984 W / 5.2 A 2690 W / 13.6 A Supply voltage 230 V 50/60 Hz Dimensions (W × H × D) 484 mm × 97 mm × 370 mm TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 24 Technical specifications Weight 10.6 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 25 DIM 30 (3.15 kHz, 15 kHz) <0.1 % Crosstalk (at 1 kHz, 10 % nominal power) > 70 dB Frequency response (at 1 kHz) 20 Hz … 20 kHz (0 - 2 dB) TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 26 820 W / 4.3 A 1900 W / 9.7 A Supply voltage 230 V 50/60 Hz Dimensions (W × H × D) 485 mm × 97 mm × 370 mm Weight 10.4 kg TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 27 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 28 DIM 30 (3.15 kHz, 15 kHz) <0.35 % Crosstalk (at 1 kHz, 10 % nominal power) < –80 dB Frequency response (at 1 kHz) 20 Hz … 20 kHz (0 - 2 dB) TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 29 1520 W / 9.8 A 4 Ω, bridged – – Supply voltage 230 V 50/60 Hz Dimensions (W × H × D) 483 mm × 88 mm × 455 mm Weight 12 kg TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 30 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Channels suitable for 19" racks 2 RU 2 Ω stability DSP / frequency Convection cooling Protective circuits (temperature, short circuit, limiter) TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 31 A–B Sensitivity Amplifier Pre-amplifier OUT B INPUT 1&2 BRDG Volume Sensitivity B–C 0.775V/1.4V OUT C Pre-amplifier Sensitivity Amplifier /3&4 Bridge INPUT Volume C–D Sensitivity Amplifier Pre-amplifier OUT D INPUT 3&4 BRDG Volume TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 32: Plug And Connection Assignment

    180°. Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 33 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 34 Plug and connection assignment Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, – Signal 2 (out of phase) ö TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 35: Cleaning

    Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. TSA 1400, TSA 2200, TSA 4000 Power amplifier...

  • Page 36: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 37 Notes TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 38 Notes TSA 1400, TSA 2200, TSA 4000 Power amplifier...
  • Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
