- Page 1 User Guide HydroTap G5 ® English French Visit our website to download the manuals - scan the relevant QR code above. For a more detailed version of this guide refer to the comprehensive ‘online’ user guide. 806835US v1.07 11.22 G5 User guide...
- Page 2 806835US v1.07 11.22 G5 User guide...
-
Page 3: Table Of Contents
Table of contents SECTION 1: SAFETY ........5 1.1 Explanation of symbols .......... 5 1.2 Before you start ............. 5 SECTION 2: Using the HydroTap ....6 2.1 Classic Plus, Elite Plus ..........7 2.2 Touch-Free Wave ..........8 2.3 Arc, Arc Plus, Cube, Cube Plus and Celsius ... 10 2.4 Classic .............. - Page 4 Register product • Navigate to the register product menu. • Scan the QR code and follow the on screen steps to register your product. REGISTER PRODUCT 12:12 PM ® Congratulations on Congratulations on purchasing a HydroTap purchasing a HydroTap system. system.
-
Page 5: Section 1: Safety
SECTION 1: SAFETY 1.1 Explanation of symbols Read the instructions WARNING Danger of electric shock Hot surface 1.2 Before you start Read the WARNINGS and PRECAUTIONS. Download & read the complete Command Center installation instruction manual and user guide. Read and use the instructions supplied with individual kit components for safe use and installation of replacement consumables. -
Page 6: Section 2: Using The Hydrotap

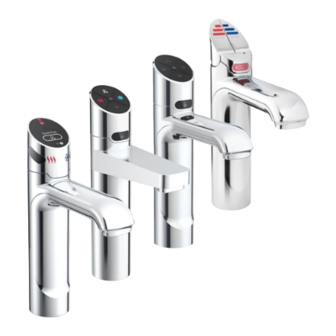

SECTION 2: Using the HydroTap Classic Plus, Elite Plus See page 7 Touch-Free Wave See page 8 Arc, Arc Plus, Cube, Cube Plus and Celsius See page 10 Classic See page 11 HydroTap Mixer See page 12 806835US v1.07 11.22 G5 User guide... -
Page 7: Classic Plus, Elite Plus
SECTION 2: Using the HydroTap 2.1 Classic Plus, Elite Plus Controls Press to dispense Simply press to dispense chosen water type Safety lock Lights Service Safety FLASHING lock Change filter or CO2. ON Safety lock active. (Safety lock is always active). Ready to dispense. -
Page 8: Touch-Free Wave
SECTION 2: Using the HydroTap 2.2 Touch-Free Wave Controls Touch-Free Safety sensors on the faucet sensor top, back and sides. (at back) Dispense sensors Clearance requirements (3.9”) (3.9”) 100mm 100mm Lights RED Boiling & safety sensors activated, water dispensed. Light BLUE Chilled sensor activated, water dispensed. - Page 9 SECTION 2: Using the HydroTap 2.2 Touch-Free Wave continued Dispense options Sensor range 0.39” -1.57” (1 - 4cm). To dispense, hold hand within range of the sensors. Tap will not operate and light will flash if the sensors are touched or if your hand is too close. Boiling Boiling Water Chilled...
-
Page 10: Arc, Arc Plus, Cube, Cube Plus And Celsius
SECTION 2: Using the HydroTap 2.3 Arc, Arc Plus, Cube, Cube Plus and Celsius Controls Bottle fill Indicator displays system status. (timed dispense) Select touch to select water type. Manual Boiling SELECT dispense Chilled SELECT Sparkling SELECT Safety Touch twice to flash. Turn to dispense boiling water. -
Page 11: Classic
SECTION 2: Using the HydroTap 2.4 Classic Controls Push for manual dispense. Pull for bottle fill (timed dispense). Lights Filter Boiling ready Chilled / sparkling Safety ready lock SAFETY ON active (safety lock is always active). FILTER Ready to dispense. Filter within lifespan. -
Page 12: Hydrotap Mixer Faucets
SECTION 2: Using the HydroTap 2.5 HydroTap Mixer faucets Controls mixed water Cold Lift and rotate the lever to dispense mixed warm water. 806835US v1.07 11.22 G5 User guide... -
Page 13: Section 3: Command Center Screen
SECTION 3: Command Center Screen 3.1 How to use the Command Center screen The Command Center has a color touch screen liquid crystal display. The screen turns OFF after 5 minutes of non-use. Touch the screen to reactivate. Navigate to the required screen. Here's an example : Set the language - from the home screen Touch the ‘top left’... - Page 14 SECTION 3: Command Center Screen OFF screen Touch the power button to turn the Command Center ON or OFF. The LCD screen visually shows OFF when it is non- operational. You will hear the sound of an internal “click” as the HydroTap Command Center turns ON or OFF.
-
Page 15: Home Screen
SECTION 3: Command Center Screen 3.2 Home screen Status screens shown here are representative and may vary. Use the home screen to monitor the HydroTap status. Touch each icon to view the system status. Boiling temperature Chilled temperature set set point point (Chilled models) CO2 gas remaining (Sparkling models) CO2 GAS REMAINING... -
Page 16: Main Menu
SECTION 3: Command Center Screen 3.3 Main menu Use the Main menu to configure your HydroTap and access features and settings. Touch each icon to access further options. 3.4 General settings Language LANGUAGE 10:50 PM English Units : Metric Imperial 806835US v1.07 11.22 G5 User guide... - Page 17 SECTION 3: Command Center Screen Date and time Touch the text boxes on the screen and then press + and - to set the current date and time. Press the tick to confirm and save. DATE & TIME 12:12 PM 2021 24 hr Time...
-
Page 18: System Settings
SECTION 3: Command Center Screen 3.5 System settings Configure your HydroTap to suit your needs. Navigate to system settings screen for all system settings. 806835US v1.07 11.22 G5 User guide... -
Page 19: Filter Settings
SECTION 3: Command Center Screen 3.5.1 Filter settings FILTER SETTINGS 12:12 PM Filter Tank Filter Filter Flush Flush Reset Life Filter flush Use Filter flush during commissioning of a new installation, and after every filter change. See page 36 for filter change instructions. Shut-off valve Open filter door, uncoil flush line. - Page 20 SECTION 3: Command Center Screen FILTER FLUSH 12:12 PM STEP 1. Open the filter access door and turn the flush line SHUT-OFF VALVE to the ON position. STEP 2. Place a 3 gal. bucket under the flush line valve to catch the water flushed through the filter.
- Page 21 SECTION 3: Command Center Screen Filter reset Reset the filter counters after filter replacement and flush. • Press upper internal or external filter button. • Press lower button to confirm. FILTER RESET 12:12 PM This will reset the usage counters for the chosen item. Select an item and press reset to confirm.
-
Page 22: Temperature Settings
SECTION 3: Command Center Screen 3.5.2 Temperature settings Boiling / Chilled set point Adjust as required. COLD/HOT SETPOINT 12:12 PM Chill Set Point Boiling Set Point °F °F 37-43 Chilled models Default chill set point: 41 - 48°F (5-9ºC) Commercial, 43 - 50°F (6-10ºC) Residential. - Page 23 SECTION 3: Command Center Screen Boiling calibration Take care during boiling calibration as hot steam may vent from the tap spout. On start-up, the HydroTap self-calibrates, or go to this menu to recalibrate. Calibration will take around 10 minutes. 806835US v1.07 11.22 G5 User guide...
-
Page 24: Co2 Settings
SECTION 3: Command Center Screen 3.5.3 CO2 settings CO2 SETTINGS 12:12 PM Purge Reset Life CO2 purge Purge the gas lines when fitting a new CO2 gas cylinder. Press the green start icon. The purge runs for 30 seconds. Water may be dispensed before CO2 gas escapes from the tap. - Page 25 SECTION 3: Command Center Screen CO2 life CO2 life may be adjusted by months or ounces. The Home screen displays a warning when the CO2 level reaches 20% (see page 15). CO2 life defaults to ounces (oz) absorbed. Months of use may also be selected to trigger a reminder to prepare a replacement CO2 cylinder.
-
Page 26: Dispense Times
SECTION 3: Command Center Screen 3.5.4 Dispense times Set the “bottle fill” dispense time for each water type. Minimum dispense time: 5 seconds. Maximum dispense time: 15 seconds (default). 3.5.5 Light sensor Follow the on screen instructions. Ensure the ambient light in the room is typical for operating conditions. -
Page 27: Quiet Mode
SECTION 3: Command Center Screen 3.5.6 Quiet mode Lowering the fan speed can reduce noise. Increasing it may improve chilling performance. Select ‘Auto’ fan speed for the HydroTap to optimize chilling performance automatically. Residential models: 75% / 100% / Auto (default). Commercial models: 100% (default) / Auto. -
Page 28: Advanced Settings 2 (Wave Faucet Only)
SECTION 3: Command Center Screen 3.5.8 Advanced settings 2 (Wave Faucet only) ADVANCED SETTINGS 2 12:12 PM Wave Tap Sensor Demister Mode Allows Control of Heating of Wave Tap Wave Tap Lock Mode Dual Sensors Required for Chilled/Sparkling Wave Faucet Sensor Demister Mode •... -
Page 29: Safety & Security
SECTION 3: Command Center Screen 3.6 Safety & security 3.6.1 Boiling safety (Not applicable to Touch-Free Wave Faucet) BOILING SAFETY 12:12 PM Hot isolation (additional boiling safety) 3 slow safety button presses required prior to dispensing Hot isolation (Classic, Classic Plus, Elite Plus only) •... -
Page 30: Passcode Protect
SECTION 3: Command Center Screen 3.6.2 Passcode protect Activate passcode protection to limit access to certain settings. Users will be prompted for this passcode when attempting to access settings. Create a 4-digit passcode and re-enter, as prompted. The passcode will be deactivated if the HydroTap is reset (powered off and on again). - Page 31 SECTION 3: Command Center Screen • Disabled (default). • Enabled: Any attempt to dispense water will bring the HydroTap out of sleep mode. Allow sufficient time for the water to reach the set temperature. Sleep when... Select from: It gets dark / Not used in 2 hours / Both Recalibrate the light sensor after selecting sleep when “it gets dark”.
-
Page 32: On/Off Timer
SECTION 3: Command Center Screen 3.7.2 On/Off Timer The option that is in effect is highlighted. When OFF, the HydroTap will stop chilling and heating the drinking water. During OFF mode, any attempt to dispense water will bring the HydroTap back ON. Allow sufficient time for the water to reach the set temperature. -
Page 33: Energy Use
SECTION 3: Command Center Screen 3.7.3 Energy Use Track energy usage of your HydroTap by viewing the total energy consumed and the energy consumed since the last energy use reset. ENERGY USE 12:12 PM Total (kWh) 00000.0 Last Period (kWh) Date of Reset 000.0 01/01/2020... -
Page 34: Product Serial Number
SECTION 3: Command Center Screen System Faults, Recent Faults View the current and recent fault history. About System View the system information. ABOUT SYSTEM 12:12 PM Title Info Module: BCS100 App. revision: 017-H5v0.1.xx Serial No: 0000000000000 Product No: H500xx000US Calibration: 50L Filtered: Wi-Fi: BS 0.00 FW 0.00... -
Page 35: Service Technician
SECTION 3: Command Center Screen 3.10 Service Technician • Access to functional and diagnostic aspects of the HydroTap system are limited to qualified Service Technicians only. Contact Zip if you need a Service Technician. 806835US v1.07 11.22 G5 User guide... -
Page 36: Section 4: User Maintenance
SECTION 4: User maintenance 4.1 Changing the internal filter The tap and screen will indicate that a filter needs to be changed. Depending on local water quality conditions and usage, the filter may require changing before the filter change indication is shown. You may also need to replace the filter if you notice an increase in chlorine, taste or odor. - Page 37 SECTION 4: User maintenance Moisten connector o-rings. Insert Rotate Push up Fit new filter. Initiate the filter flush program by scrolling through the menu screen (see page 19). Clean up and dispose of old cartridge and packaging. If the HydroTap is switched off for a long period of time (e.g.
-
Page 38: Air Inlet Filter Maintenance
SECTION 4: User maintenance 4.2 Air inlet filter maintenance Remove and clean quarterly. Rinse off with tap water. Gently dry with a cloth or towel. Maintain at least a 2” (50mm) air gap in front of the air inlet screen at all times. Take care to keep the air inlet clear of blockage. -
Page 39: Cleaning
SECTION 4: User maintenance 4.3 Cleaning To clean all taps, Command Center and ancillaries, wipe external surfaces with a gentle cleaning agent or a damp cloth and then wipe dry immediately with a clean, dry cloth. Do not use strong, corrosive, spray or abrasive cleaners. -
Page 40: Co2 Cylinder And Regulator
SECTION 4: User maintenance 4.4 CO2 cylinder and regulator Significant concentrations of CO2 gas can cause harm. To prevent leaks, read and use the instructions and safety documents provided with the replacement cylinder, together with these instructions. • CO2 cylinders are available in two sizes: •... -
Page 41: G5 Co2 Regulator
SECTION 4: User maintenance 4.4.1 G5 CO2 regulator Cylinder pressure Regulator control Outlet knob pressure Gas hose connection Set to 44 psi (3.0 bar) Cylinder connection Adjust the G5 regulator • Ensure that the cylinder is connected to the Command Center and that there are no leaks. -
Page 42: Changing The 5.0Lb (2.27Kg) Co2 Cylinder
• Test for leaks by brushing with soapy water and looking for bubbles. • Reseal if leaking, or call Zip for advice and assistance. • Replace cylinder and refit • Purge, reset and set the regulator. life, (see page 24). -
Page 43: Changing The 1.5Lb (0.67 Kg) Co2 Cylinder
• Test for leaks by brushing with soapy water and looking for bubbles. • Reseal if leaking, or call Zip for advice and assistance. • Purge, reset and set the • Replace cylinder and refit CO2 life, (see page 24). - Page 44 Call US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
