QT-CD131H/132H
(D1)x2
ø3x12mm
(D1)x1
ø3x10mm
Figure 6-1
(E1)x4
ø3x10mm
Tape
Mechanism
(C2)x2
Top Cabinet
Figure 6-2

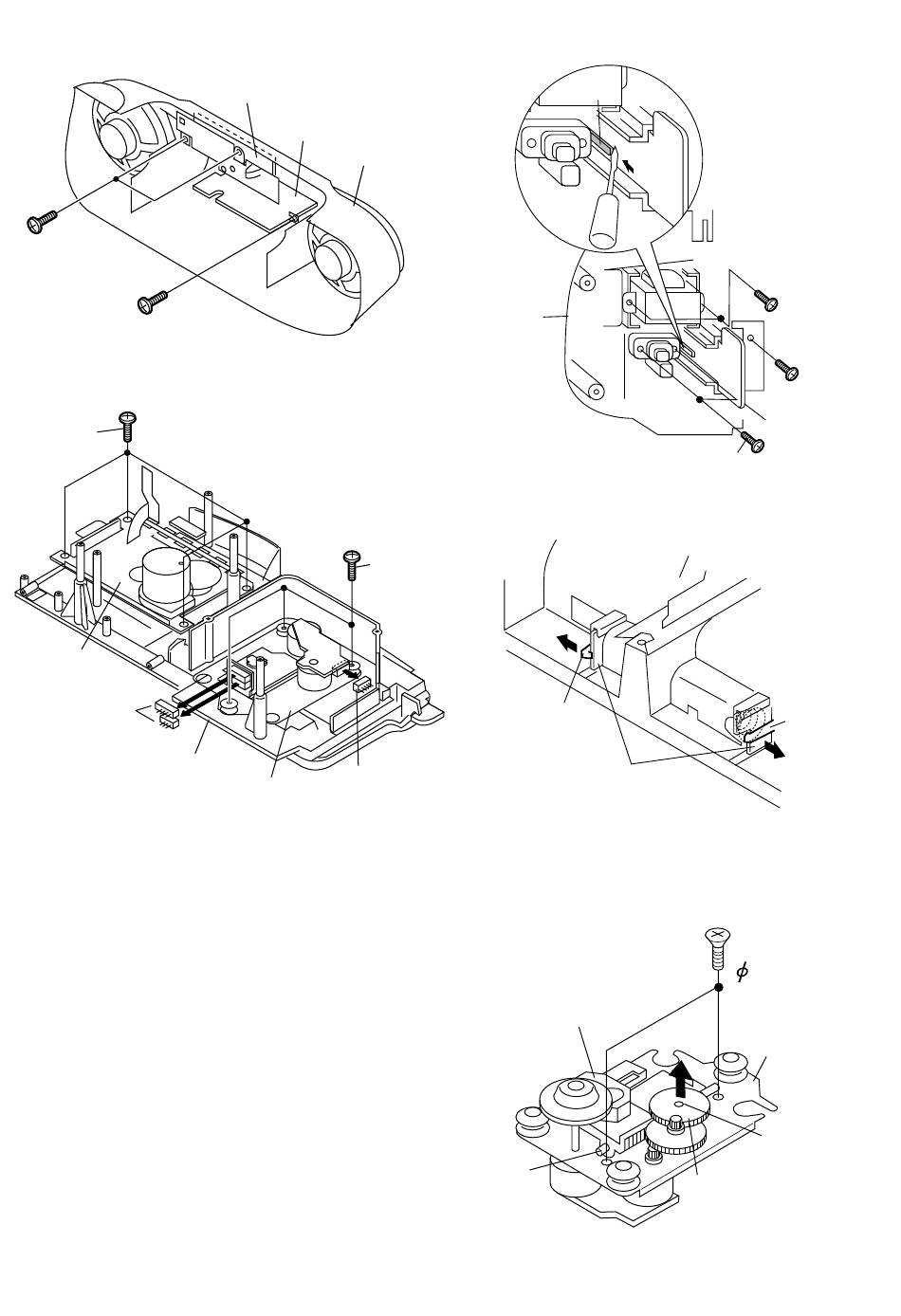

REMOVING AND REINSTALLING THE MAIN PARTS

CD MECHANISM SECTION
Perform steps 1, 2, 3 and 6 of the disassembly method to
remove the CD mechanism.
How to remove the pickup (See Fig. 6-5.)
1. Remove the screws (A1) x 2 pcs., to remove the shaft (A2)
x1 pc.
2. Remove the stop washer (A3) x1 pc., to remove the gear
(A4) x 1 pc.
3. Remove the pickup.
Switch PWB
Tuner Display
PWB
Front Cabinet
(F1)x3
ø2.5x10mm
(C2)x1
CD Mechanism
(G2)x1
Driver
Rear Cabinet
Pull
(H1)x1
Pickup
Shaft
(A2) x1
– 6 –
Push
Terminal PWB
(G1)x2
ø3x10mm
Figure 6-3
Rear Cabinet
Pull
Battery PWB
Figure 6-4
(A1) x2
2.6 x6mm
CD
Mechanism
Stop
Washer
(A3) x1
Gear
(A4) x1
Figure 6-5
(G1)x2
ø3x10mm
(G1)x1
ø3x10mm
(H1)x1
