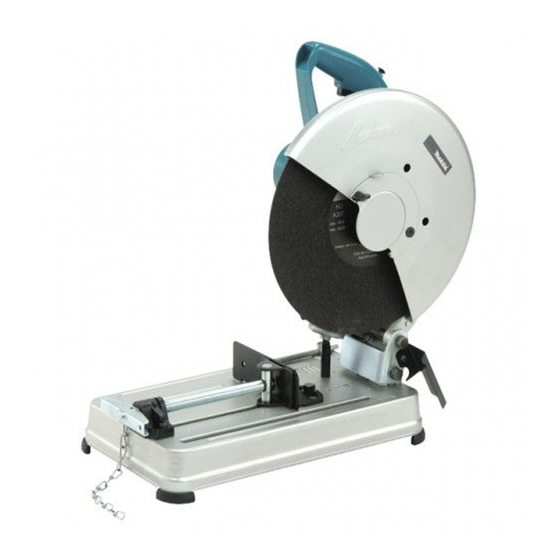

Makita 2414B Instruction Manual

Portable cut-off
Hide thumbs Also See for 2414B:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Portable Cut-Off
2414B
DOUBLE INSULATION
Read before use.

Advertisement

Table of Contents
loading

Related Manuals for Makita 2414B

Summary of Contents for Makita 2414B

  • Page 1 INSTRUCTION MANUAL Portable Cut-Off 2414B DOUBLE INSULATION Read before use.

  • Page 2: Specifications

    SPECIFICATIONS Model 2414B Wheel diameter 355 mm Hole diameter 25.4 mm No load speed (min 3,800 Dimensions (L x W x H) 500 mm x 280 mm x 600 mm Net weight With full type lower safety 17.5 kg guard With half type lower safety 16.1 kg...

  • Page 3: Installation

    12. Secure work. Check the wheel carefully for cracks or dam- Use clamps or a vice to hold the work. It is safer age before operation. Replace cracked or than using your hand and it frees both hands to damaged wheel immediately. operate the tool.

  • Page 4: Functional Description

    This tool should be bolted with two bolts to a level and Spark guard stable surface using the bolt holes provided in the tool's base. This will help prevent tipping and possible per- sonal injury. FUNCTIONAL DESCRIPTION CAUTION: • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.
  • Page 5 Interval between vise and guide Setting for desired cutting angle plate ► 1. Socket wrench 2. Guide plate 3. Hex bolts ► 1. Socket wrench 2. Guide plate 3. Move 4. Hex To change the cutting angle, loosen the two hex bolts bolts which secure the guide plate.

  • Page 6: Securing Workpiece

    For tools with center cover (center Securing workpiece cap) ► 1. Vise plate 2. Vise nut 3. Vise handle ► 1. Shaft lock 2. Center cover (Center cap) 3. Socket wrench 4. Screw 5. Cut-off wheel By turning the vise handle counterclockwise and then flipping the vise nut to the left, the vise is released from To remove the wheel, loosen the screw and raise the the shaft threads and can be moved rapidly in and out.

  • Page 7: Operation

    OPERATION Hold the handle firmly. Switch on the tool and wait until the wheel attains full speed before lowering gently into the cut. When the wheel contacts the workpiece, gradually bear down on the handle to perform the cut. When the cut is completed, switch off the tool and WAIT UNTIL THE WHEEL HAS COME TO A COMPLETE STOP before returning the handle to the fully elevated position.
  • Page 8 1. When cutting thick pipes or bars Move the handle back and forth to slide the tool head. This will help increase cutting sufficiency and prevent wheel loading. ► 1. Uncut portion 2. Workpiece ► 1. Handle ► 1. Uncut portion 2. Workpiece ►...

  • Page 9: Carrying Tool

    • These accessories or attachments are recom- • Never use gasoline, benzine, thinner, alcohol mended for use with your Makita tool specified or the like. Discoloration, deformation or cracks in this manual. The use of any other accessories may result.
  • Page 12 Makita Corporation 883859E8 20160523 www.makita.com...
